Camshaft Position Sensor: Diagrams




Component Connector End Views

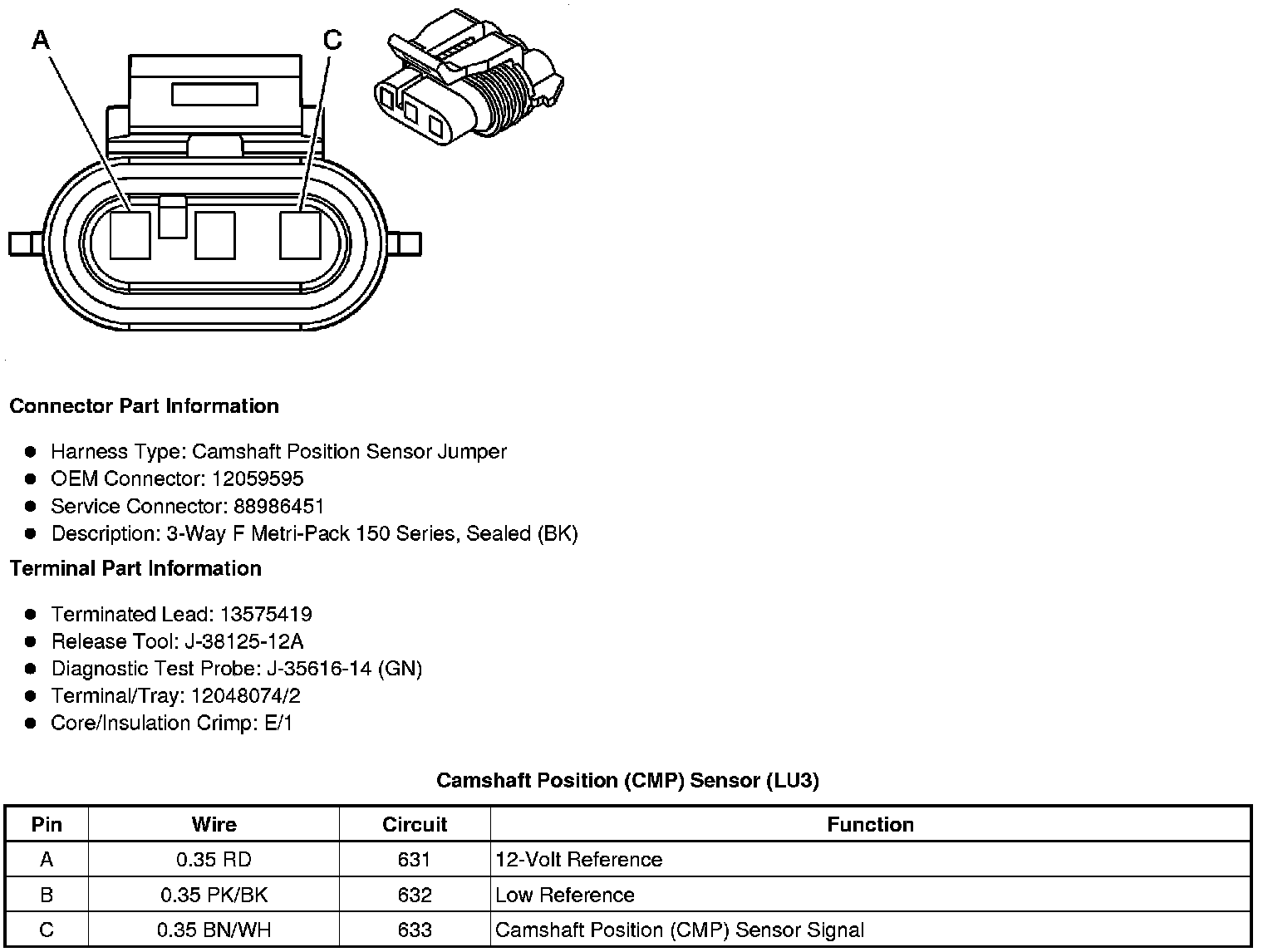

Camshaft Position (CMP) Sensor (LU3)

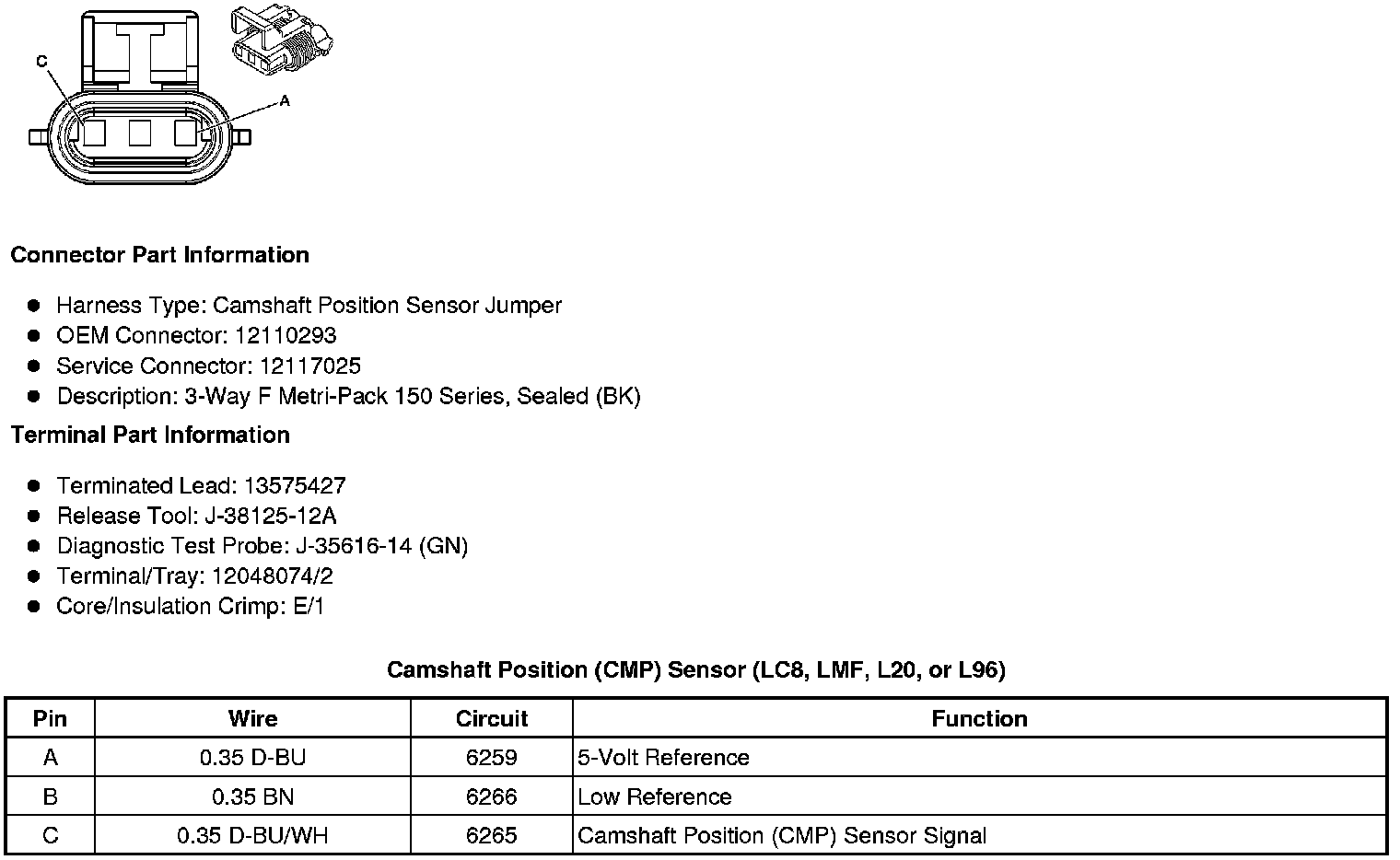

Camshaft Position (CMP) Sensor (LC8, LMF, L20, or L96)

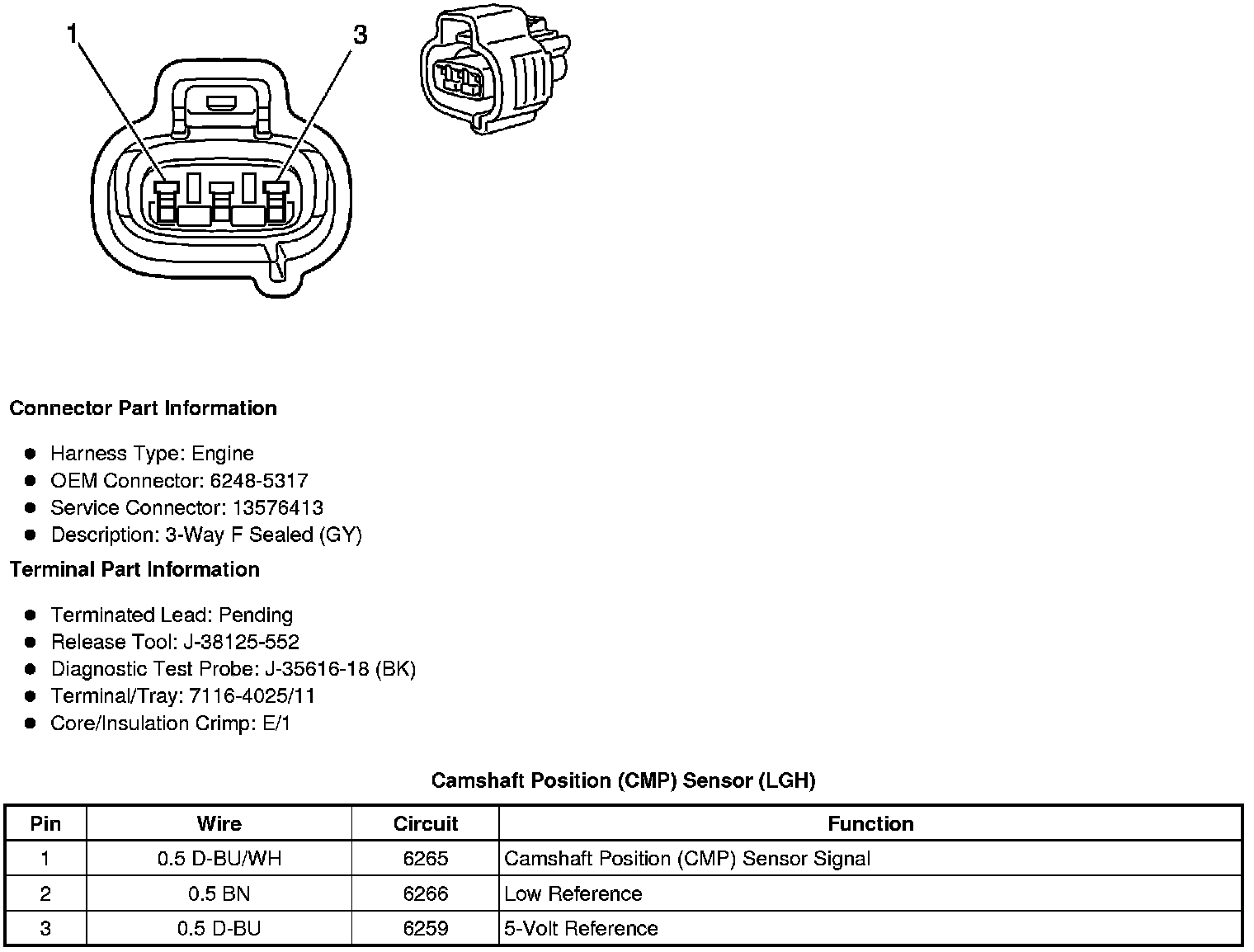

Camshaft Position (CMP) Sensor (LGH)
