Throttle Body
Component Connector End Views

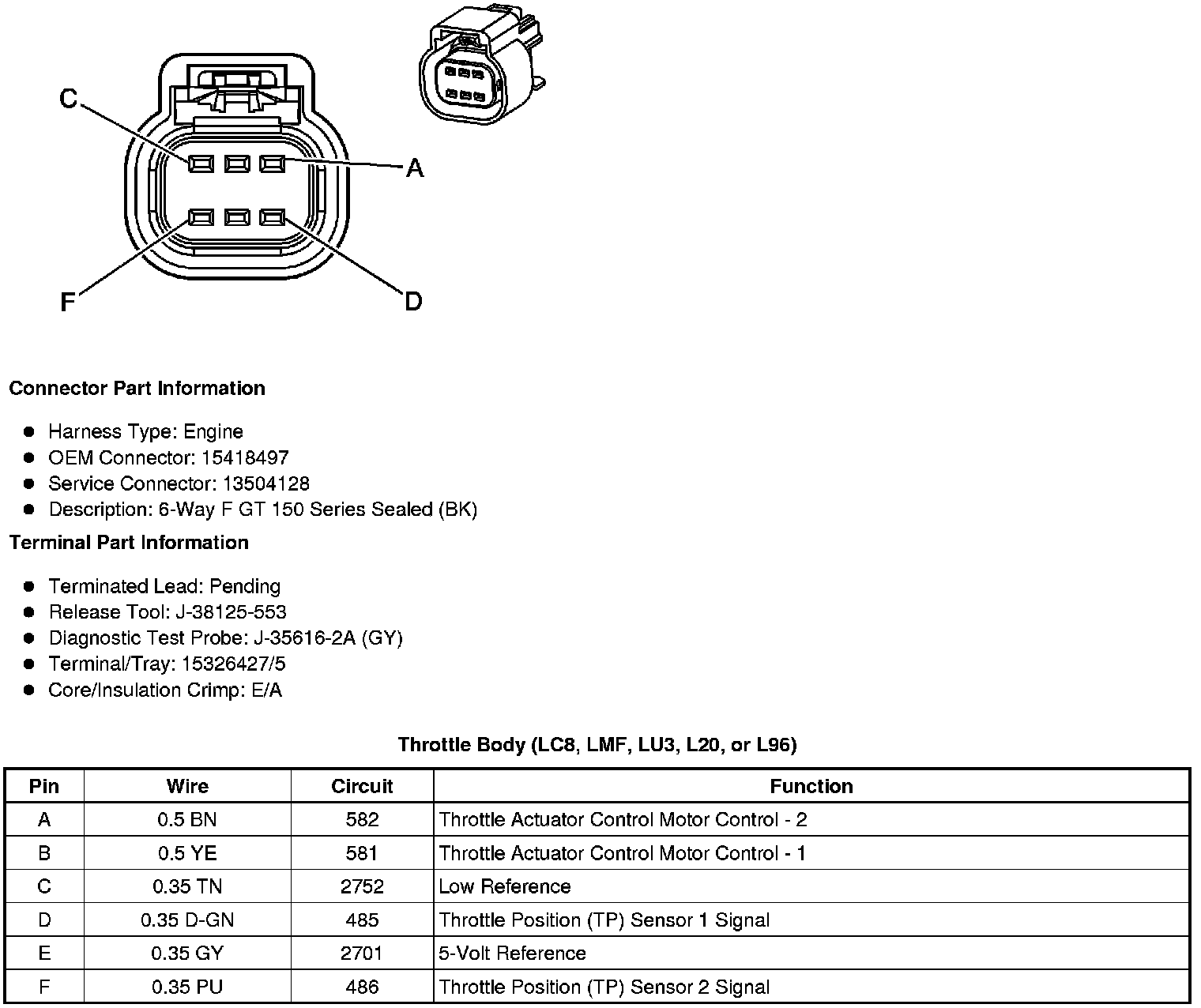

Throttle Body
(LC8, LMF, LU3, L20, or L96)

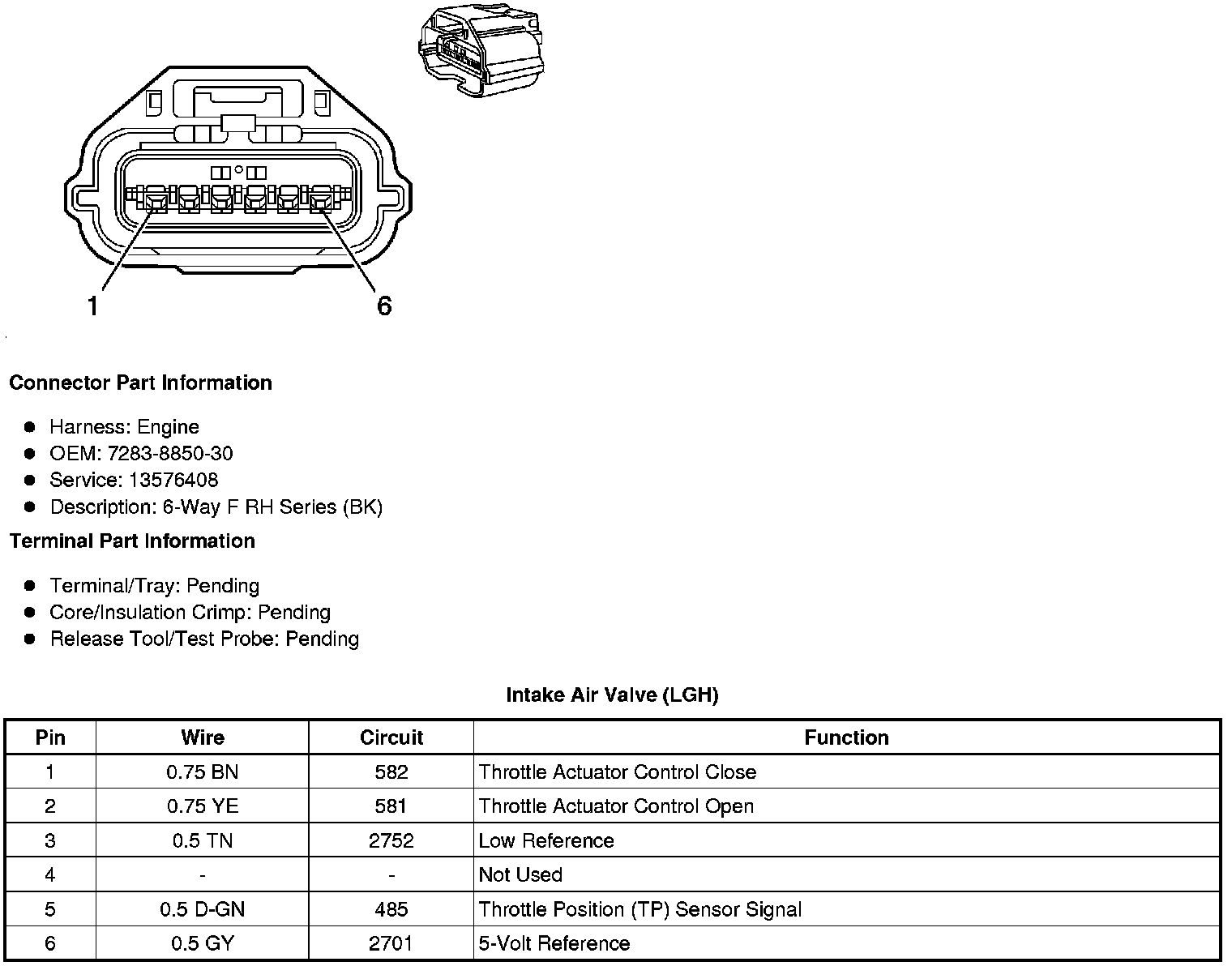

Intake Air Valve (LGH)
