Starter Motor




Component Connector End Views

Starter Motor X1 (LC8, LMF, LU3, L20, or L96)









Starter Motor X1 (LGH)

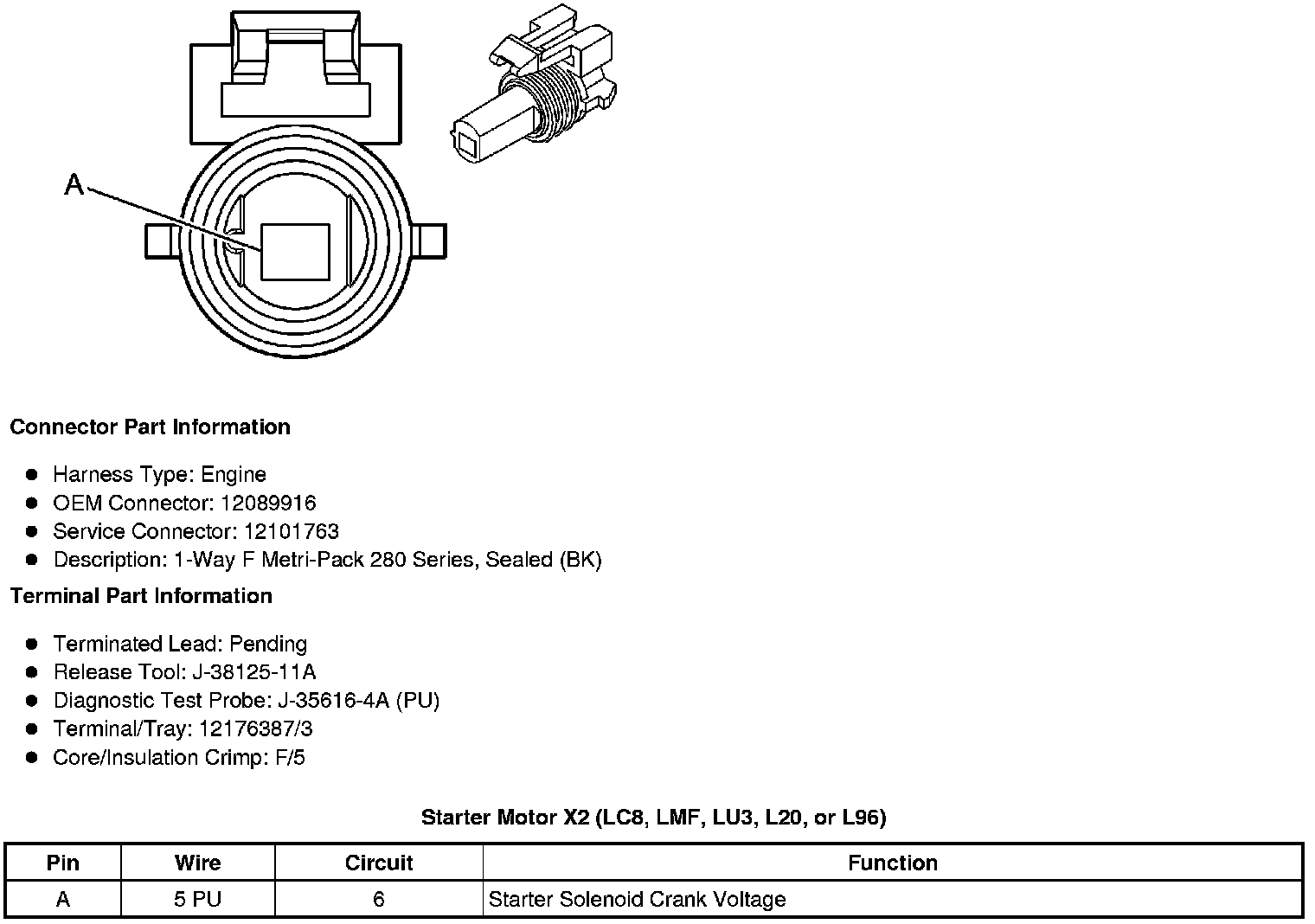

Starter Motor X2 (LC8, LMF, LU3, L20, or L96)





Starter Motor X2 (LGH)
