Power Door Lock Switch




Component Connector End Views

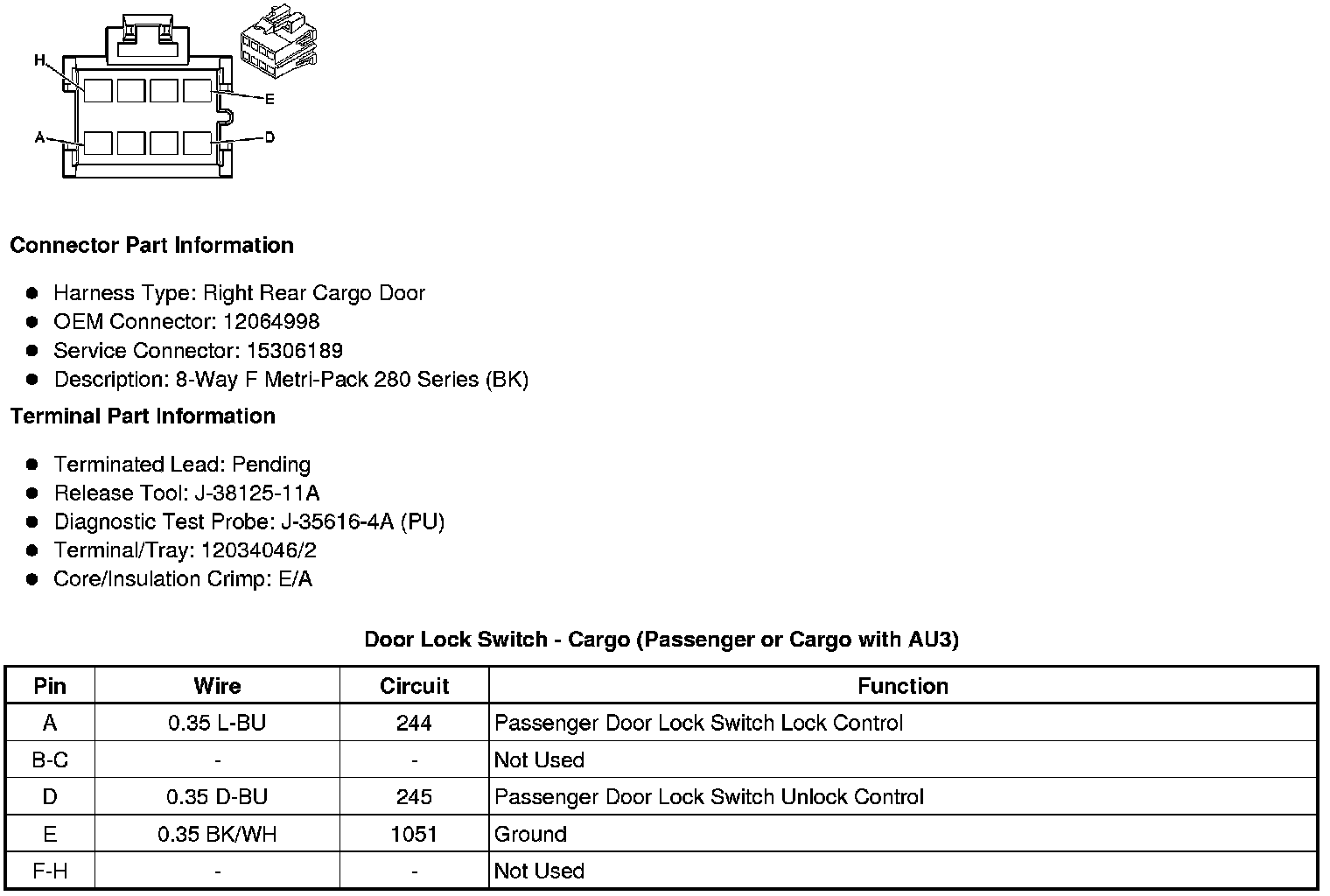

Door Lock Switch - Cargo (Passenger or Cargo with AU3)

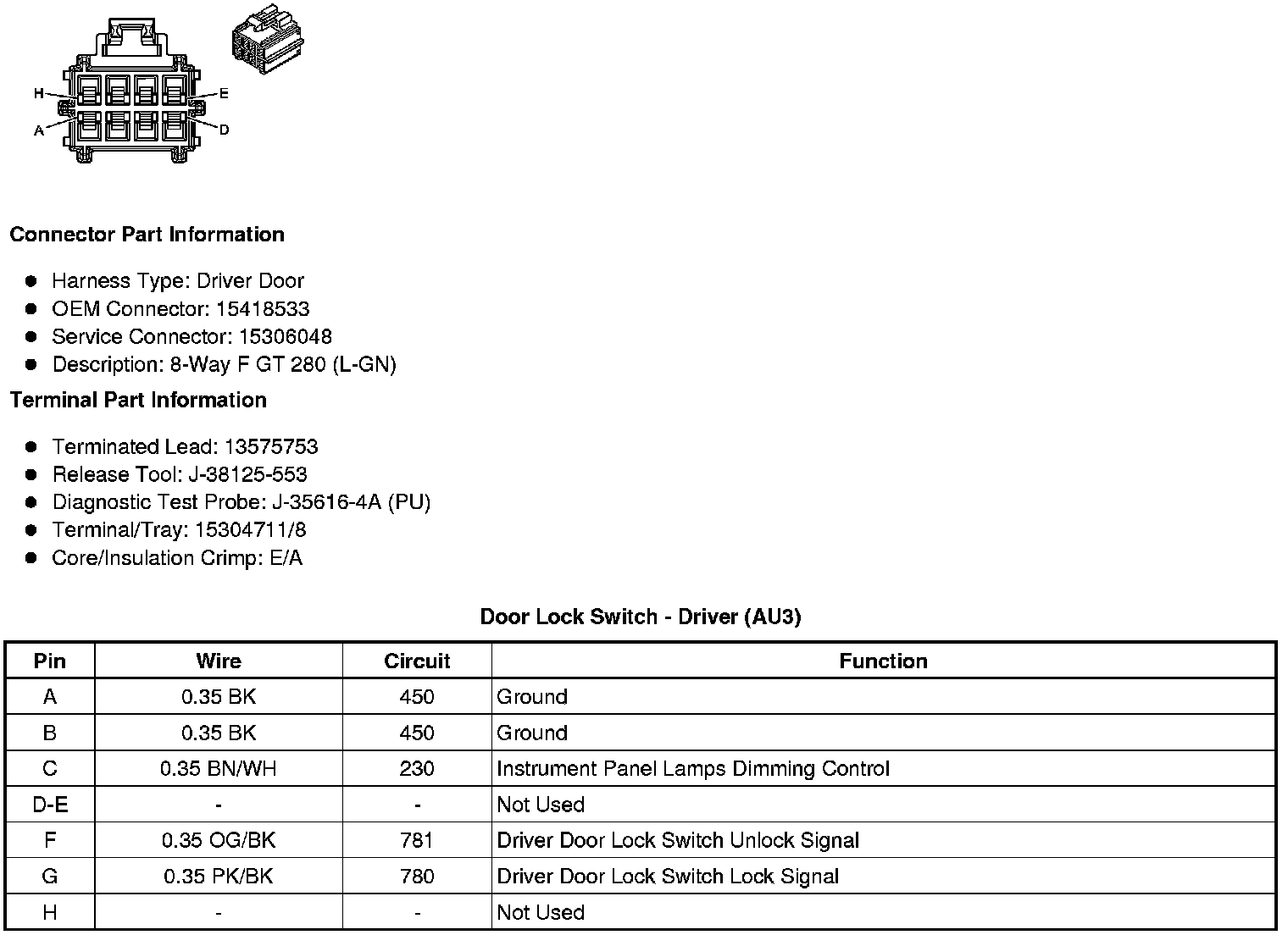

Door Lock Switch - Driver (AU3)

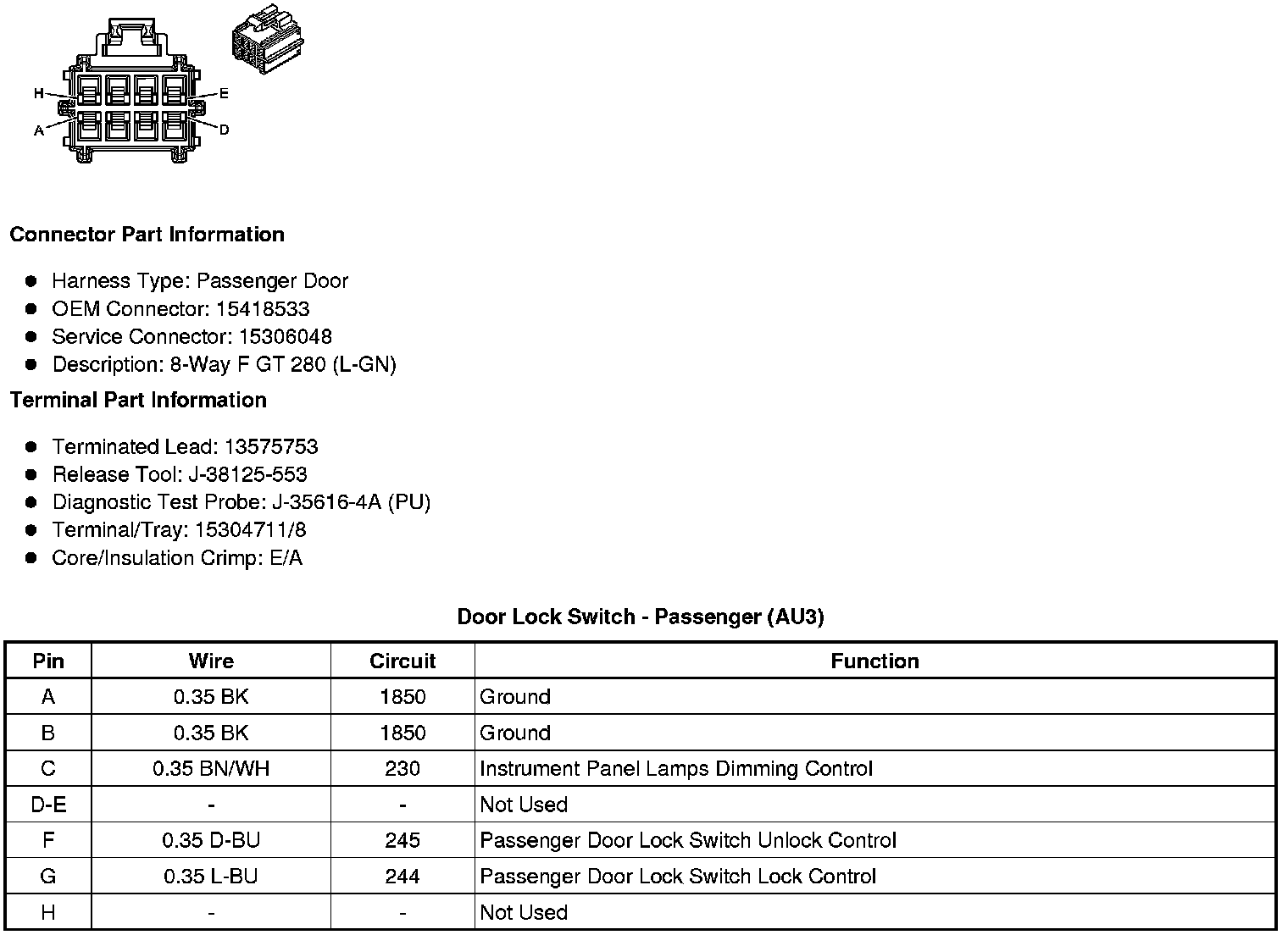

Door Lock Switch - Passenger (AU3)
