Oxygen Sensor: Diagrams




Component Connector End Views

B52A Heated Oxygen Sensor 1 (LUW)

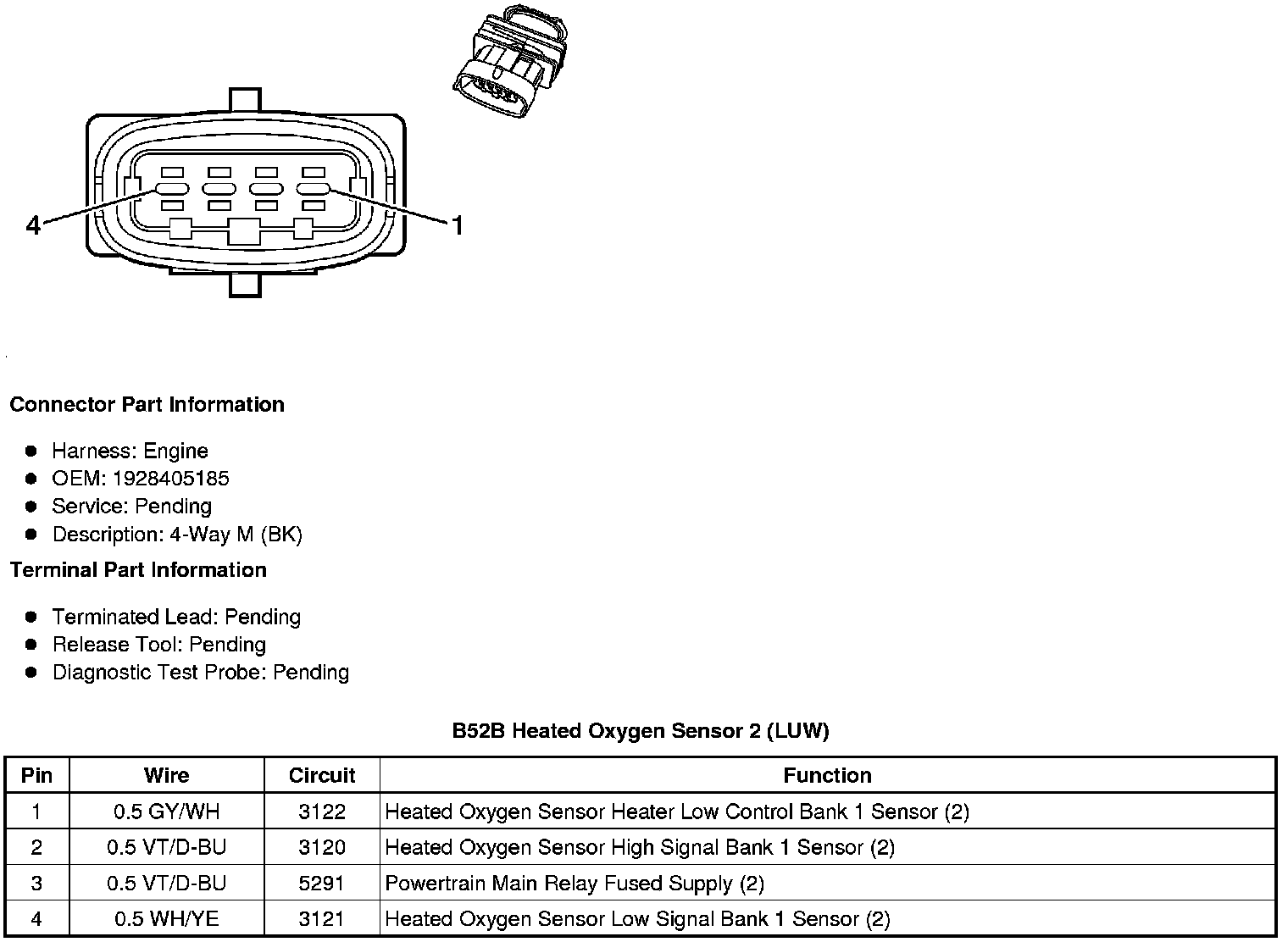

B52B Heated Oxygen Sensor 2 (LUW)
