Camshaft Position Sensor: Diagrams




Component Connector End Views

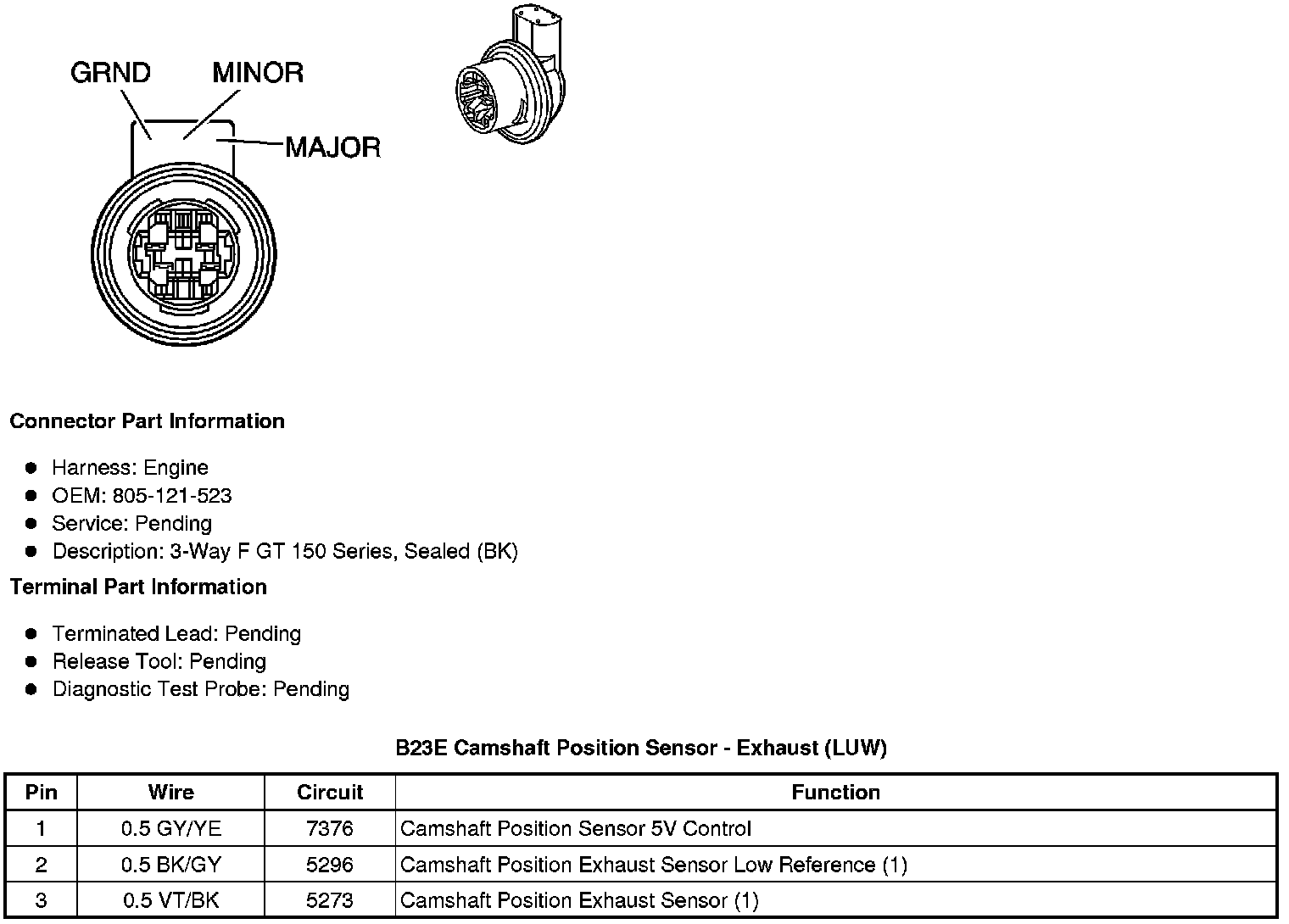

B23E Camshaft Position Sensor - Exhaust (LUW)

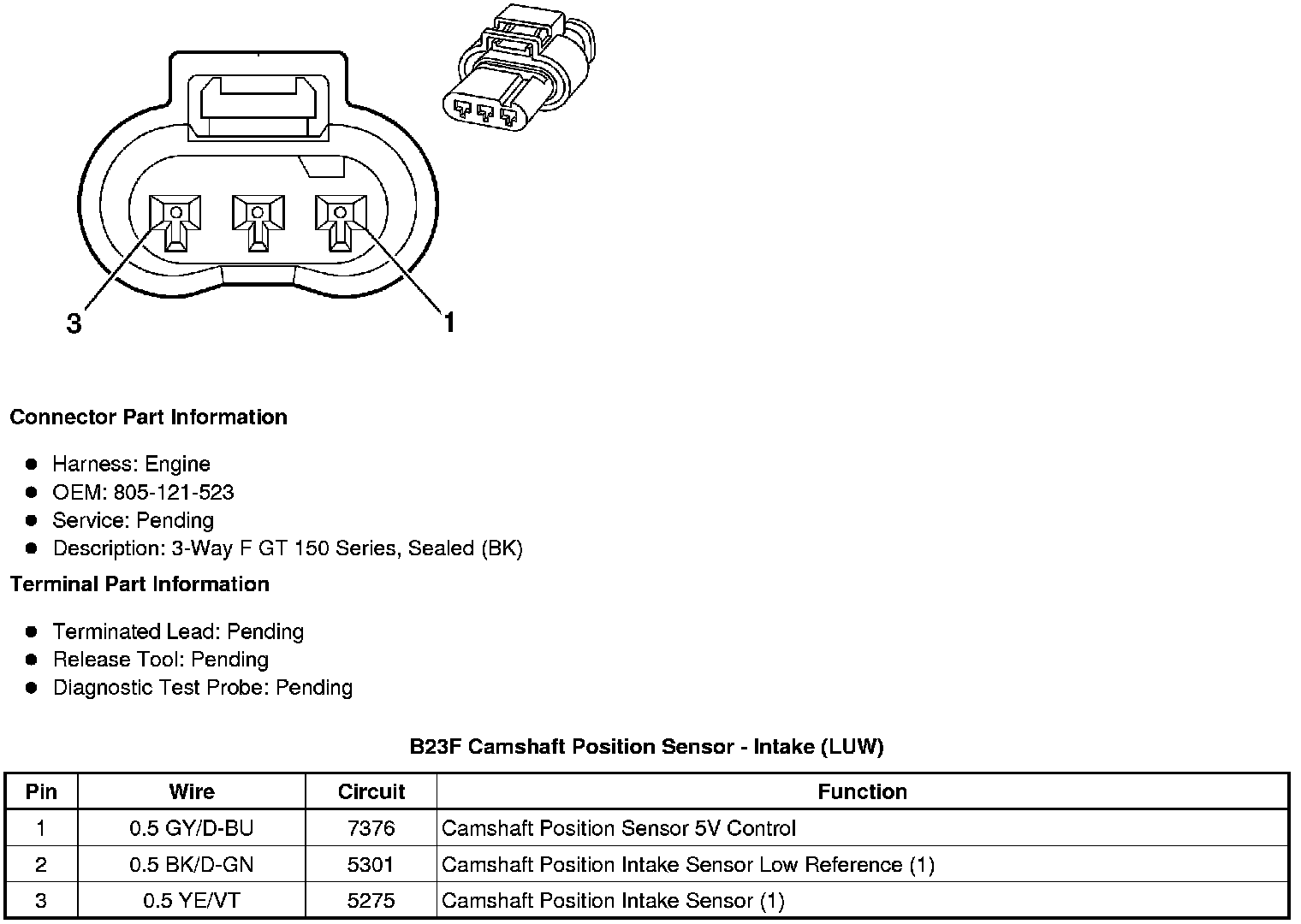

B23F Camshaft Position Sensor - Intake (LUW)
