Windshield Washer Switch
Windshield Washer Switch

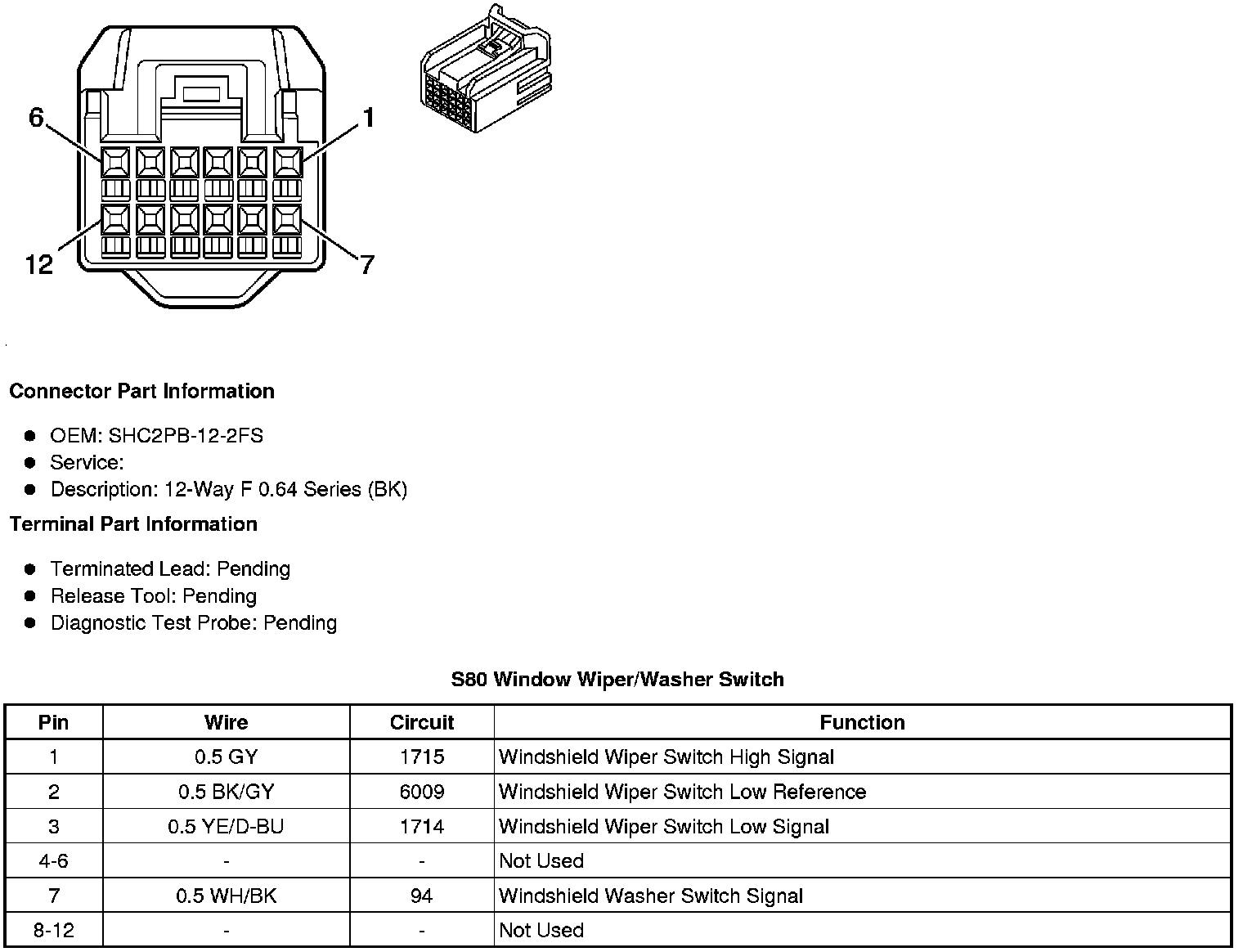

Component Connector End Views
S80 Window Wiper/Washer Switch
