Rain Sensor
Rain Sensor
Component Connector End Views

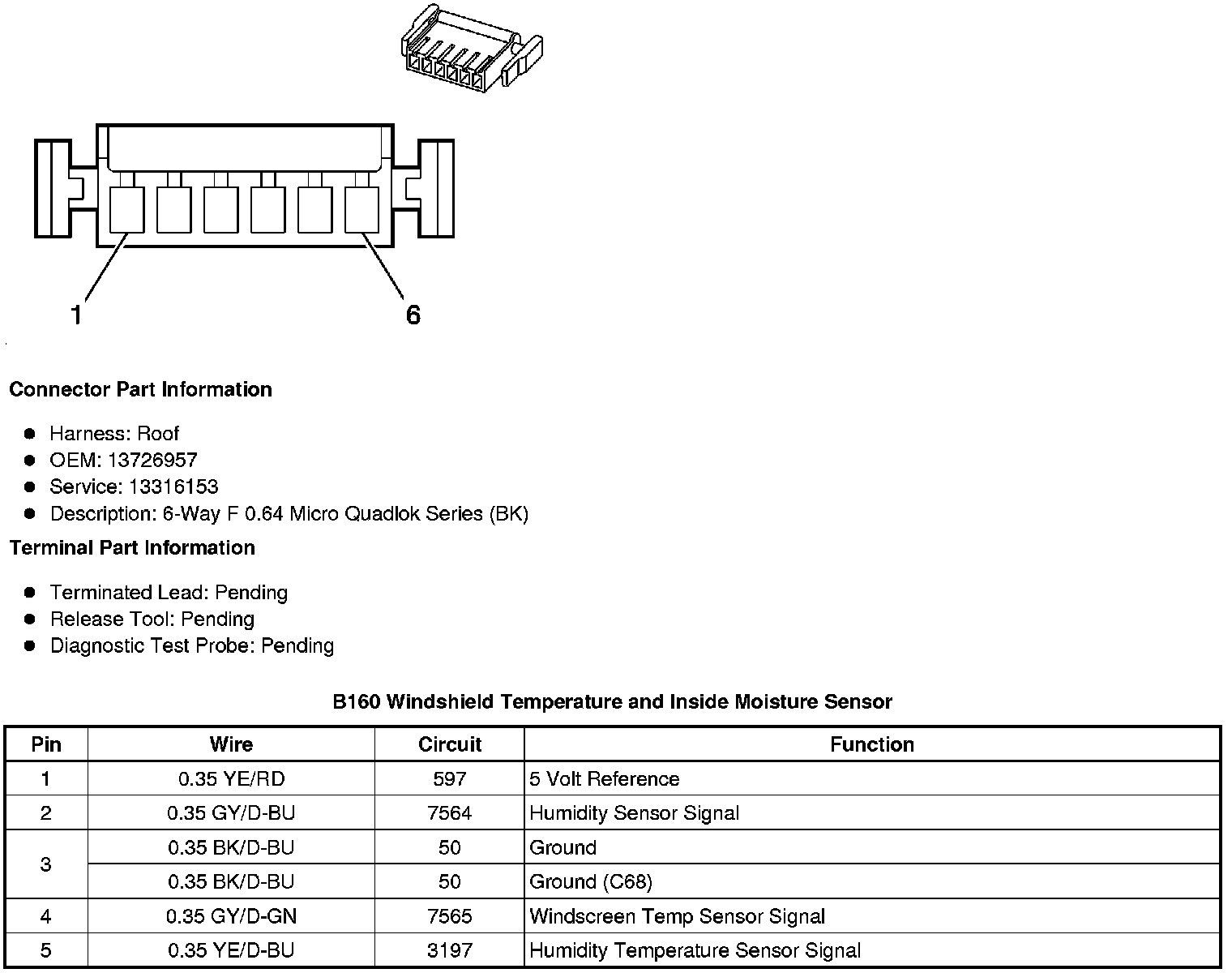

B160 Windshield Temperature and Inside Moisture Sensor
