Steering Column Lock Control Module K60

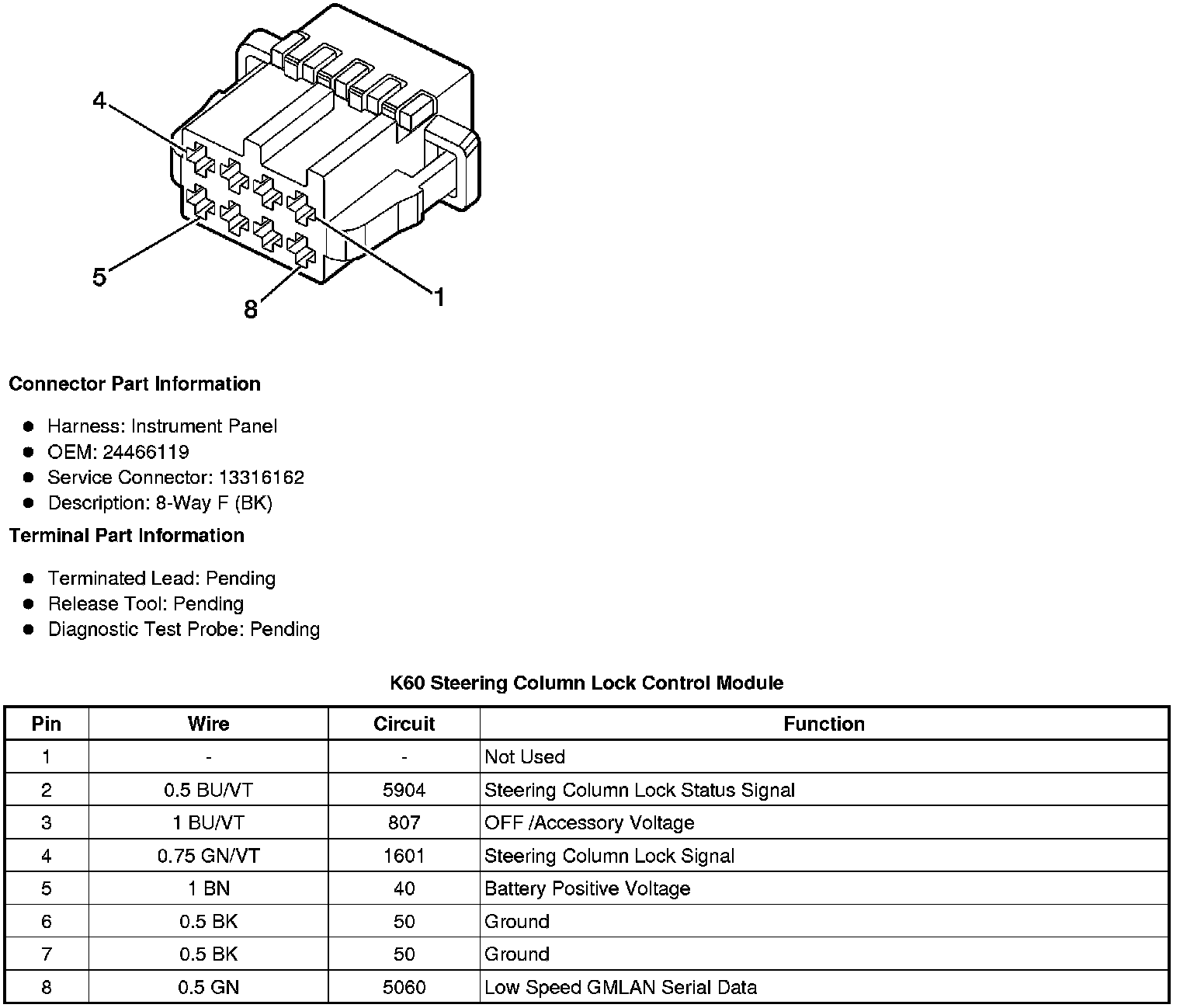

Component Connector End Views

K60 Steering Column Lock Control Module
