Power Window Switch




Component Connector End Views

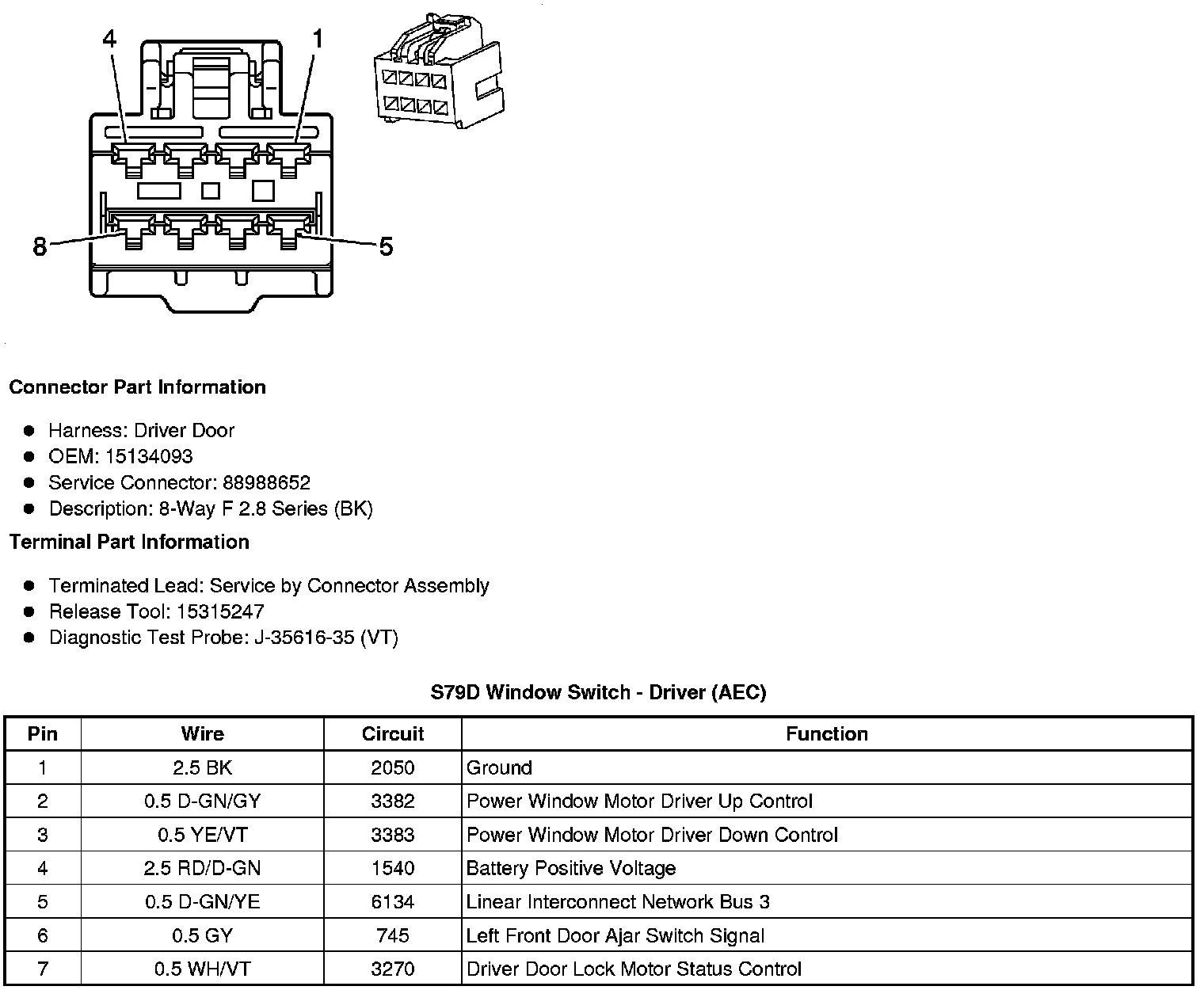

S79D Window Switch - Driver (AEC)

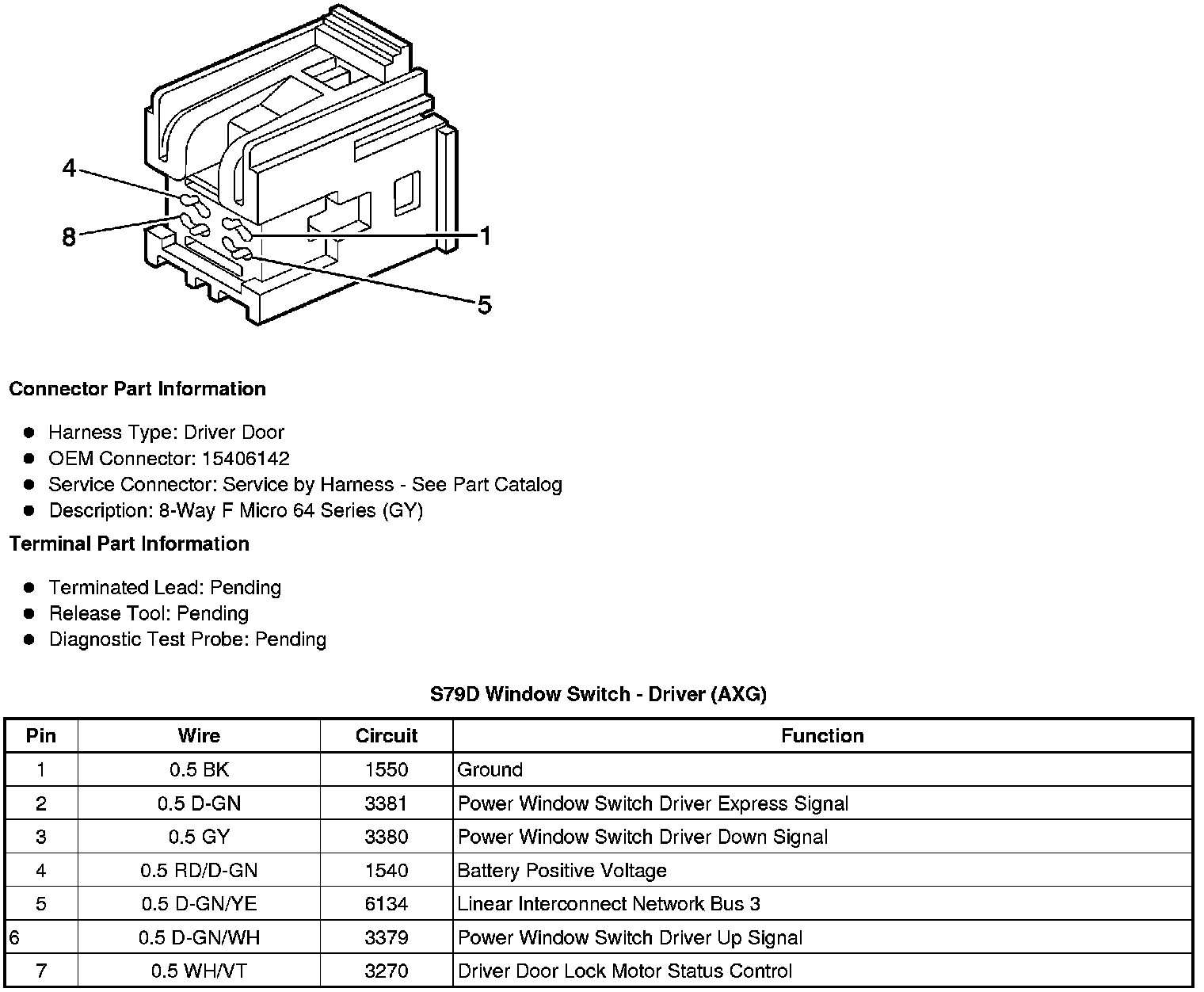

S79D Window Switch - Driver (AXG)

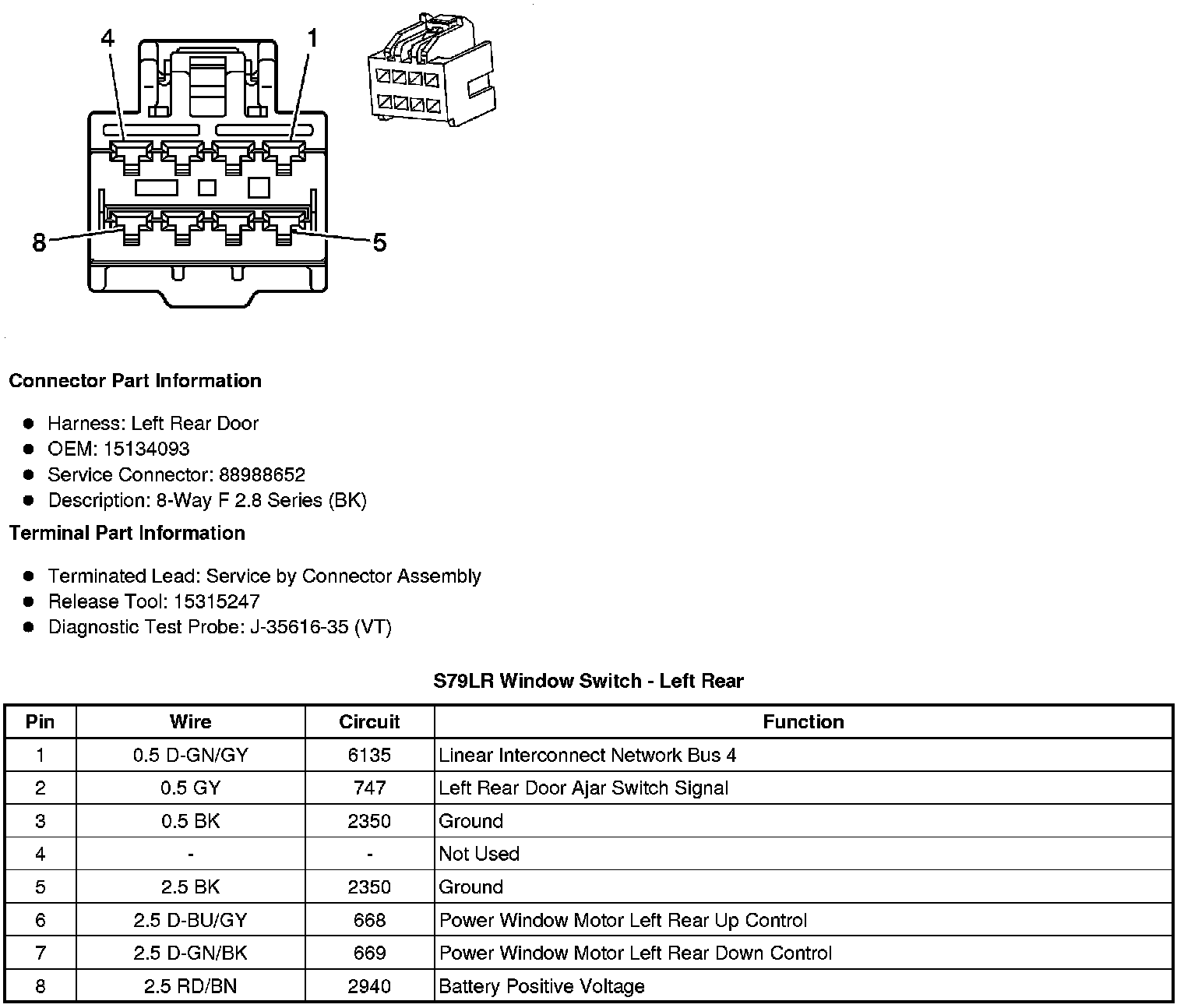

S79LR Window Switch - Left Rear

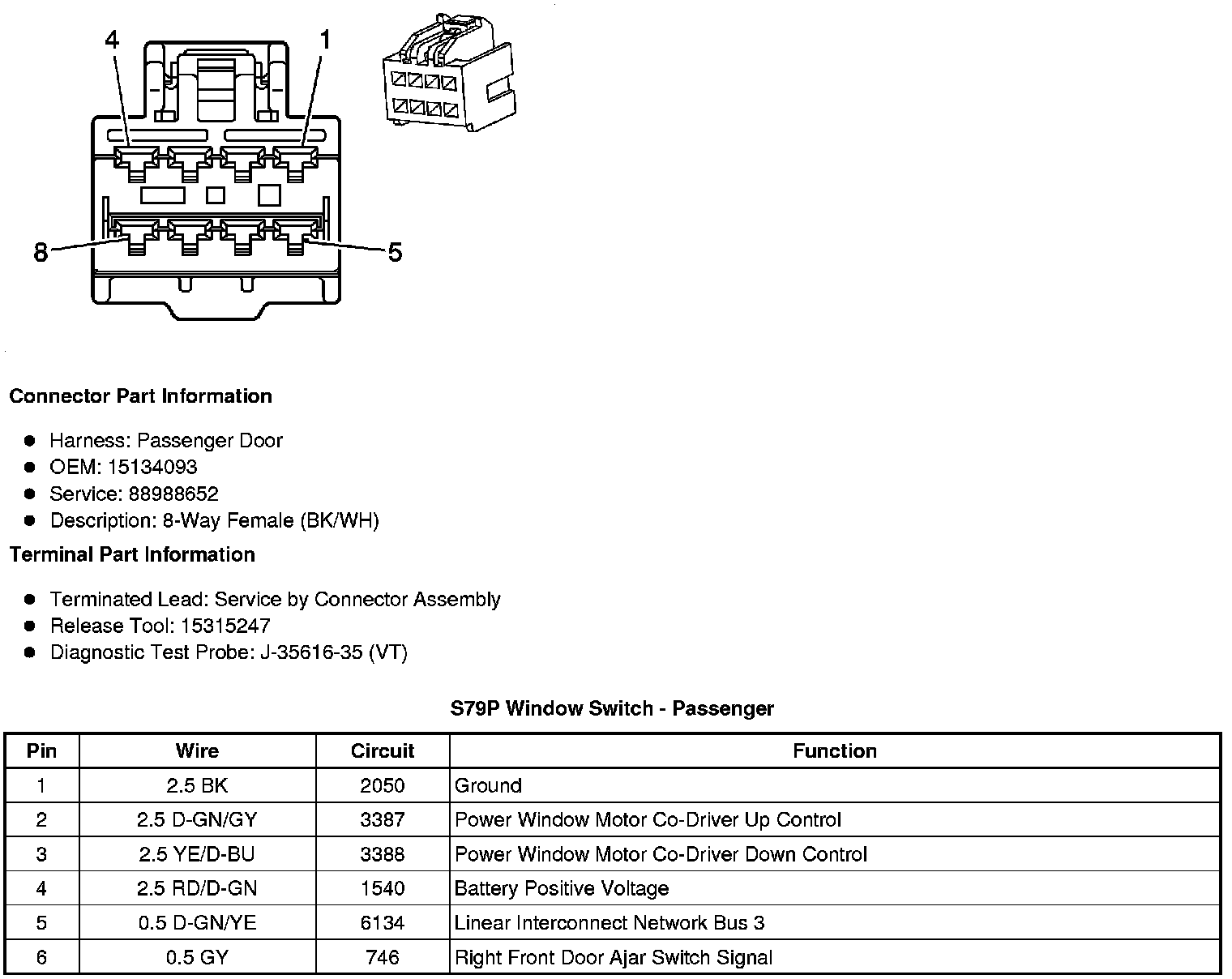

S79P Window Switch - Passenger

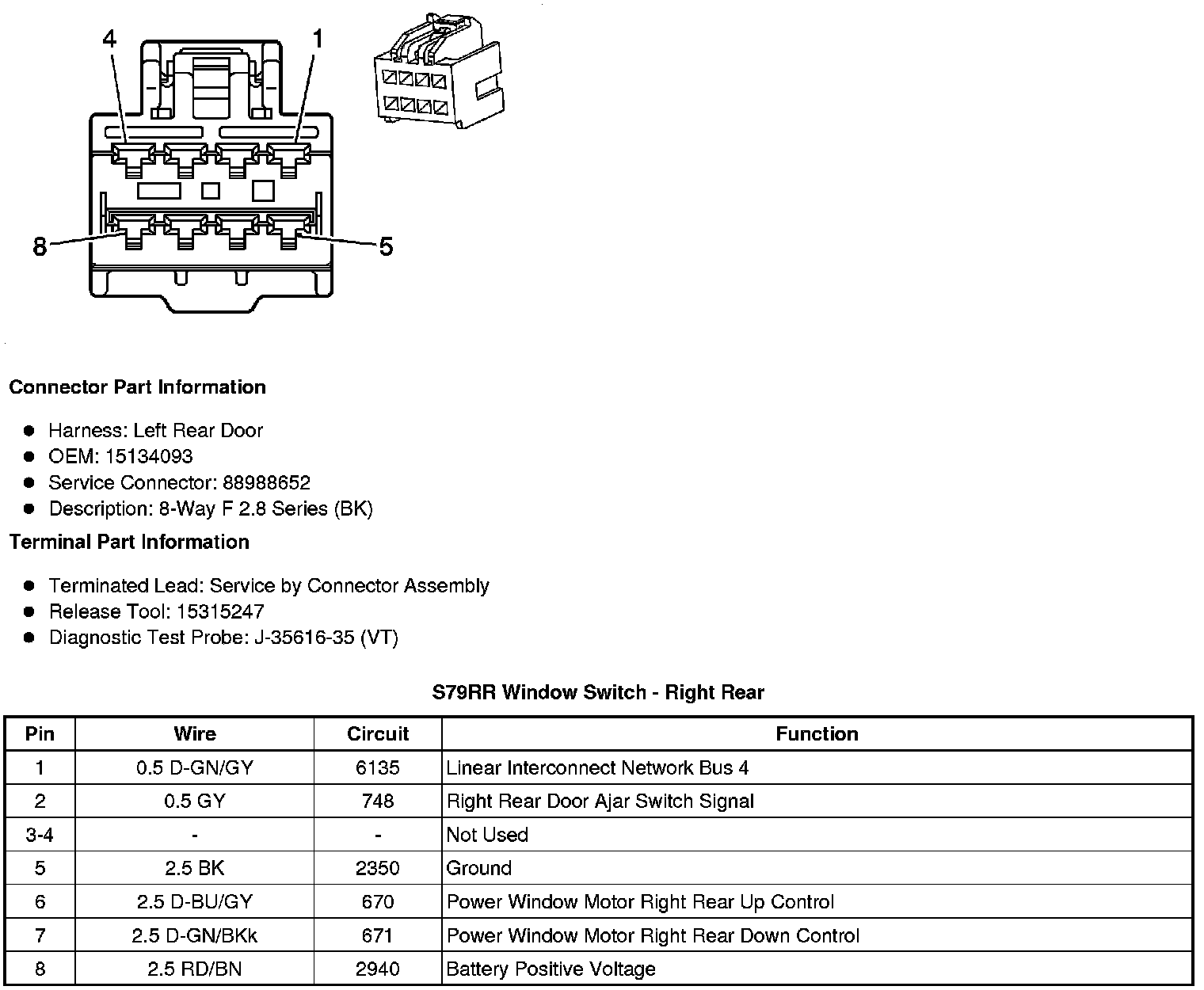

S79RR Window Switch - Right Rear
