Manifold Pressure/Vacuum Sensor: Diagrams
Component Connector End Views

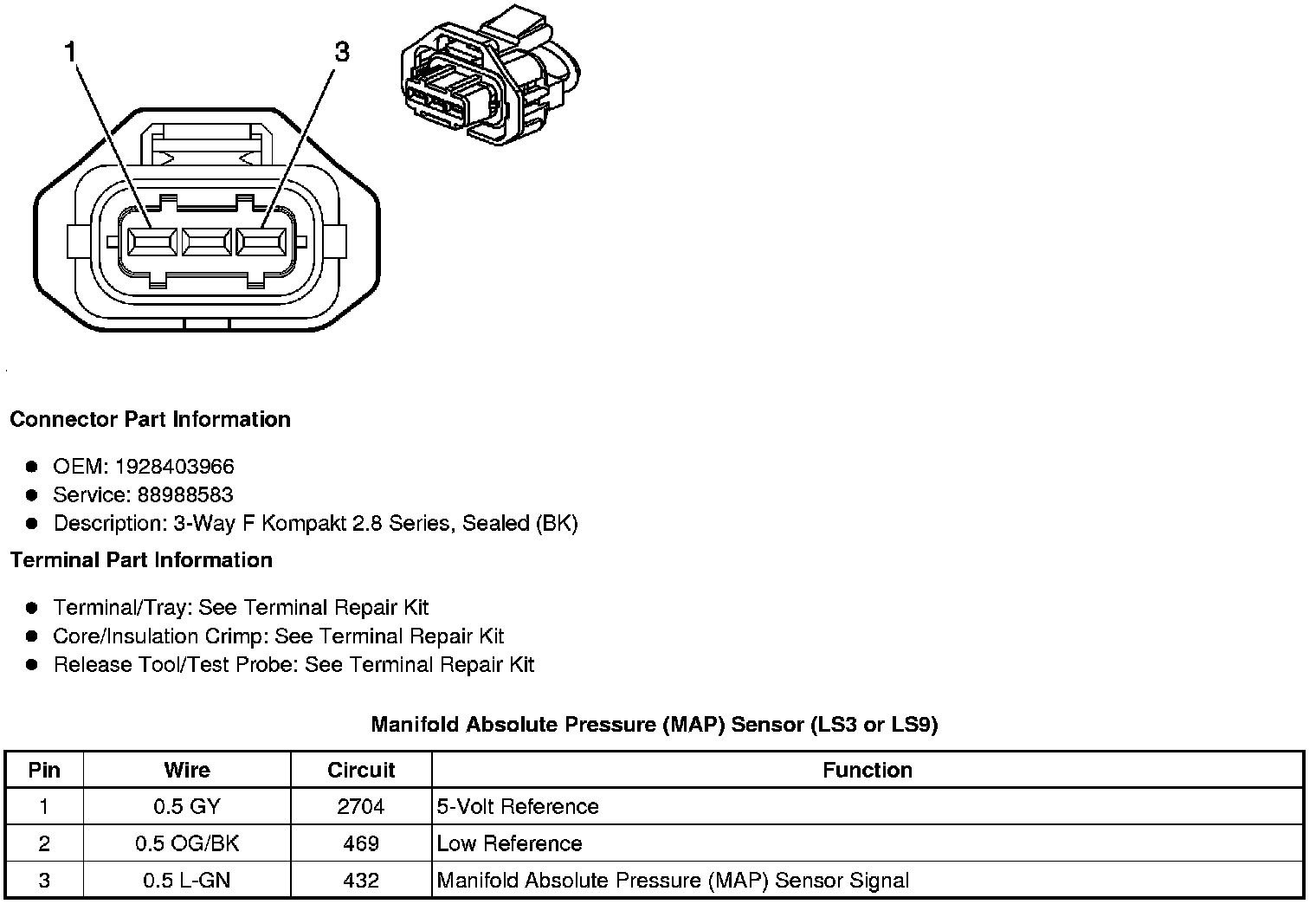

Manifold Absolute Pressure (MAP) Sensor (LS3 or LS9)

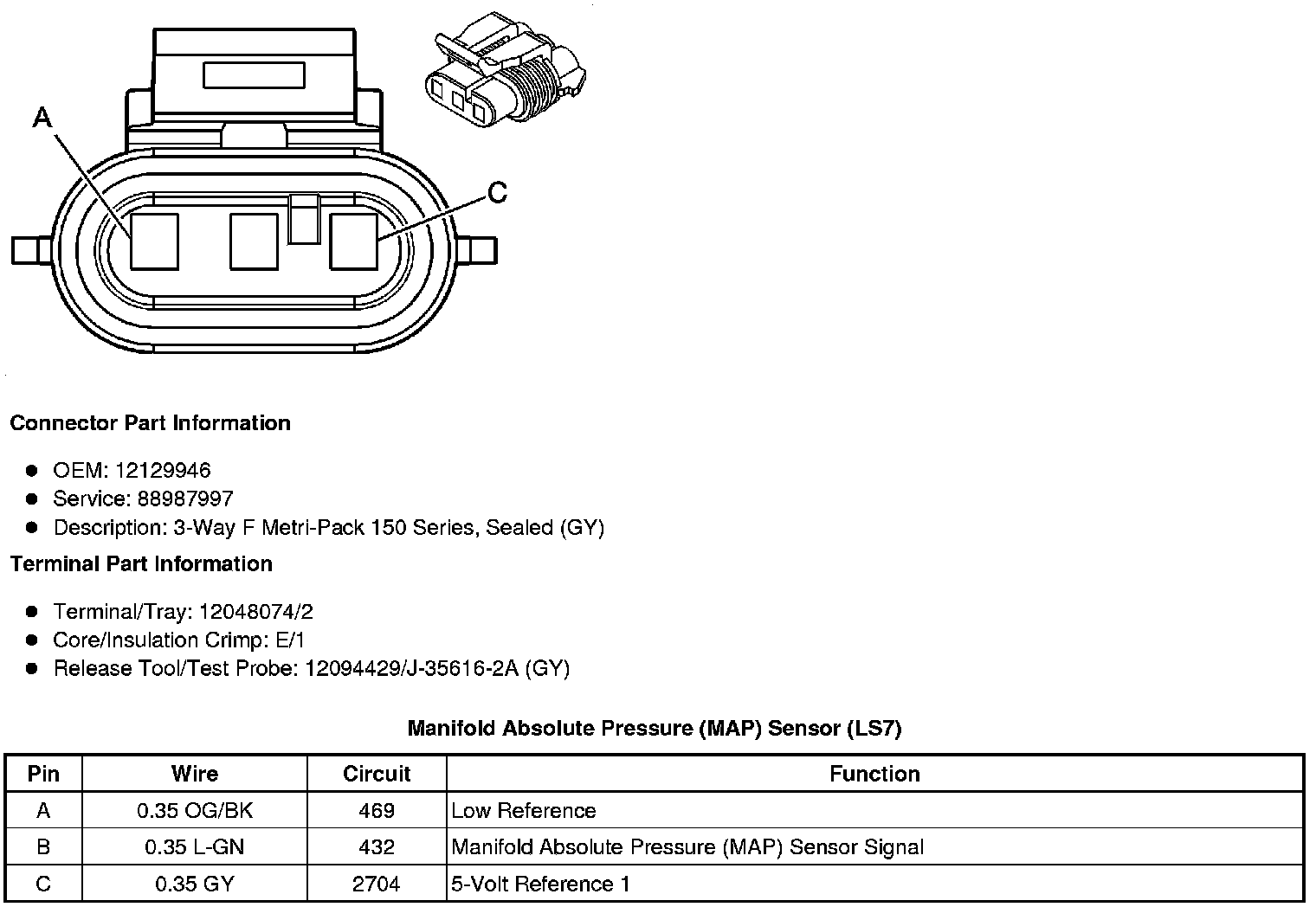

Manifold Absolute Pressure (MAP) Sensor (LS7)

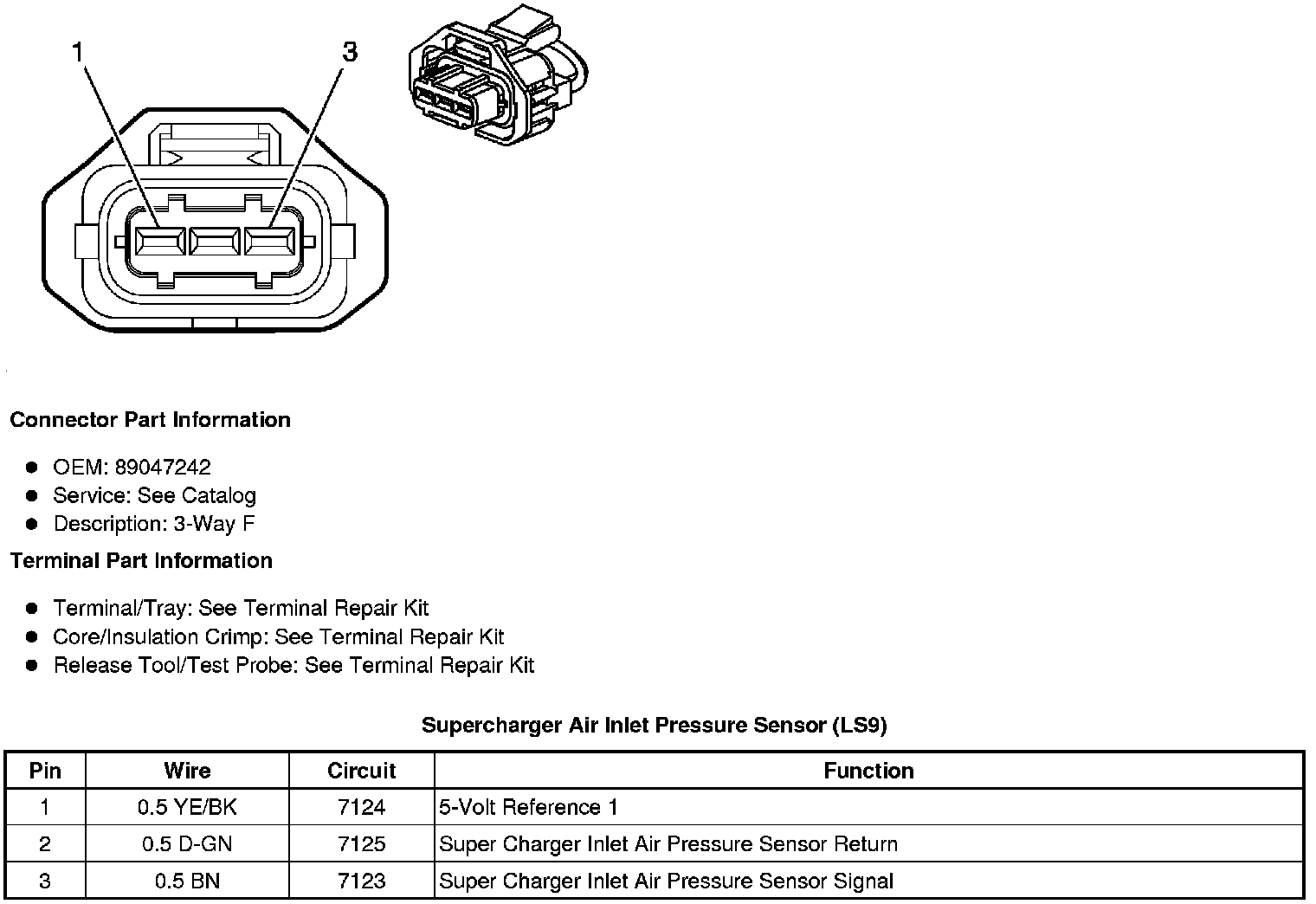

Supercharger Air Inlet Pressure Sensor (LS9)
Component Connector End Views
Manifold Absolute Pressure (MAP) Sensor (LS3 or LS9)
Manifold Absolute Pressure (MAP) Sensor (LS7)
Supercharger Air Inlet Pressure Sensor (LS9)
