Mirrors




Component Connector End Views

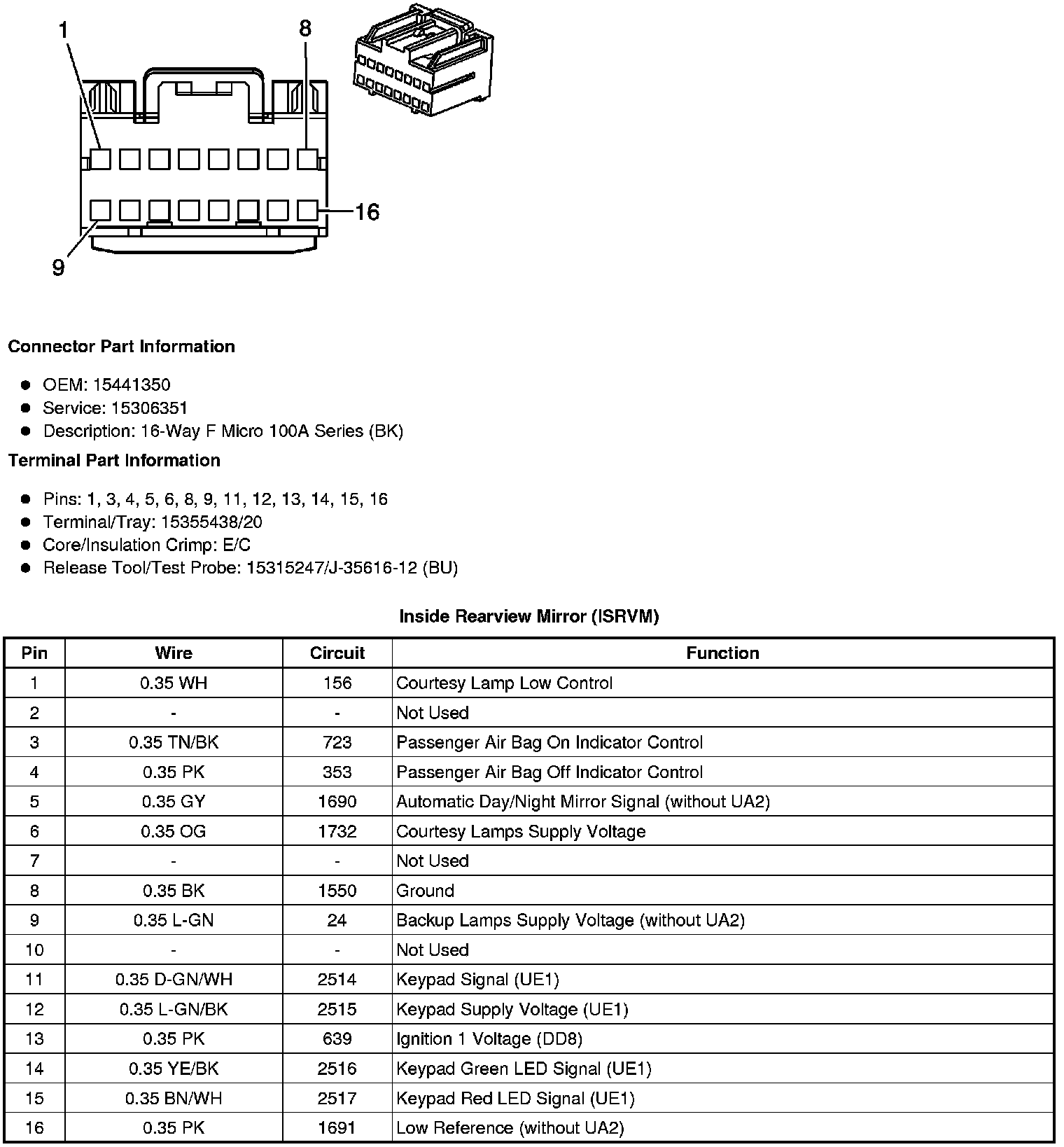

Inside Rearview Mirror (ISRVM)

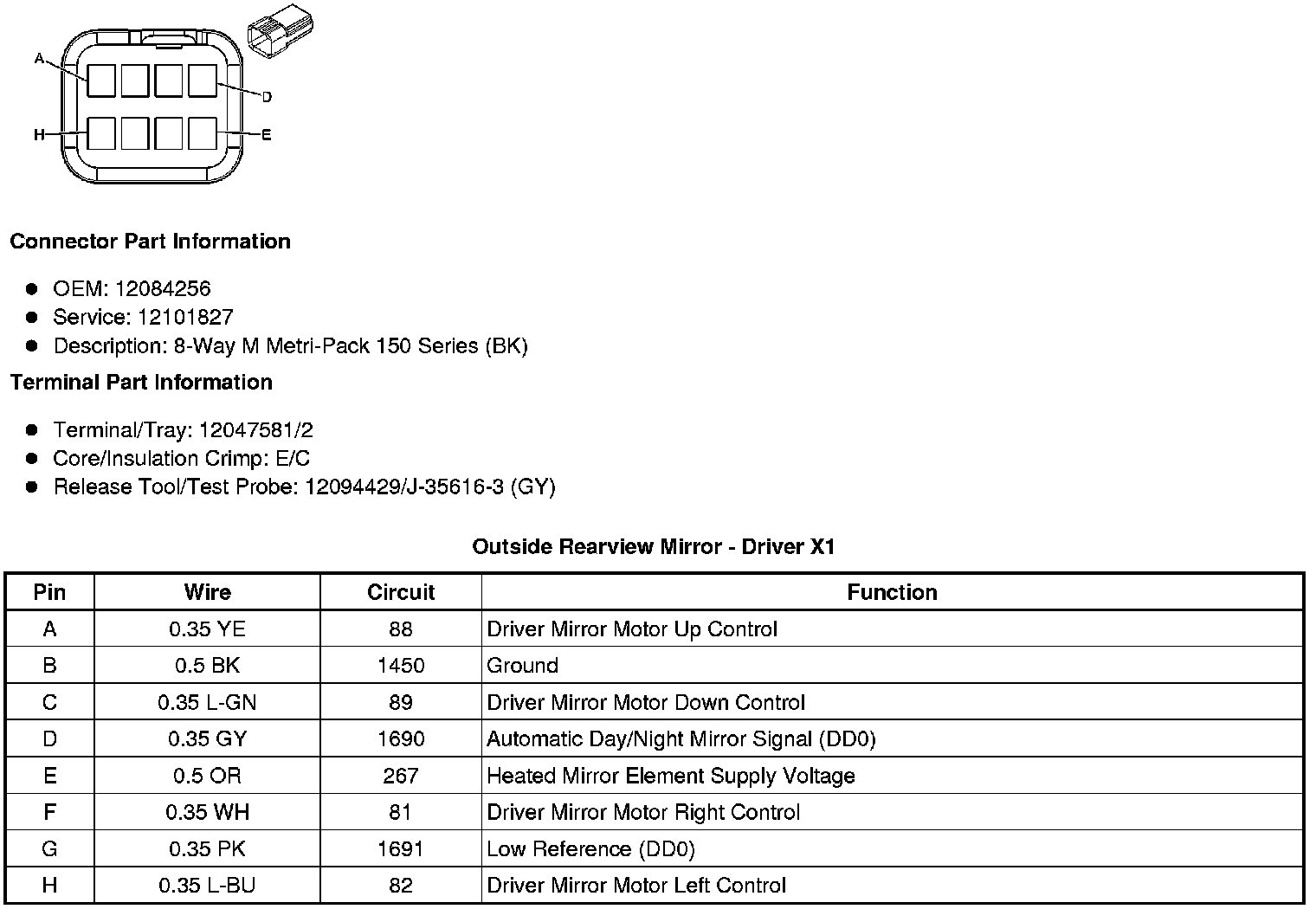

Outside Rearview Mirror - Driver X1





Outside Rearview Mirror - Driver X2 (DD0 without T90)

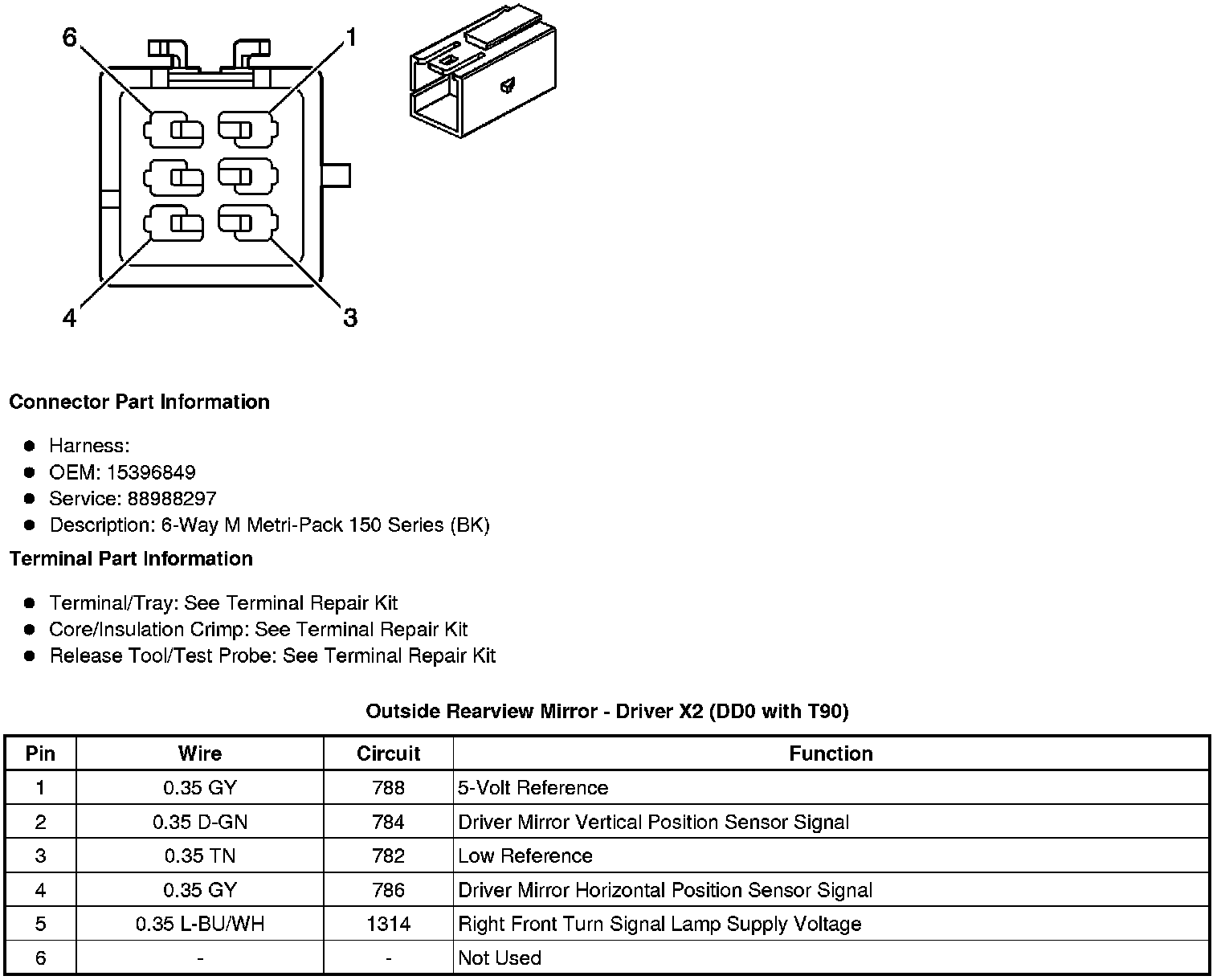

Outside Rearview Mirror - Driver X2 (DD0 with T90)

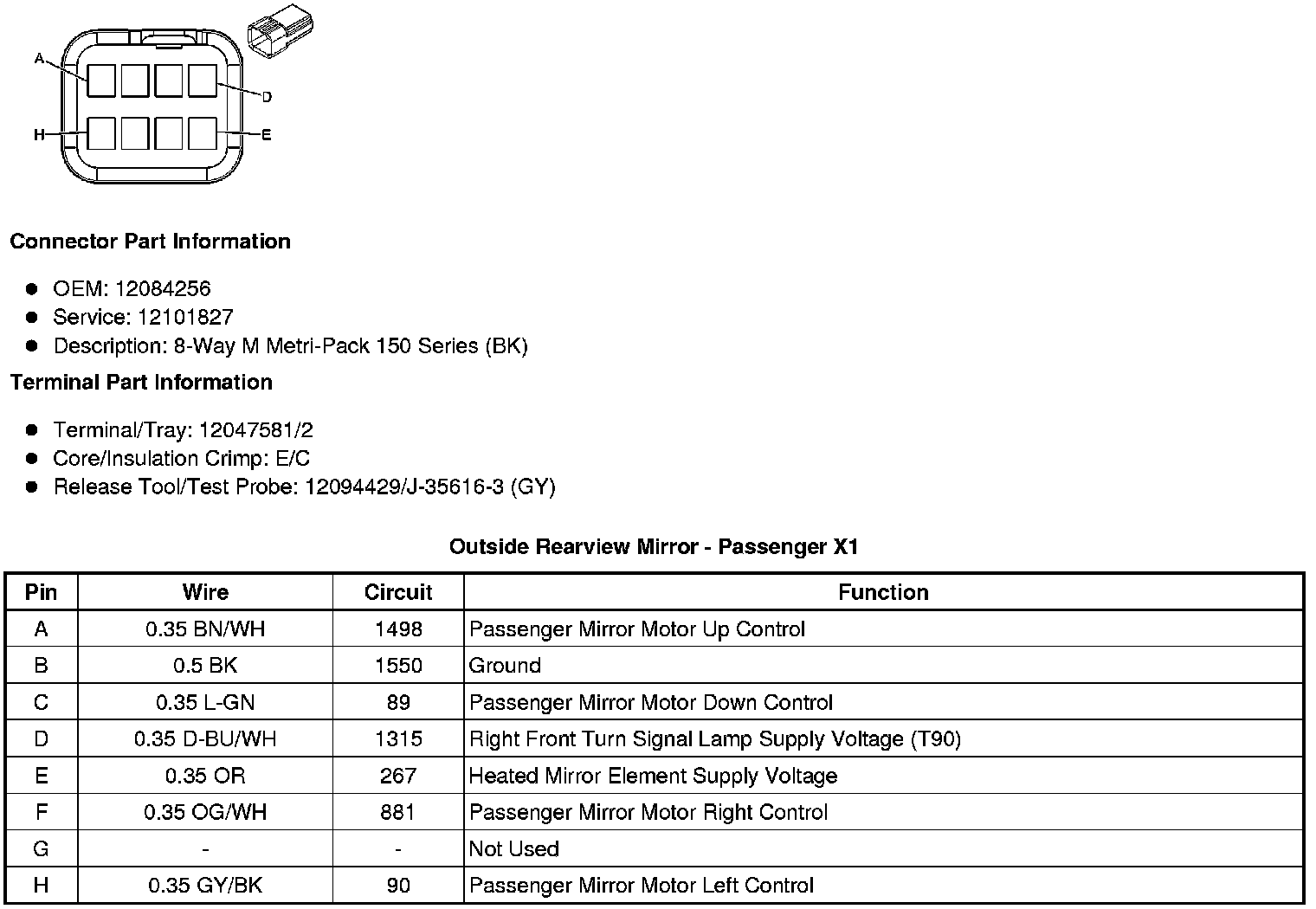

Outside Rearview Mirror - Passenger X1





Outside Rearview Mirror - Passenger X2 (DD0)
