Home >> Chevrolet >> 2011 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display

Driver/Vehicle Information Display




Component Connector End Views

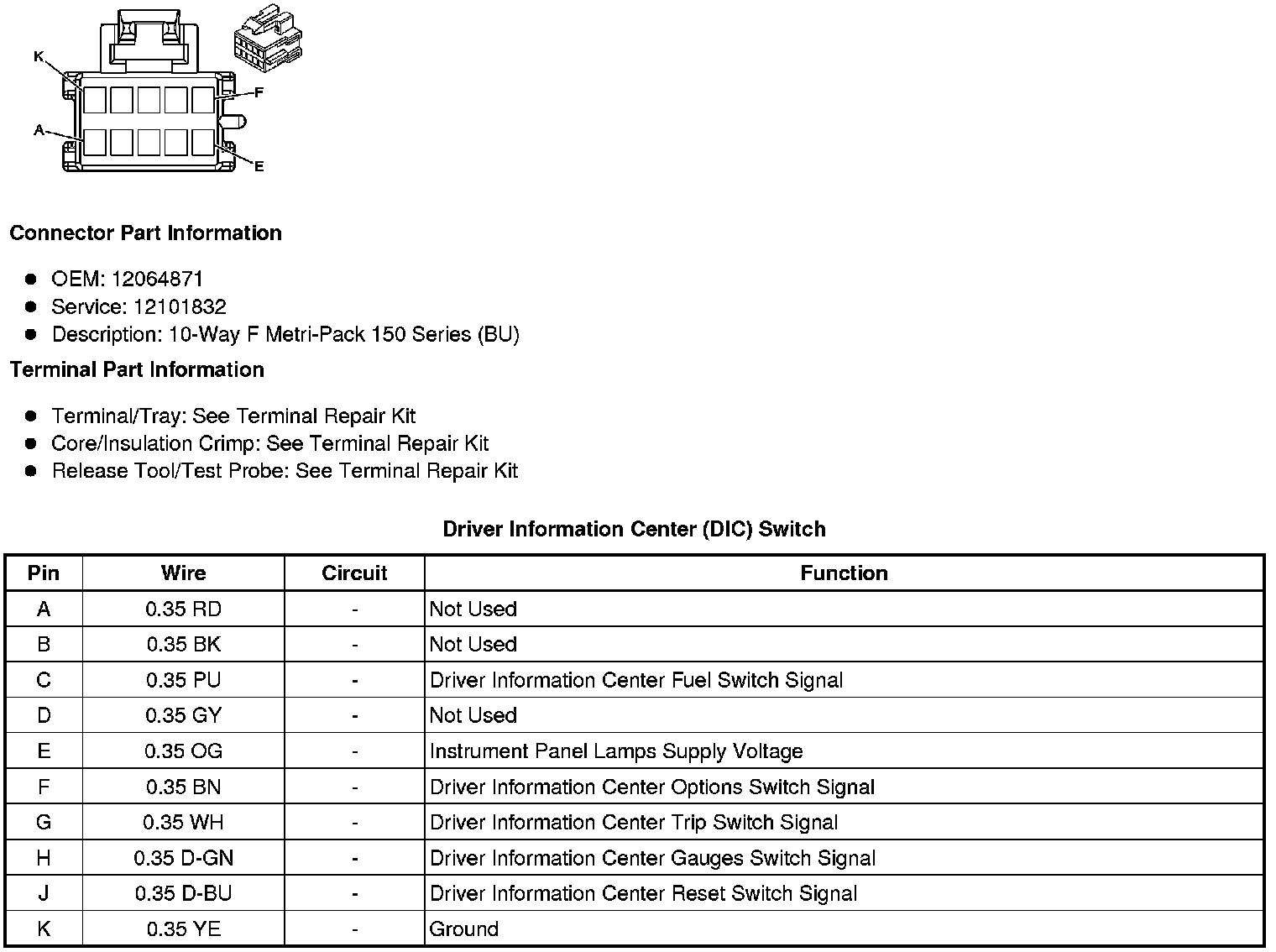

Driver Information Center (DIC) Switch
