LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 2011 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

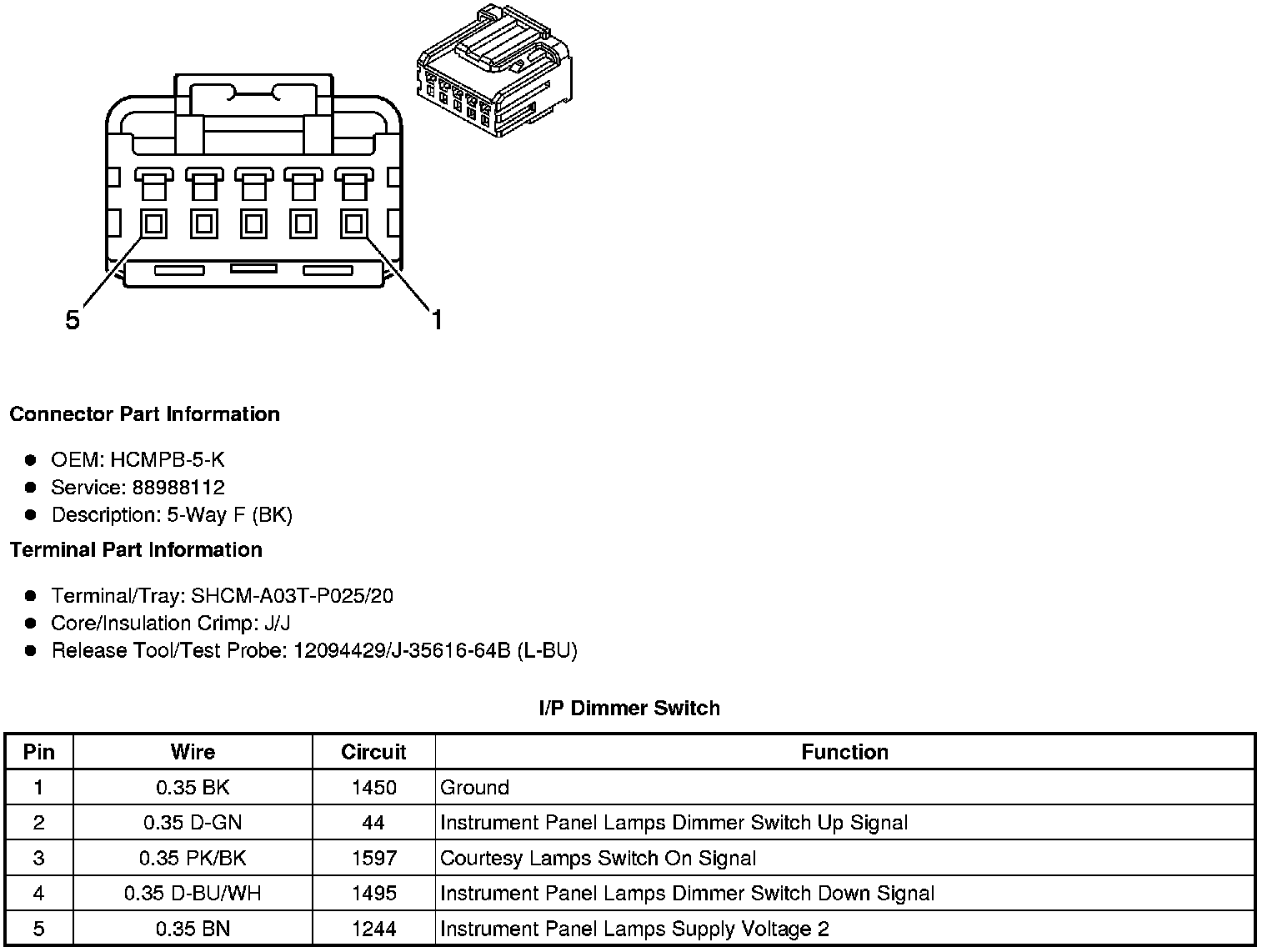

Component Connector End Views

I/P Dimmer Switch
