Camshaft Position Sensor: Diagrams

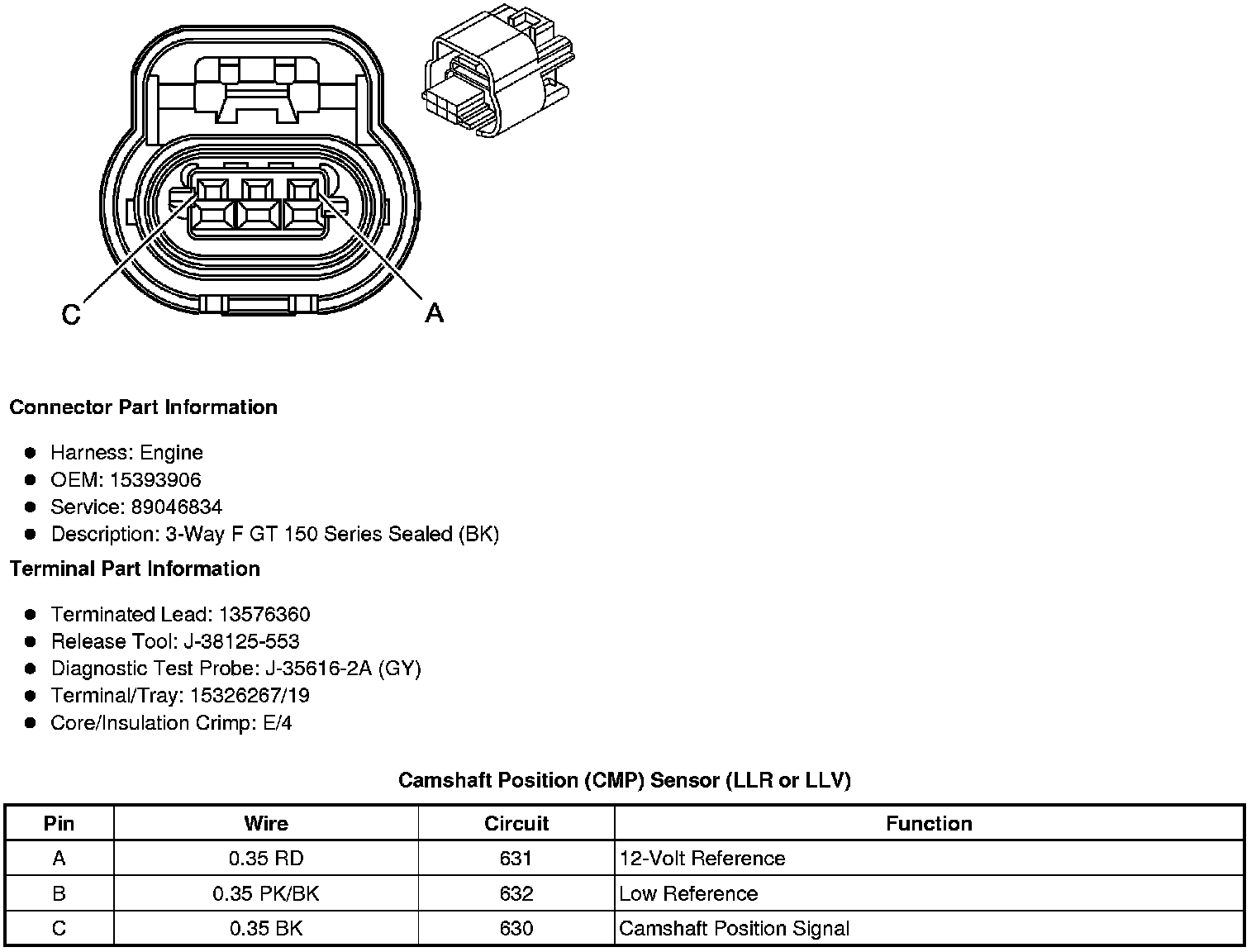

Component Connector End Views

Camshaft Position (CMP) Sensor (LLR or LLV)
