Oil Pressure Sensor: Diagrams




Component Connector End Views

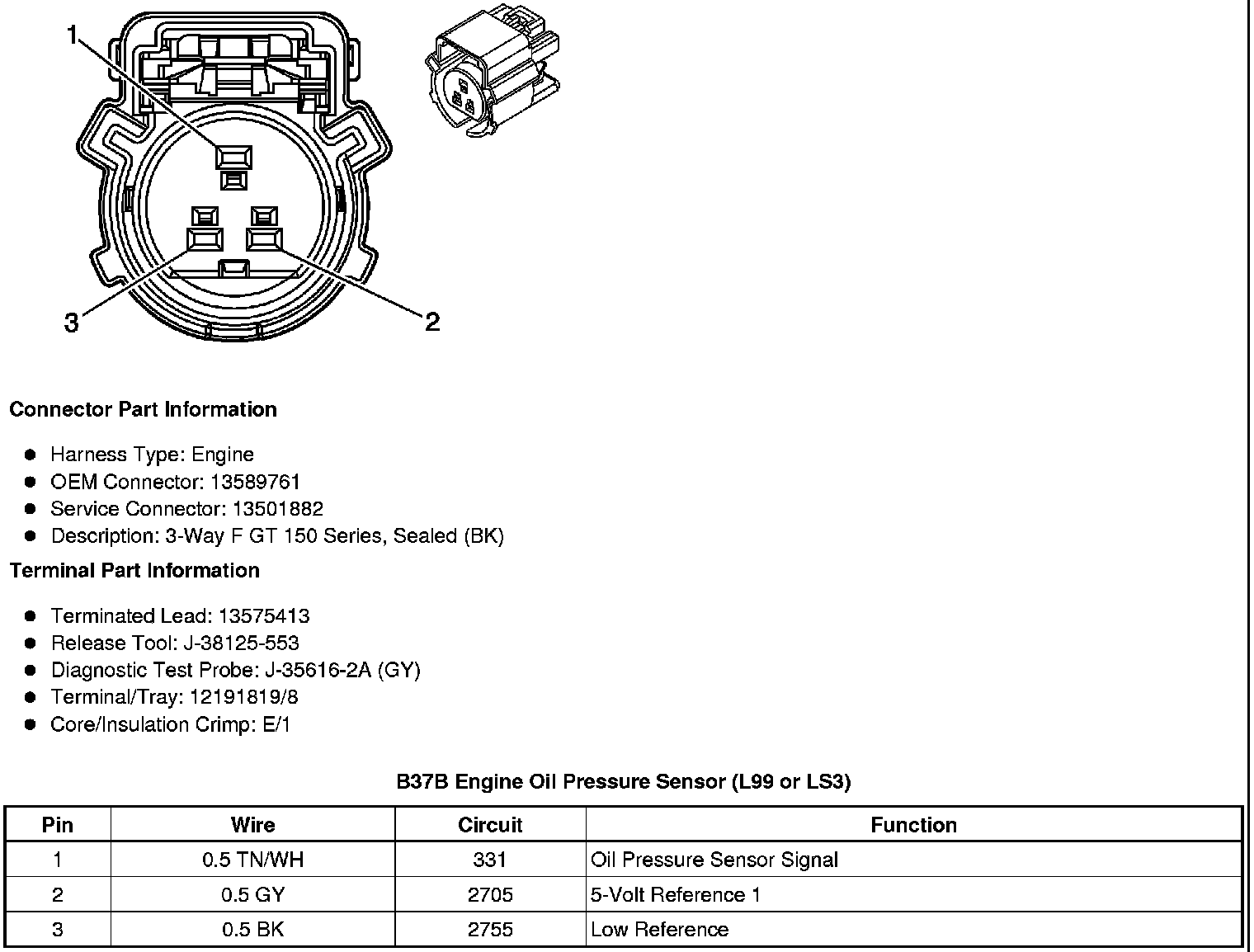

B37B Engine Oil Pressure Sensor (L99 or LS3)





B37B Engine Oil Pressure Sensor (LLT)
