Crankshaft Position Sensor: Diagrams

Component Connector End Views

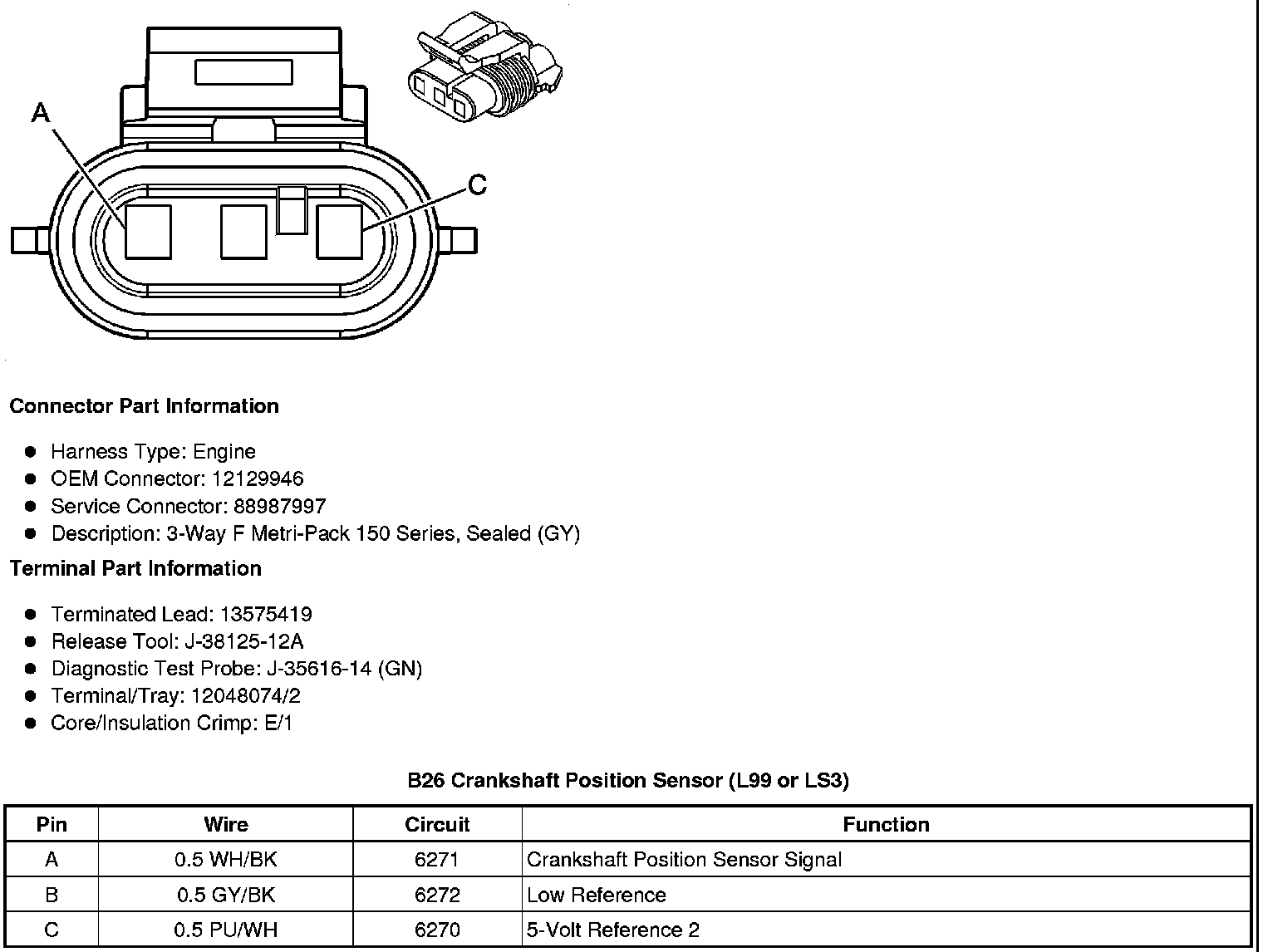

B26 Crankshaft Position Sensor (L99 or LS3)

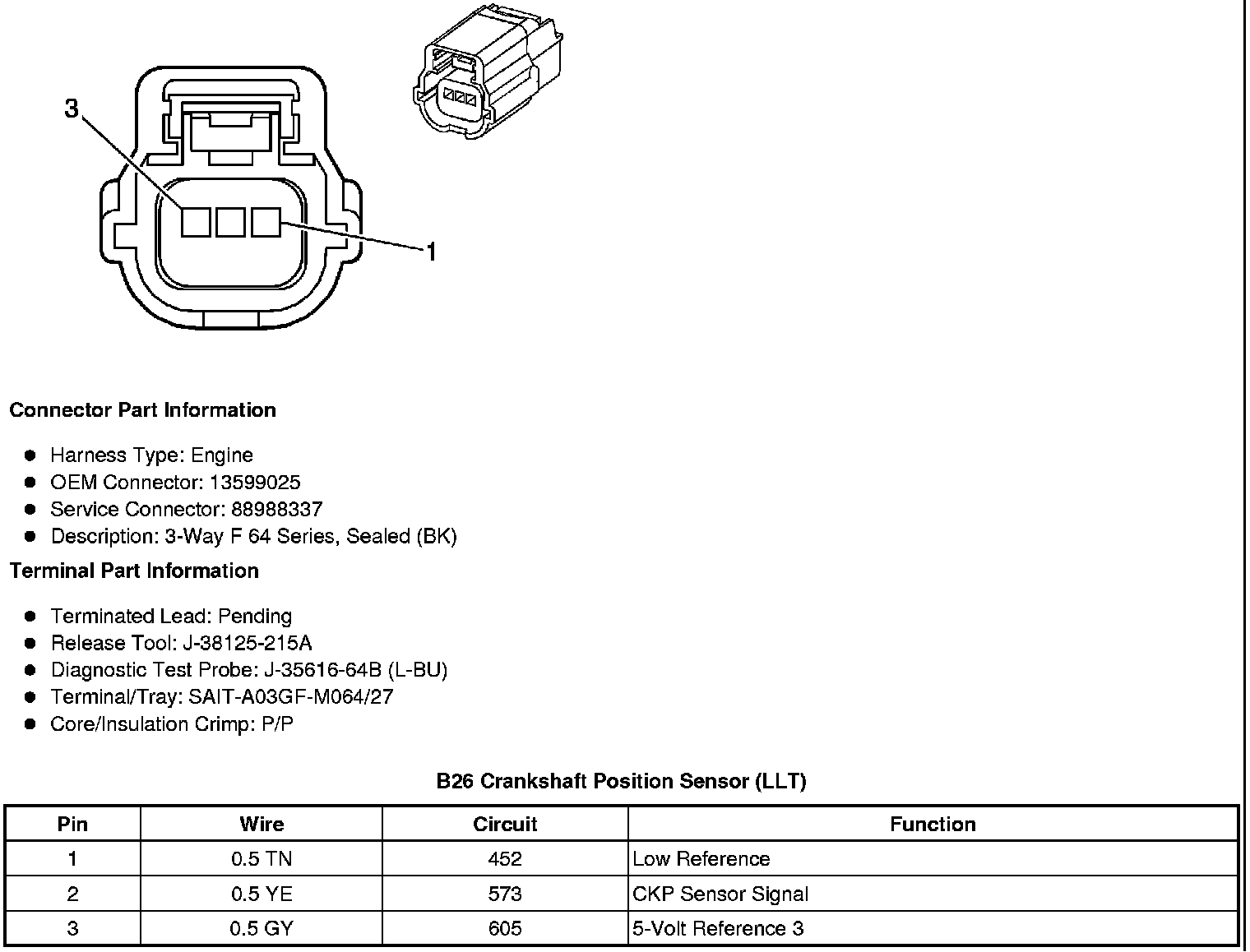

B26 Crankshaft Position Sensor (LLT)
