Transmission Temperature Sensor/Switch, M/T

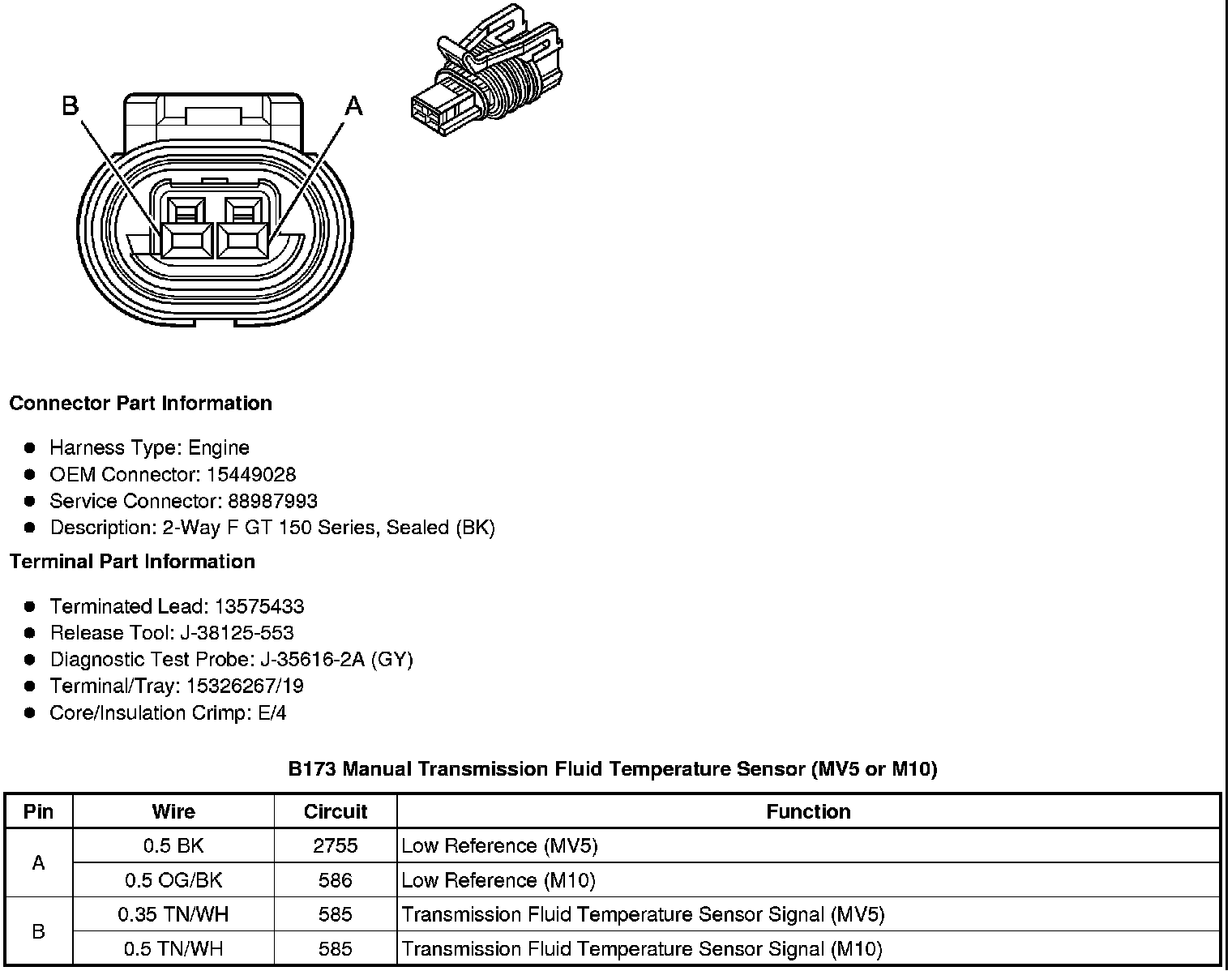

Component Connector End Views
B173 Manual Transmission Fluid Temperature Sensor (MV5 or M10)
