Engine - Coolant Temperature Sensor/Switch




Component Connector End Views

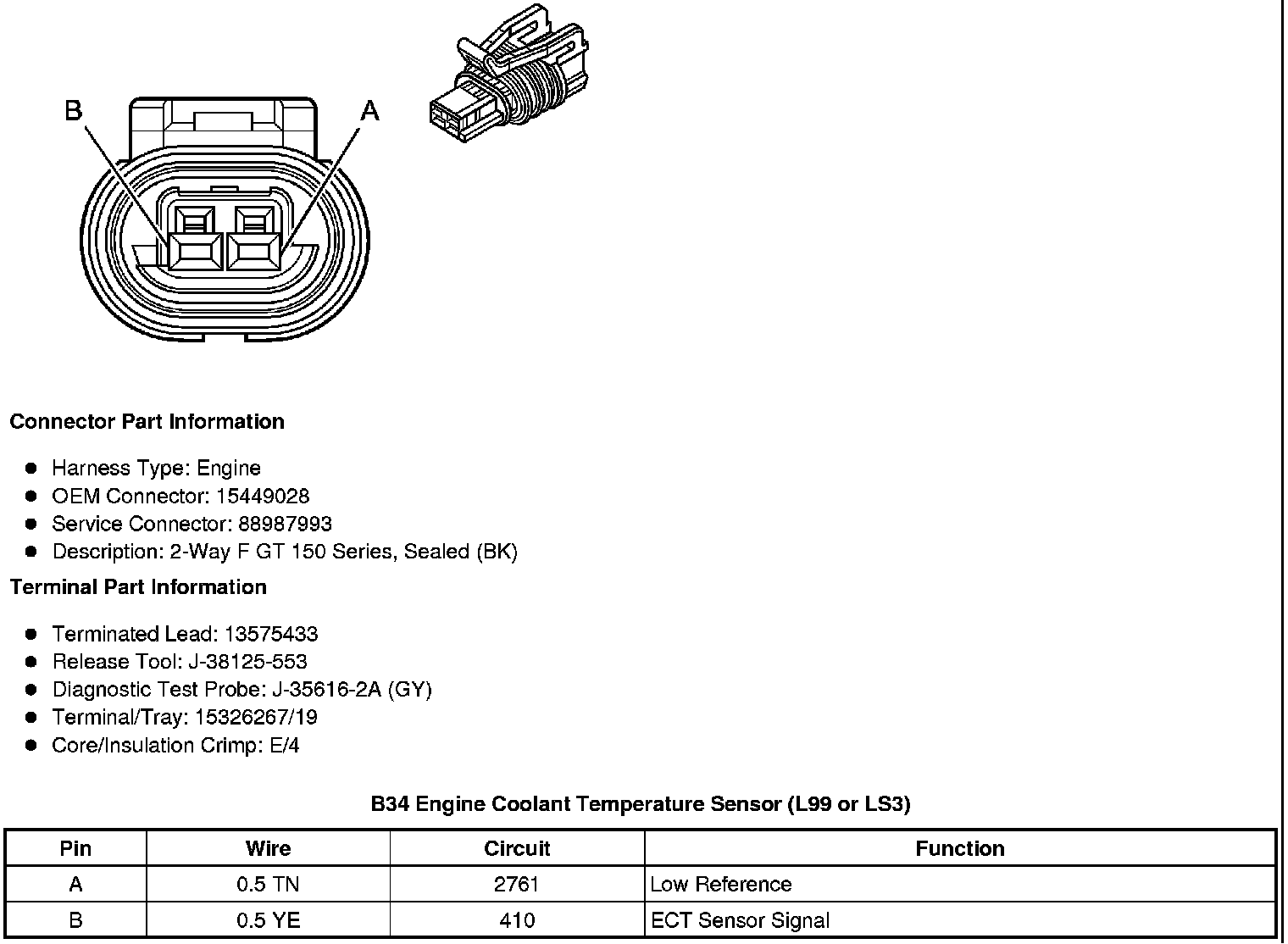

B34 Engine Coolant Temperature Sensor (L99 or LS3)





B34 Engine Coolant Temperature Sensor (LLT)
