Cellular Phone Microphone
Cellular Phone Microphone
Component Connector End Views

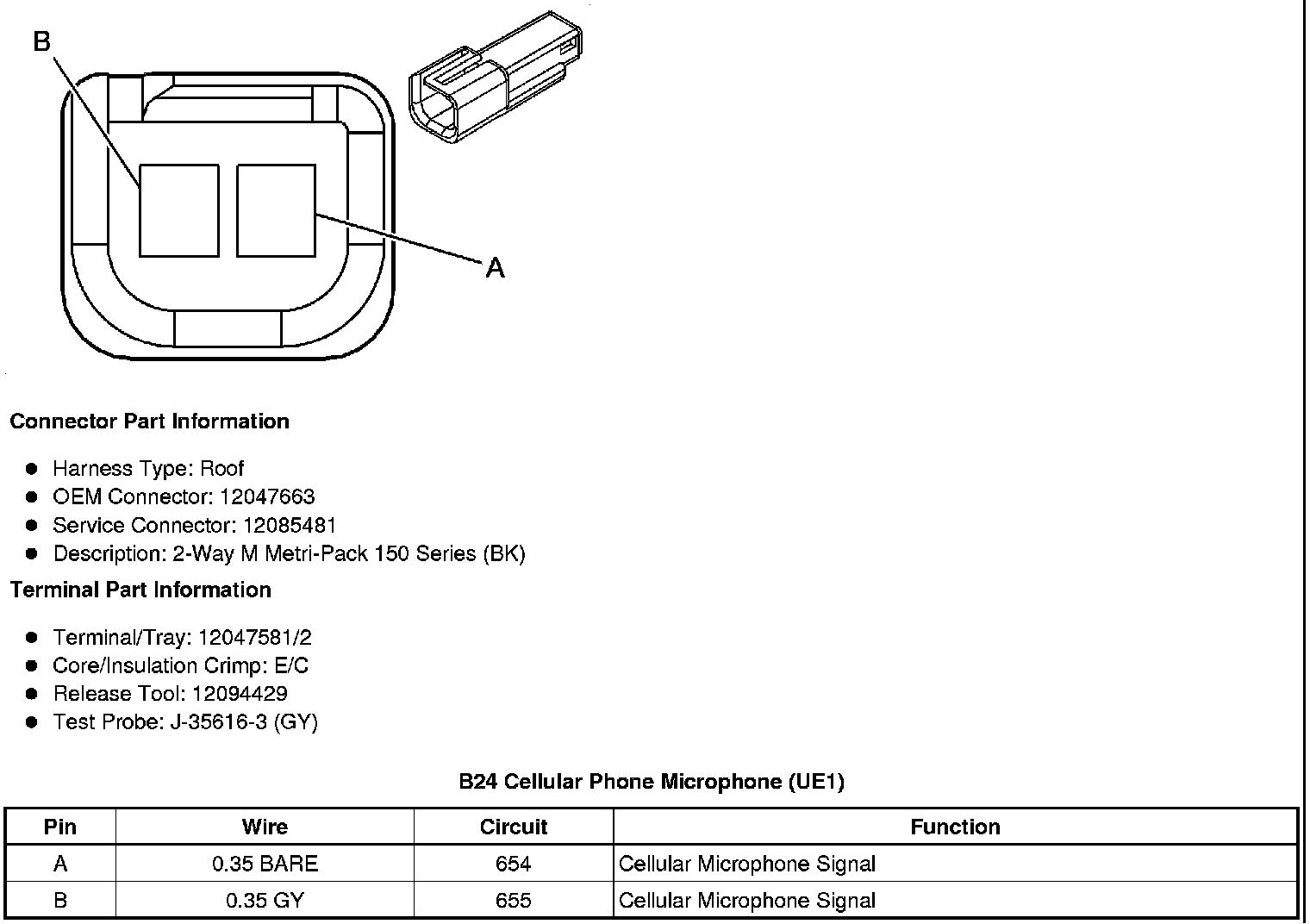

B24 Cellular Phone Microphone (UE1)
