Connector Views
>>
Brake Light Switch
Brake Light Switch

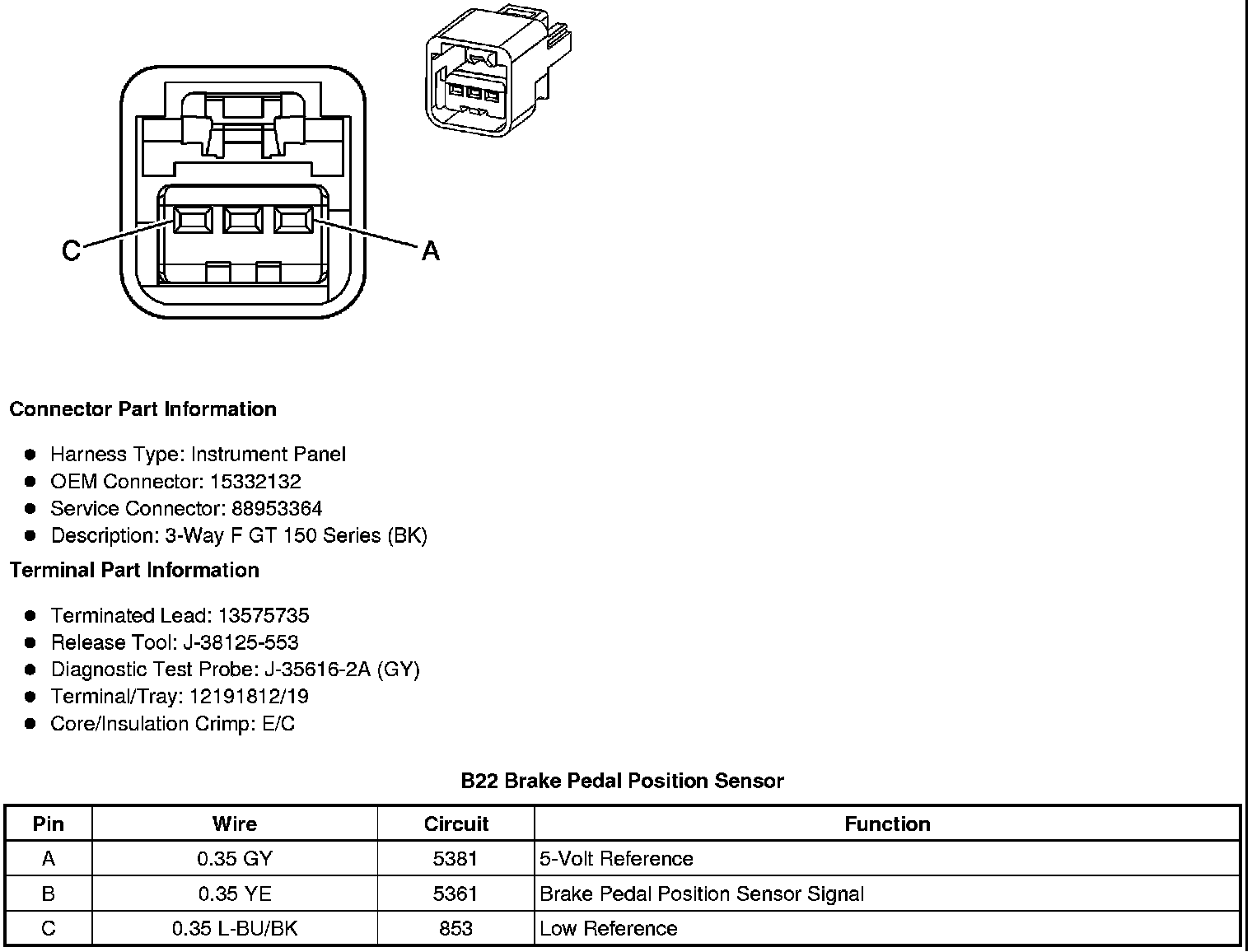

Component Connector End Views
B22 Brake Pedal Position Sensor
