Fuse Block - Instrument Panel




Electrical Center Identification Views

X51A Fuse Block - Instrument Panel Label

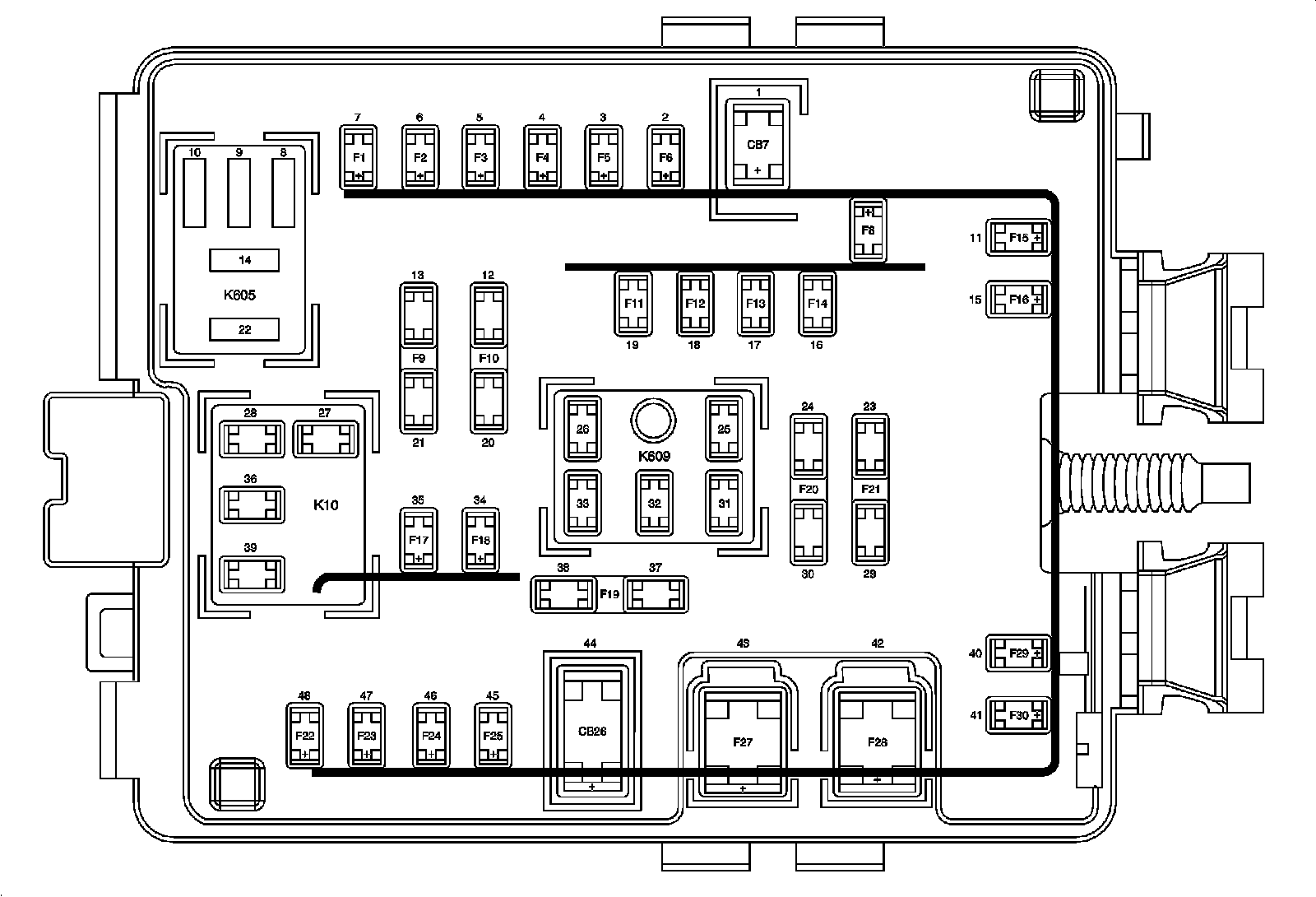

X51A Fuse Block - Instrument Panel Top View





X51A Fuse Block - Instrument Panel Bottom View

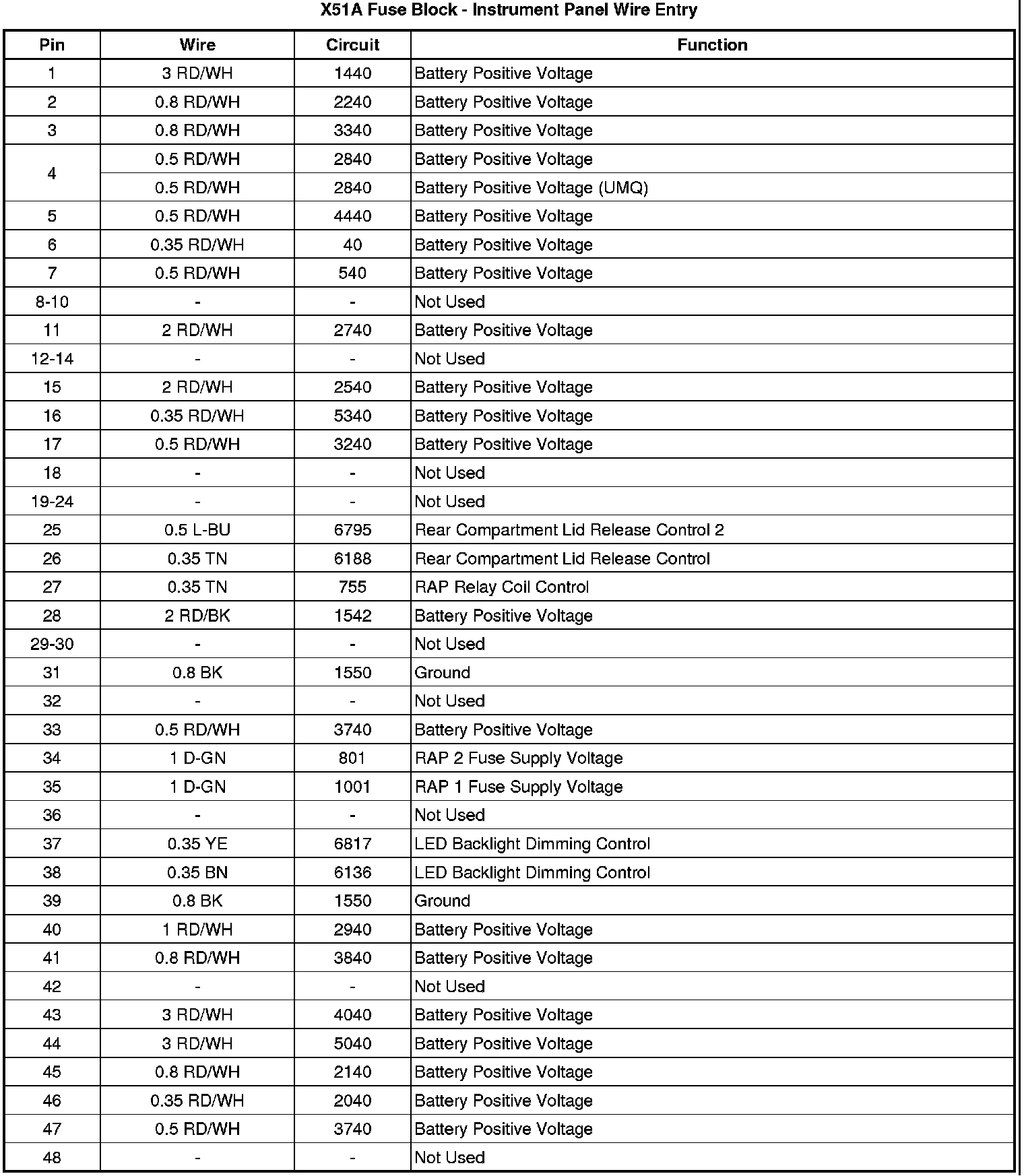

X51A Fuse Block - Instrument Panel Wire Entry









X51A Fuse Block - Instrument Panel X1
