Object Detection Wiring Schematics: UVC

WARNING: This page is about a different car, the 2012 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

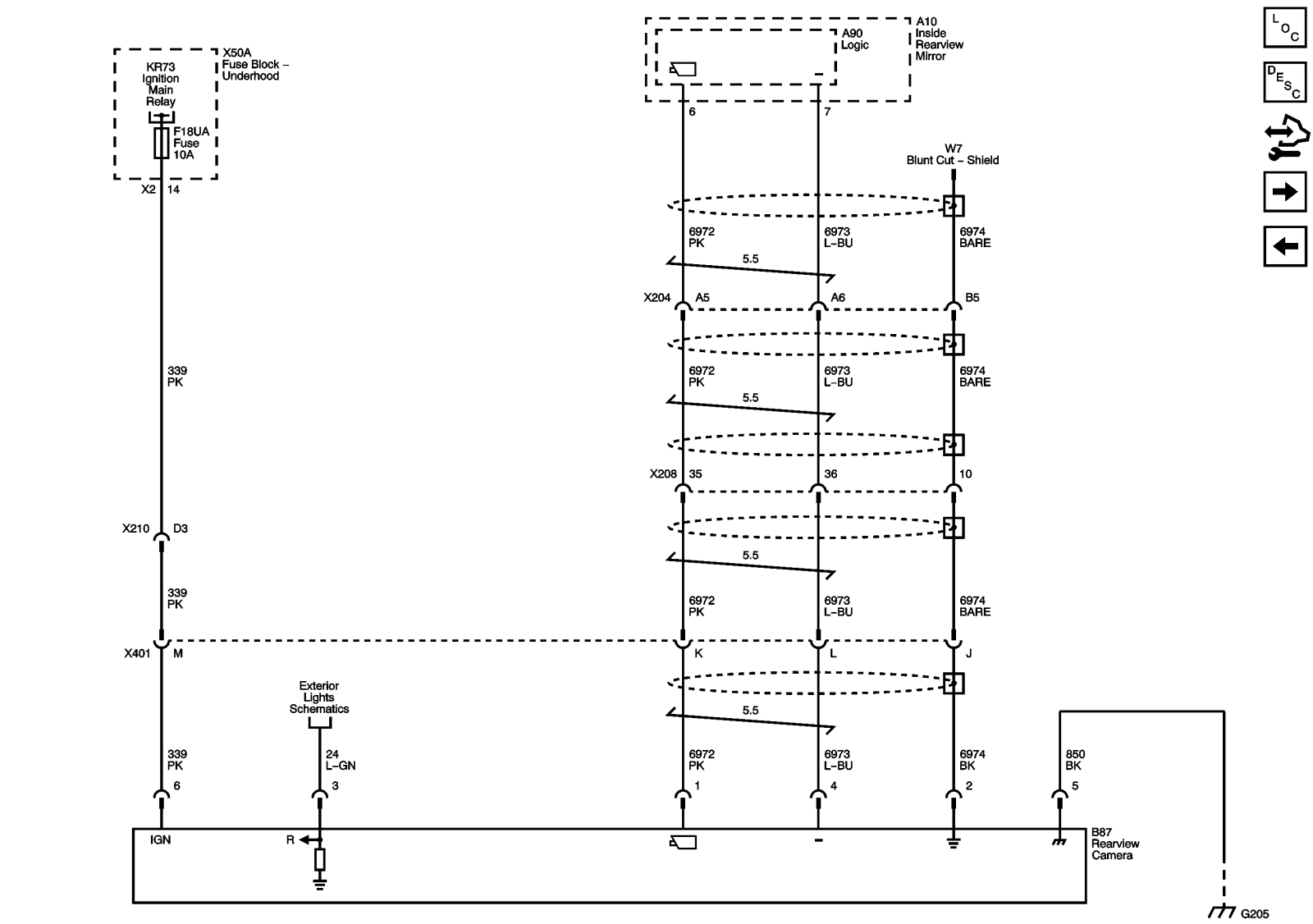

Fig 1: UVC Wiring Schematic
GM2714202Courtesy of GENERAL MOTORS COMPANY
