Clutch Switch: Diagrams

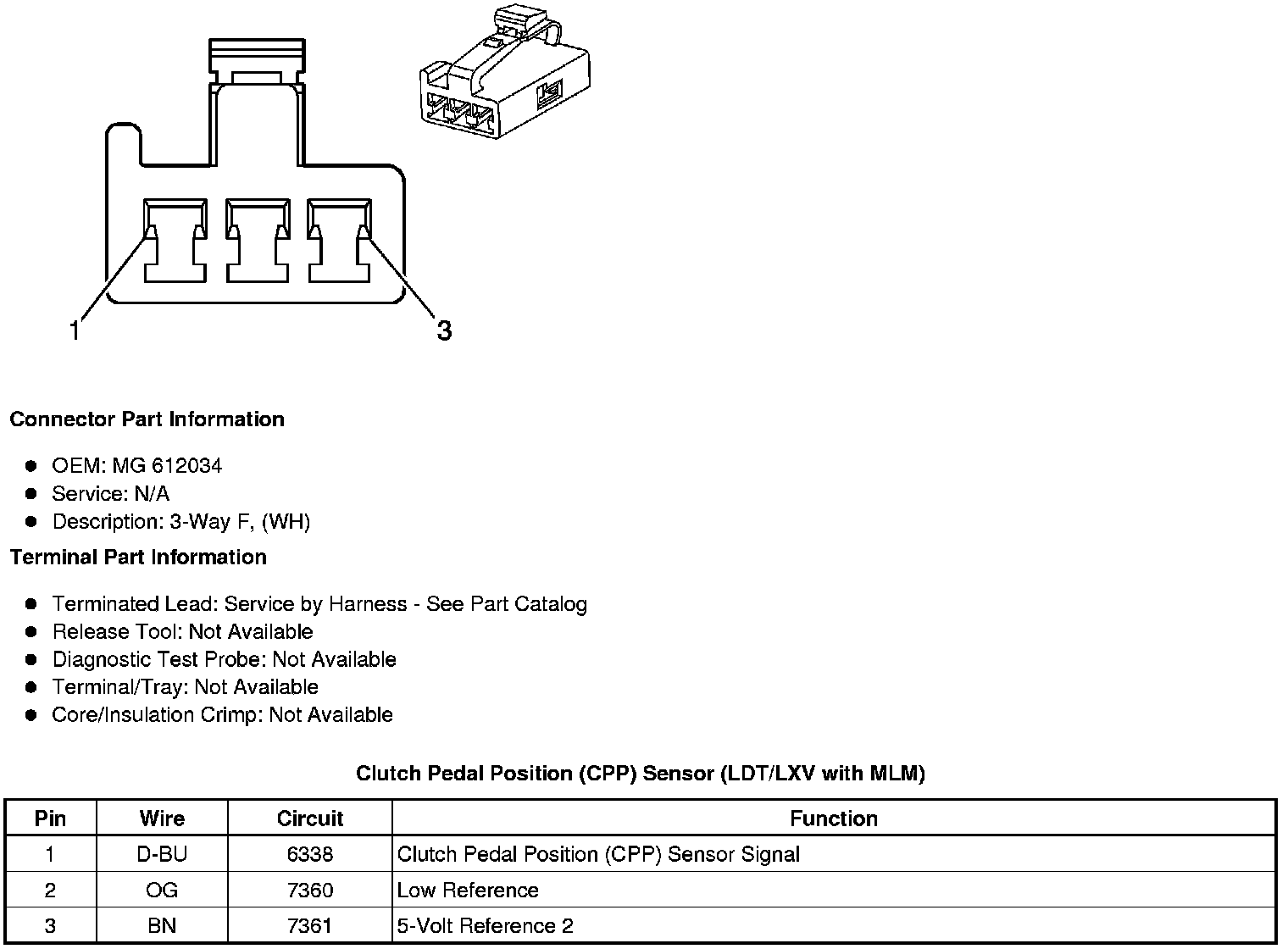

Component Connector End Views

Clutch Pedal Position (CPP) Sensor (LDT/LXV with MLM)
