Seat Temperature Switch
Seat Temperature Switch

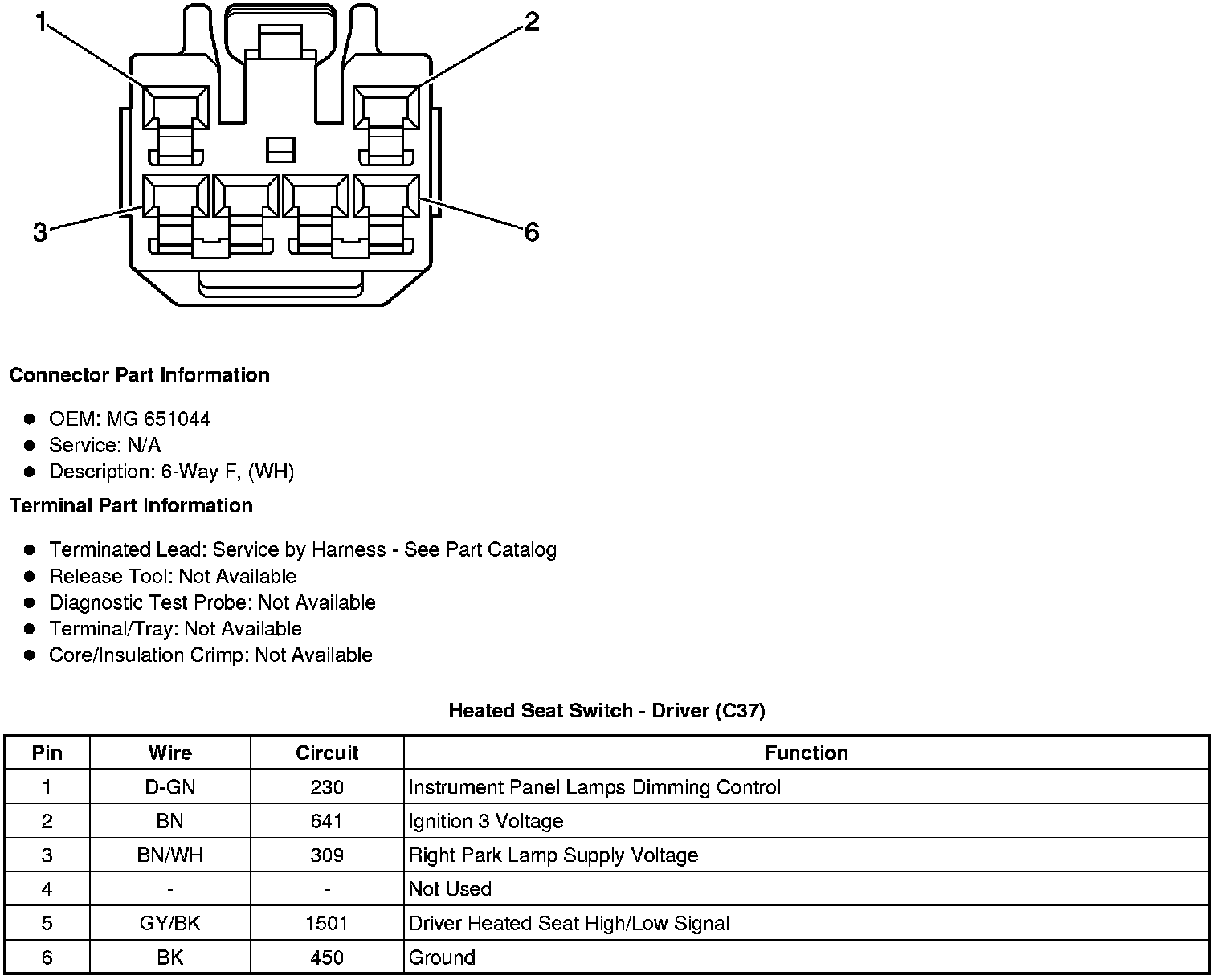

Component Connector End Views
Heated Seat Switch - Driver (C37)
