Automatic Transmission Shift Program Switch (MLQ)
Automatic Transmission Shift Program Switch (MLQ)

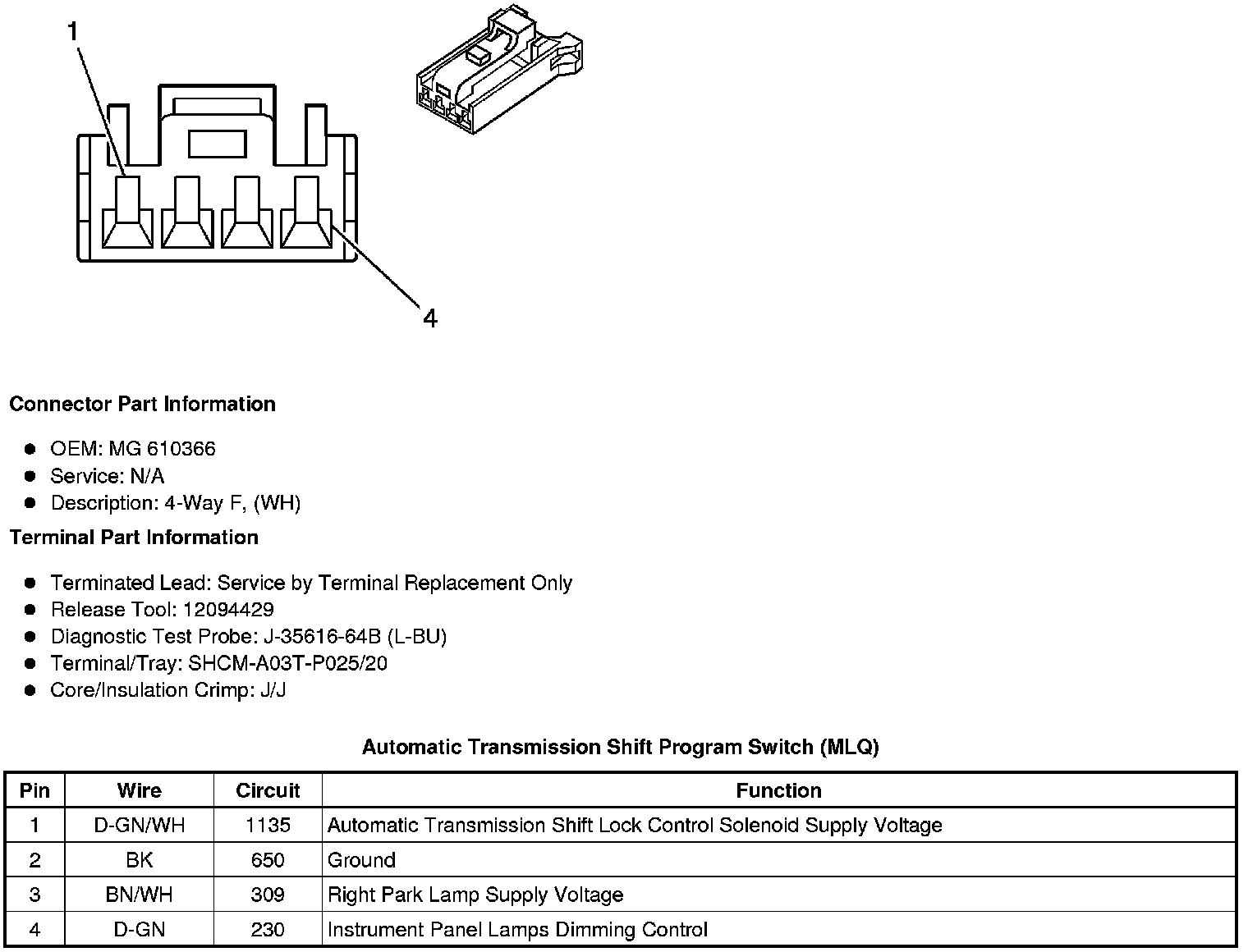

Component Connector End Views
Automatic Transmission Shift Program Switch (MLQ)
