Home >> Chevrolet >> 2011 >> Aveo L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clock

Clock

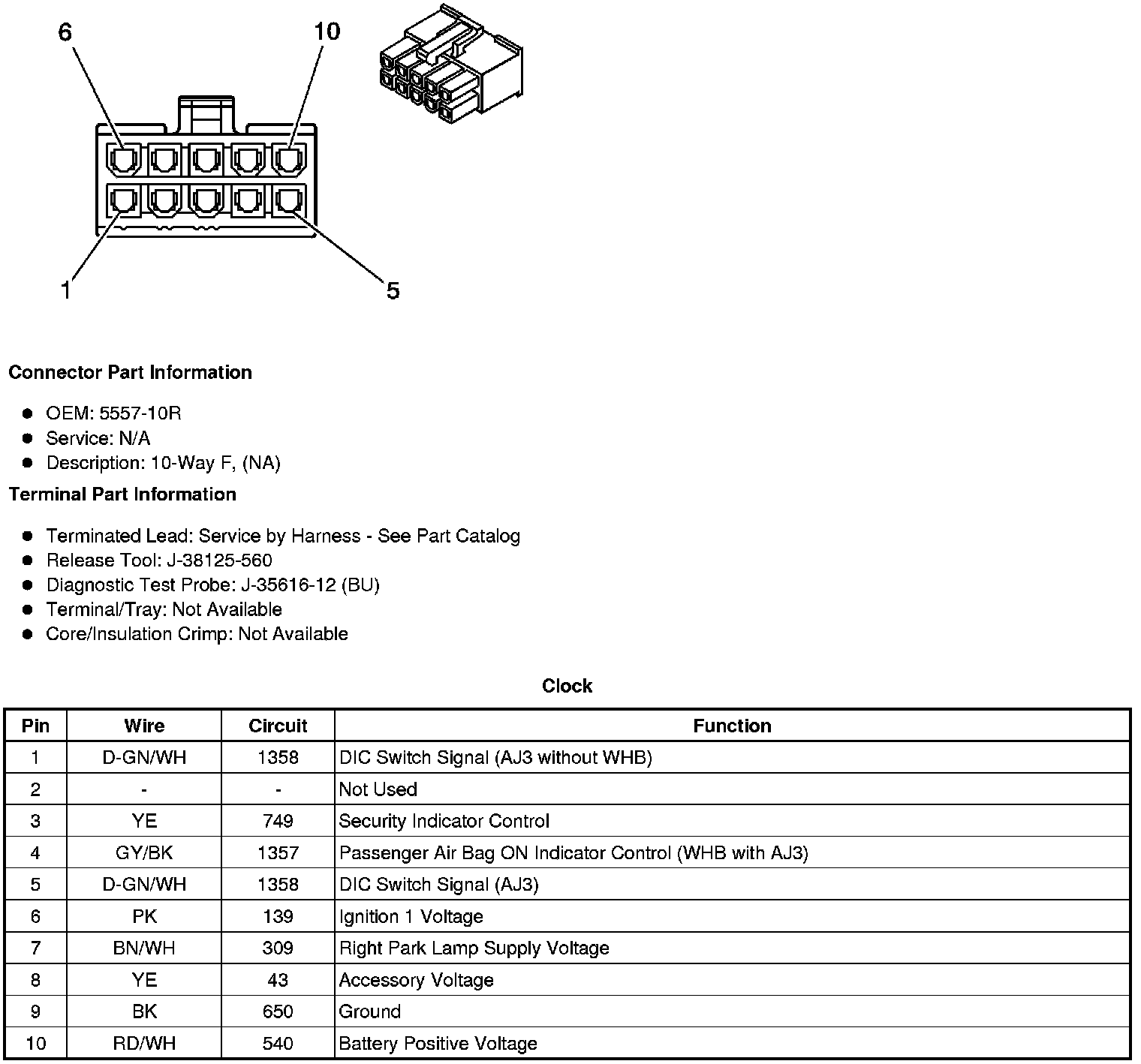

Component Connector End Views

Clock
