Air Bag Deactivation Module
>>
Inflatable Restraint I/P Module (C98)
Inflatable Restraint I/P Module (C98)

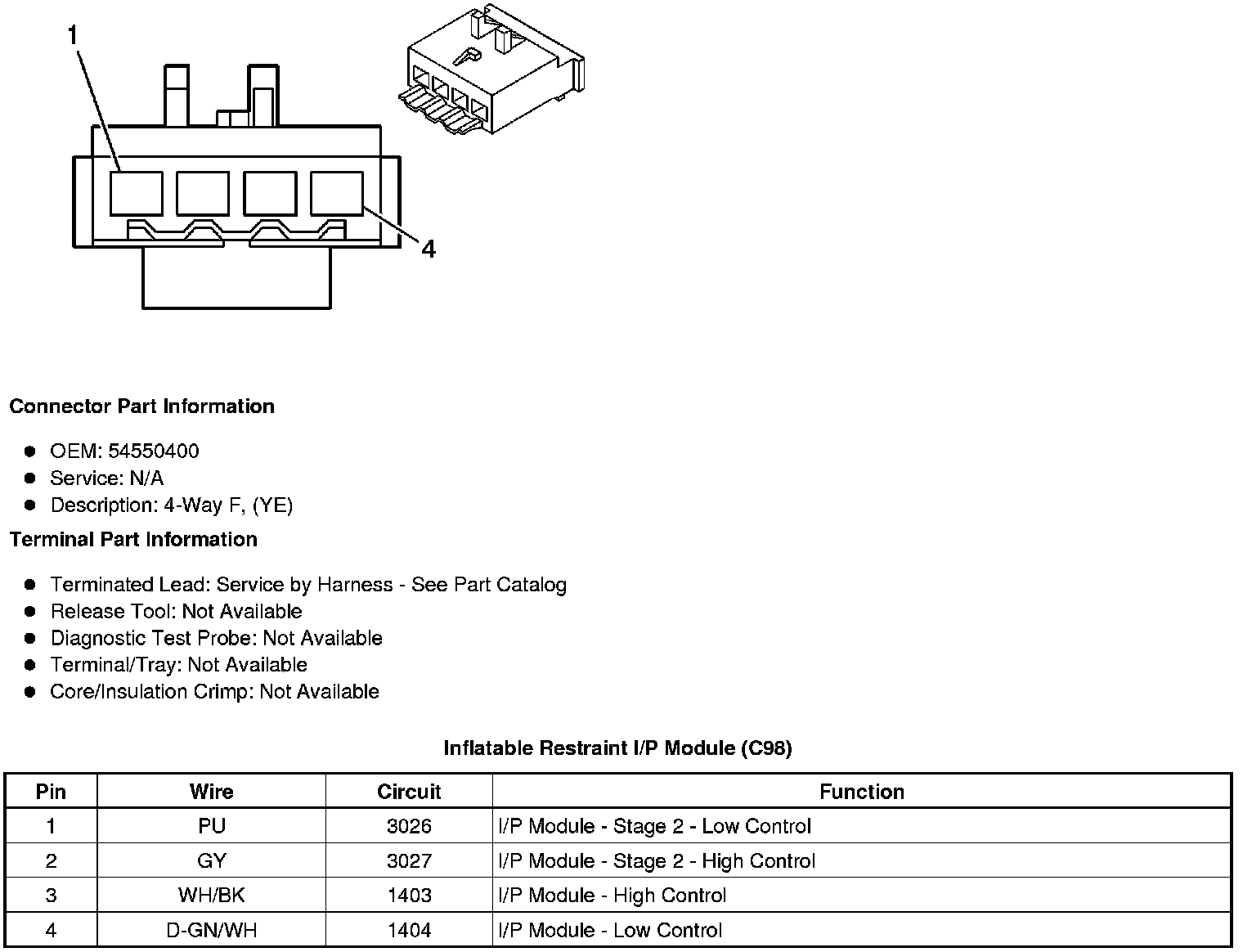

Component Connector End Views
Inflatable Restraint I/P Module (C98)
