Home
>>
Chevrolet
>>
2010
>>
Traverse FWD V6-3.6L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

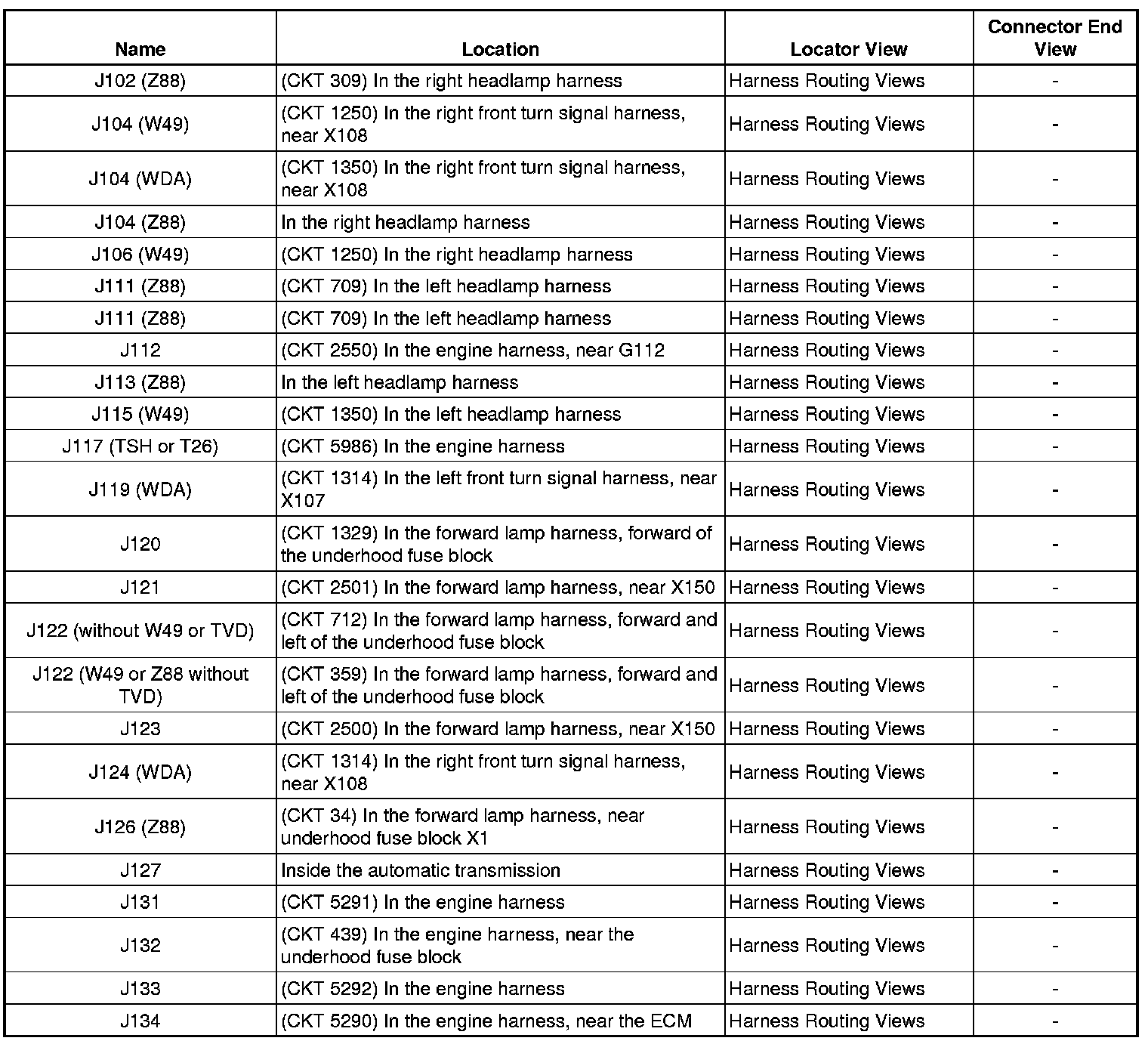

J102 - J134:

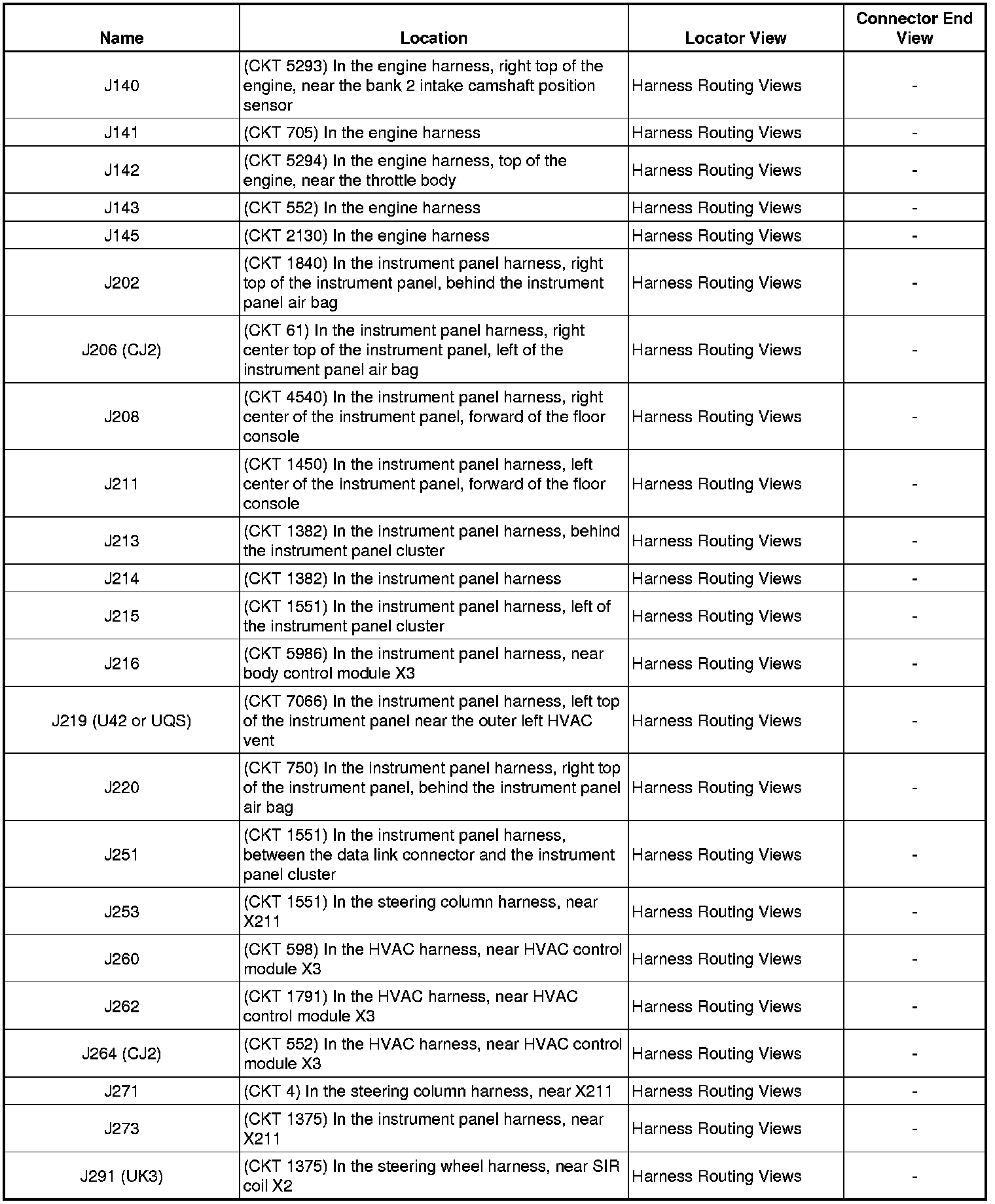

J140 - J291:

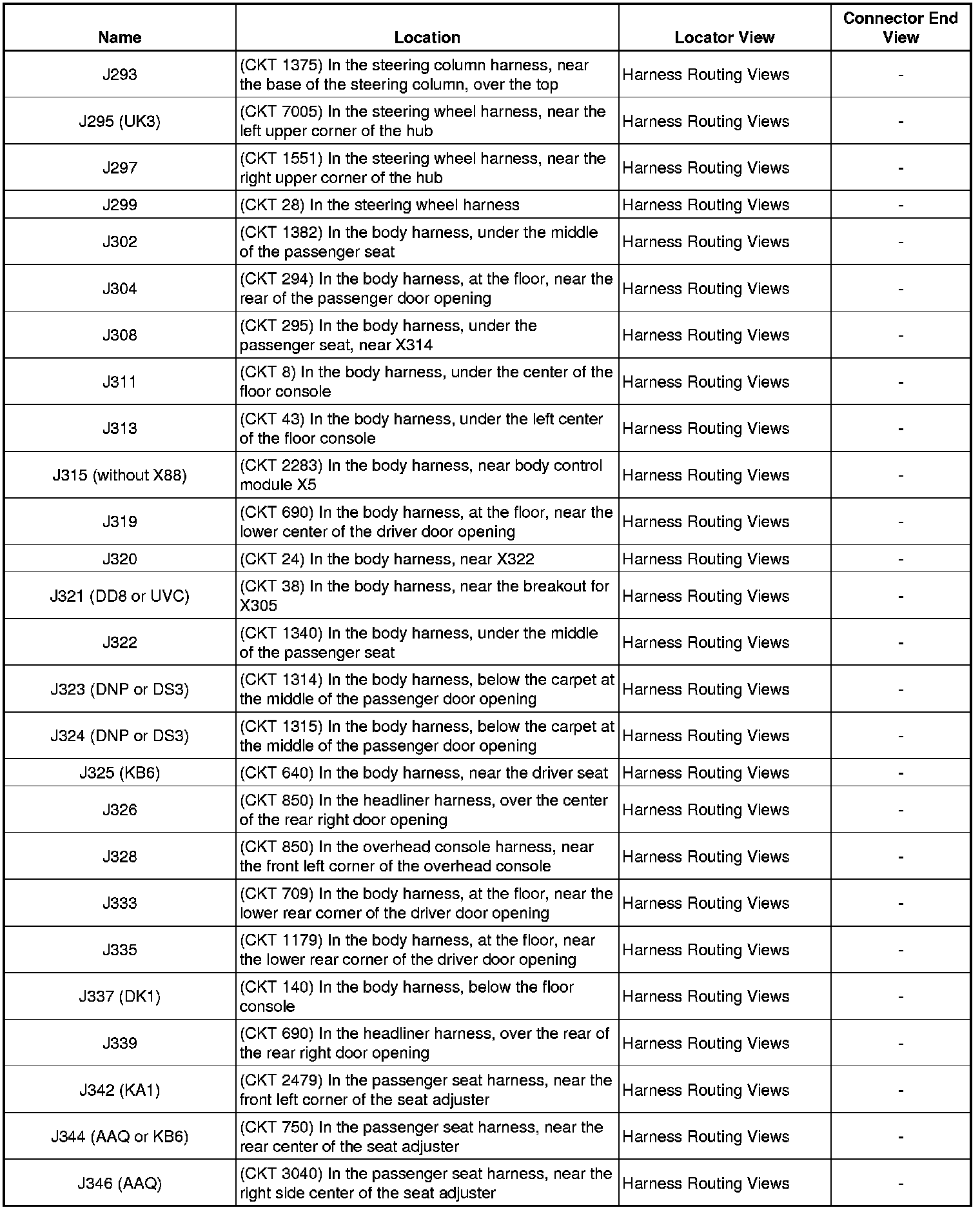

J293 - J346:

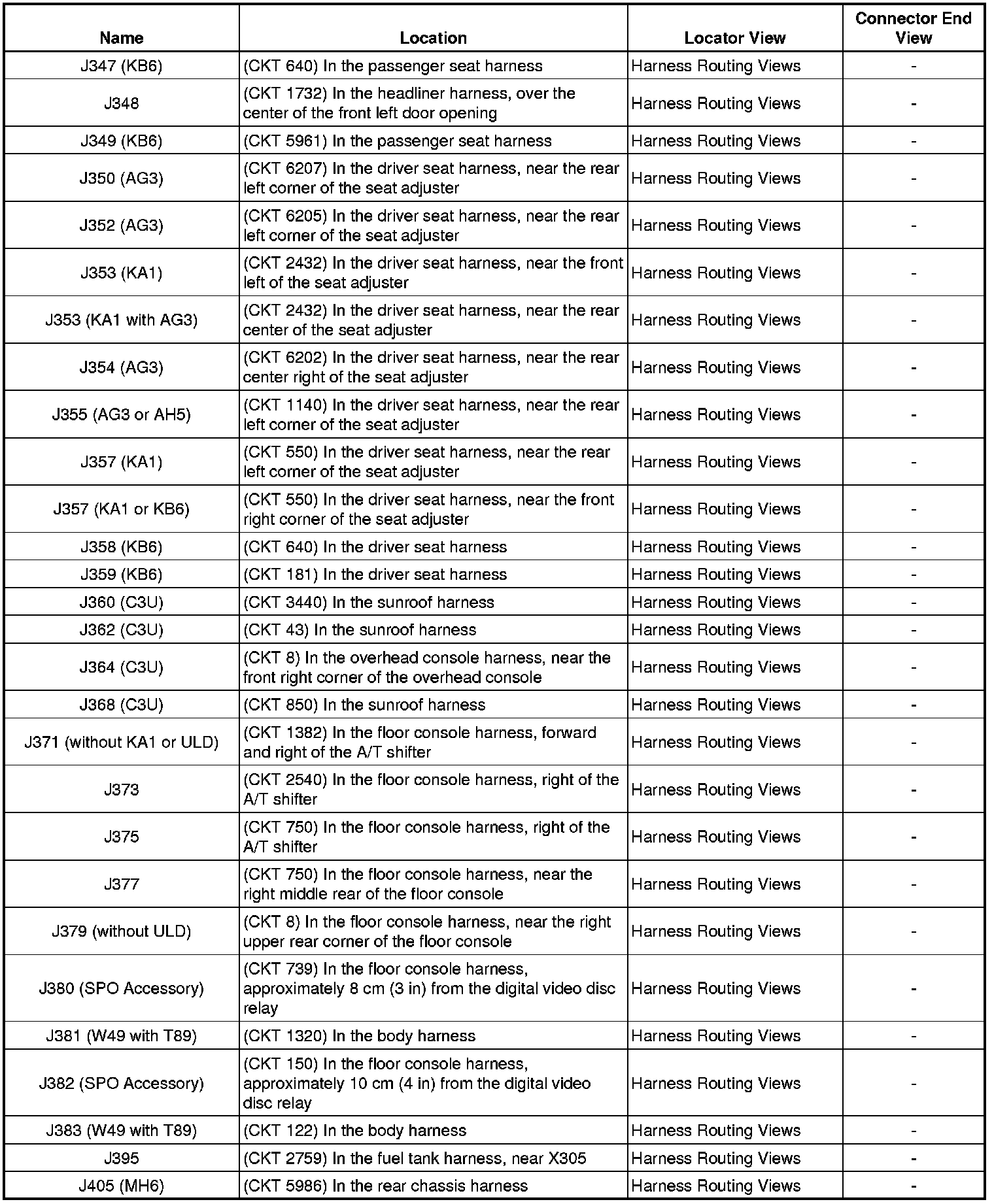

J347 - J405:

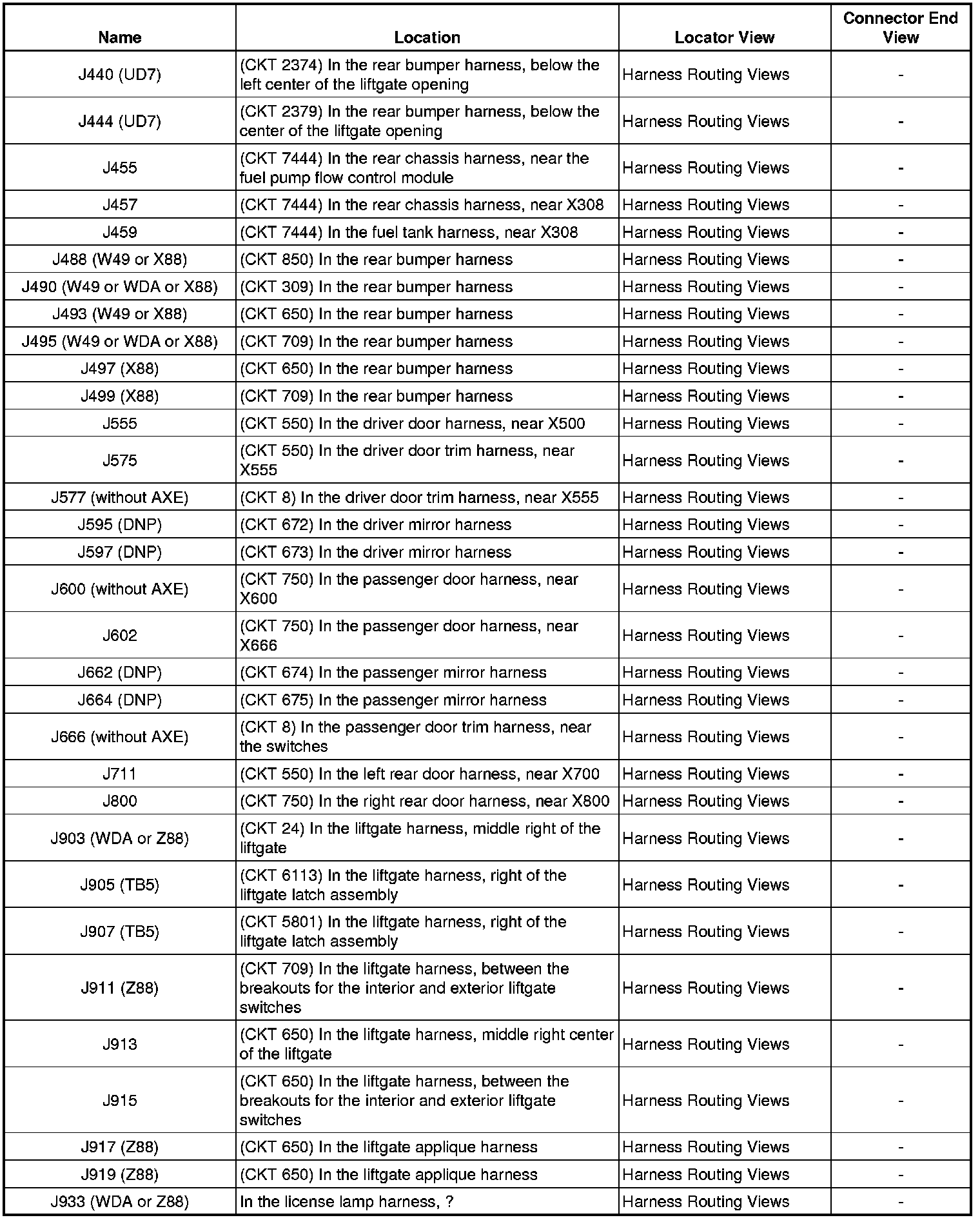

J440 - J933:
J935 - JX405:
