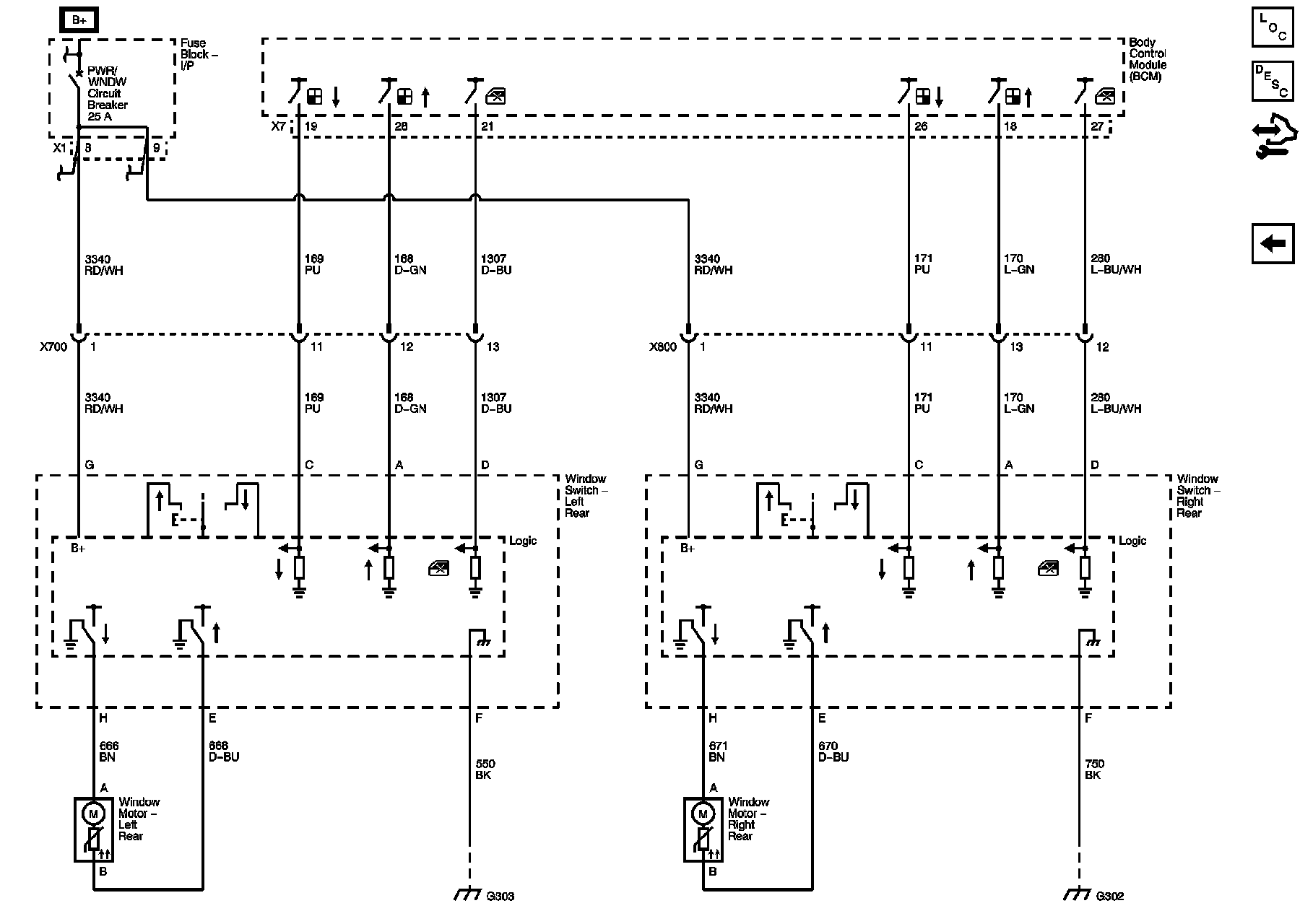

Moveable Window Schematics (AXE)
Moveable Window Schematics (AXE)
Moveable Window Schematics (AXE)
Front
Rear
