Information Bus




Data Communication Schematics

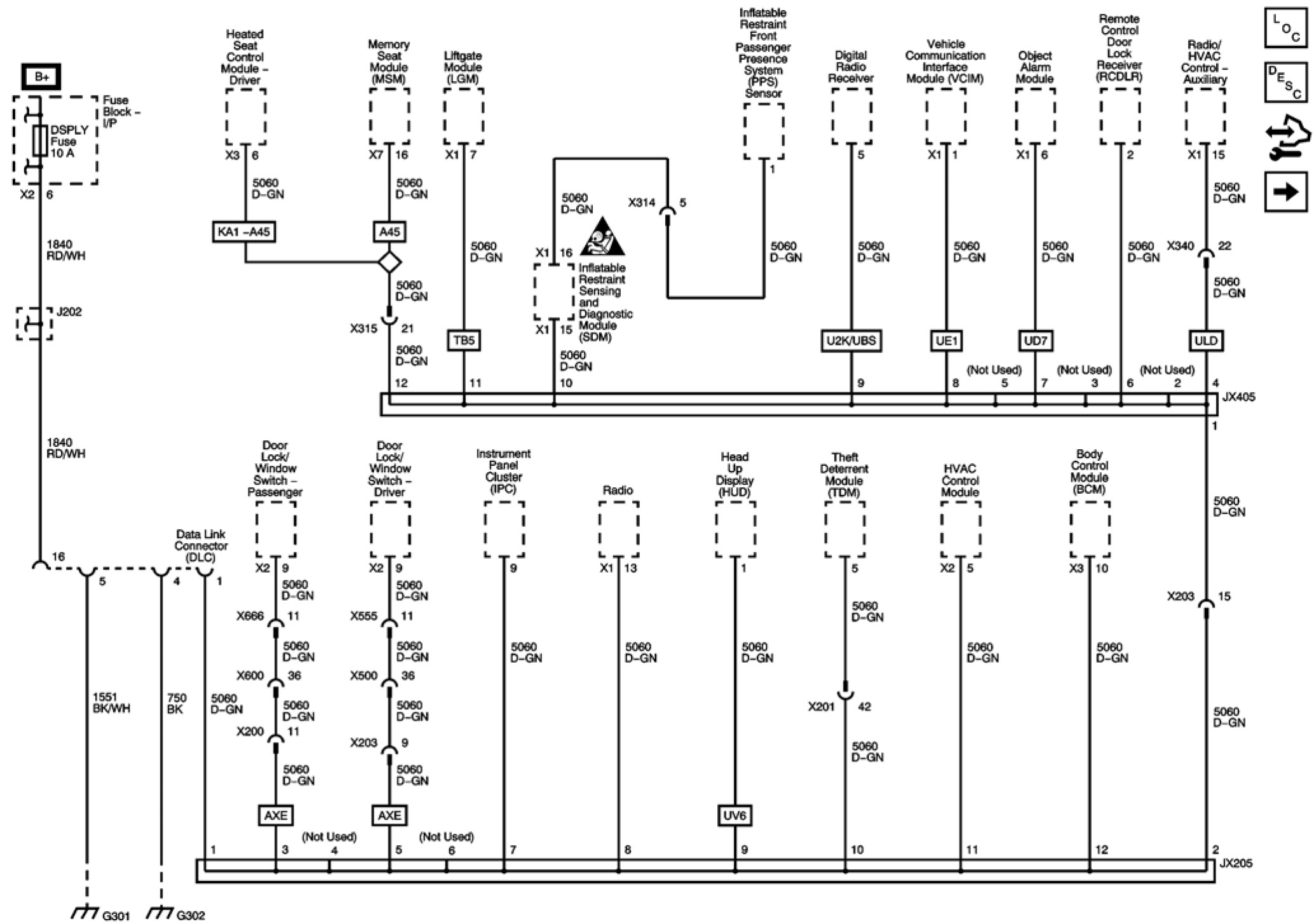

Low Speed GMLAN

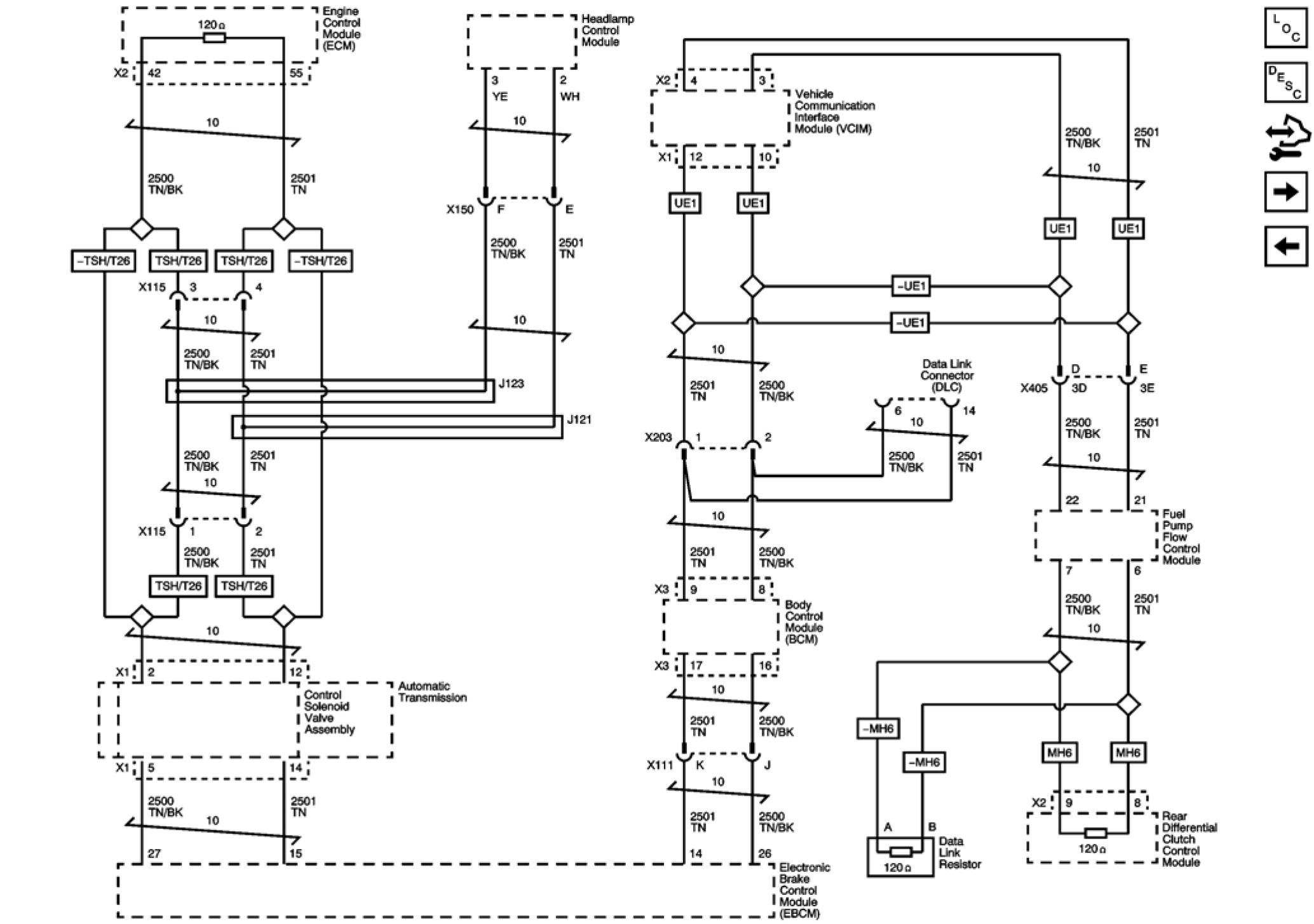

High Speed GMLAN

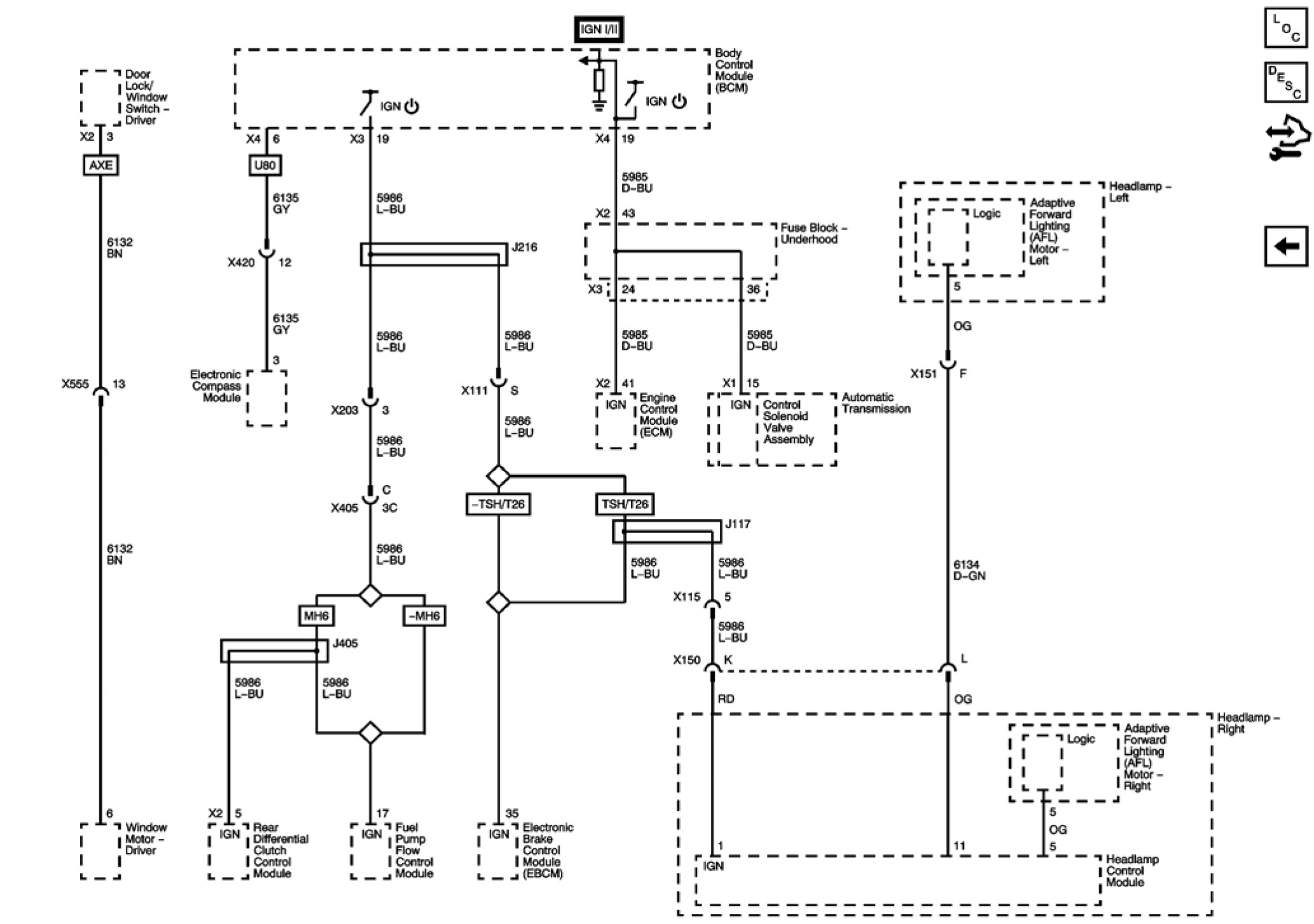

Communication Enable and Local Interconnect Network (LIN)
