Liftgate Schematics




Liftgate Schematics

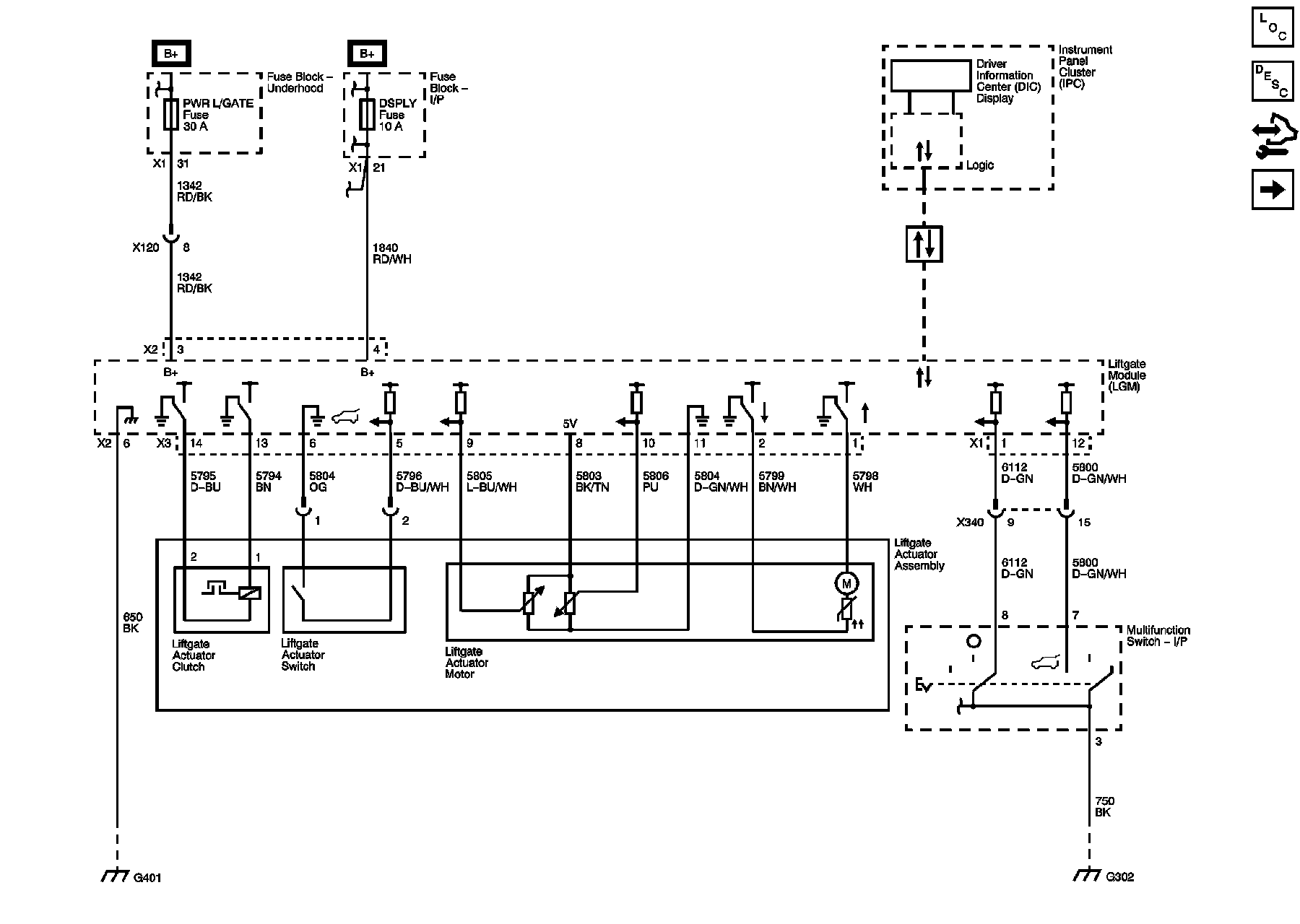

Module Power, Ground, Data Communication, Indicator, I/P Switch, and Liftgate Motor (TB5)

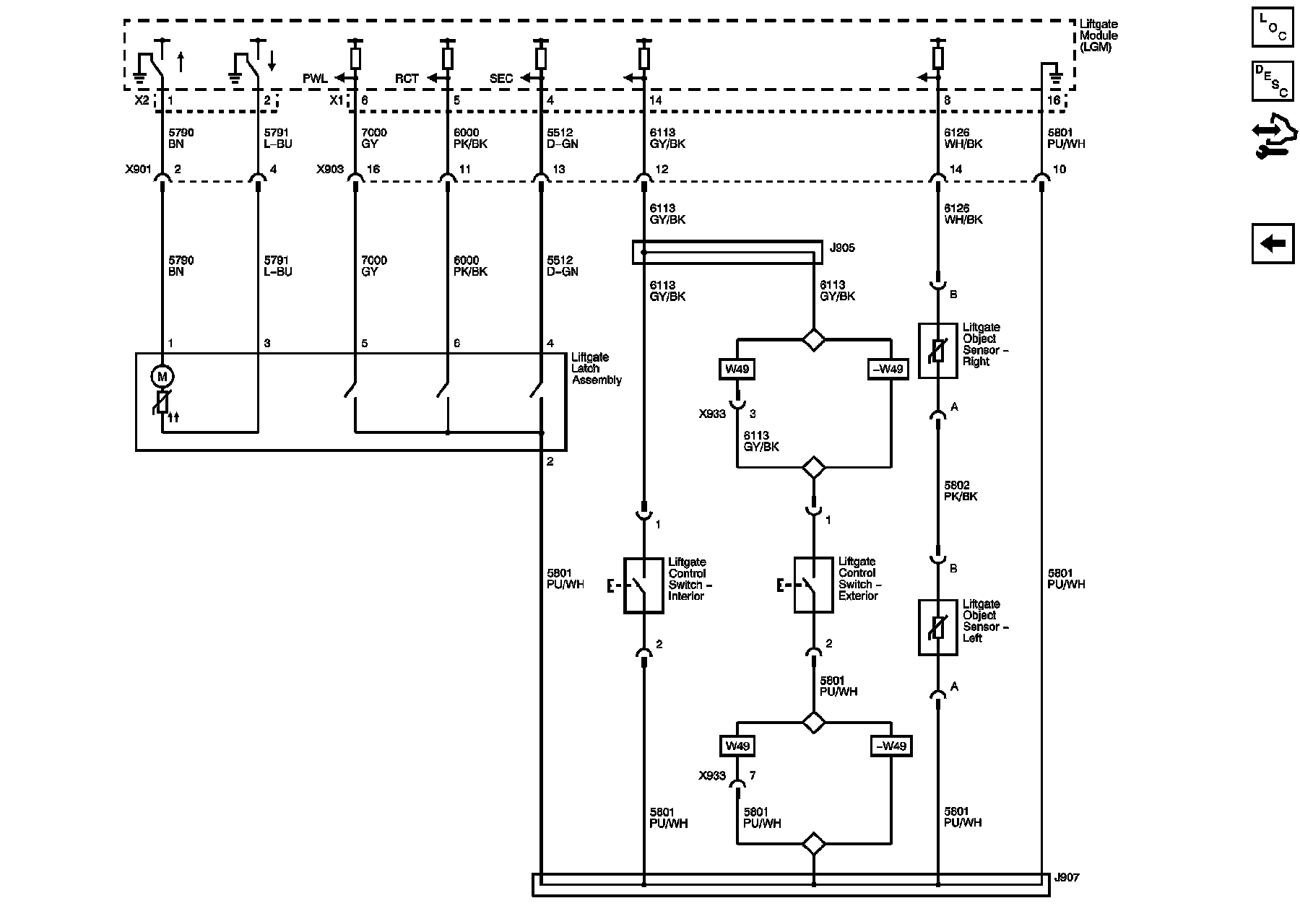

Latch, Object Sensors, and Switches (TB5)
