Seat Side Inflatable Restraint Module




Component Connector End Views

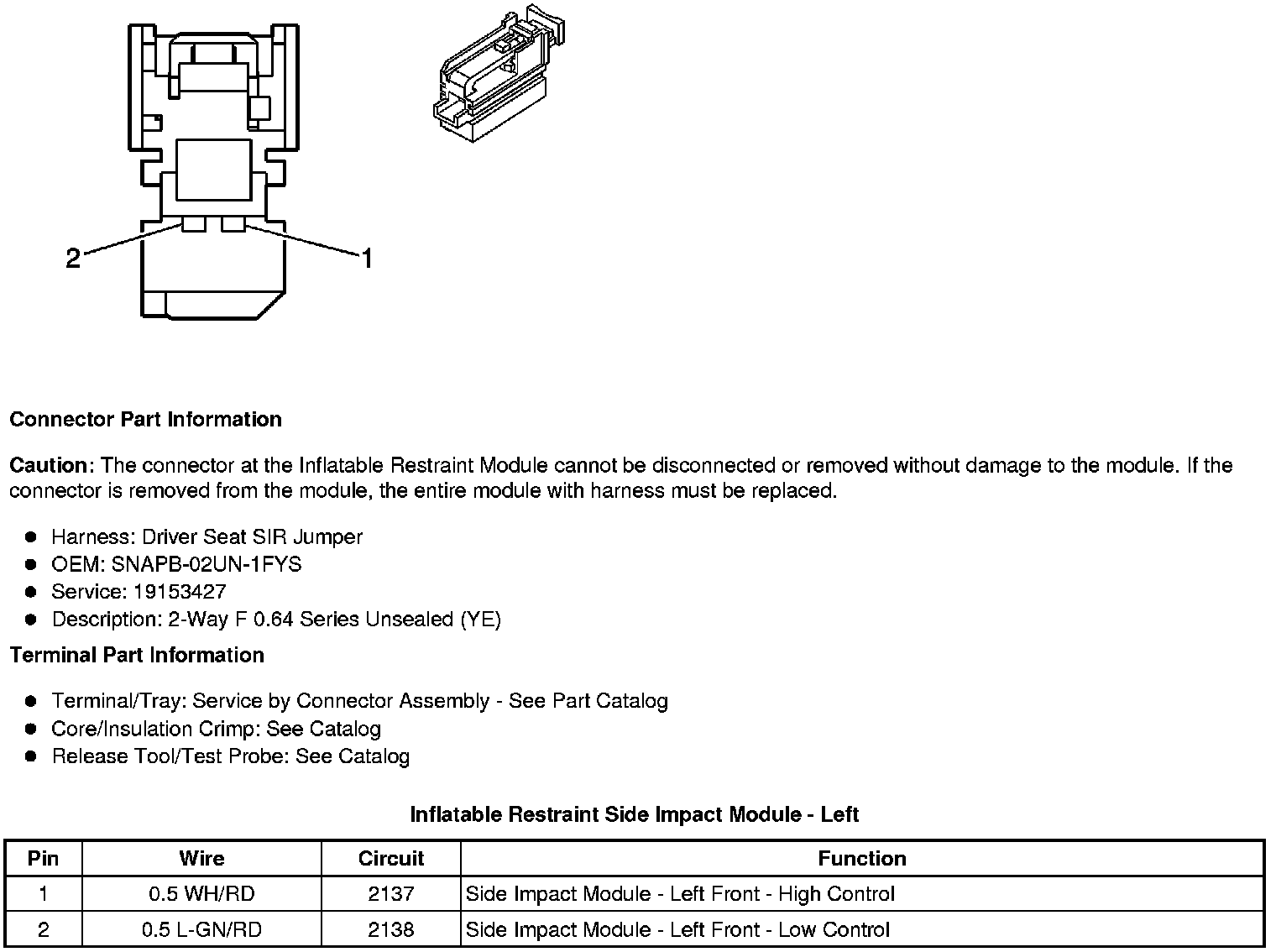

Inflatable Restraint Side Impact Module - Left






Inflatable Restraint Side Impact Module - Right
