Inflatable Restraint Roof Rail Module




Component Connector End Views

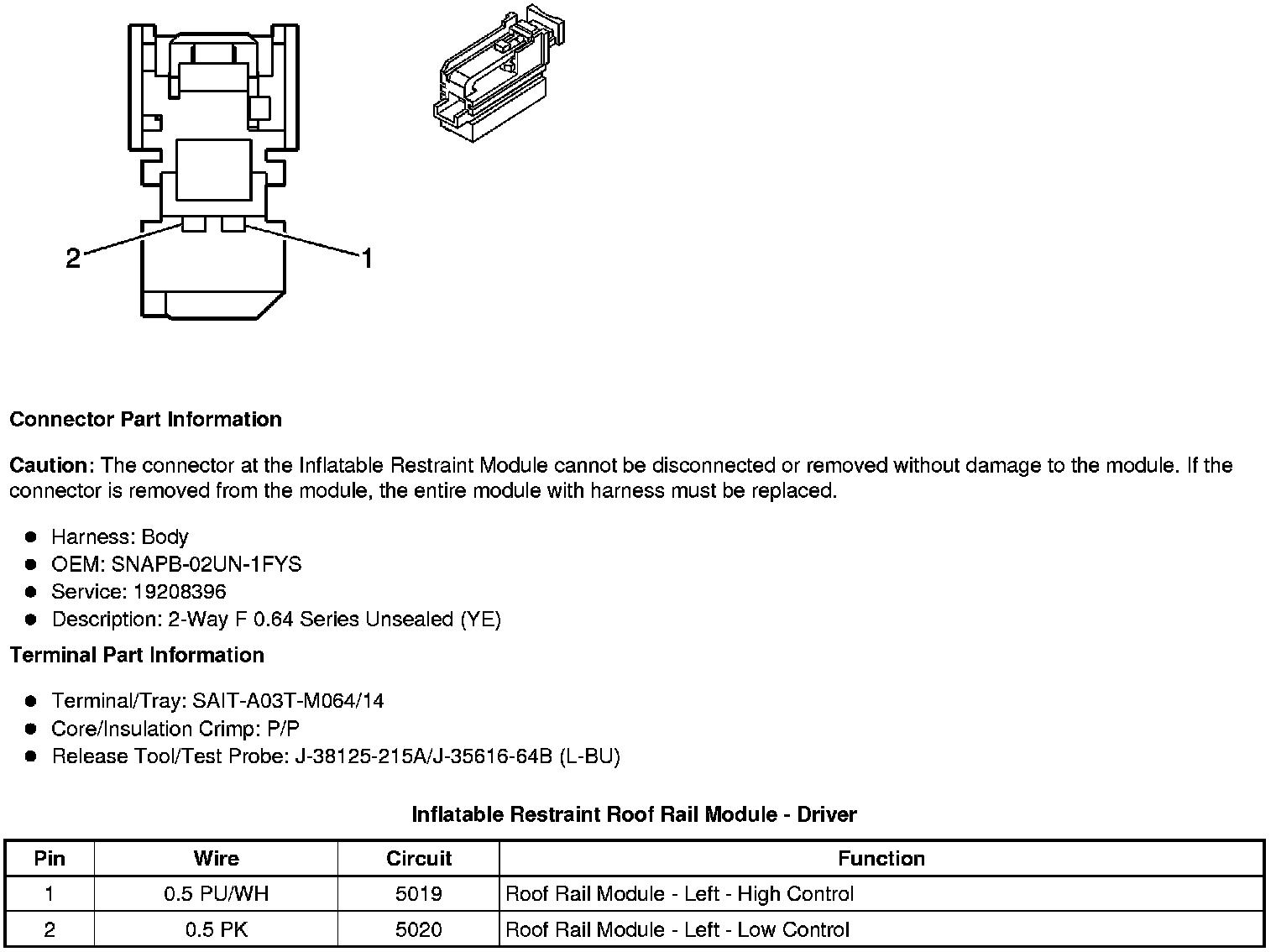

Inflatable Restraint Roof Rail Module - Driver

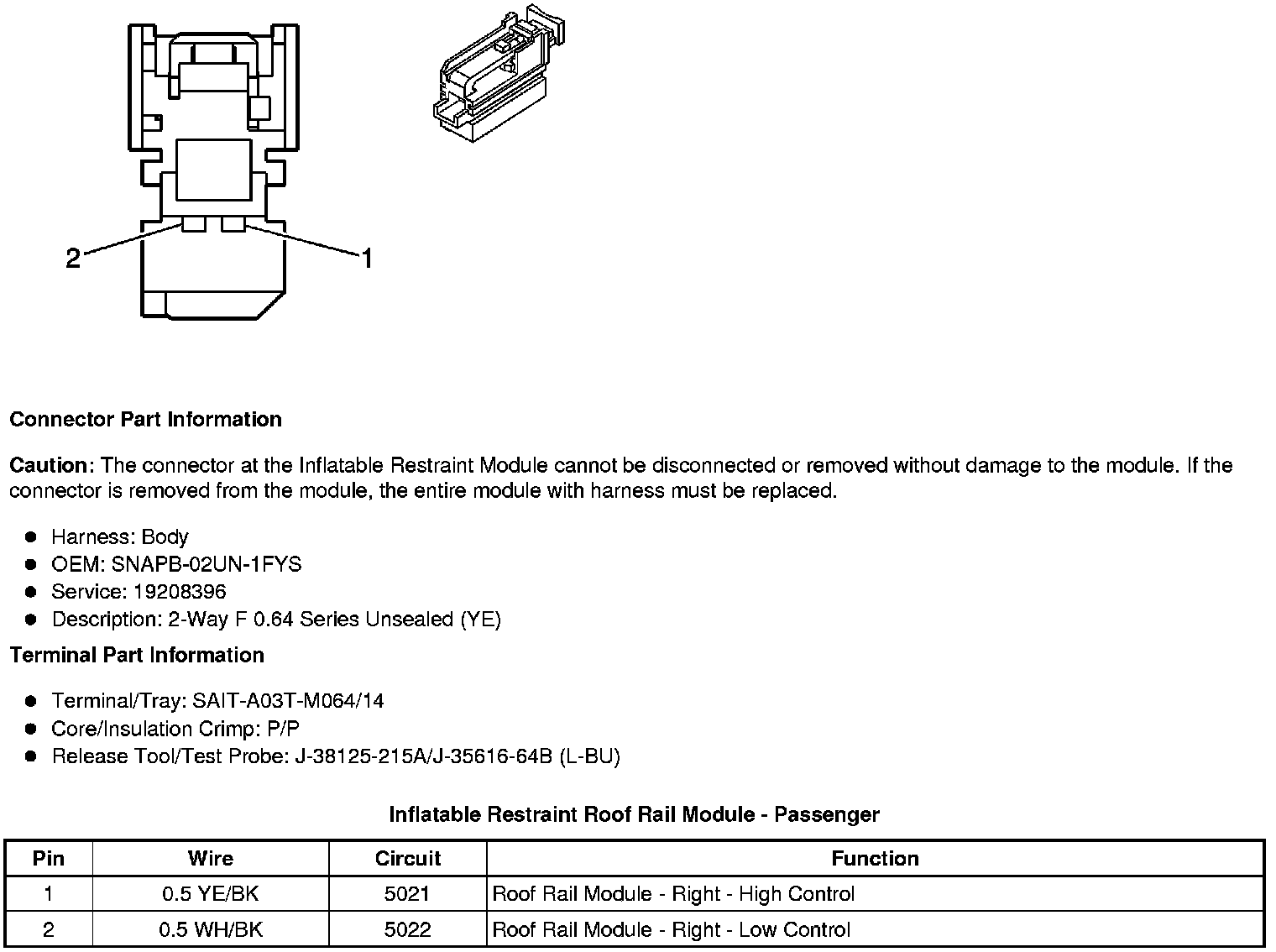

Inflatable Restraint Roof Rail Module - Passenger
