Trunk / Liftgate
Component Connector End Views

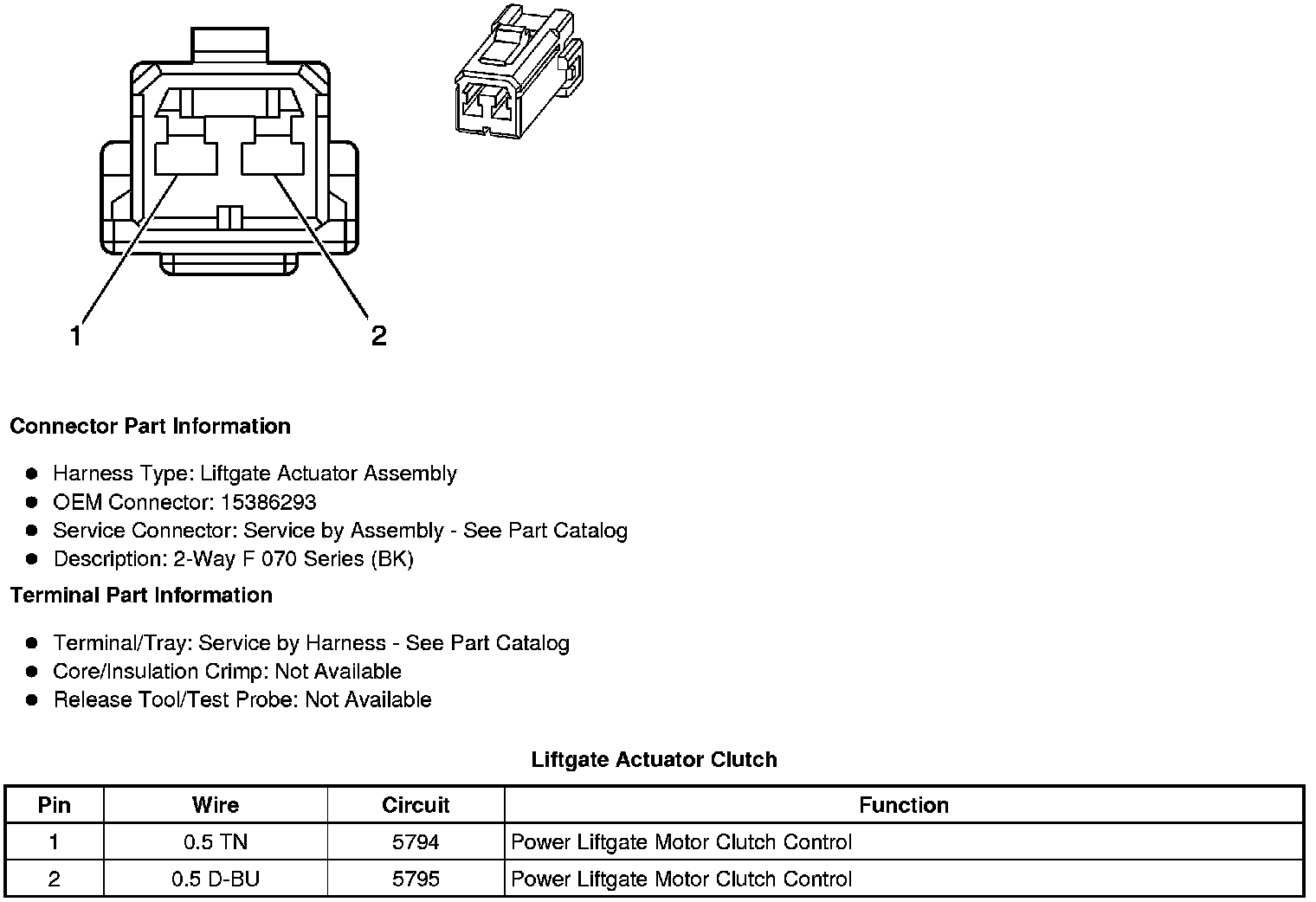

Liftgate Actuator Clutch

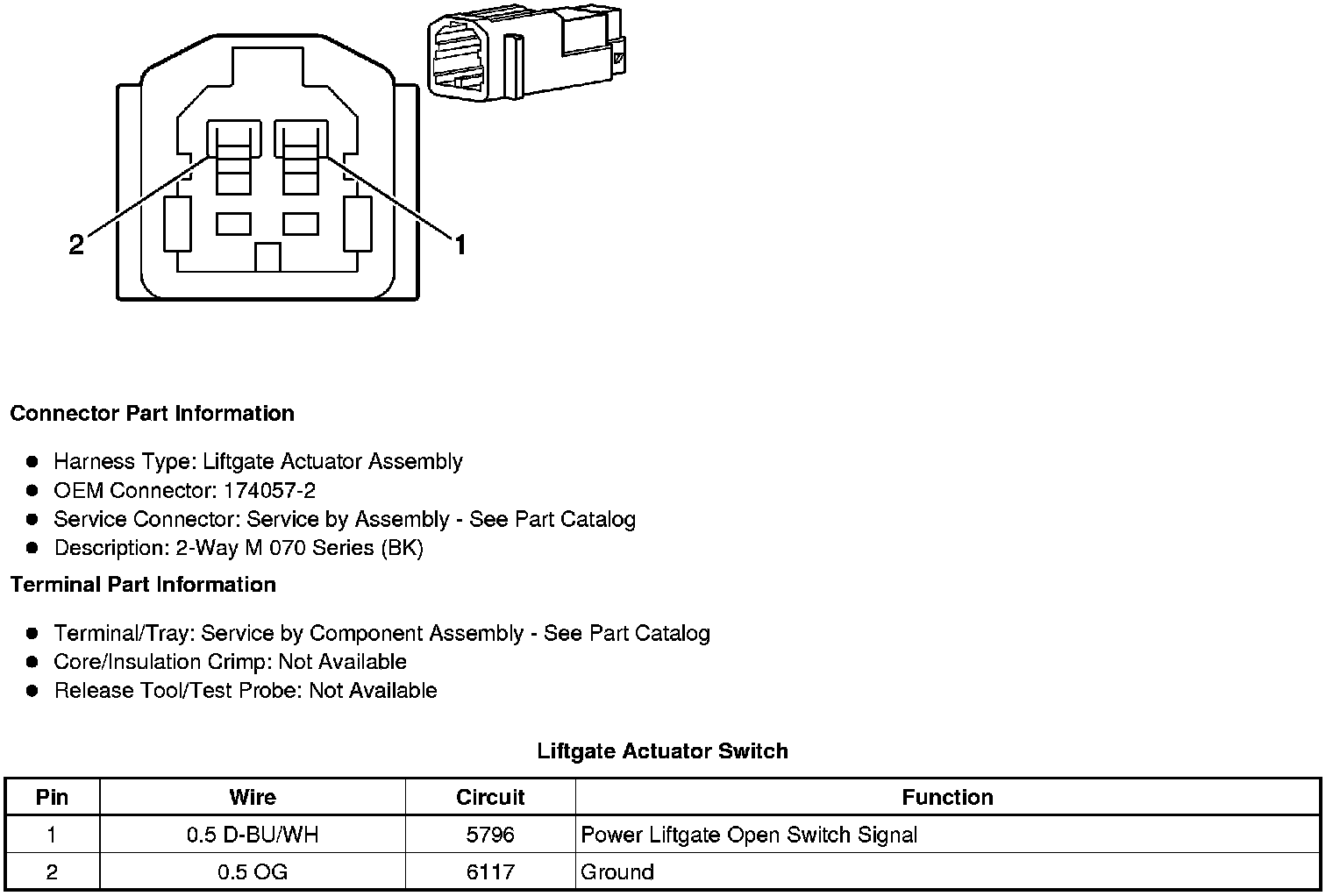

Liftgate Actuator Switch

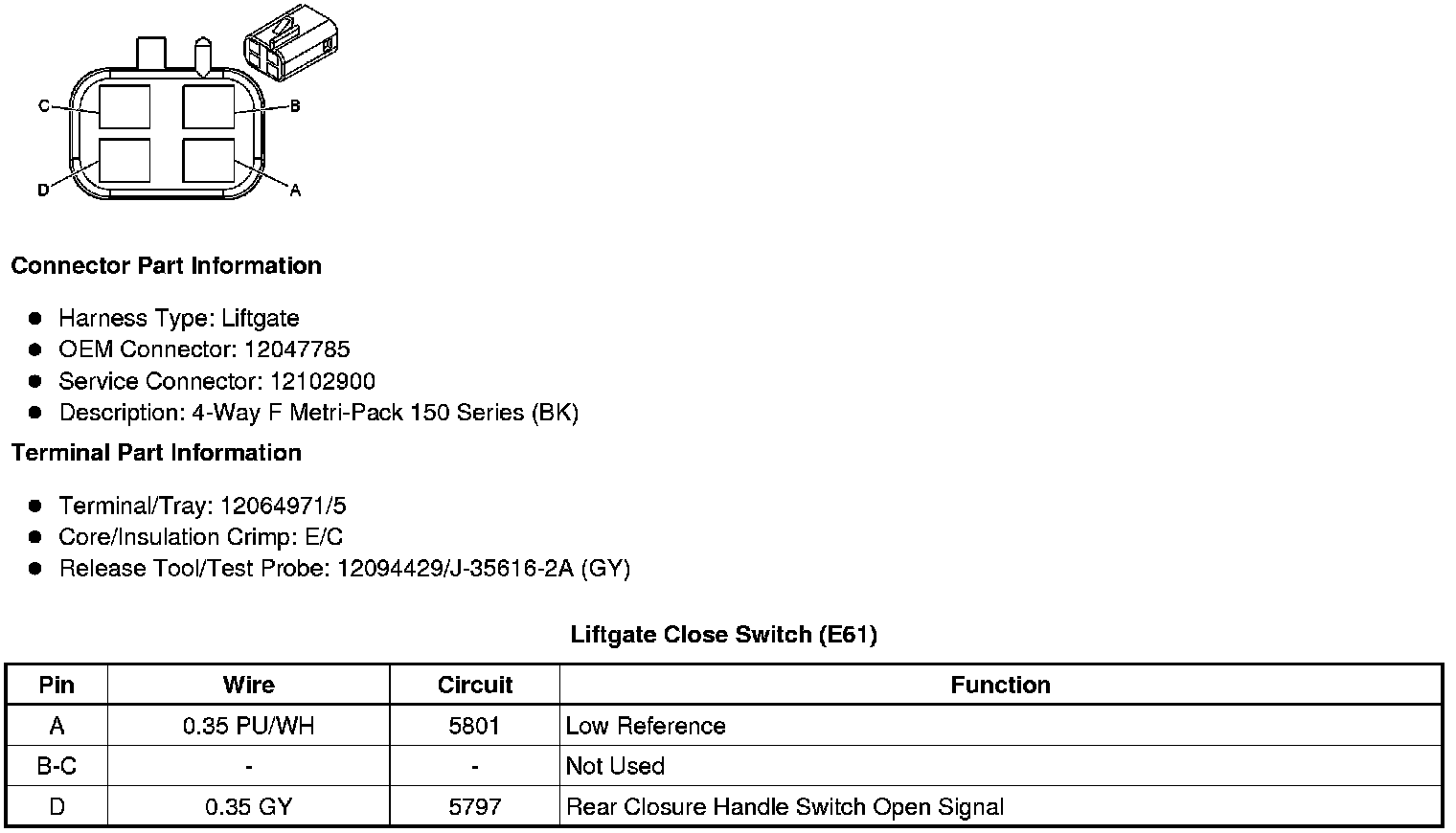

Liftgate Close Switch (E61)

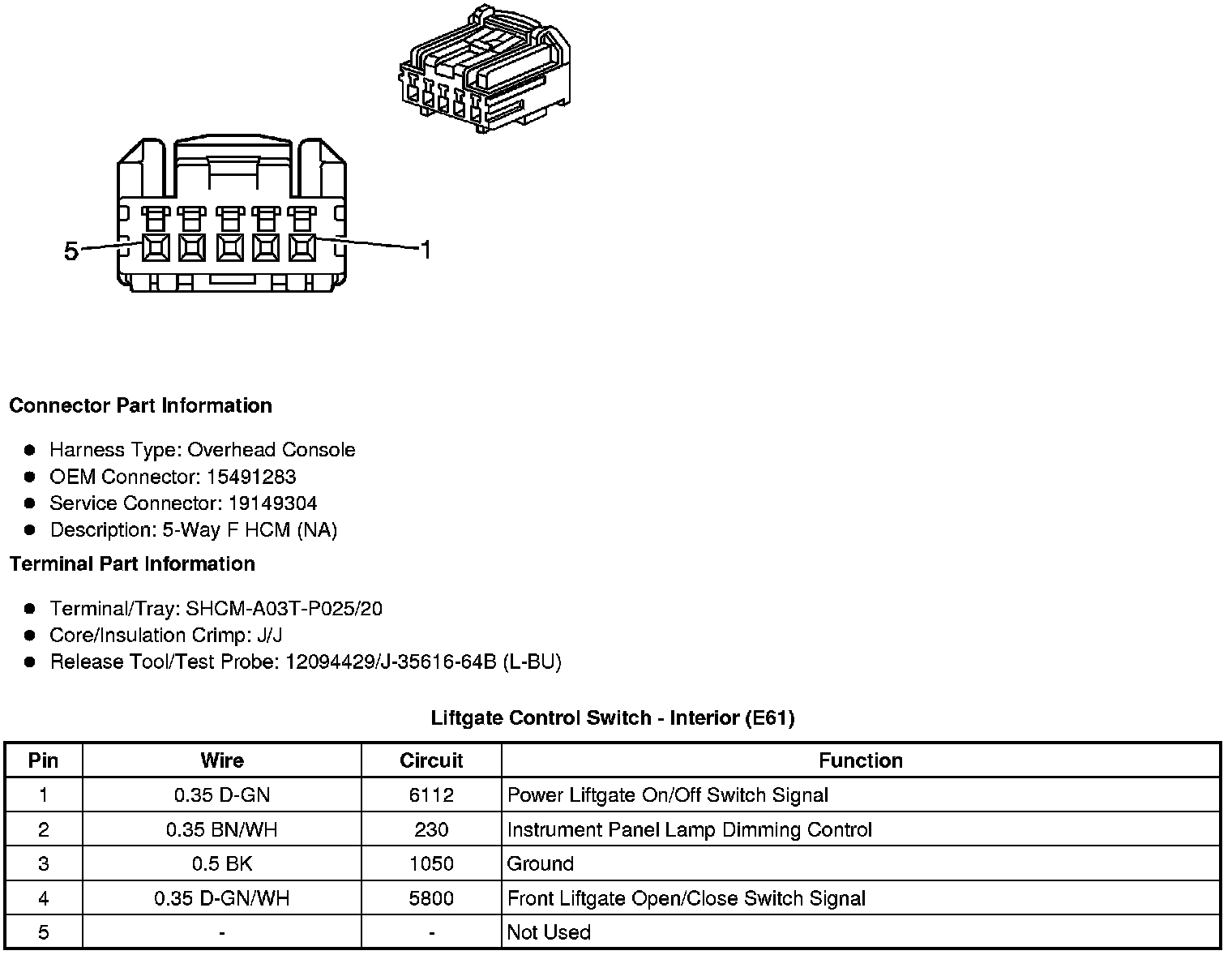

Liftgate Control Switch - Interior (E61)

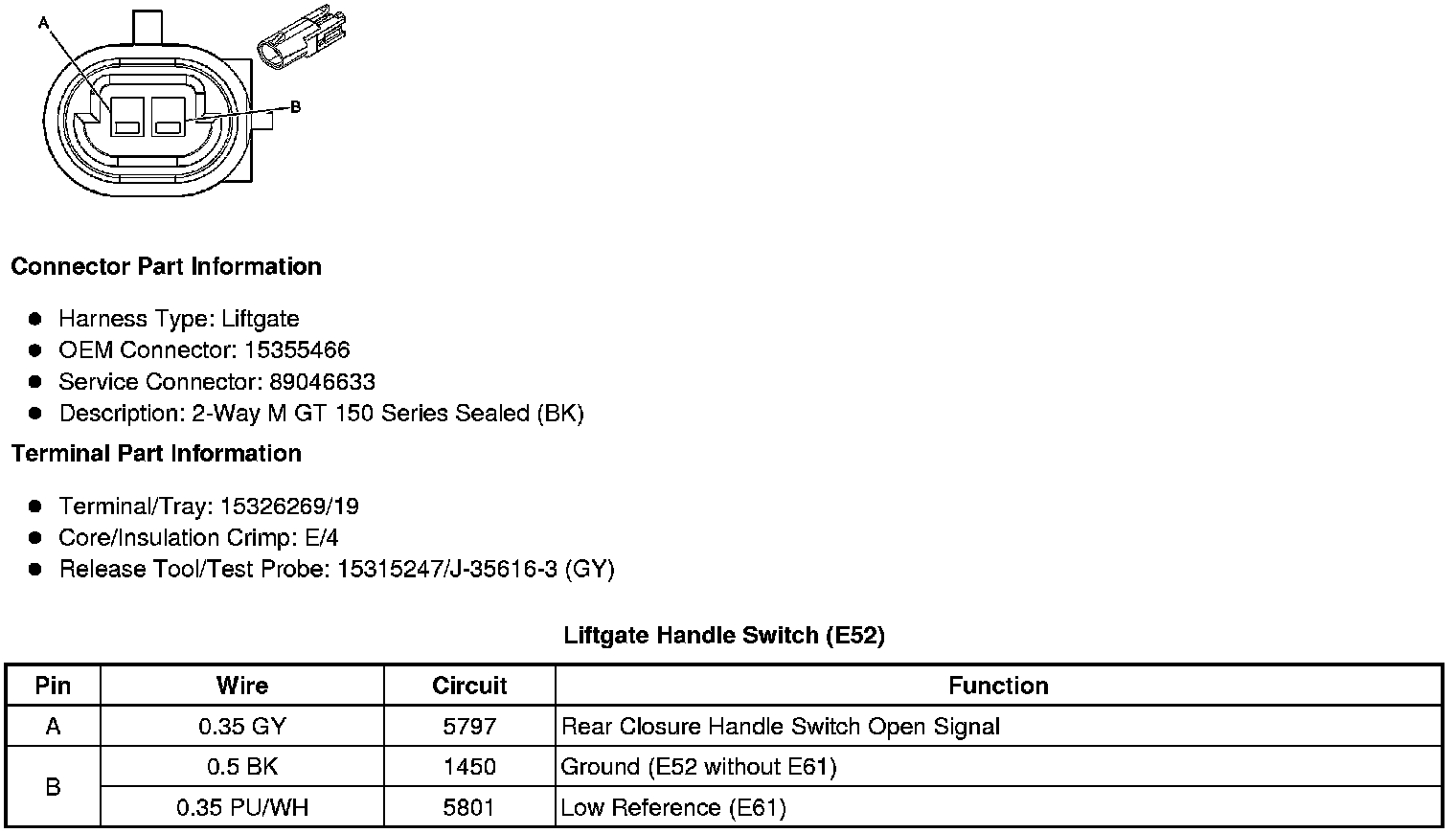

Liftgate Handle Switch (E52)

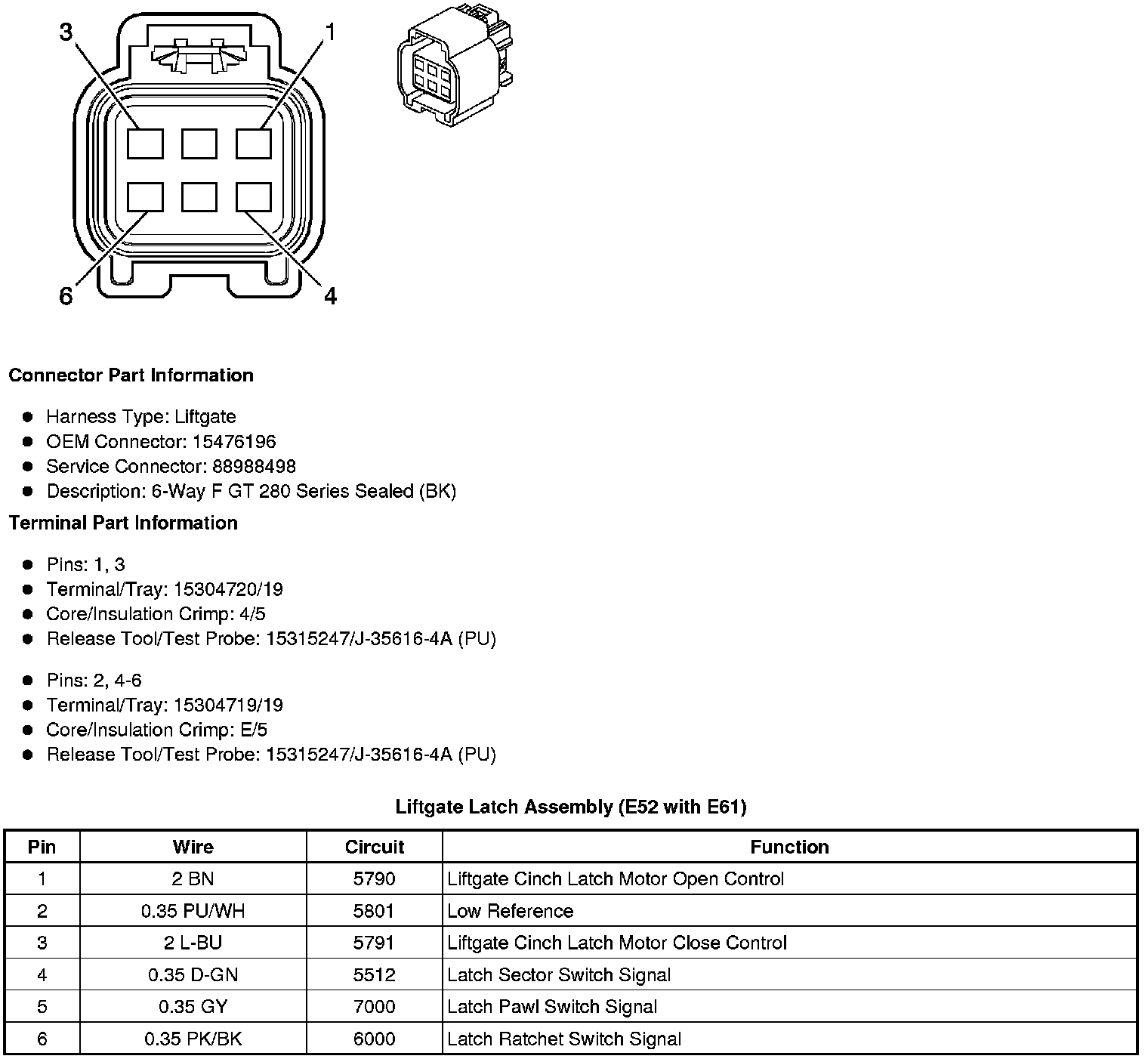

Liftgate Latch Assembly (E52 with E61)

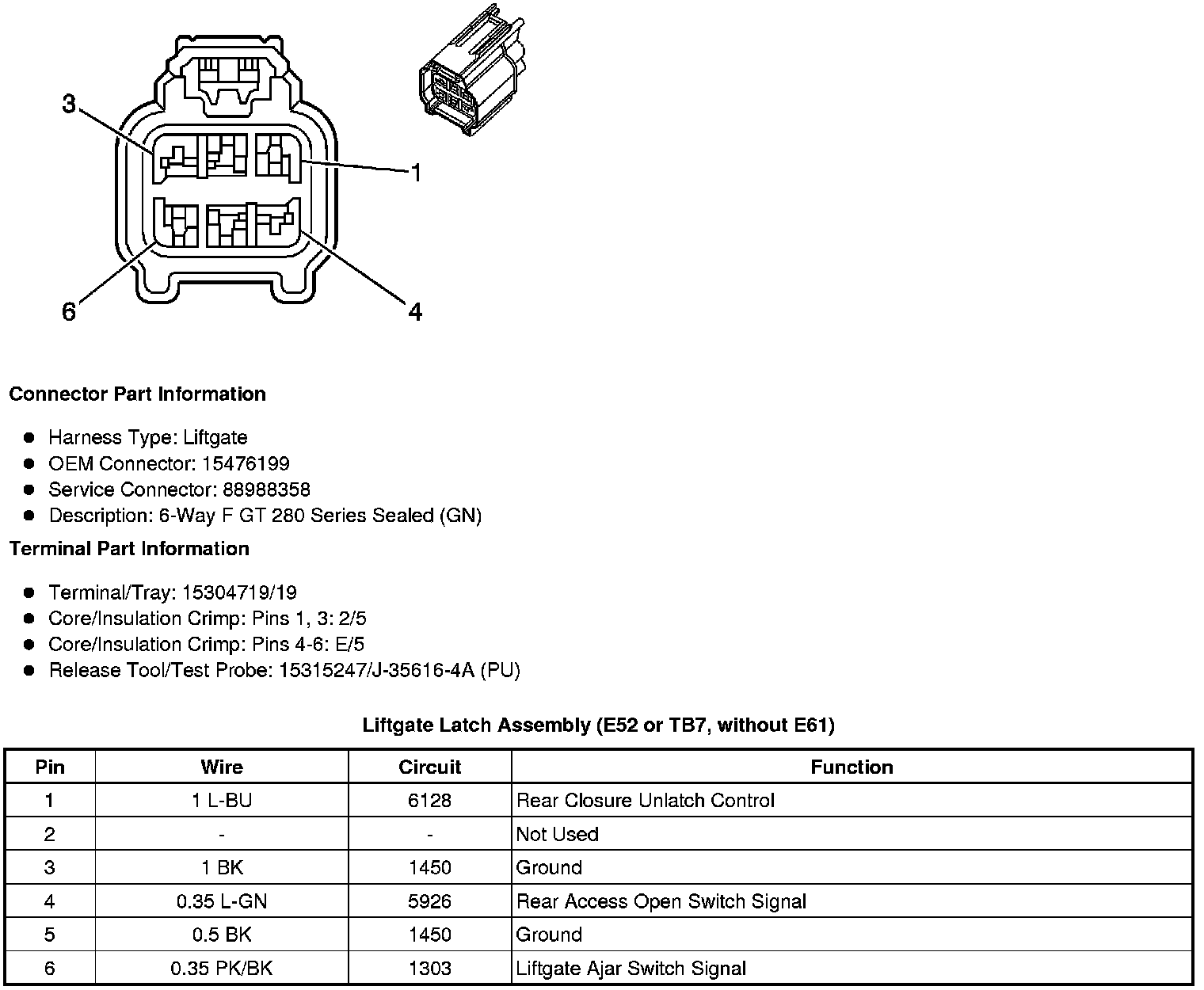

Liftgate Latch Assembly (E52 or TB7, without E61)

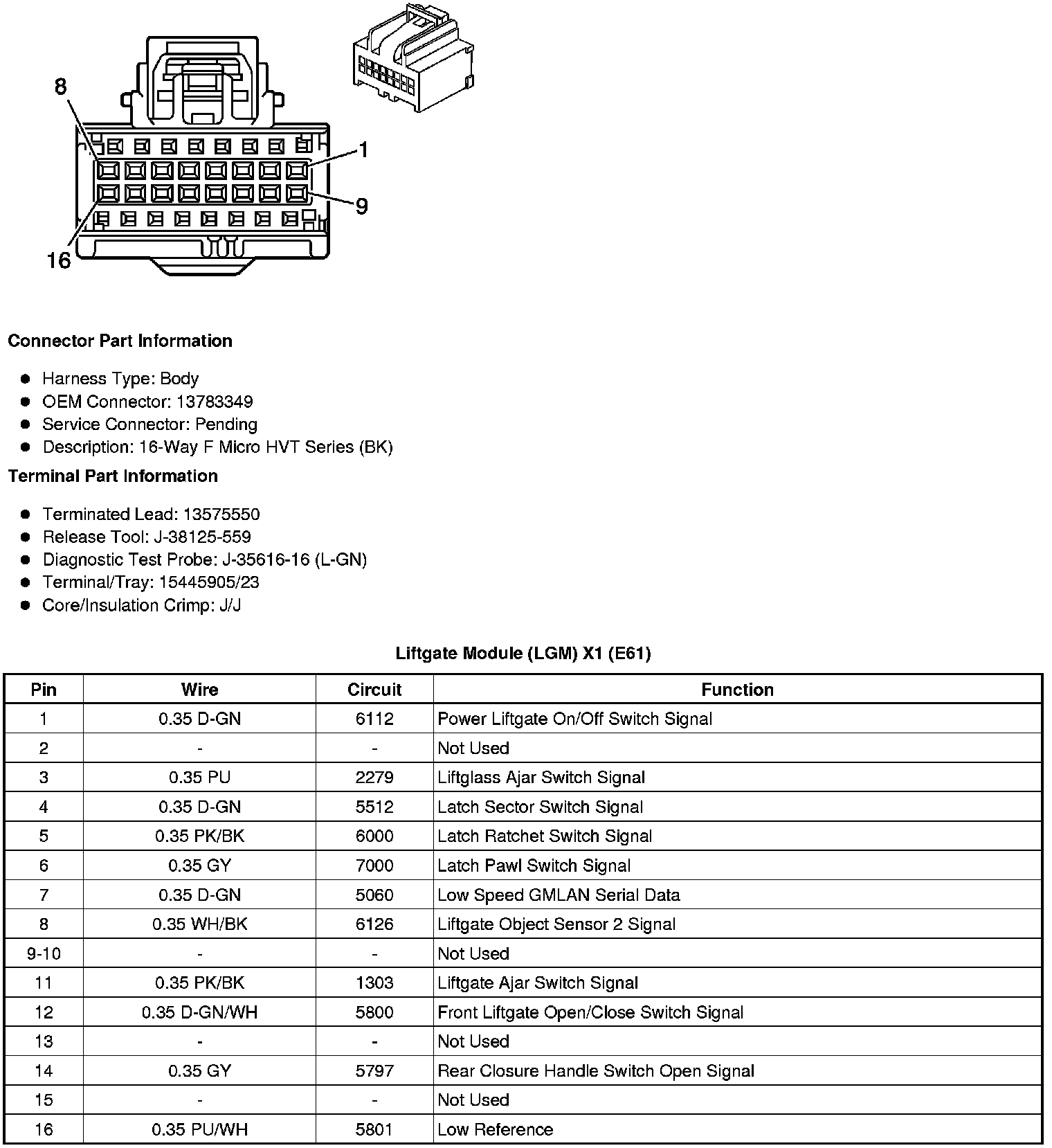

Liftgate Module (LGM) X1 (E61)

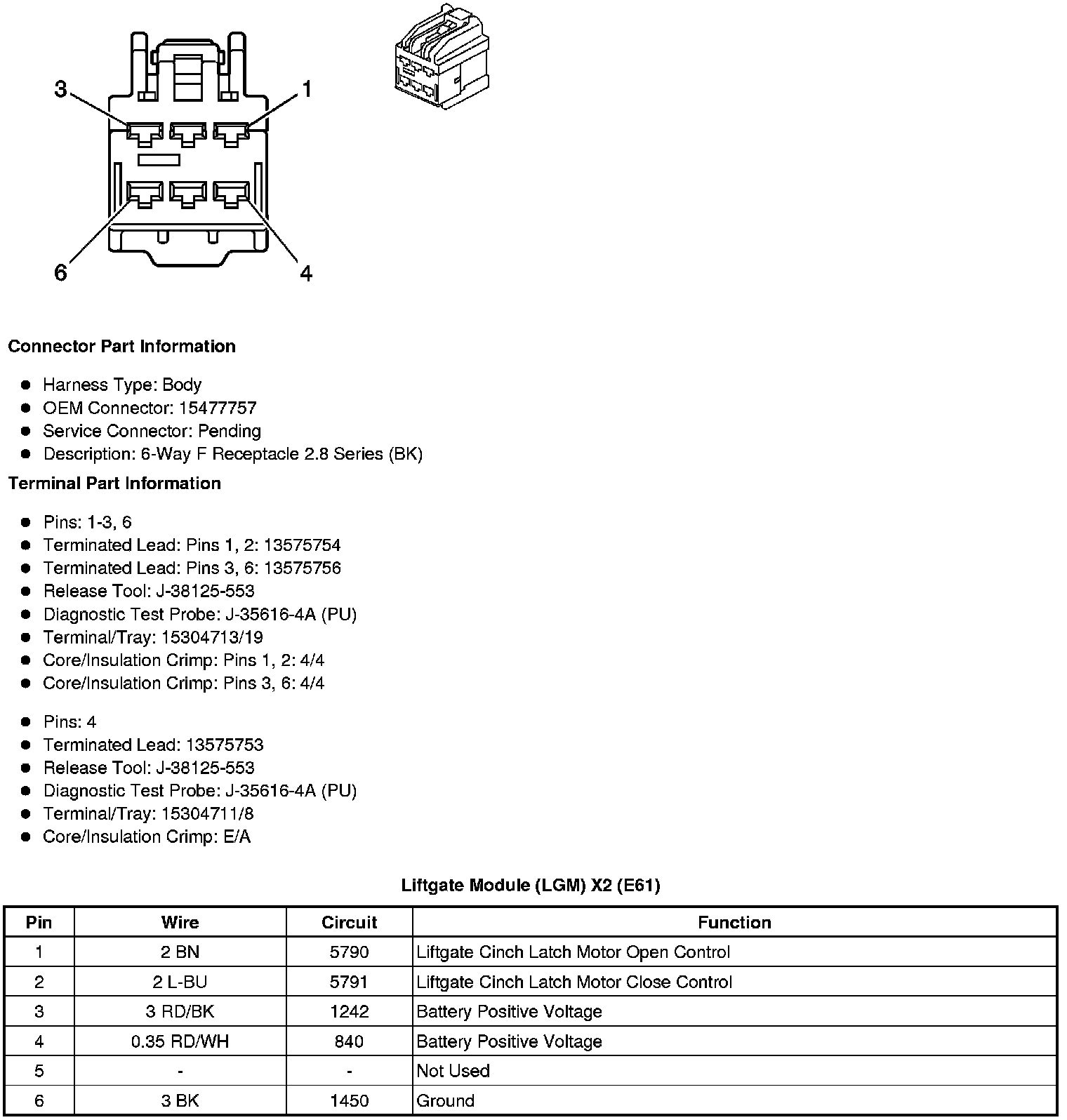

Liftgate Module (LGM) X2 (E61)

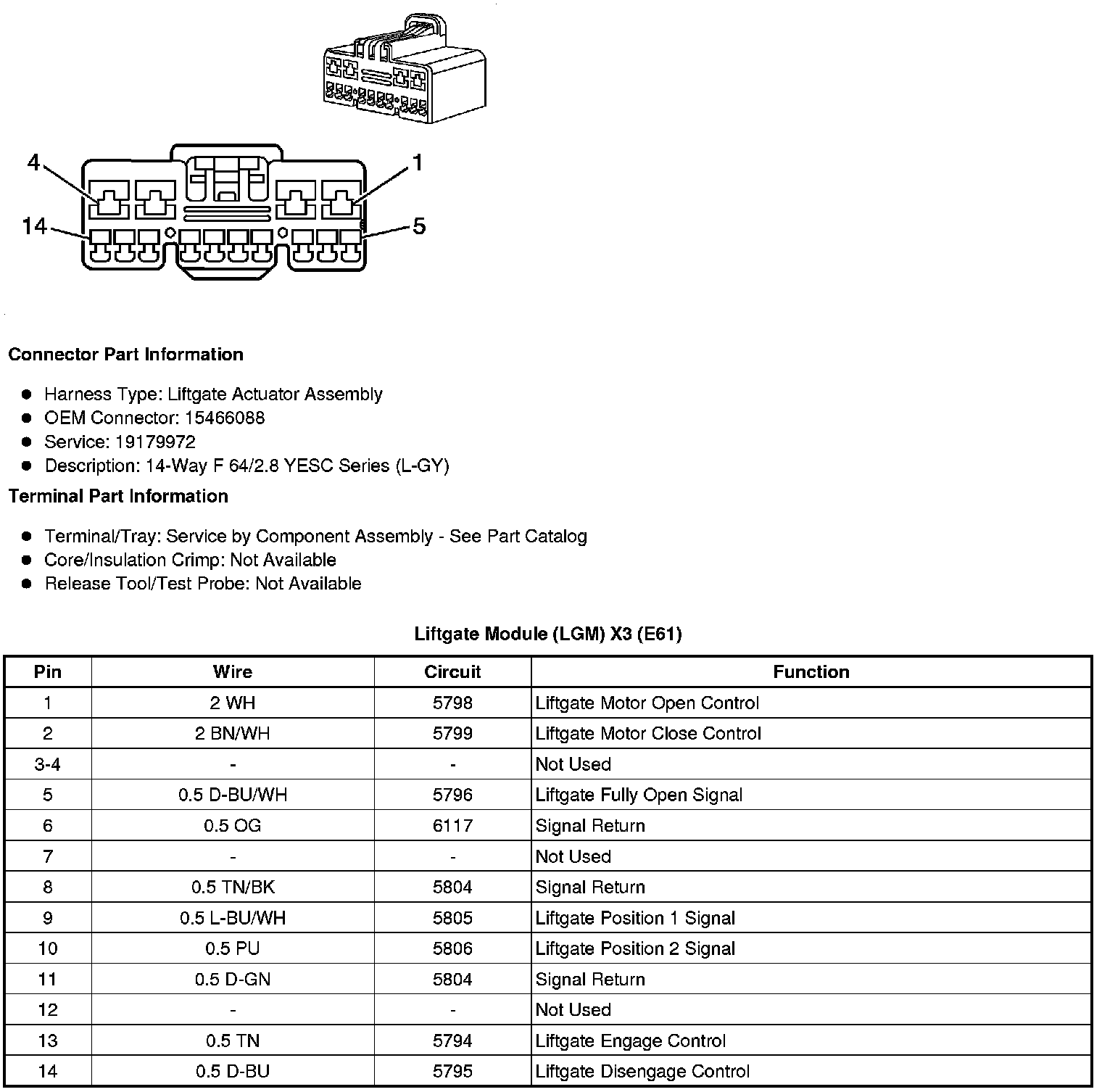

Liftgate Module (LGM) X3 (E61)

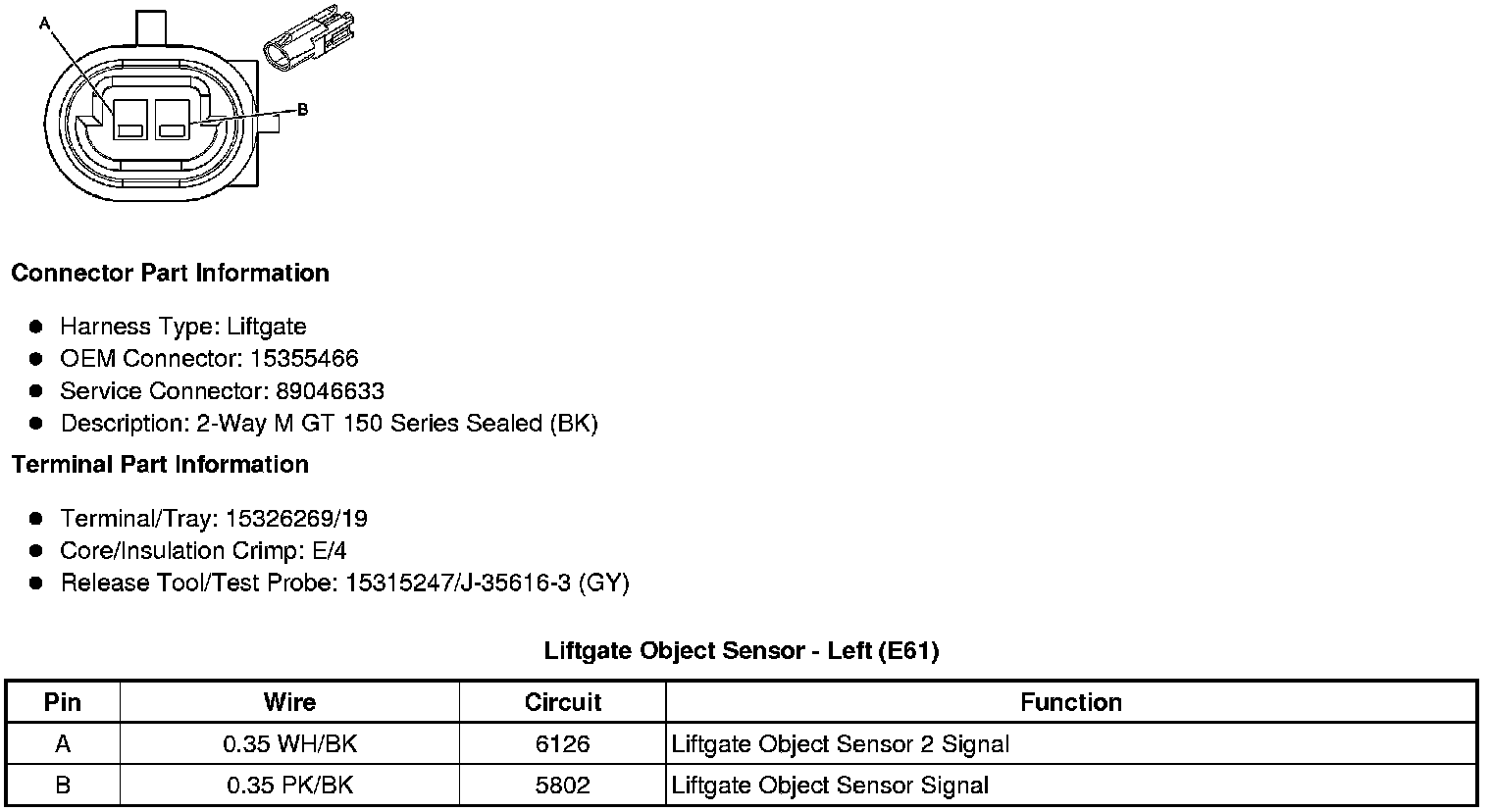

Liftgate Object Sensor - Left (E61)

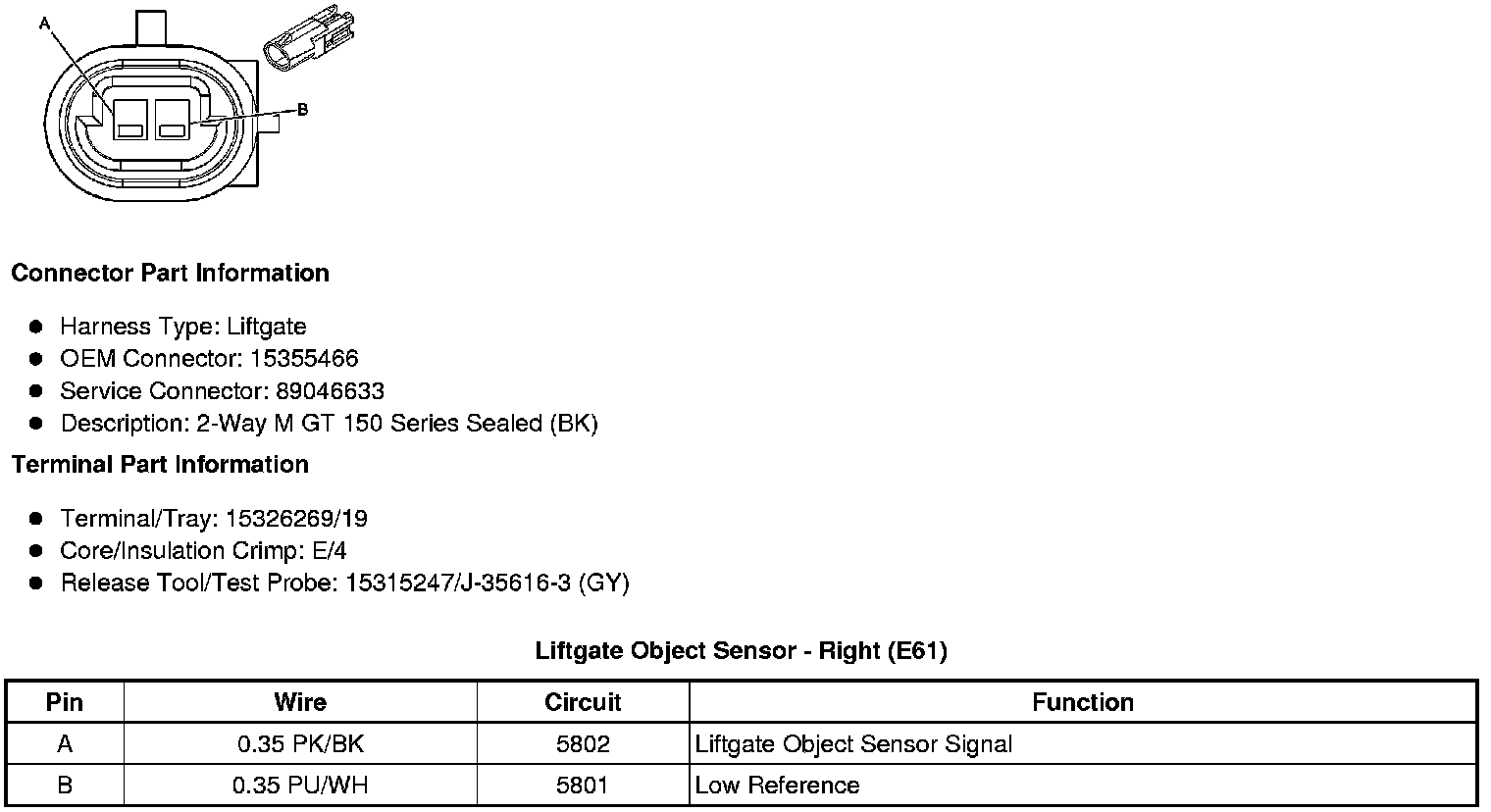

Liftgate Object Sensor - Right (E61)

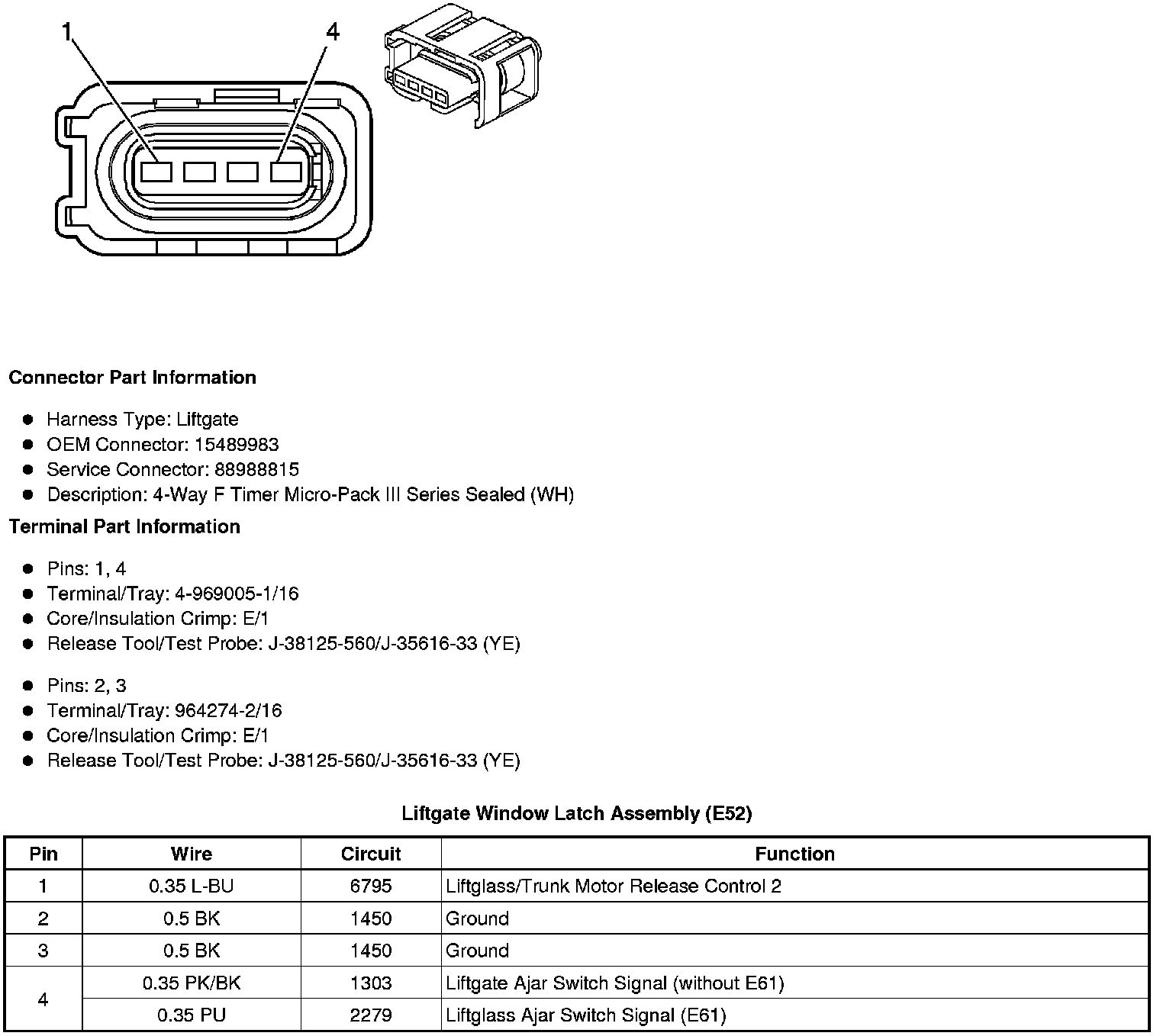

Liftgate Window Latch Assembly (E52)

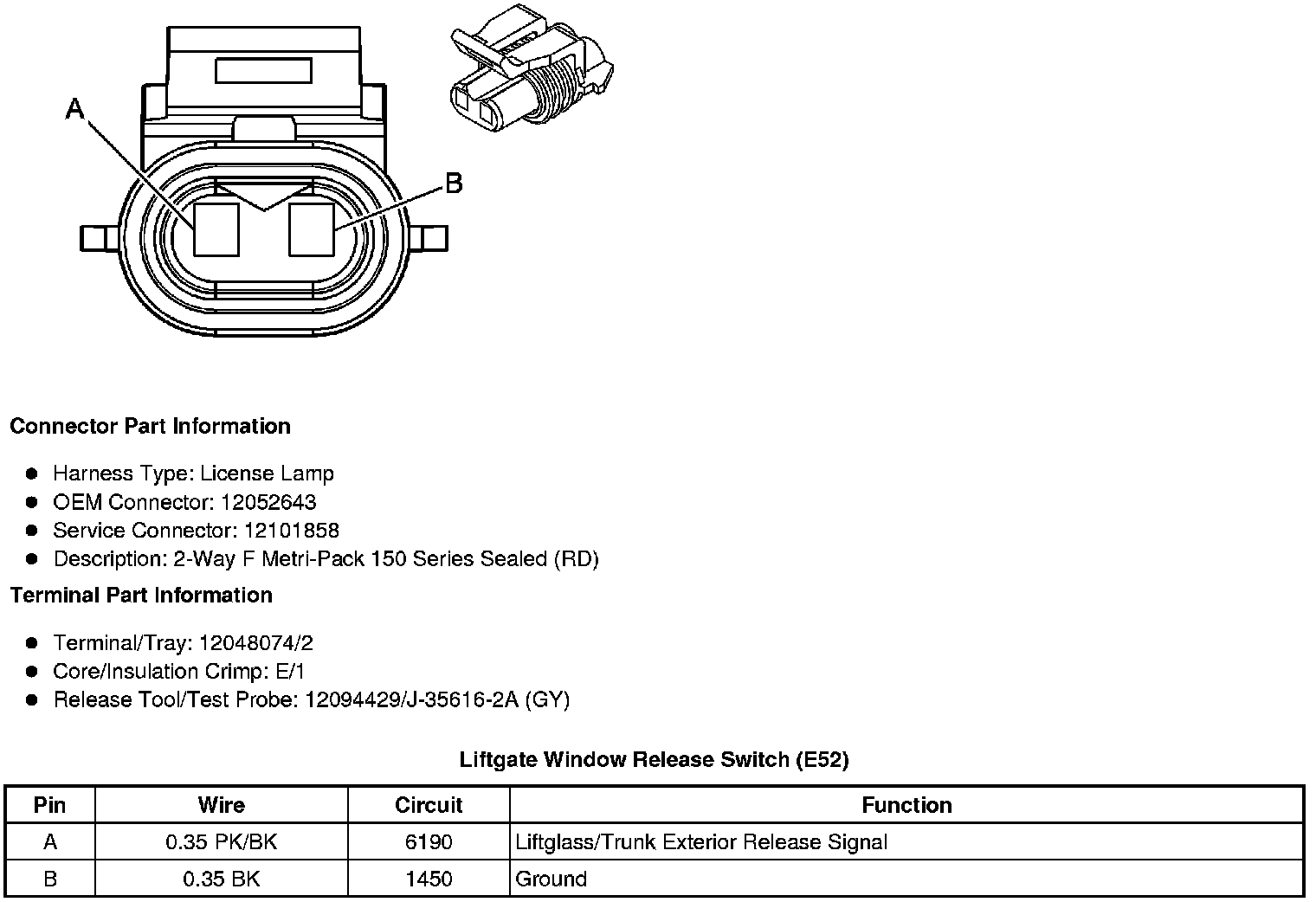

Liftgate Window Release Switch (E52)
