Seat Position Sensor




Component Connector End Views

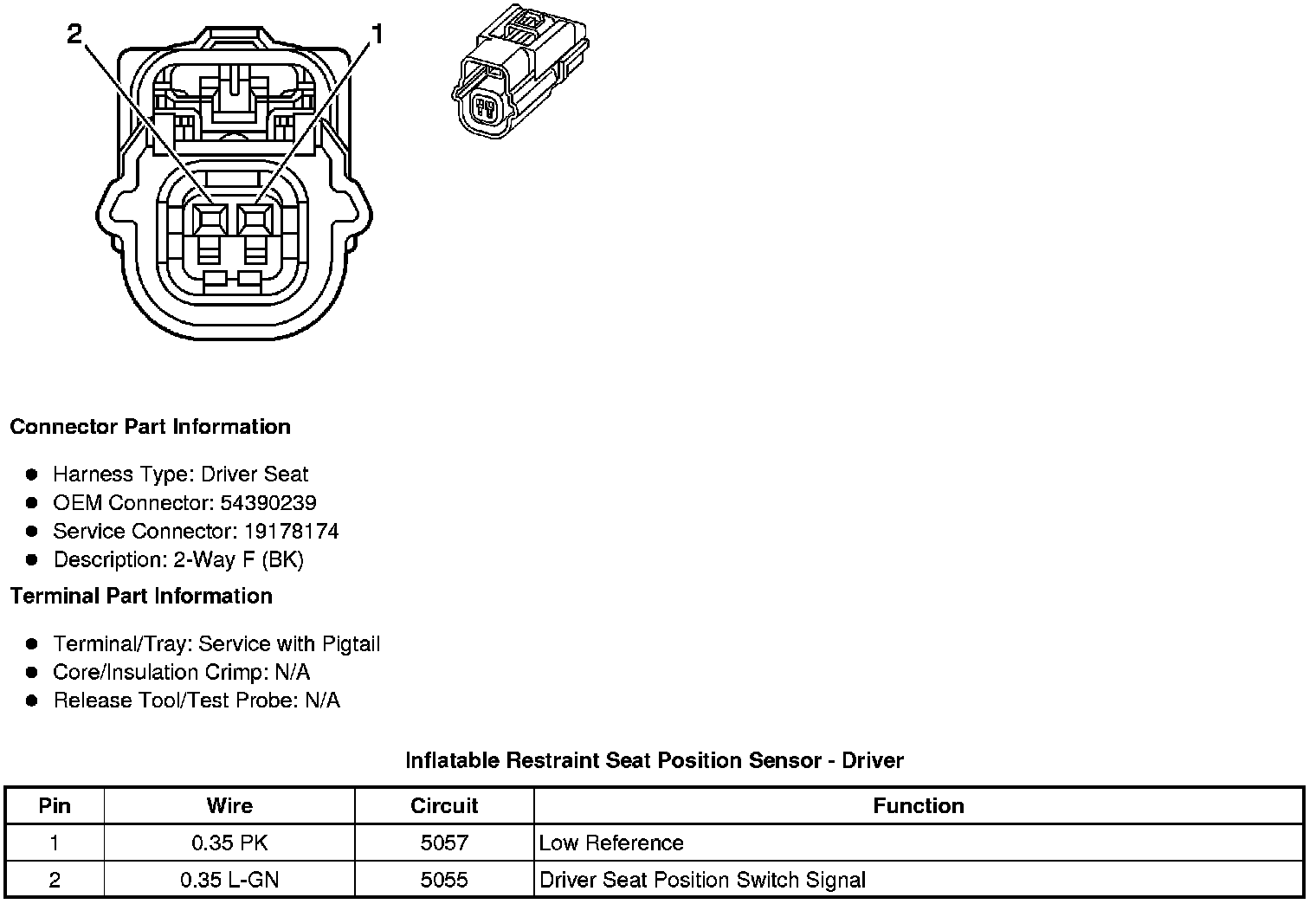

Inflatable Restraint Seat Position Sensor - Driver

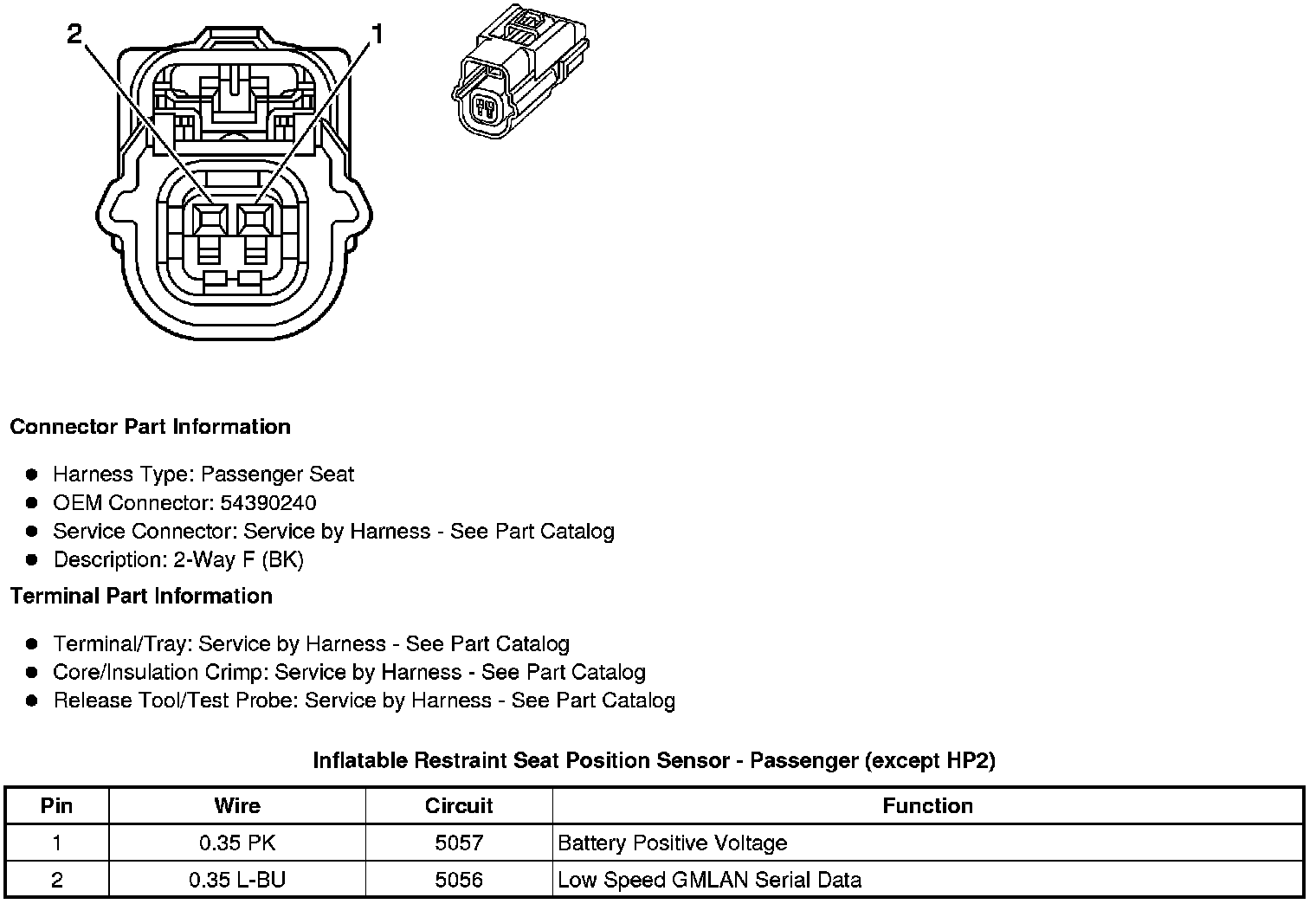

Inflatable Restraint Seat Position Sensor - Passenger (except HP2)
