Engine Control Module: Diagrams

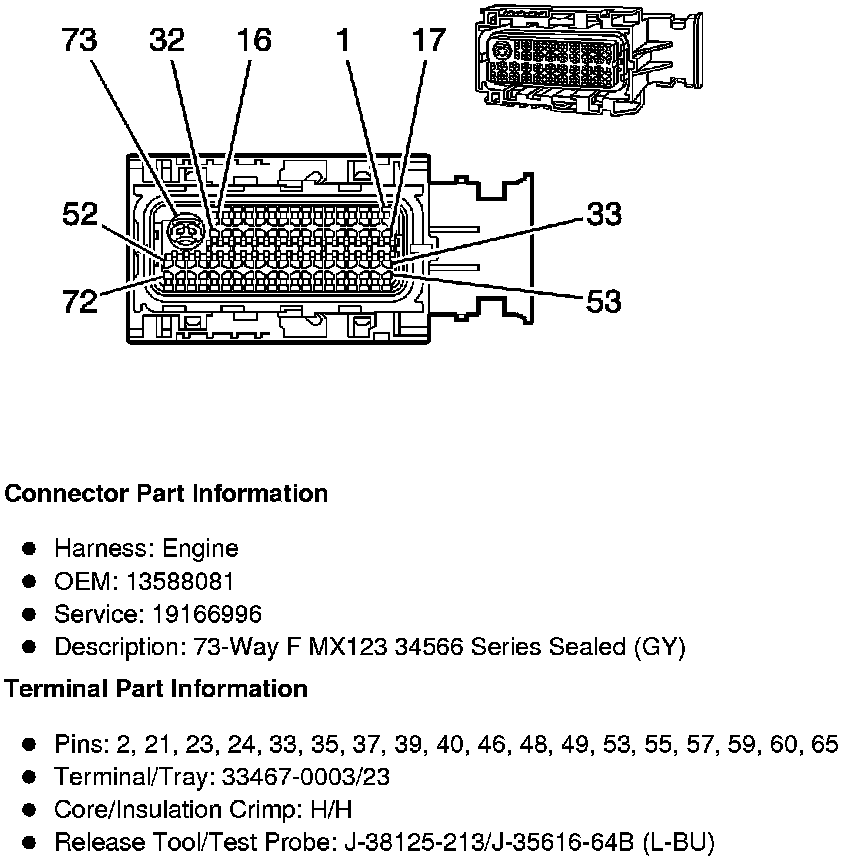

Component Connector End Views

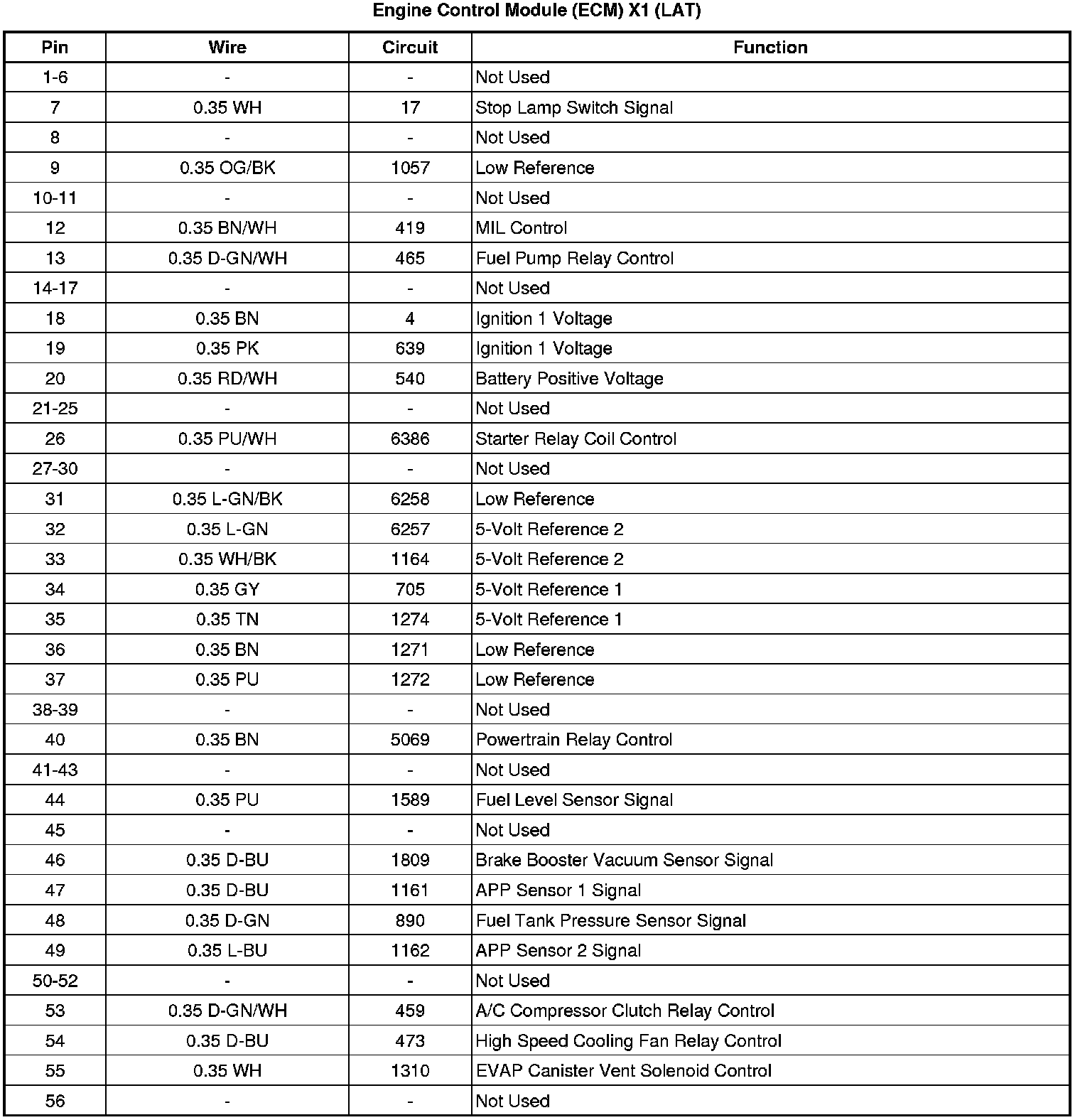

Engine Control Module (ECM) X1 (LAT)

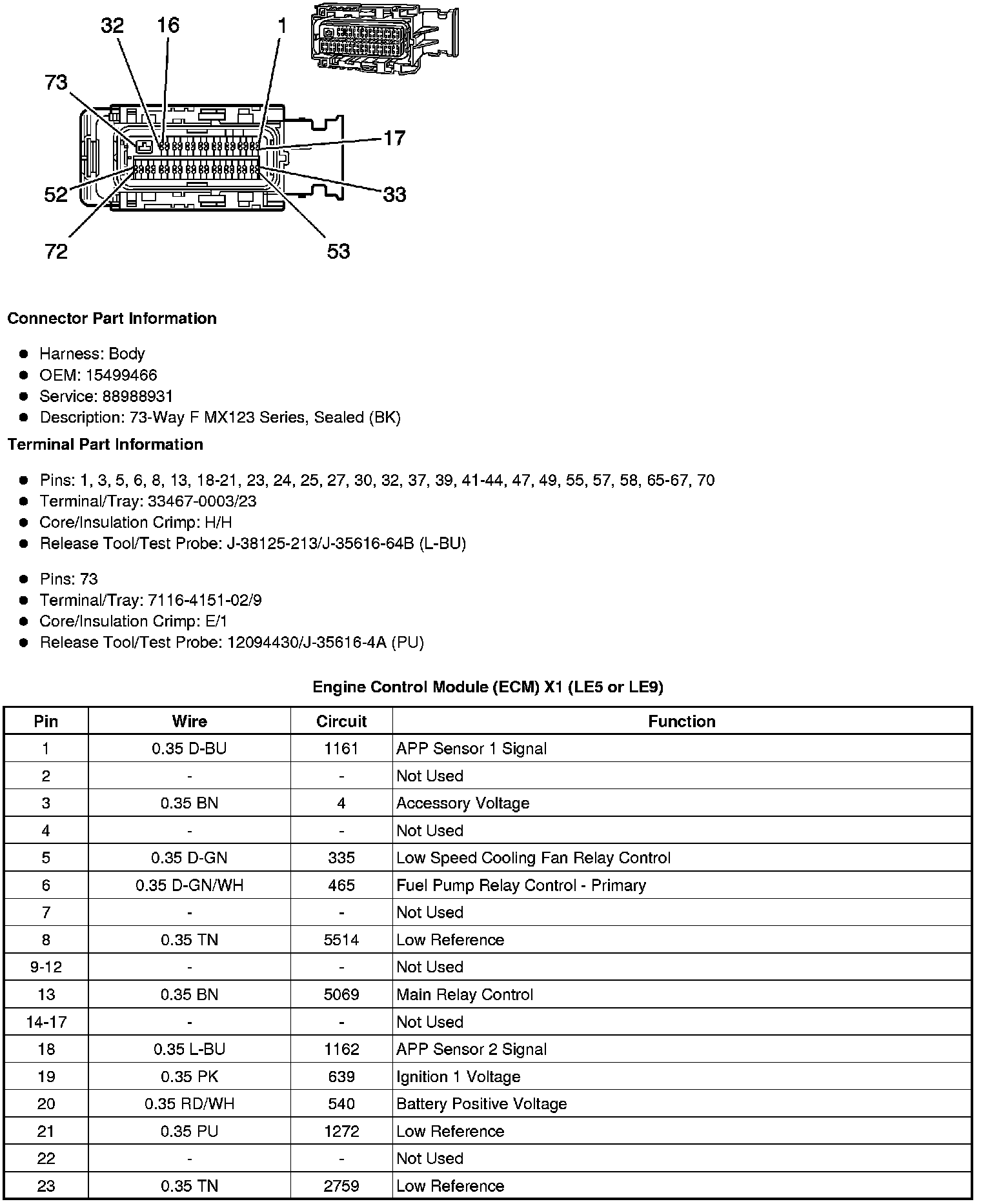

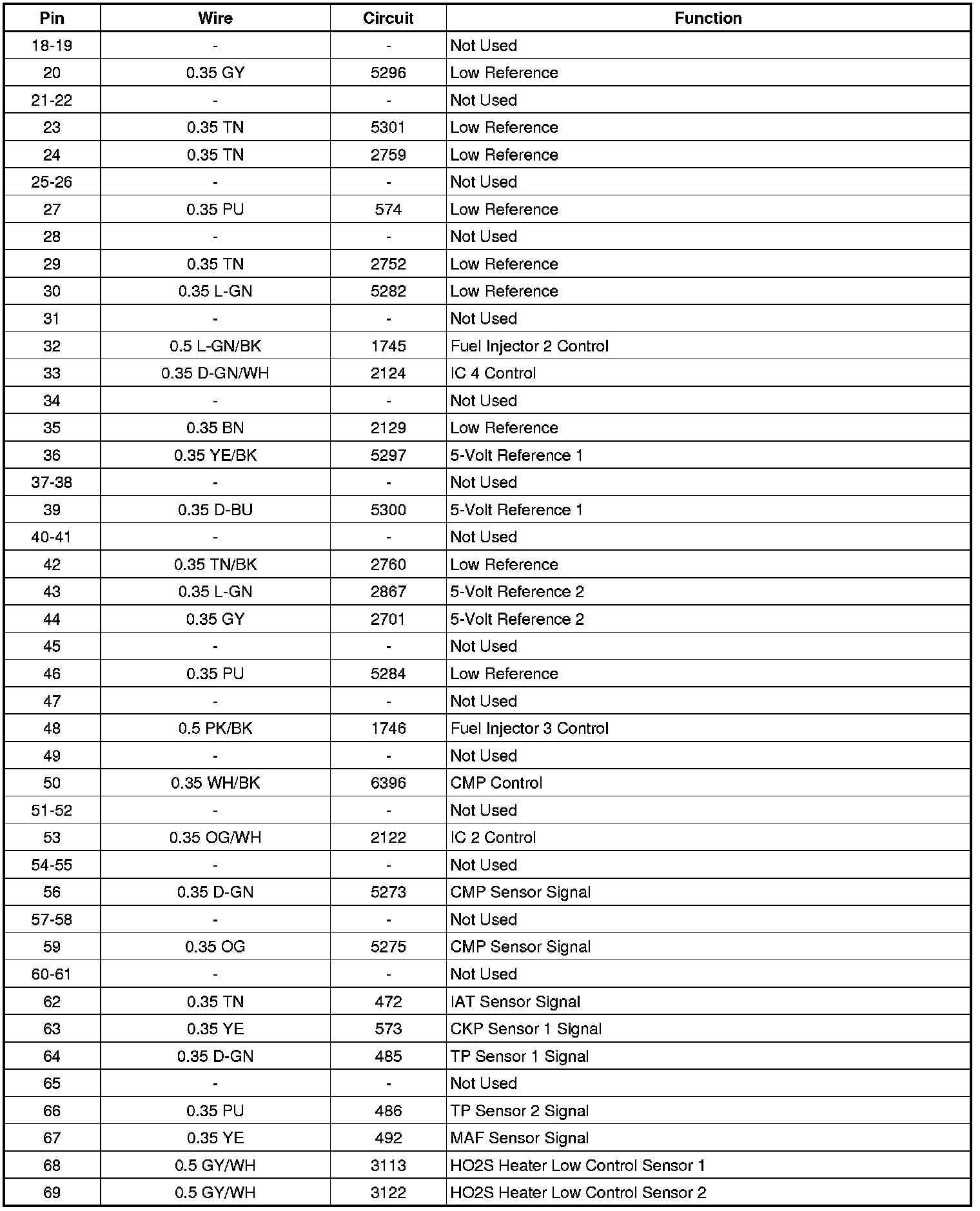

Engine Control Module (ECM) X1 (LE5 or LE9)

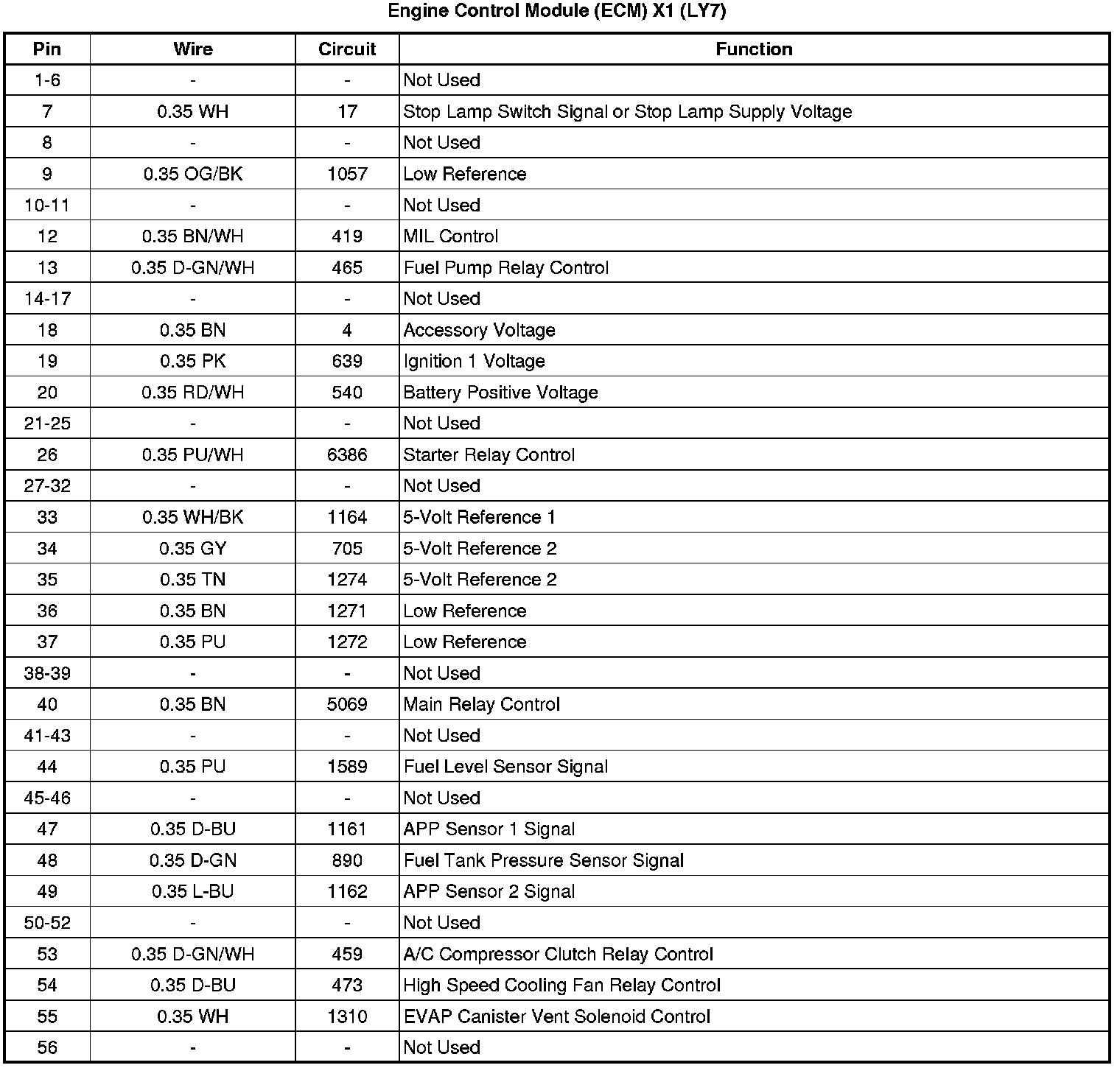

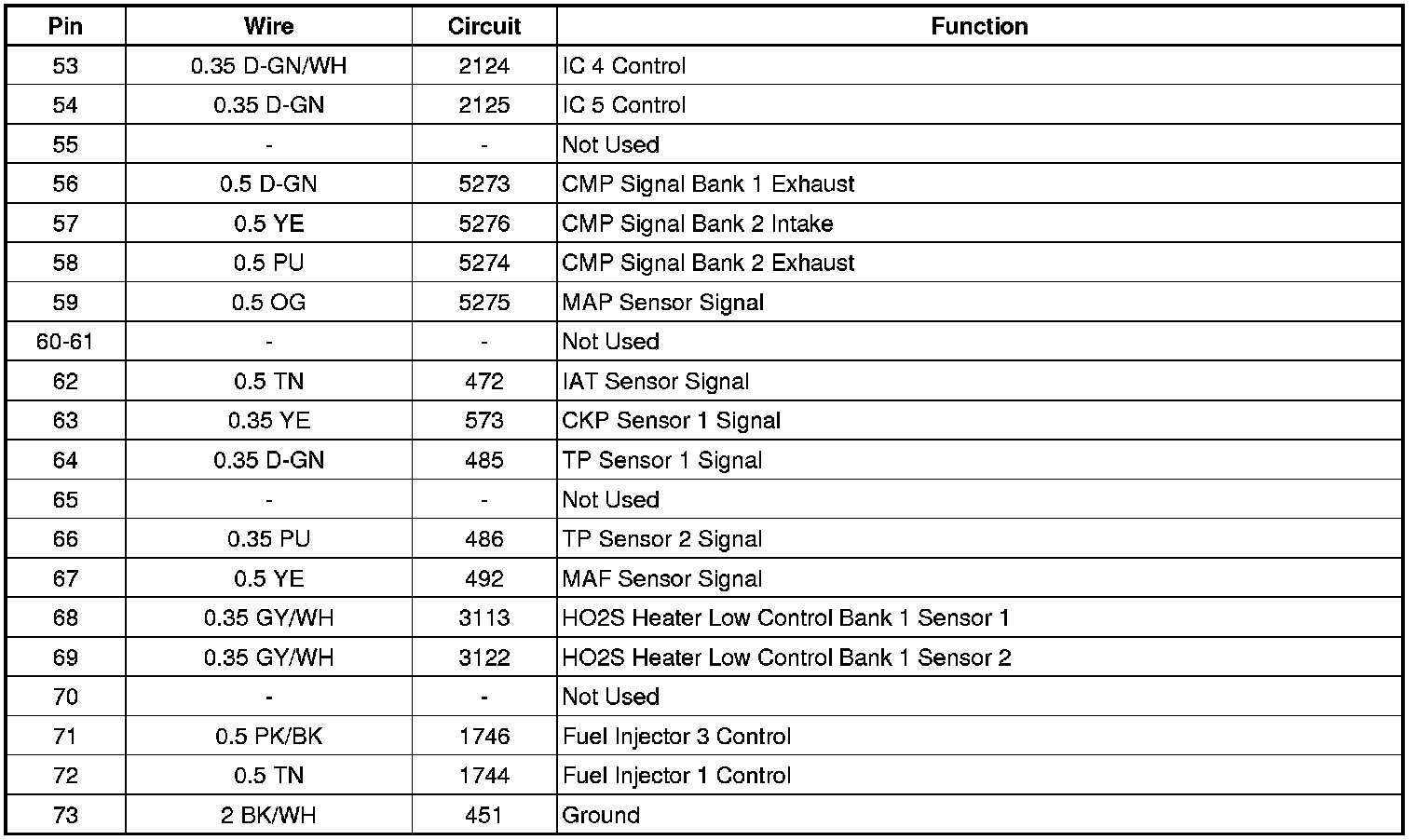

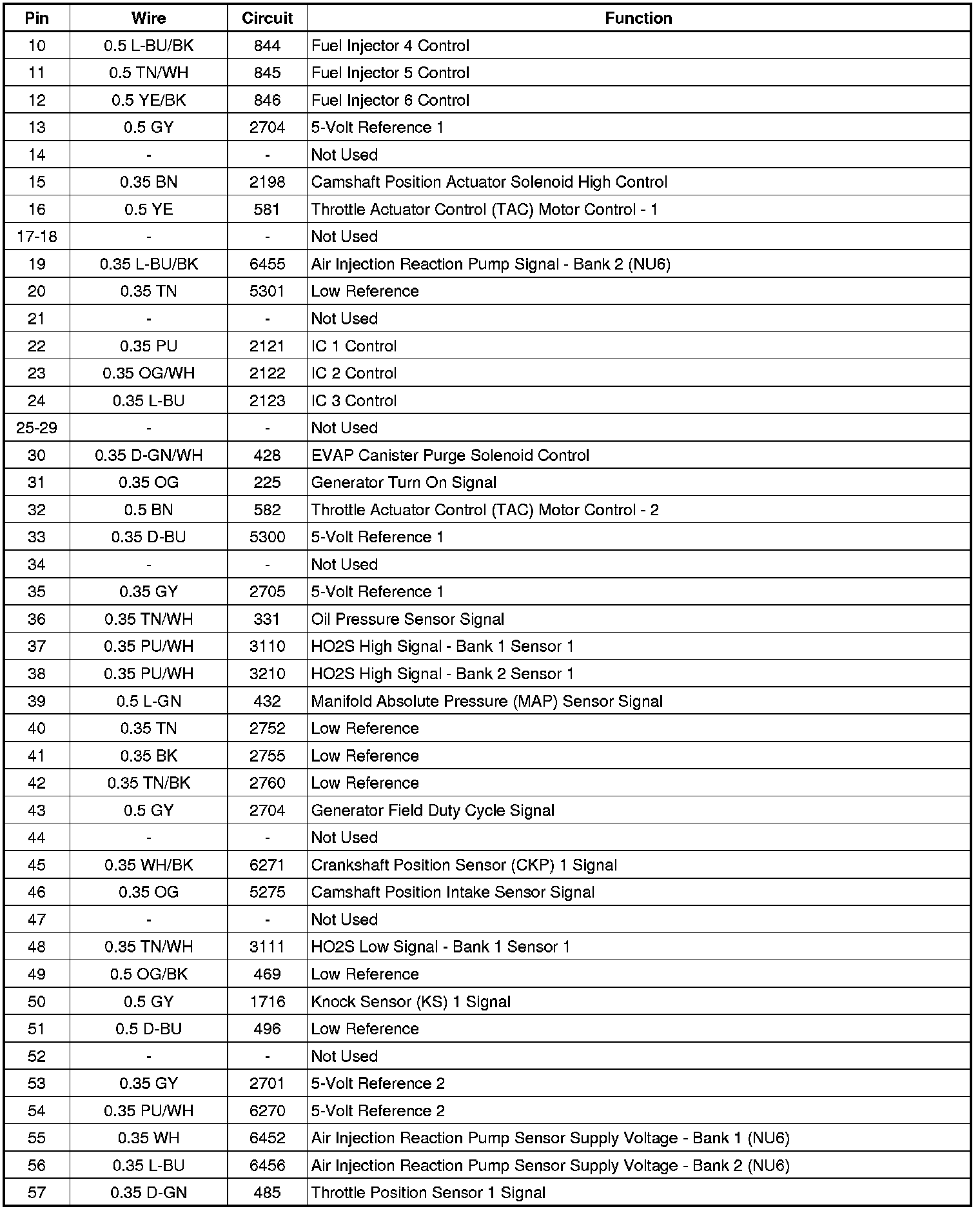

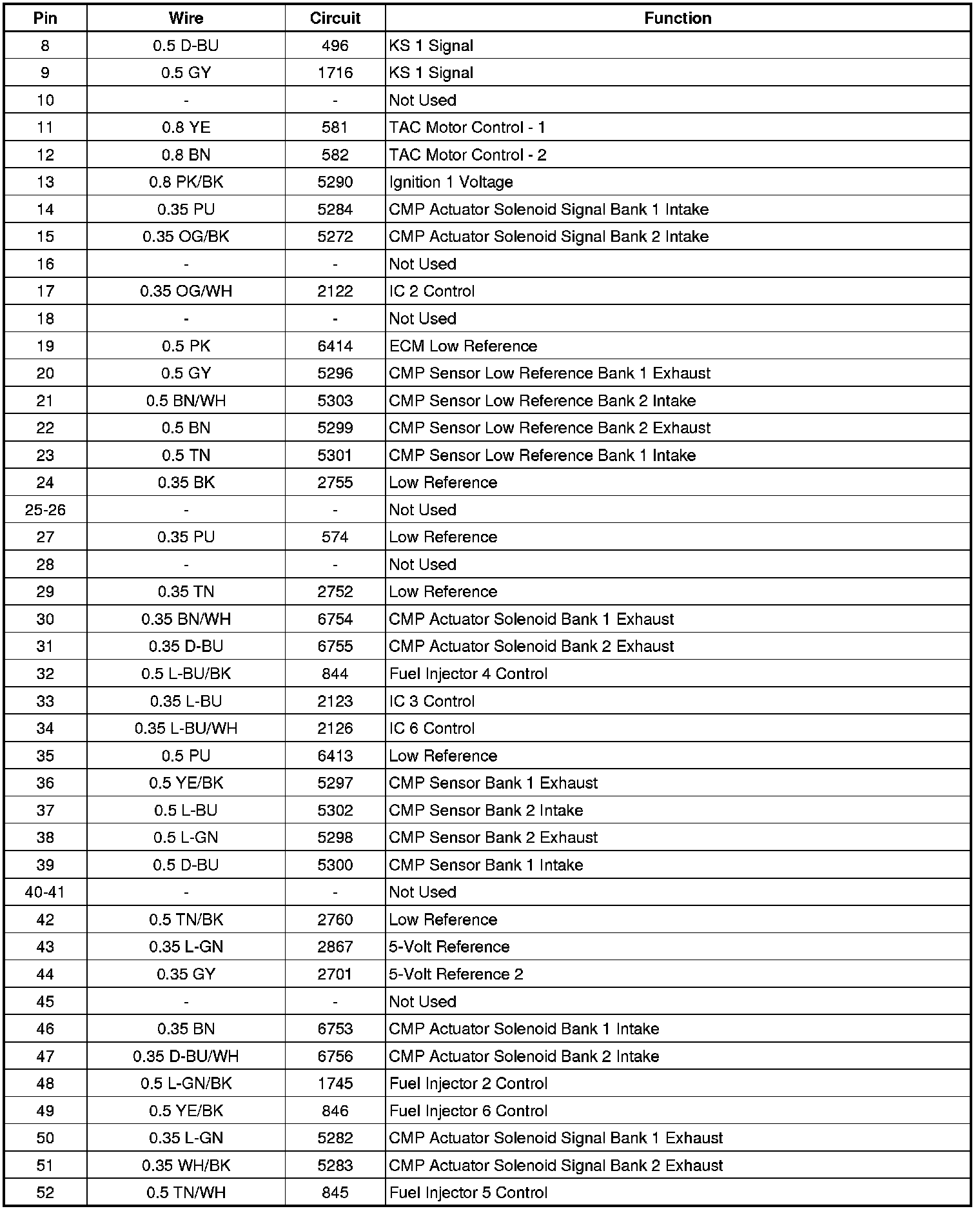

Engine Control Module (ECM) X1 (LY7)

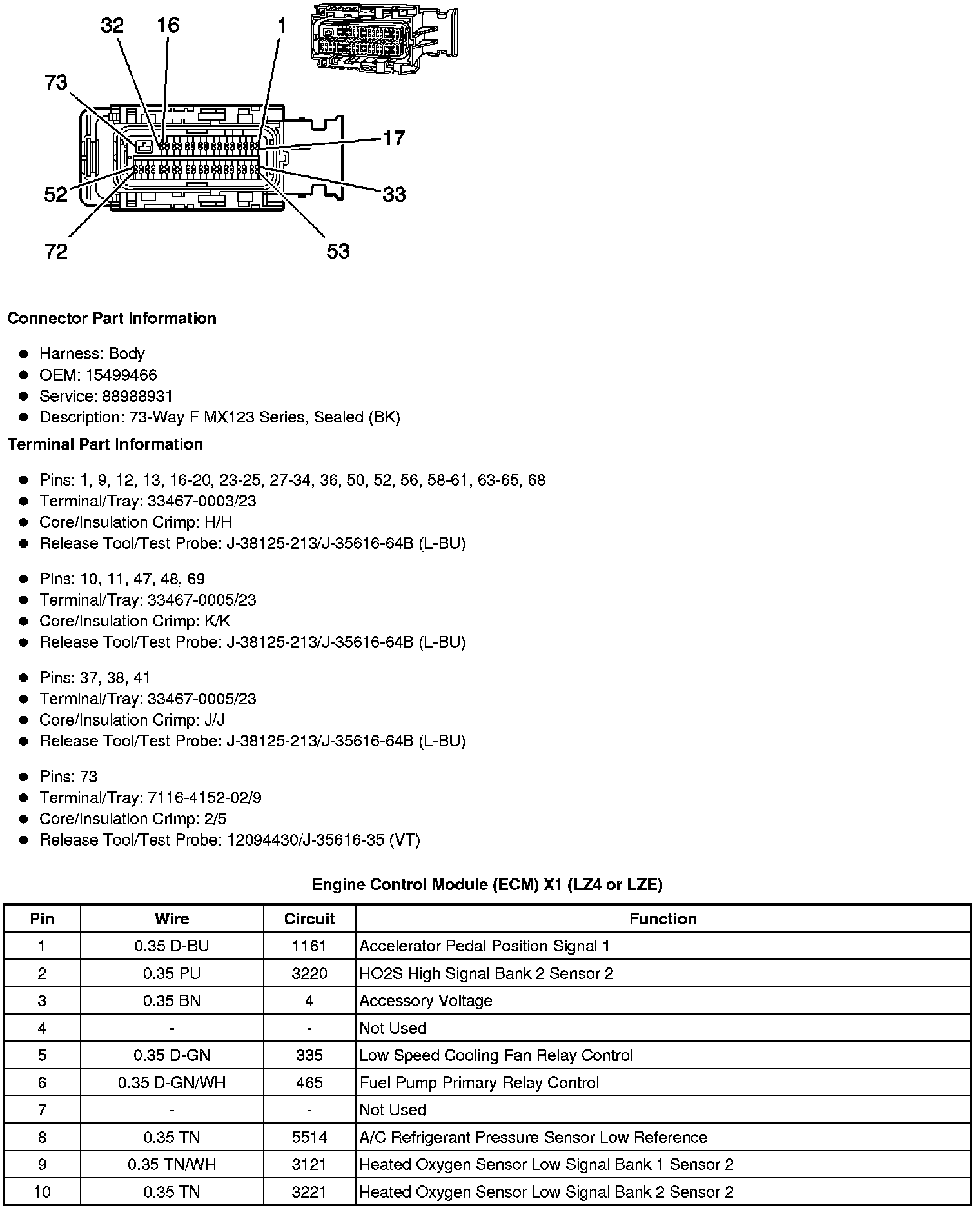

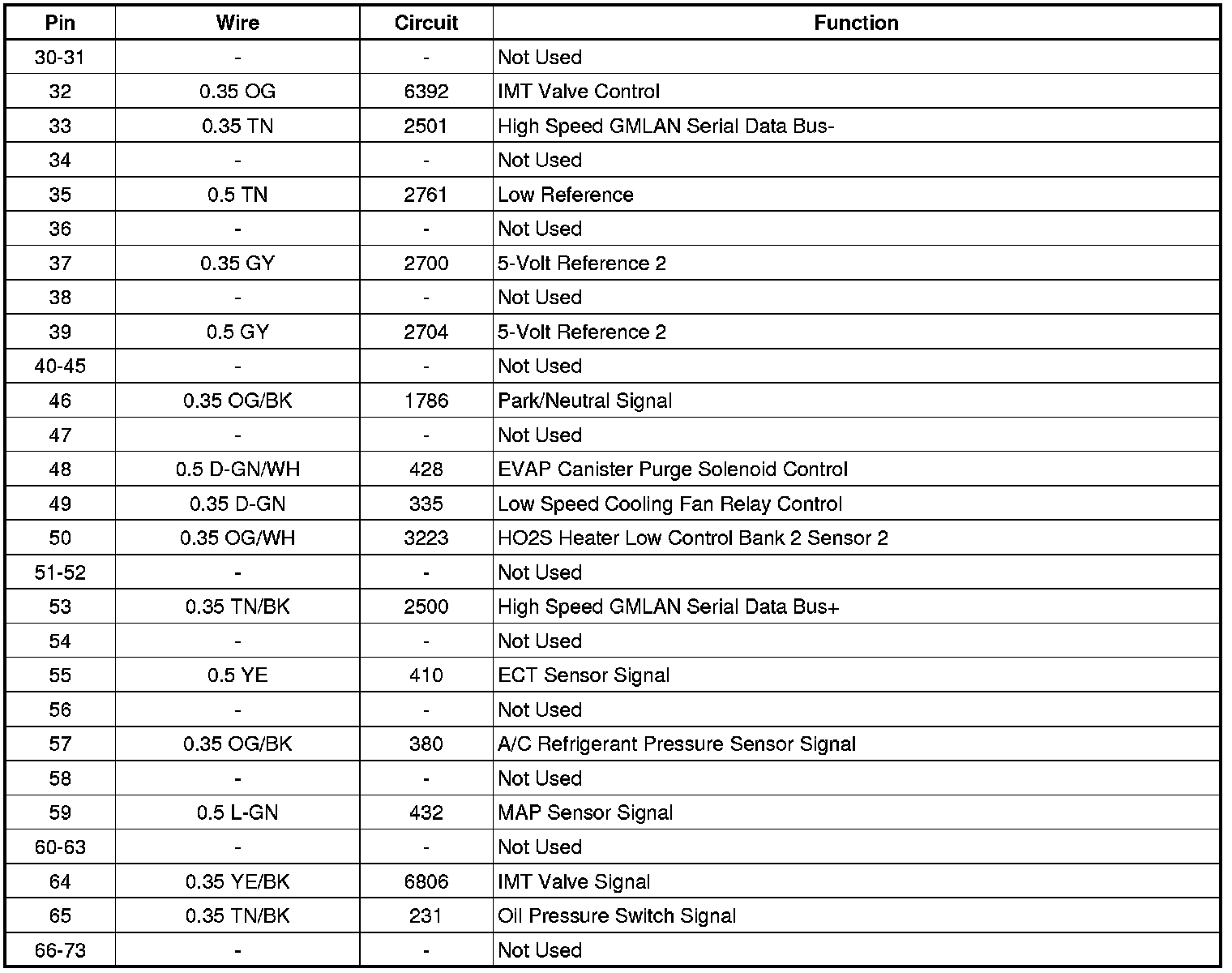

Engine Control Module (ECM) X1 (LZ4 or LZE)

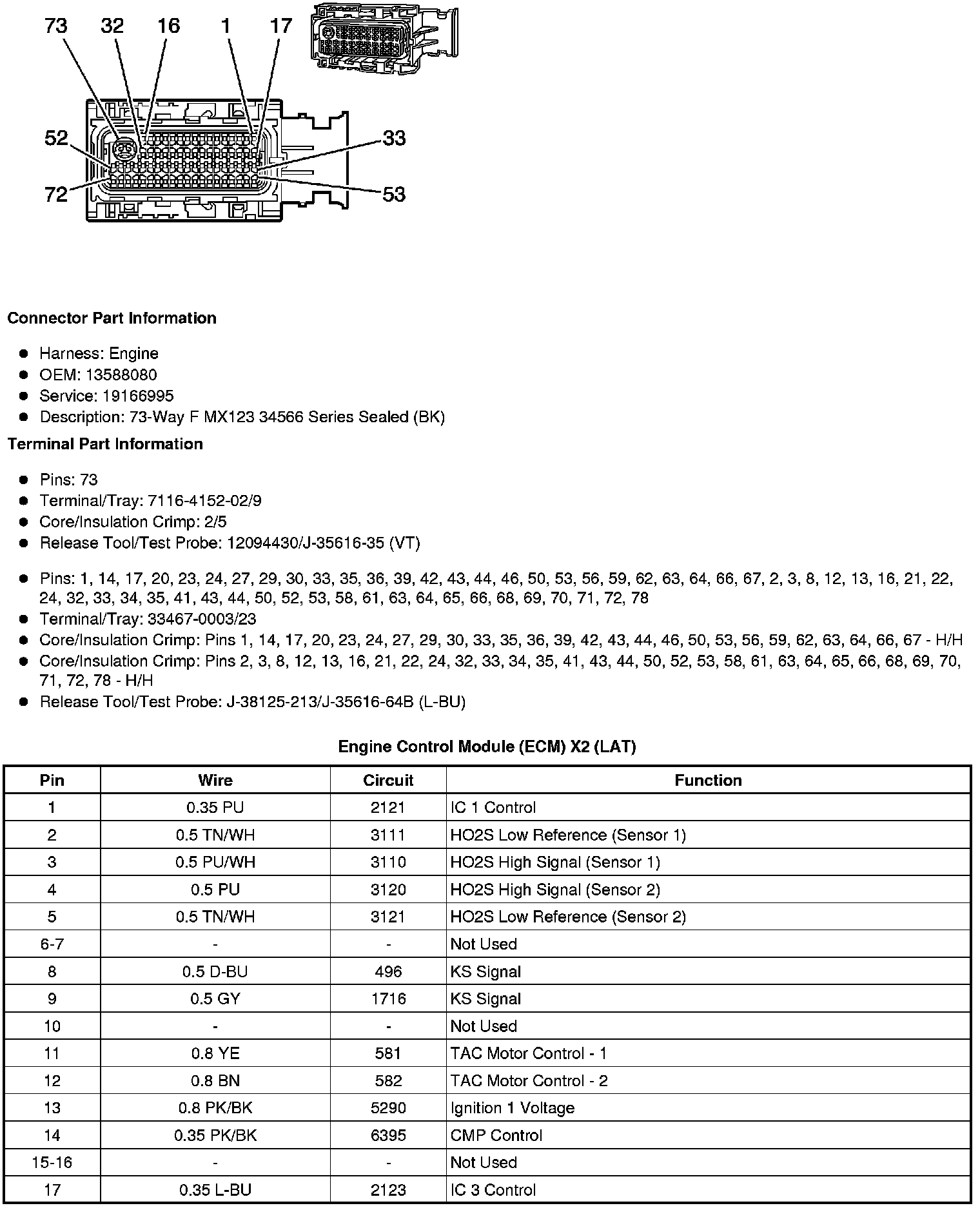

Engine Control Module (ECM) X2 (LAT)

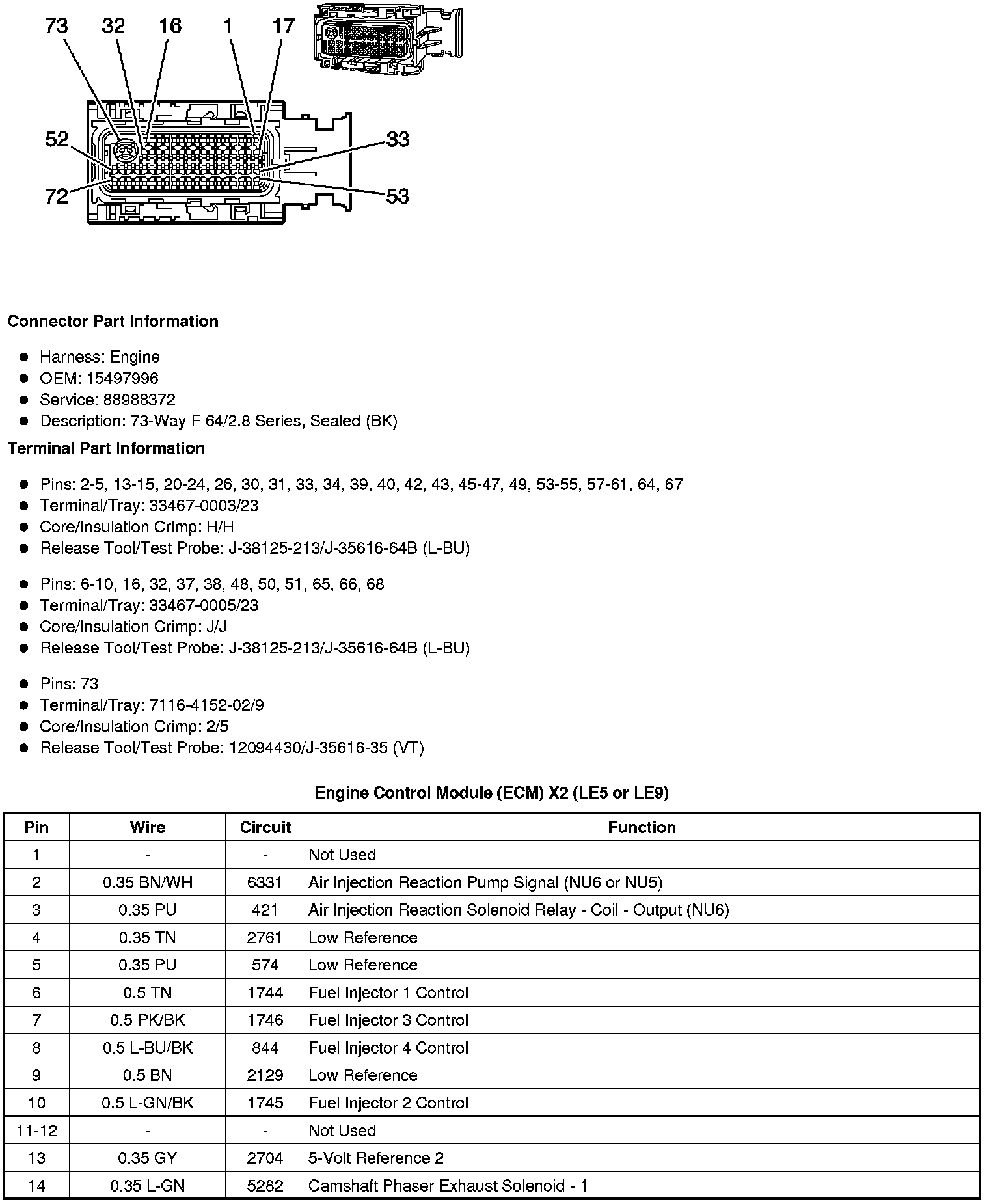

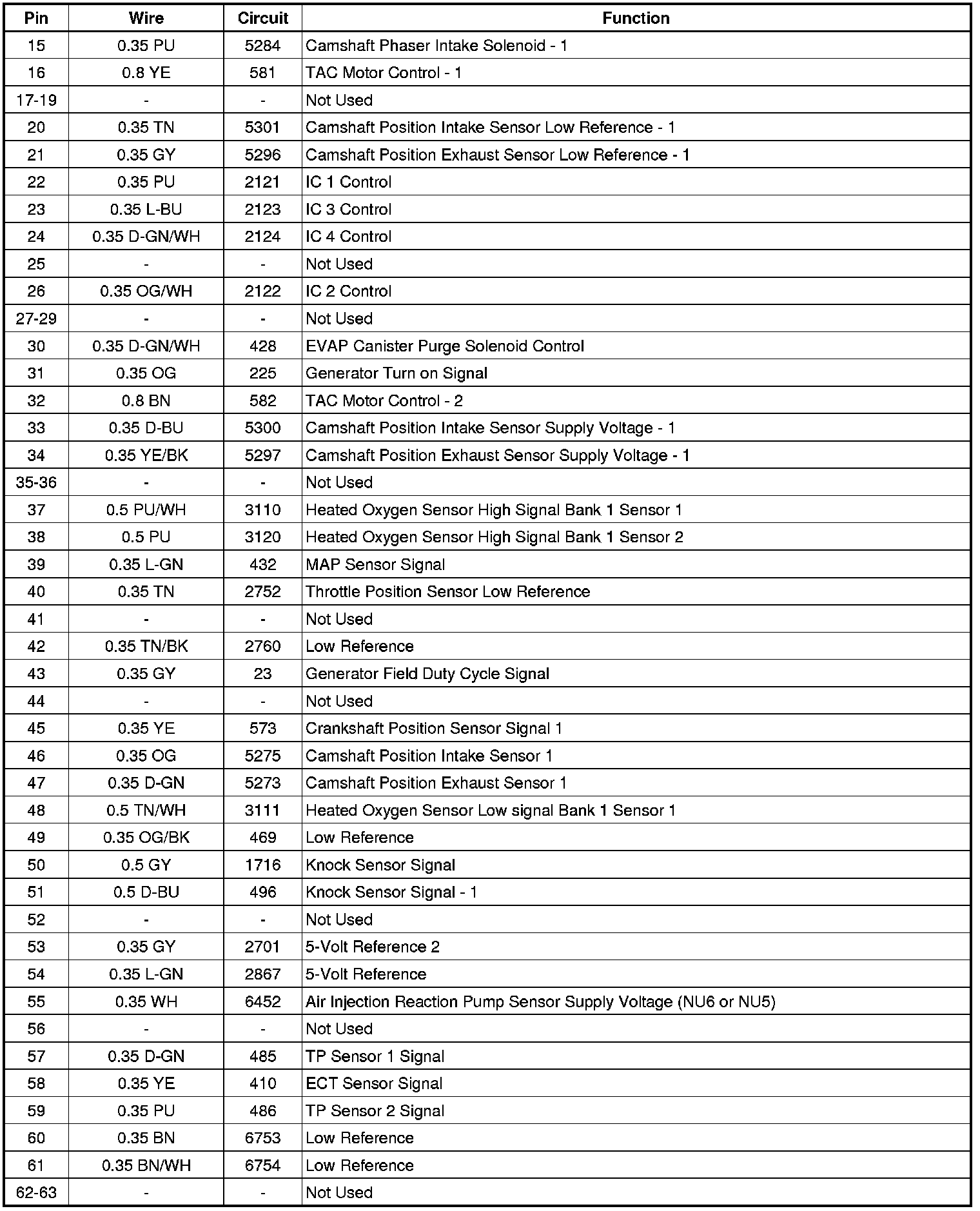

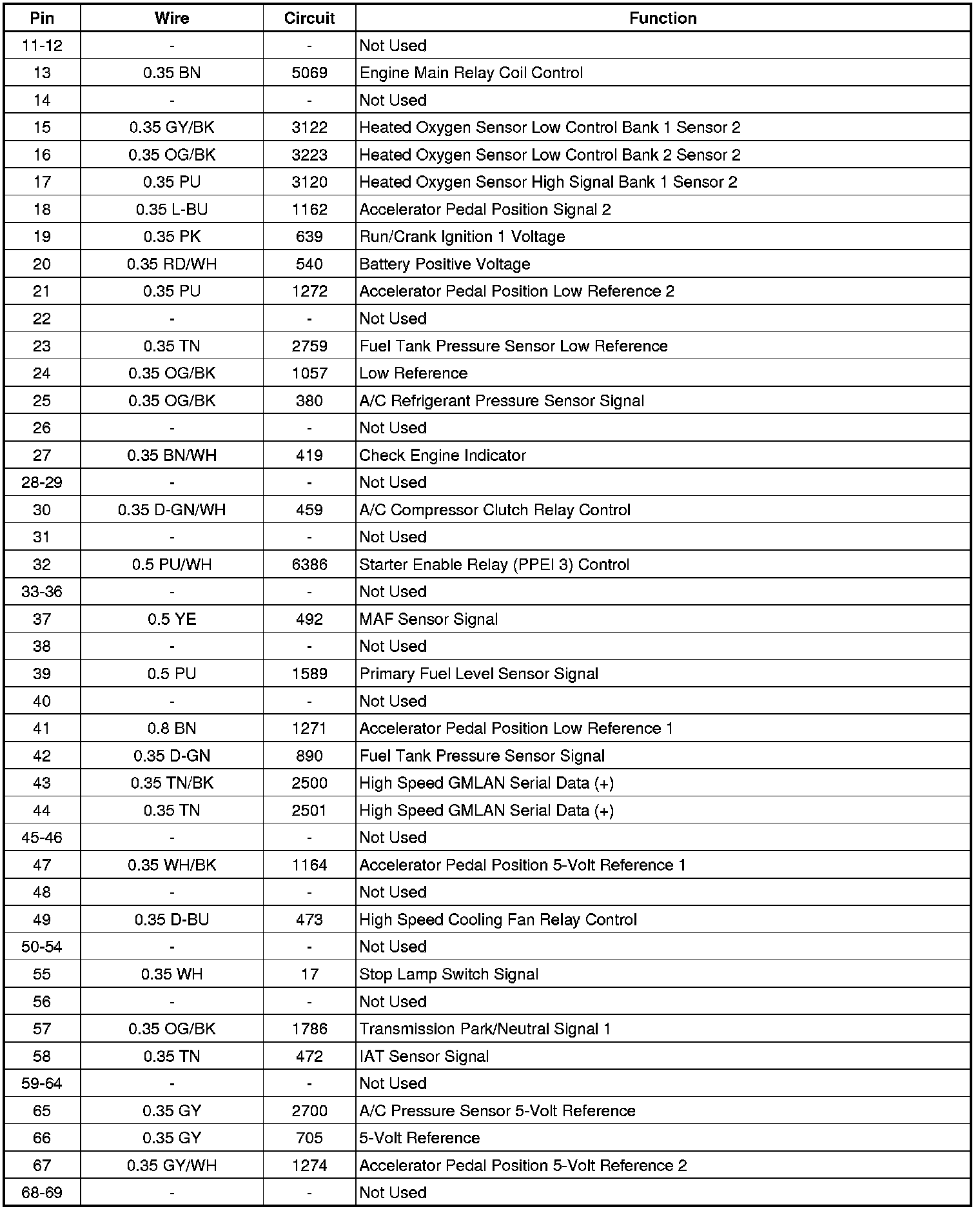

Engine Control Module (ECM) X2 (LE5 or LE9)

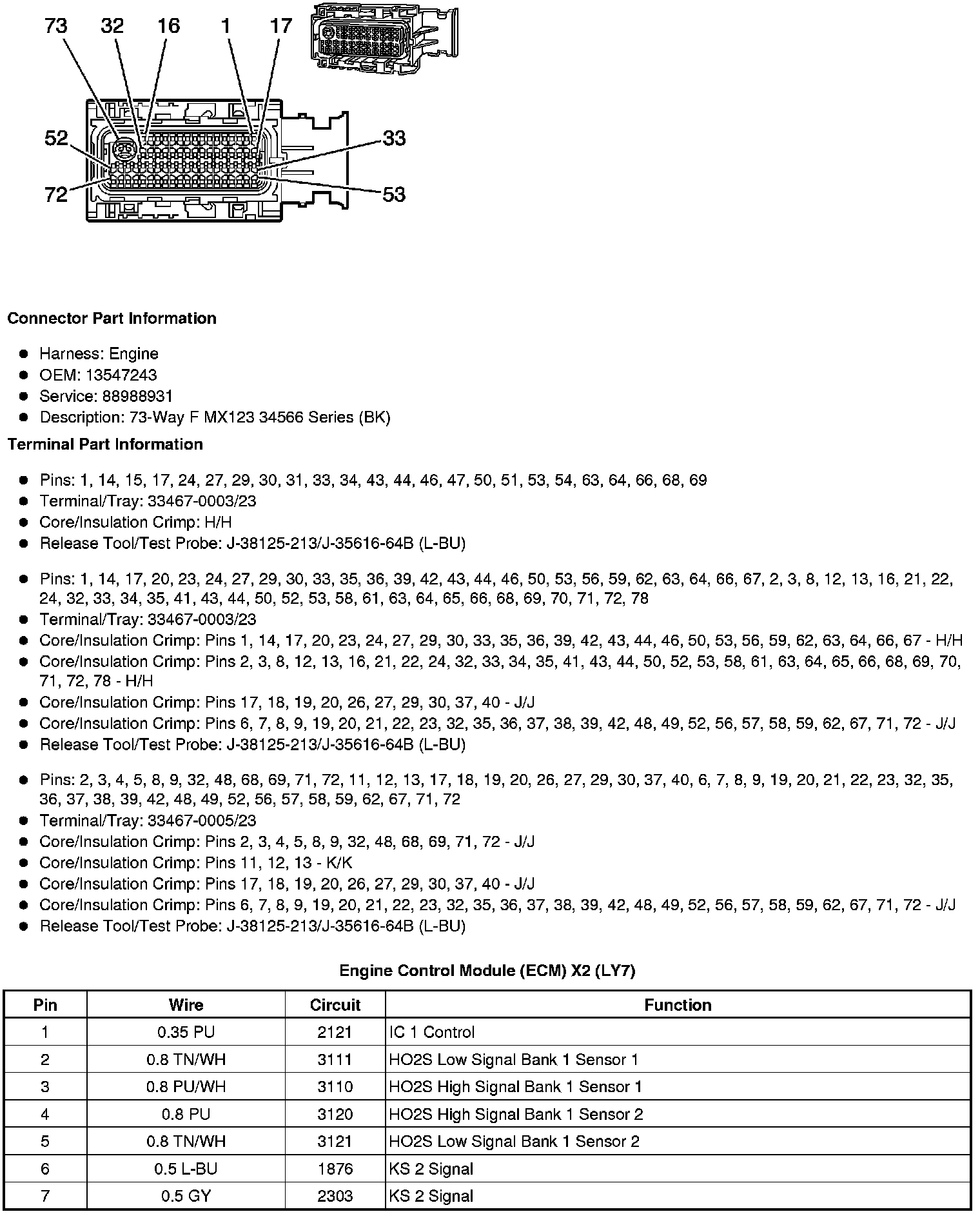

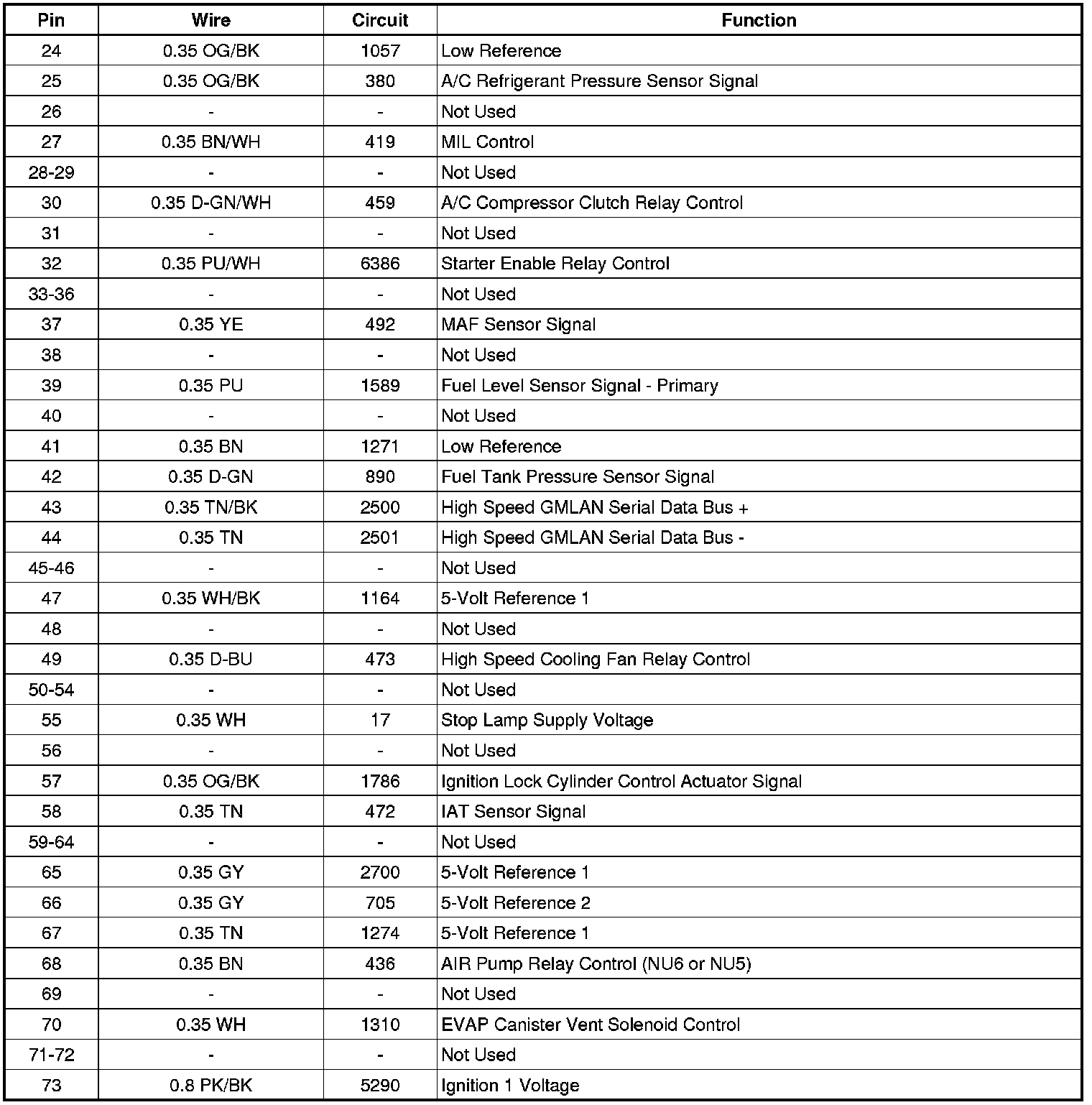

Engine Control Module (ECM) X2 (LY7)

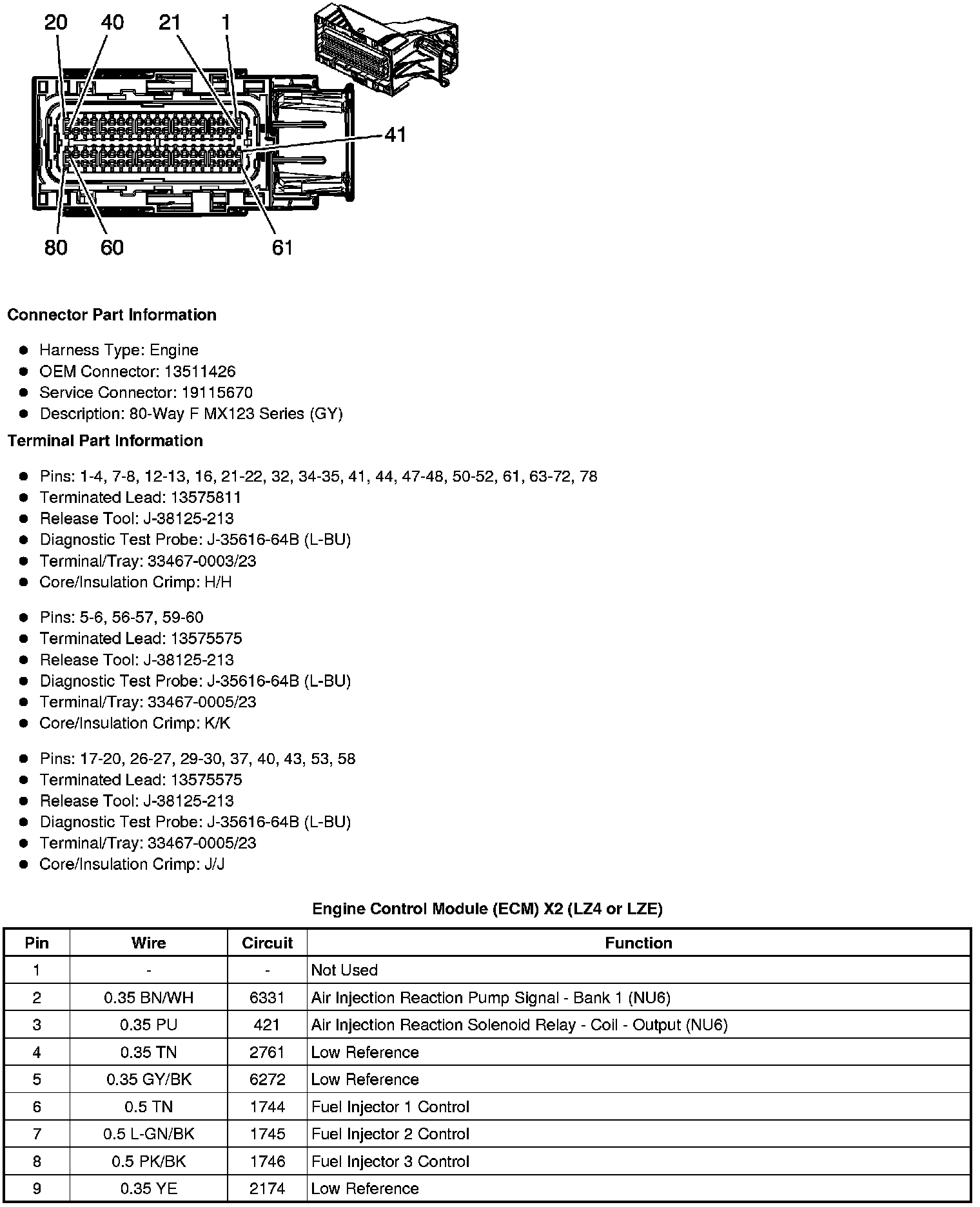

Engine Control Module (ECM) X2 (LZ4 or LZE)

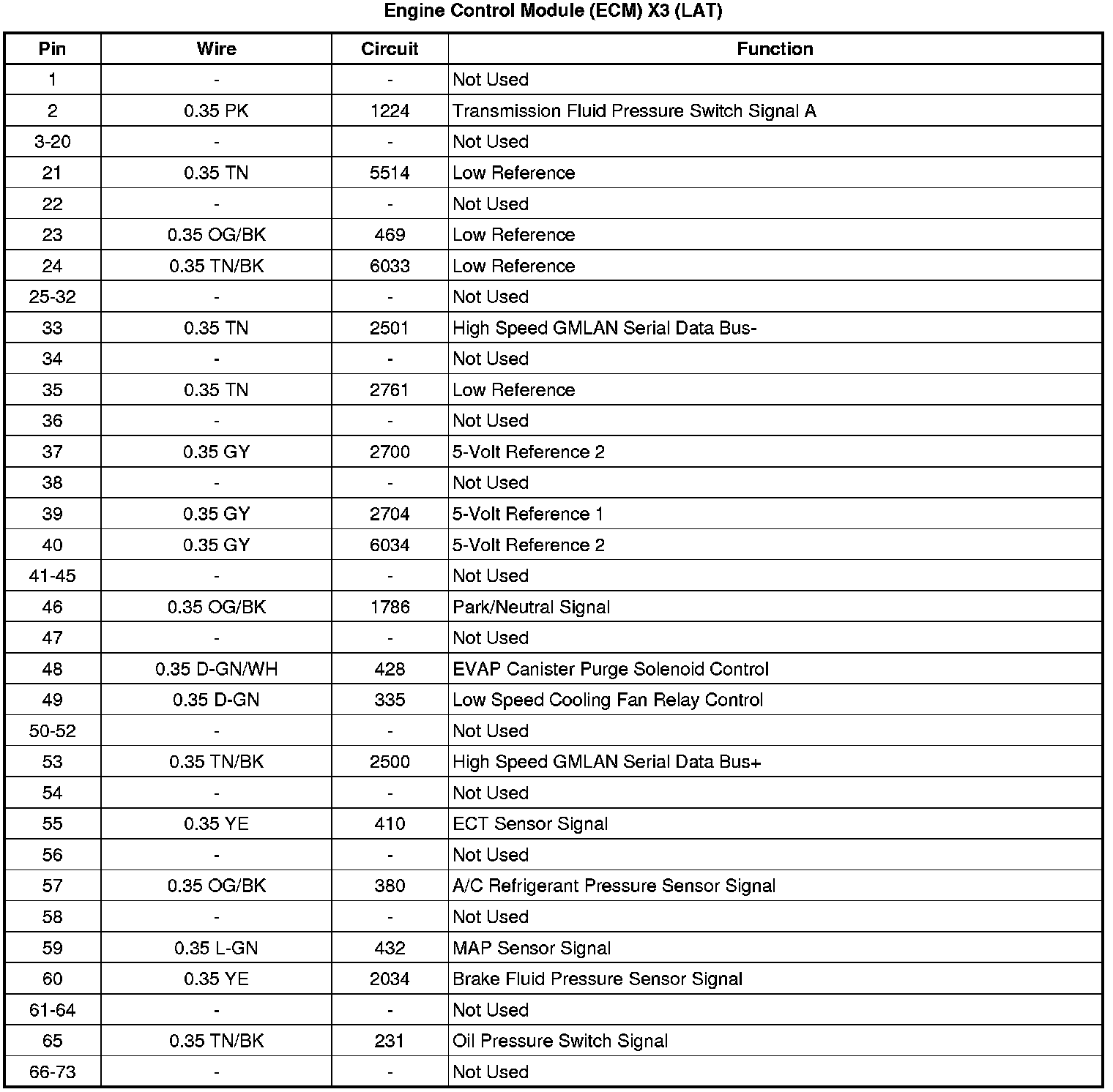

Engine Control Module (ECM) X3 (LAT)

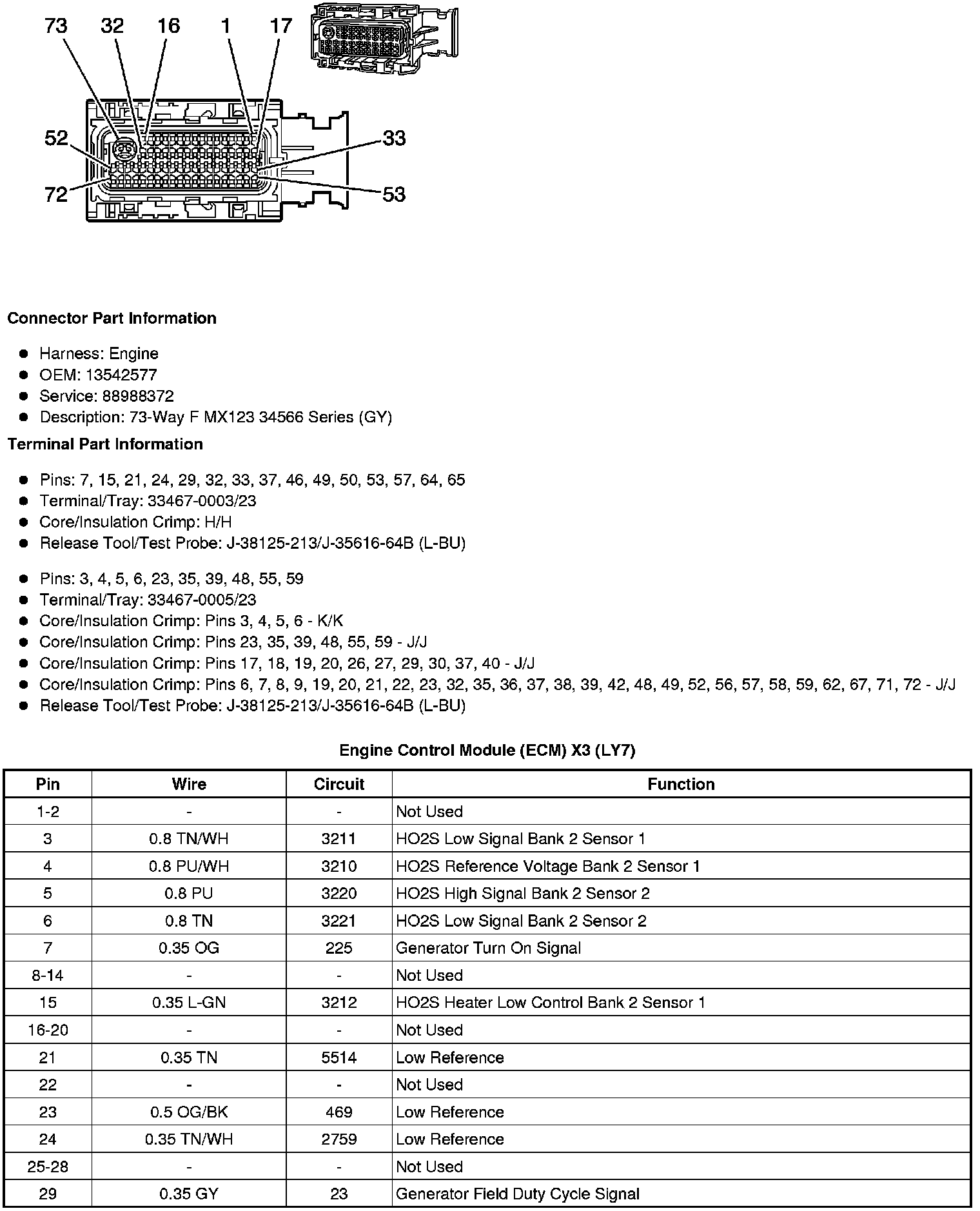

Engine Control Module (ECM) X3 (LY7)
