Air Bag Control Module




Component Connector End Views

Inflatable Restraint Front Passenger Presence System (PPS) Module

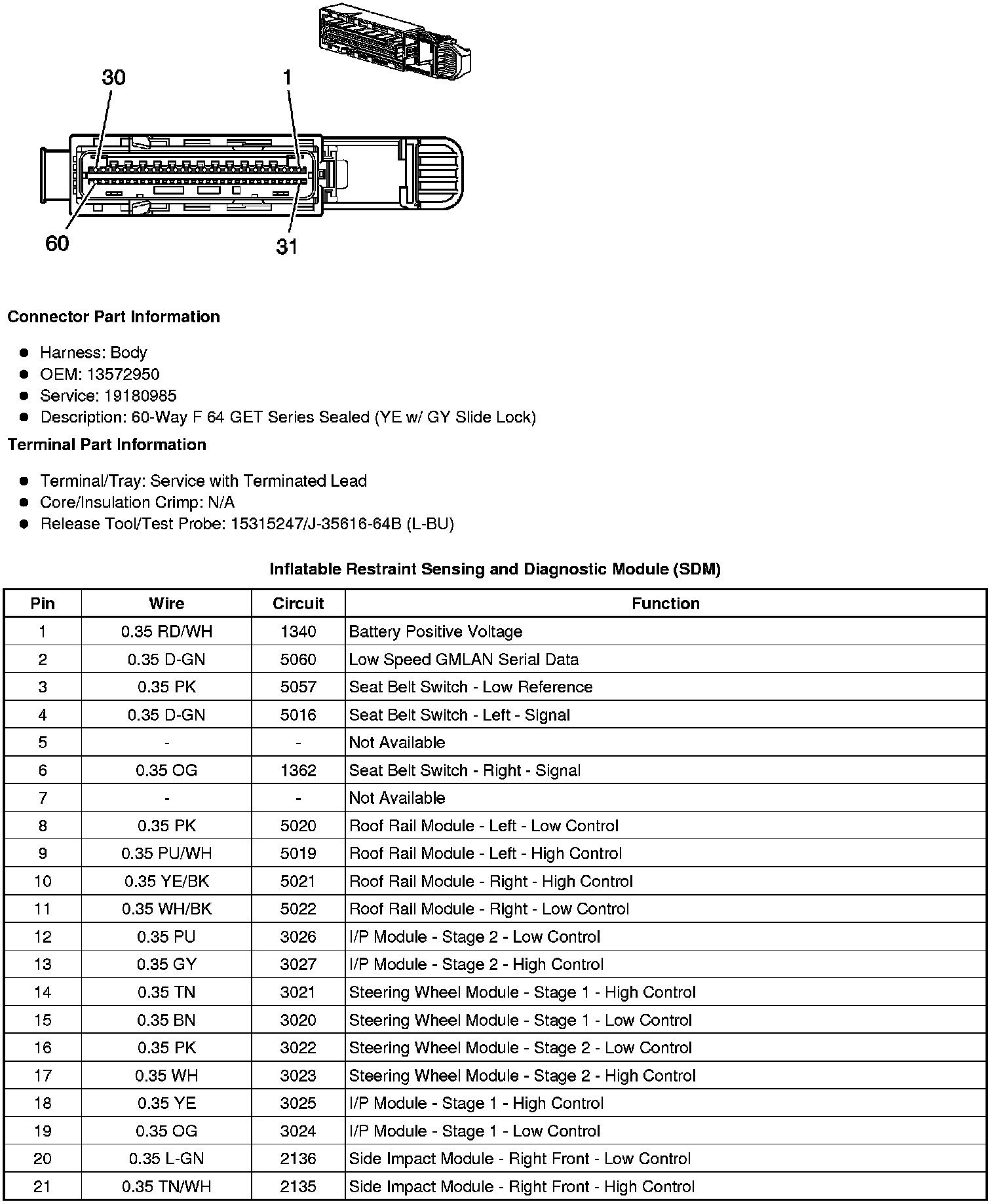

Inflatable Restraint Sensing and Diagnostic Module (SDM)
