Control Assembly, HVAC




Component Connector End Views

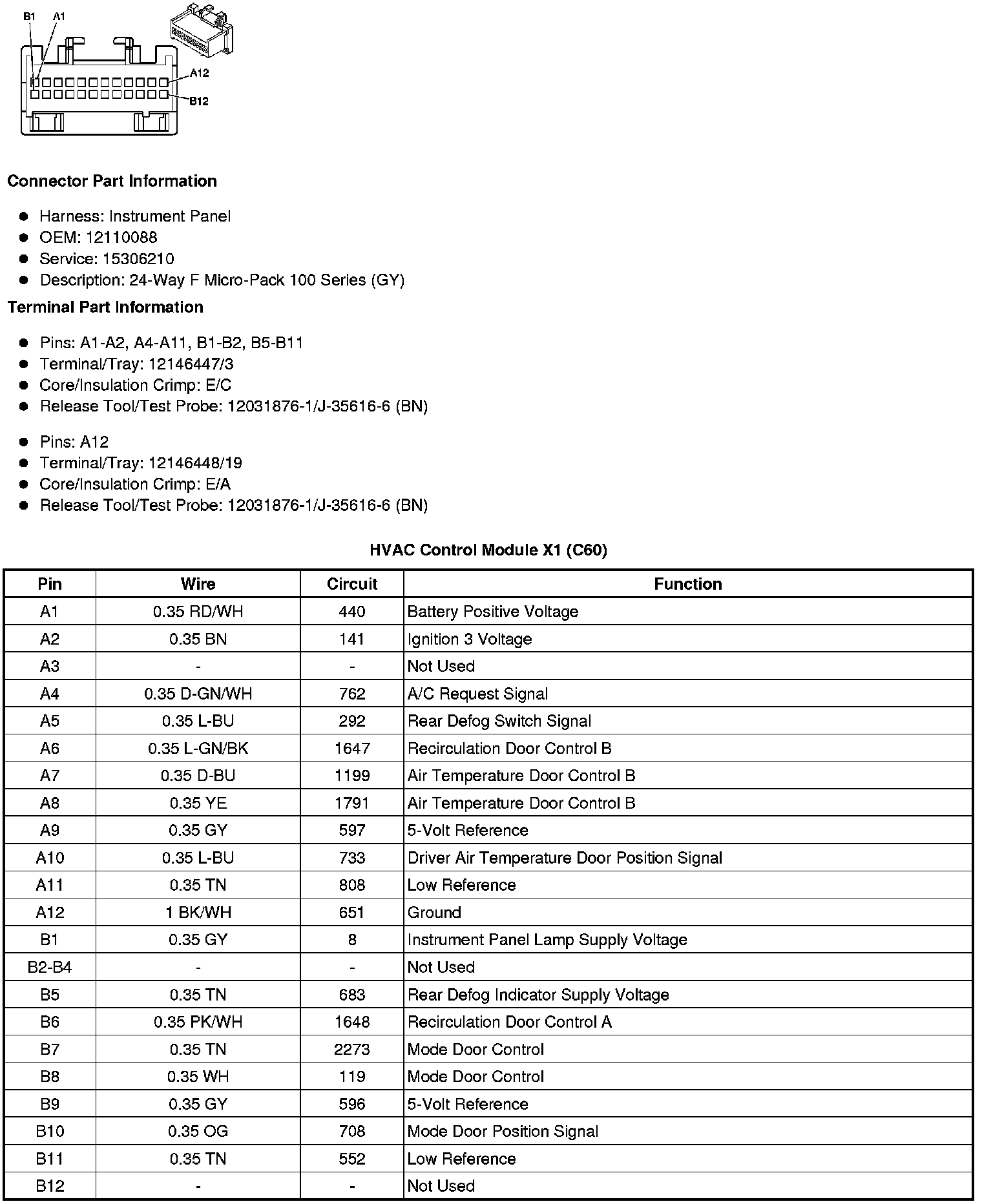

HVAC Control Module X1 (C60)

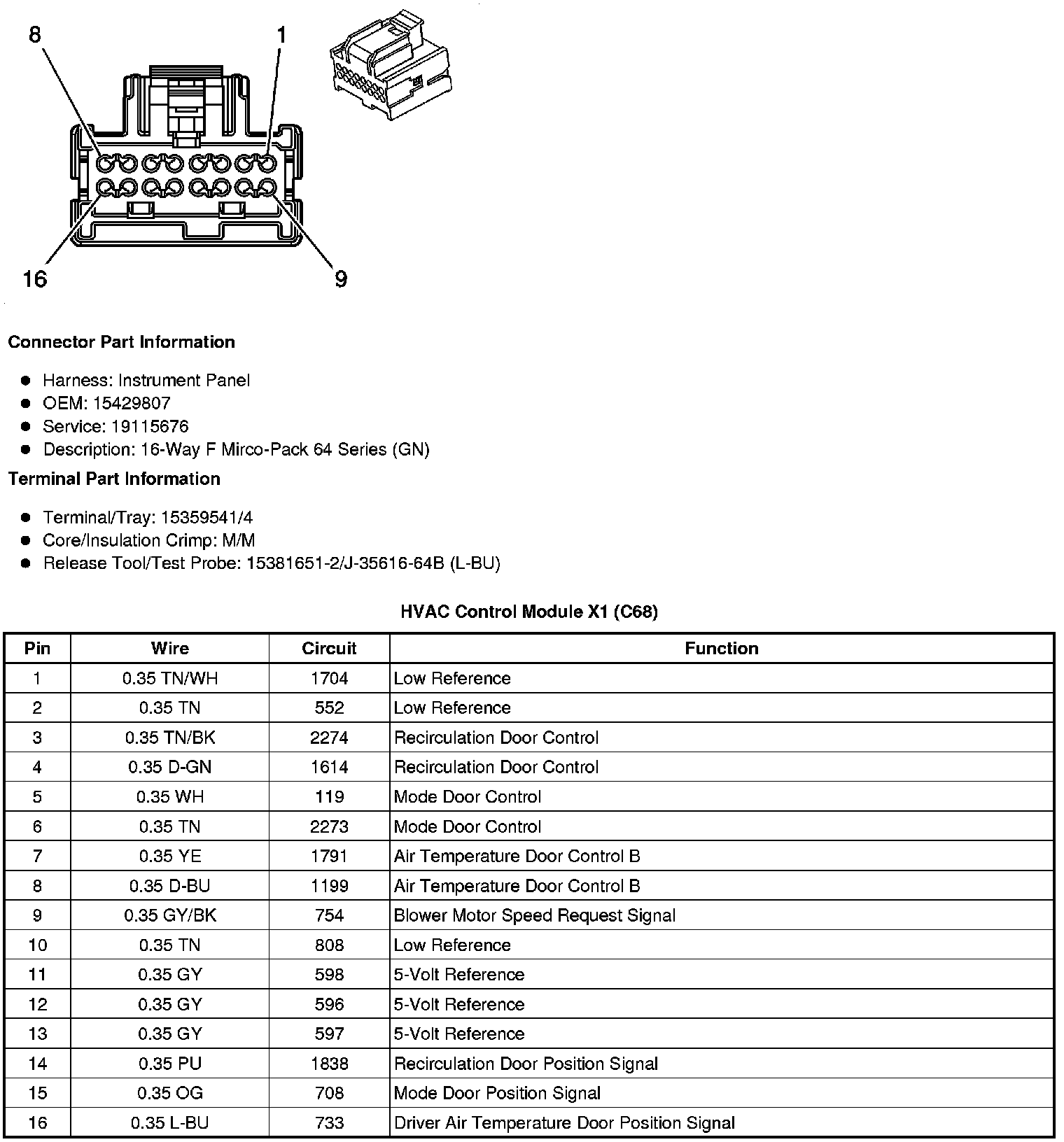

HVAC Control Module X1 (C68)





HVAC Control Module X2 (C60)

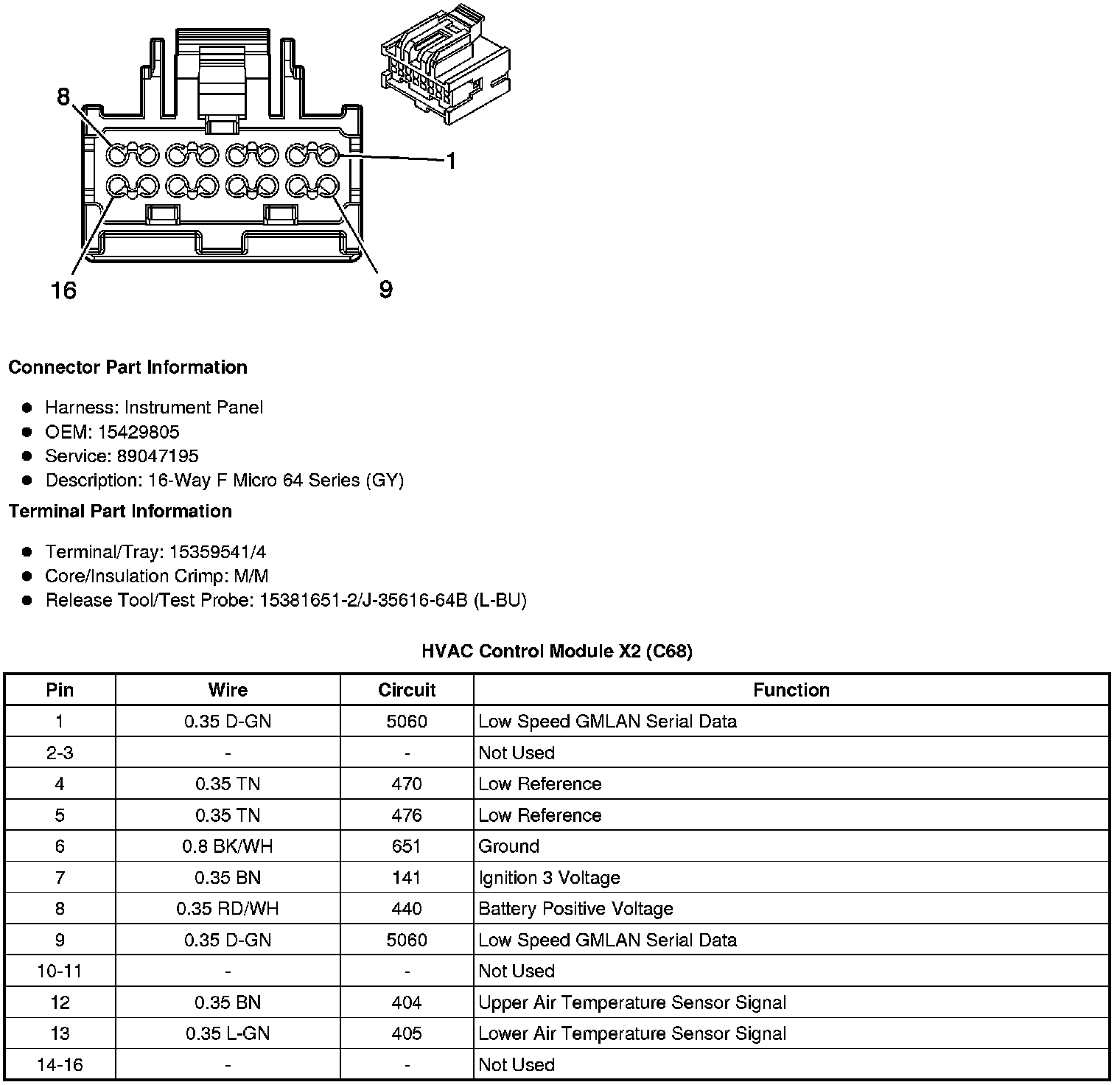

HVAC Control Module X2 (C68)
