Harness Locations




Harness Routing Views

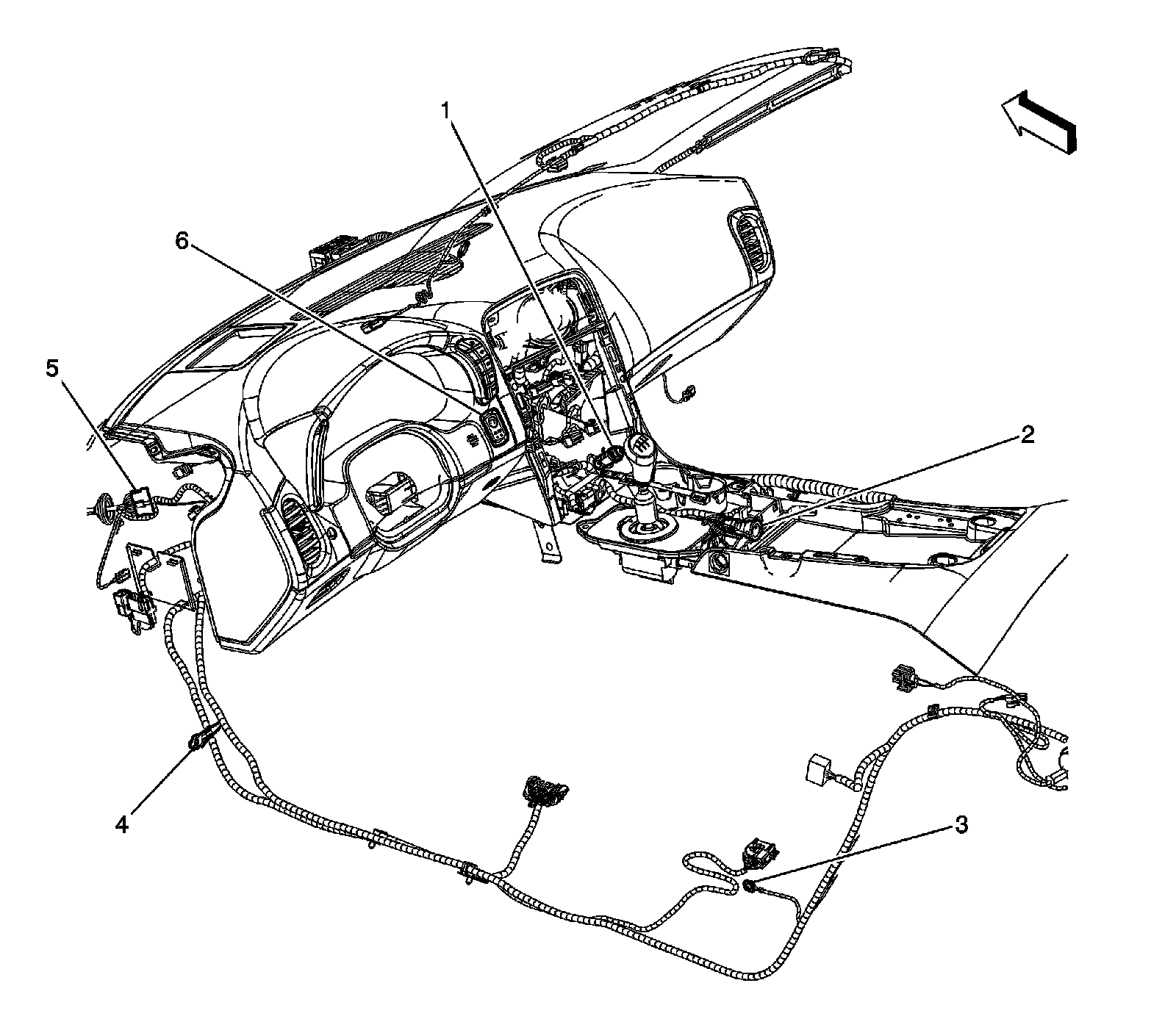

Front Passenger Compartment Harness Routing




1 - Cigar Lighter
2 - Accessory Power Outlet
3 - G301
4 - G201
5 - JX205
6 - Ignition Mode Switch
