Ignition Coil: Diagrams




Component Connector End Views

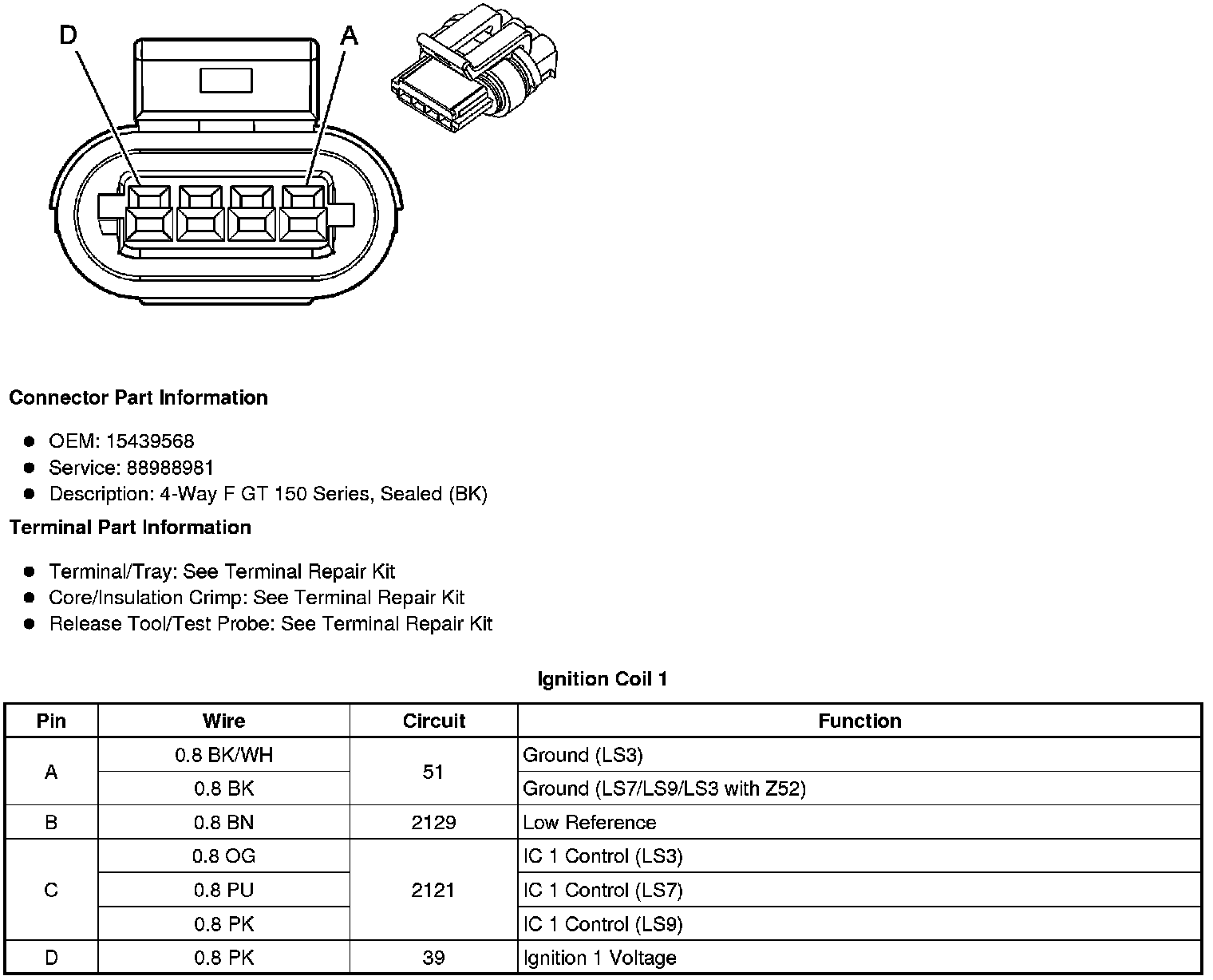

Ignition Coil 1

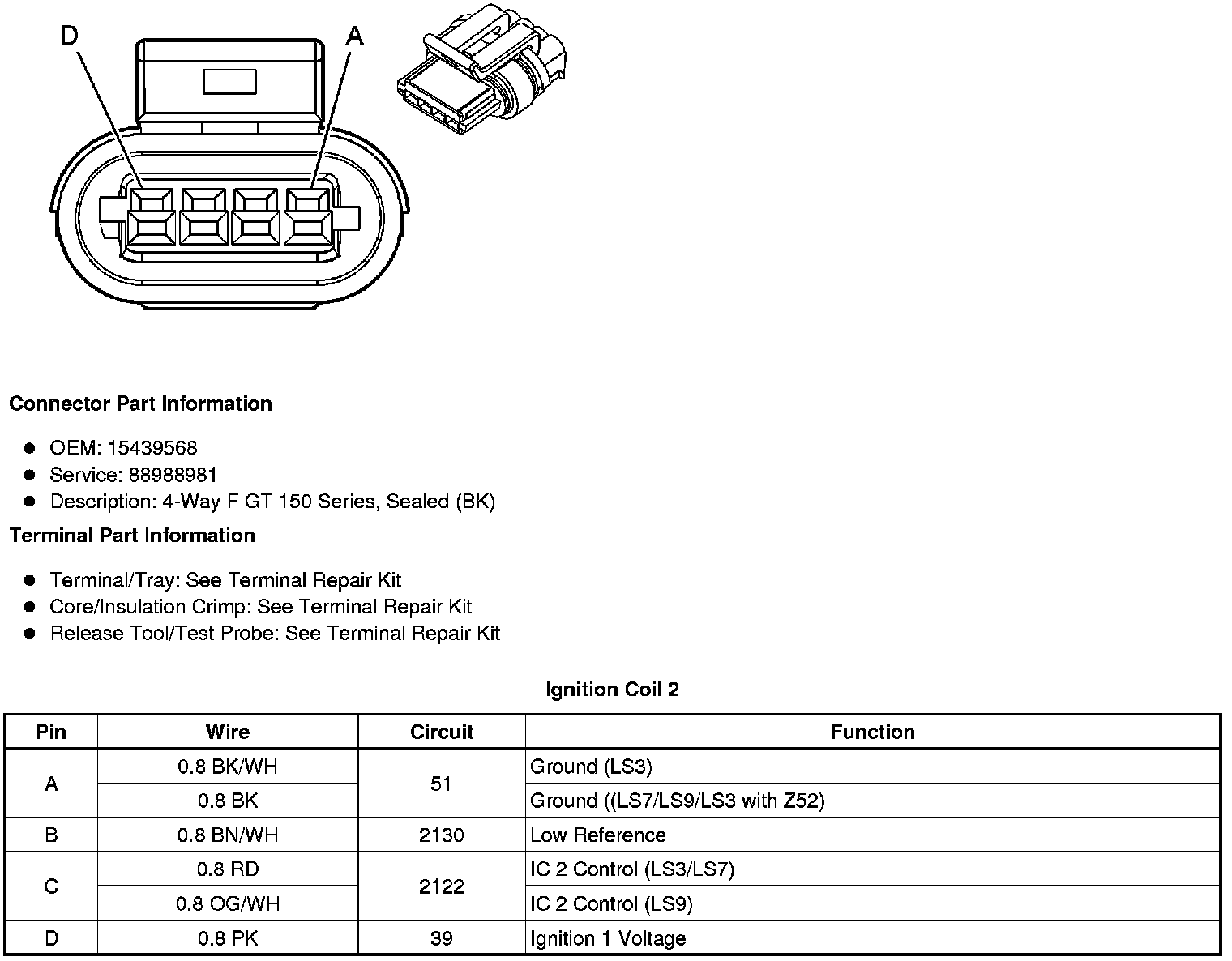

Ignition Coil 2

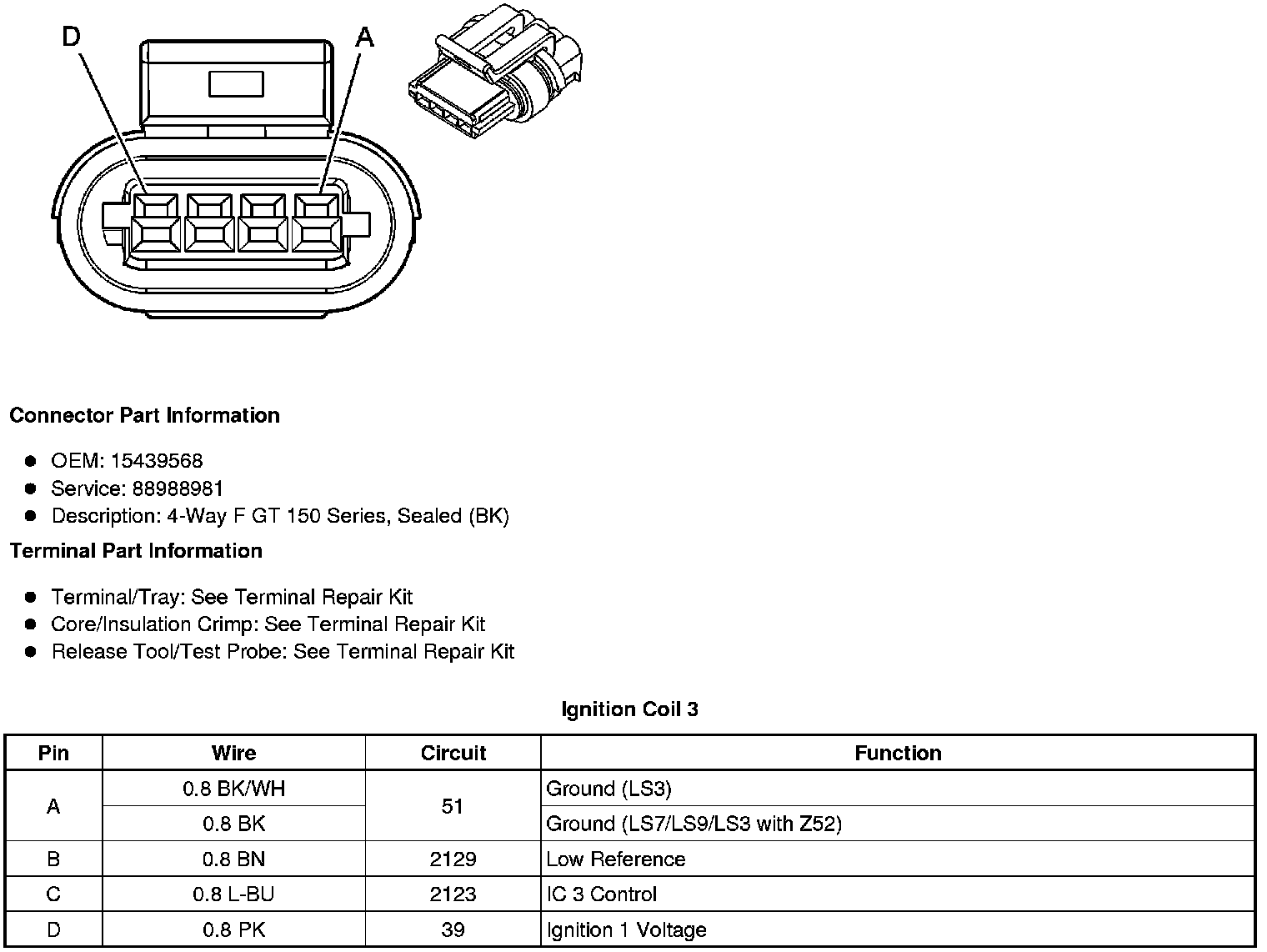

Ignition Coil 3

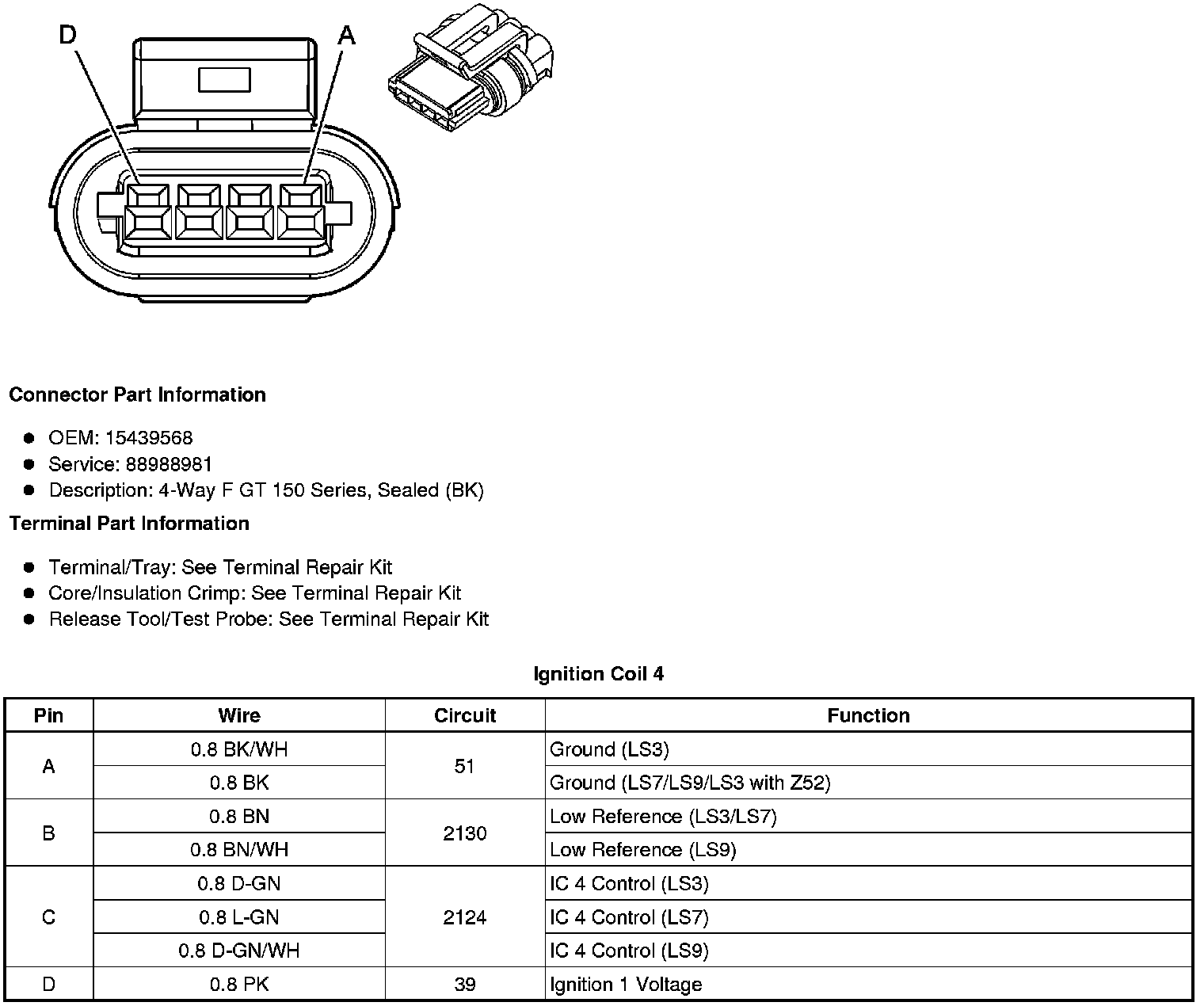

Ignition Coil 4

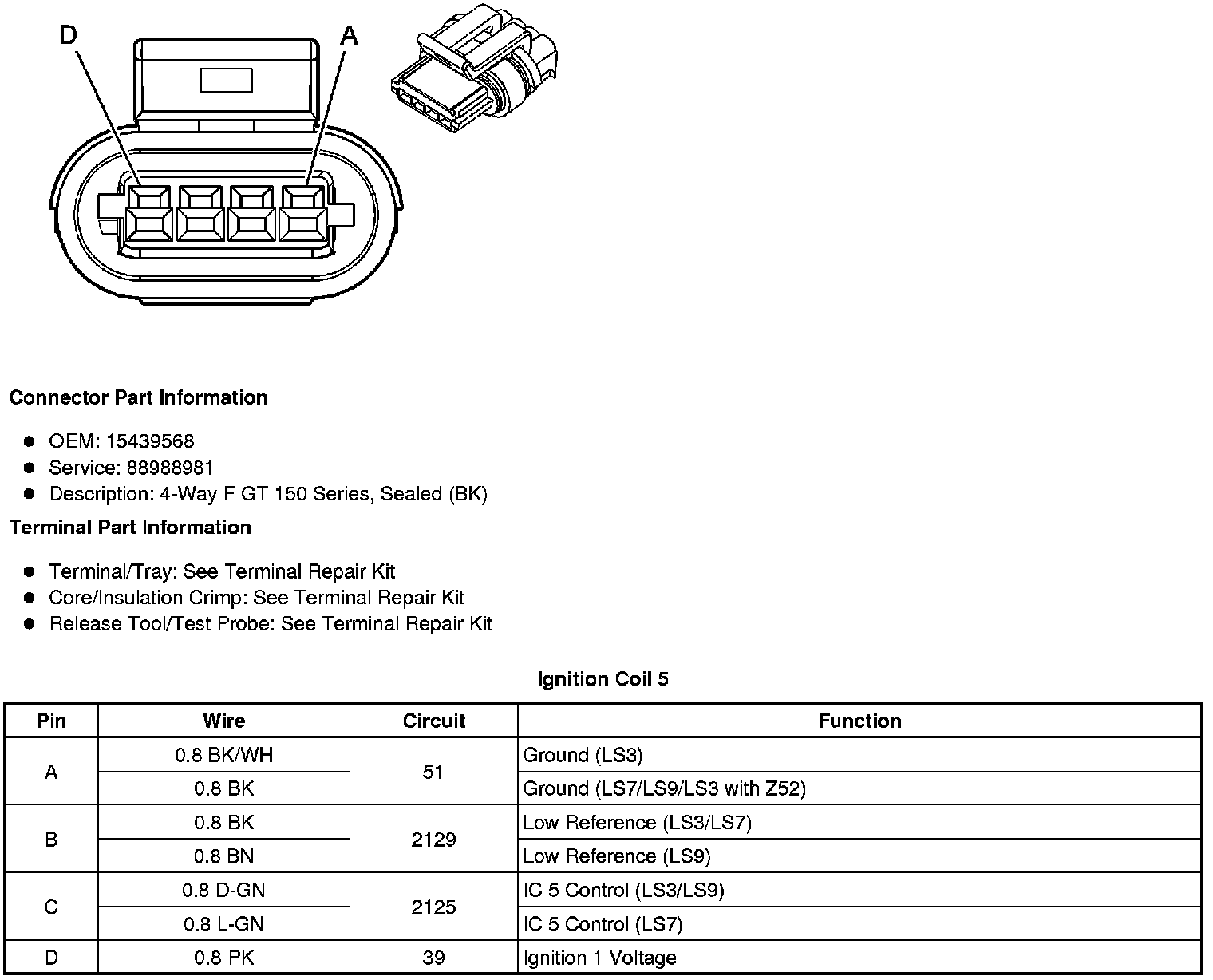

Ignition Coil 5

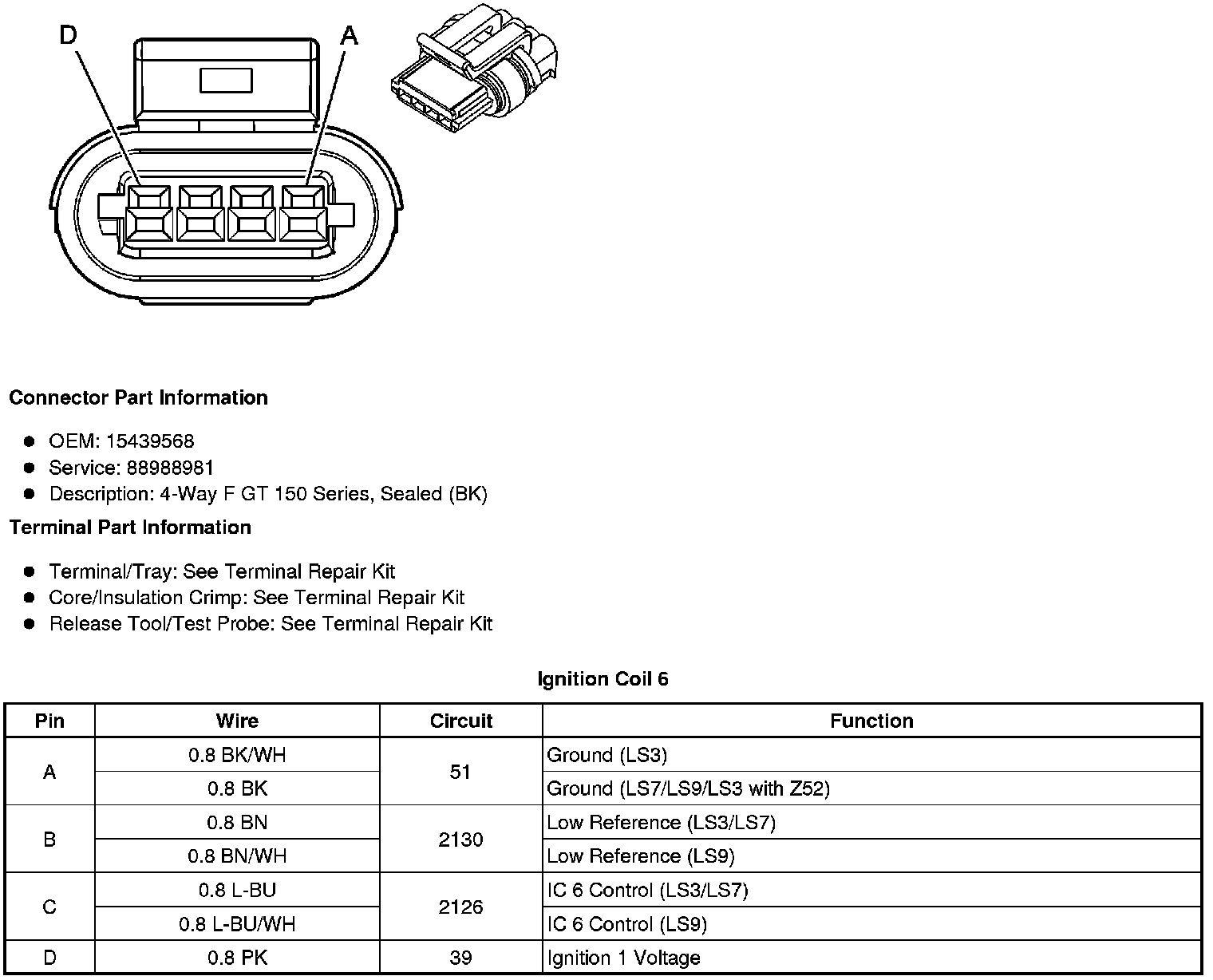

Ignition Coil 6

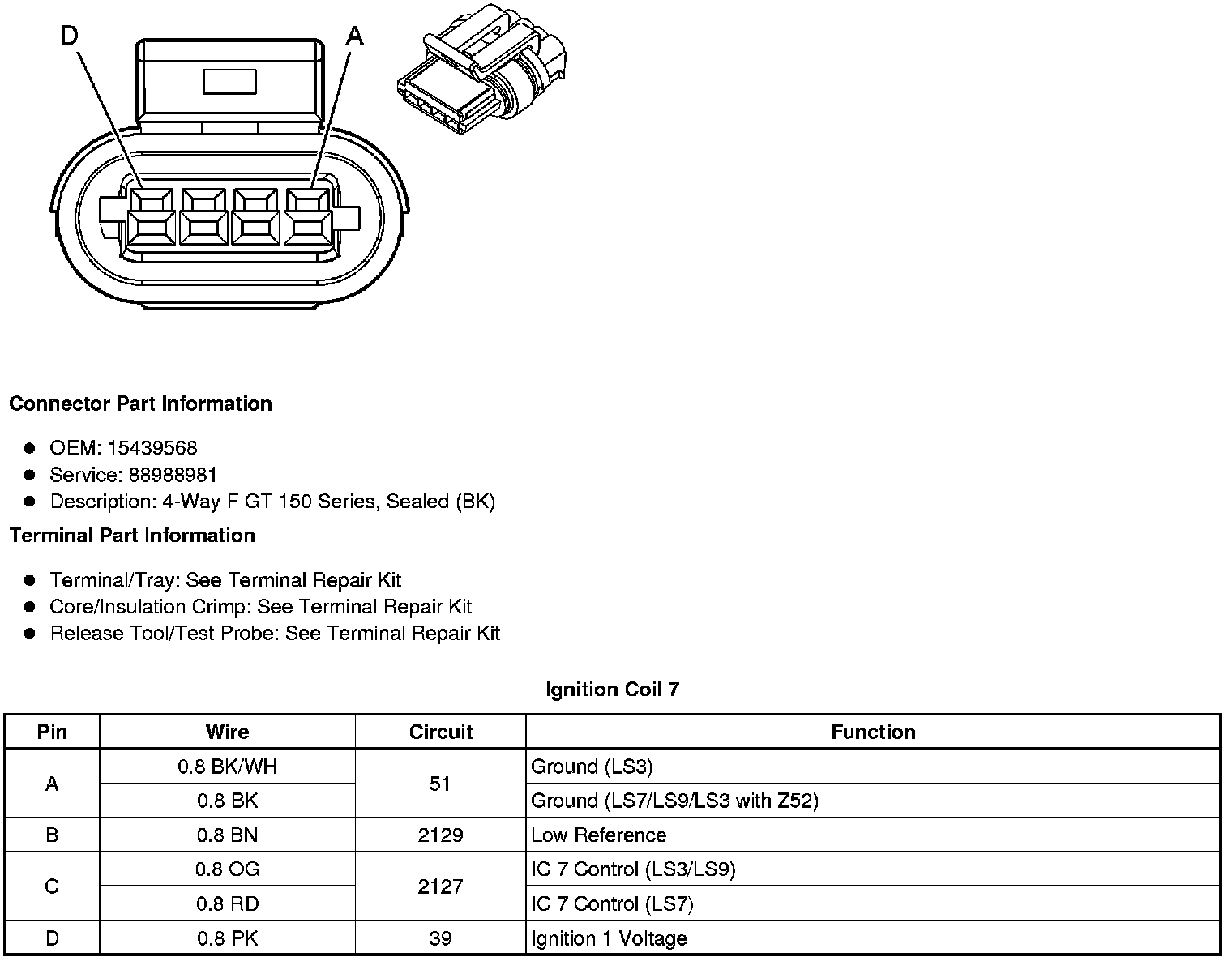

Ignition Coil 7

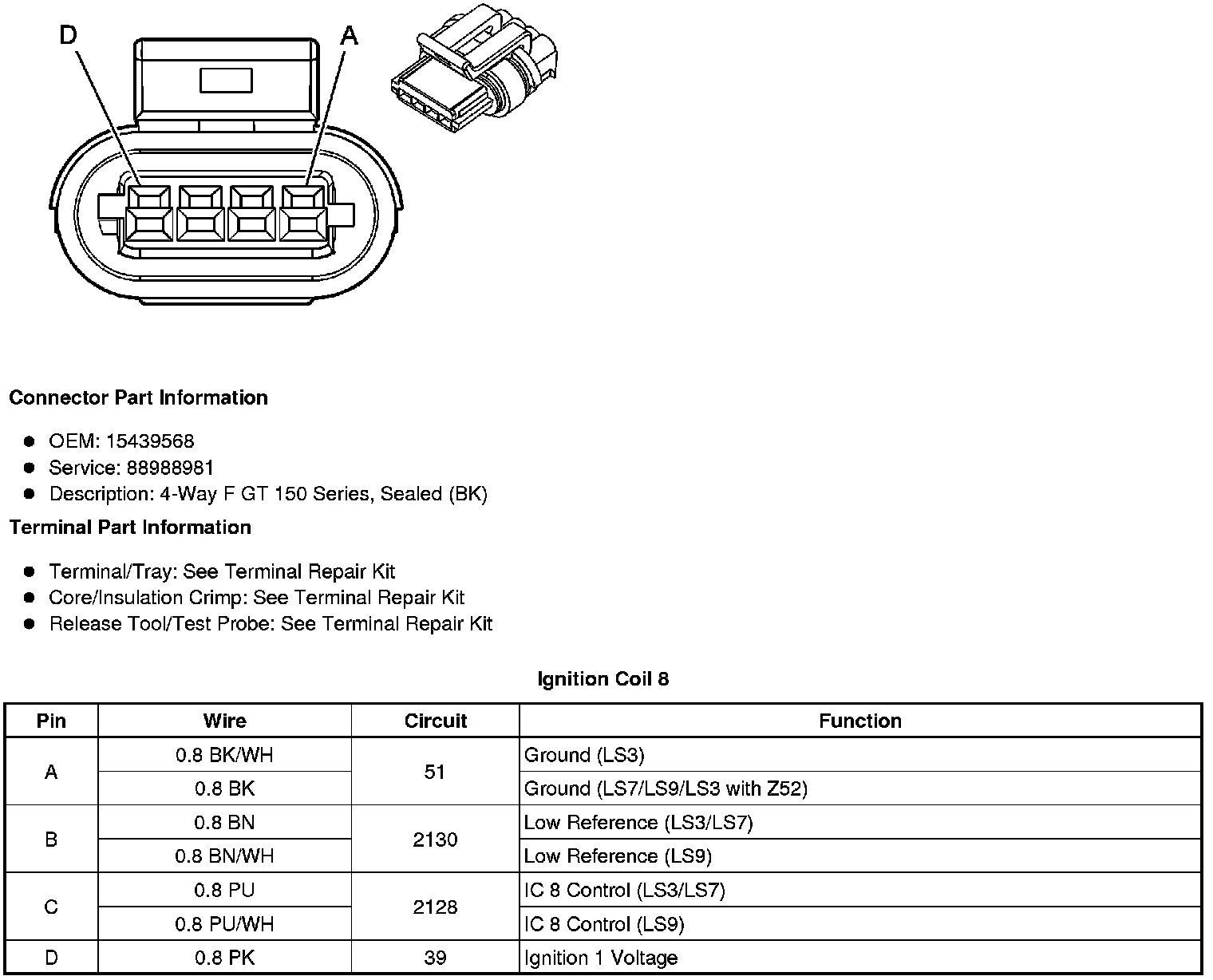

Ignition Coil 8
