Relay Block - I/P




Electrical Center Identification Views

Relay Block - I/P Label

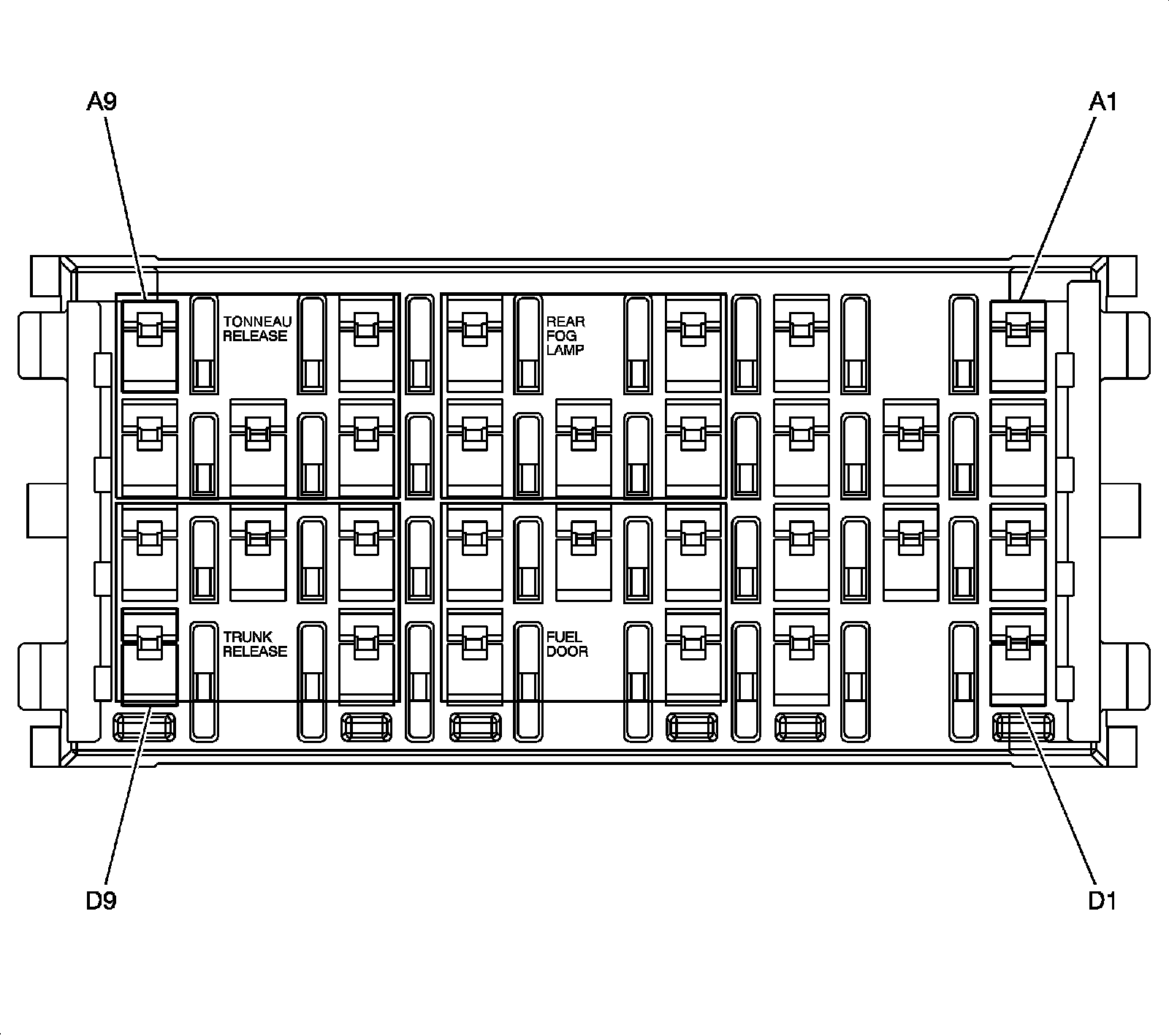

Relay Block - I/P Top View





Relay Block - I/P Bottom View

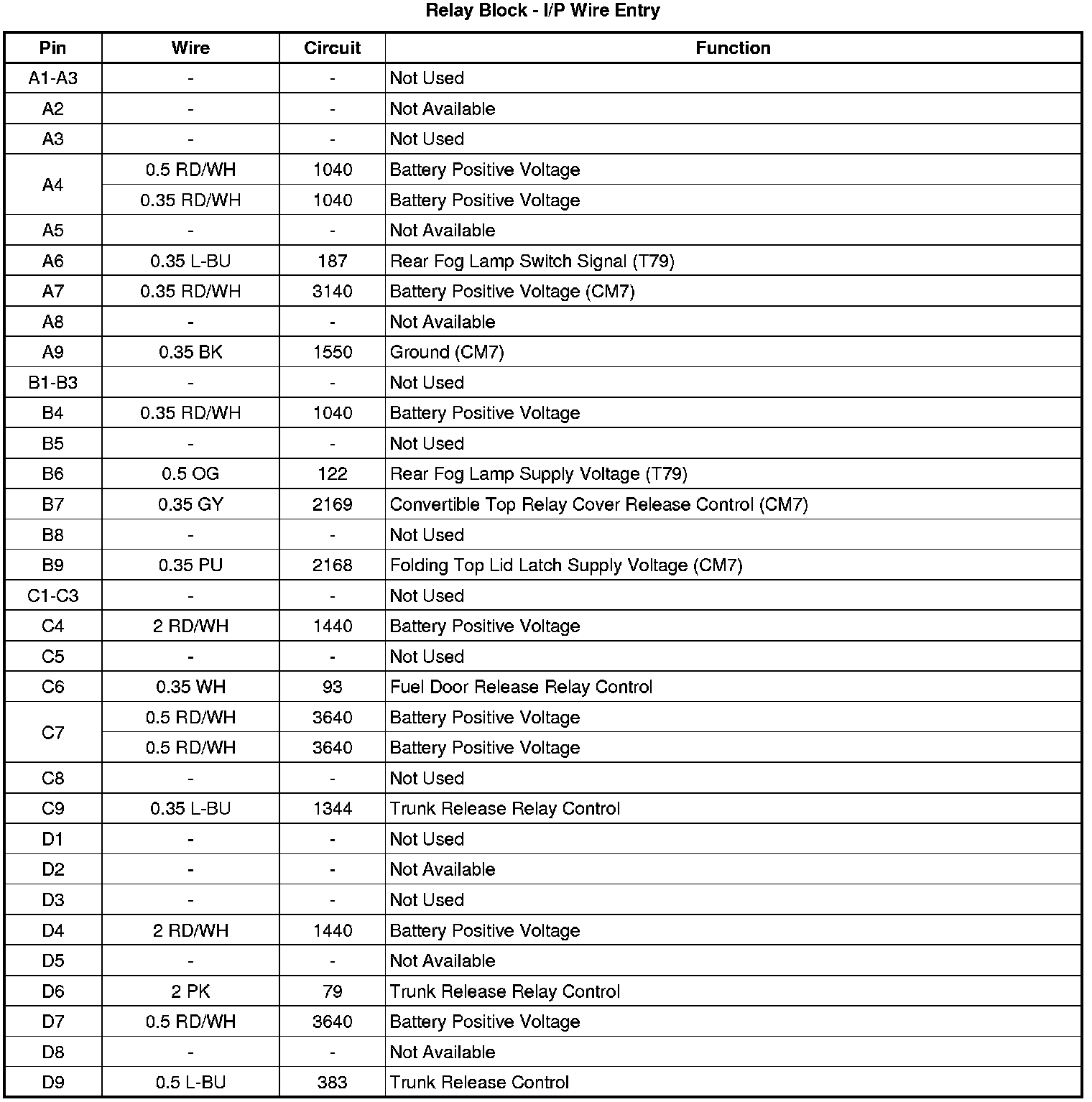

Relay Block - I/P Wire Entry
