Turn Signal Lamp




Component Connector End Views

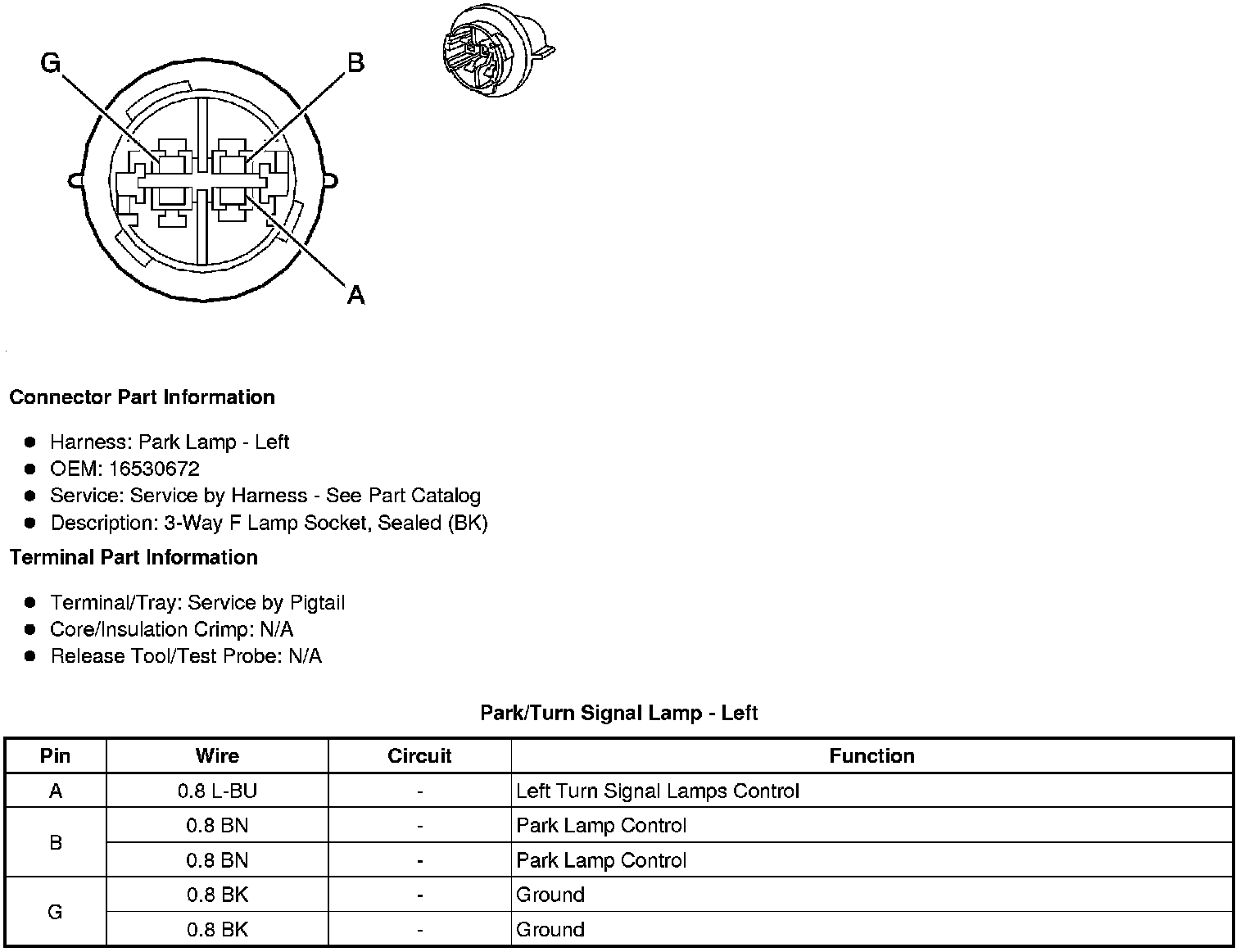

Park/Turn Signal Lamp - Left

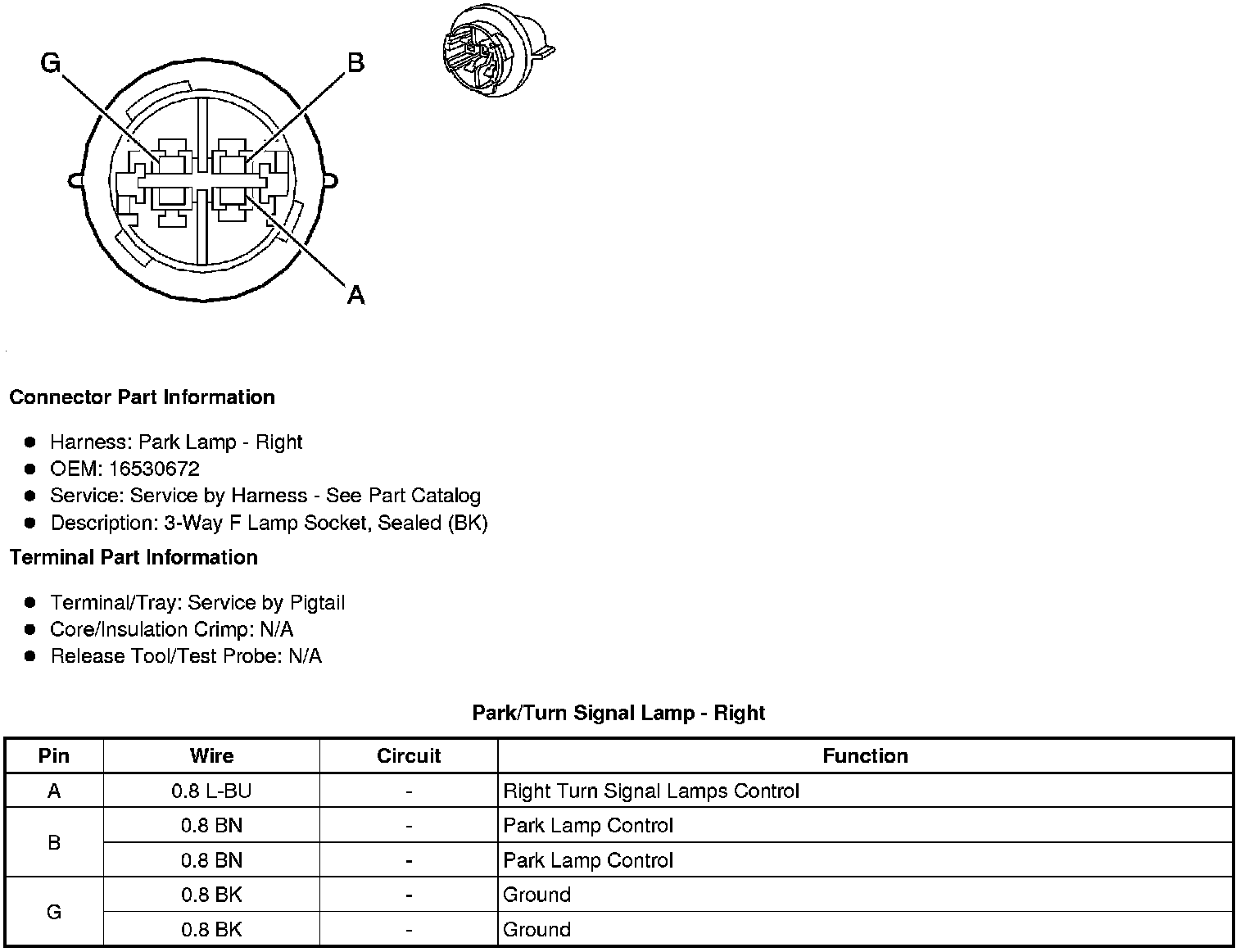

Park/Turn Signal Lamp - Right






Tail/Turn Signal Lamp - Left






Tail/Turn Signal Lamp - Right
