Fuel Injector




Component Connector End Views

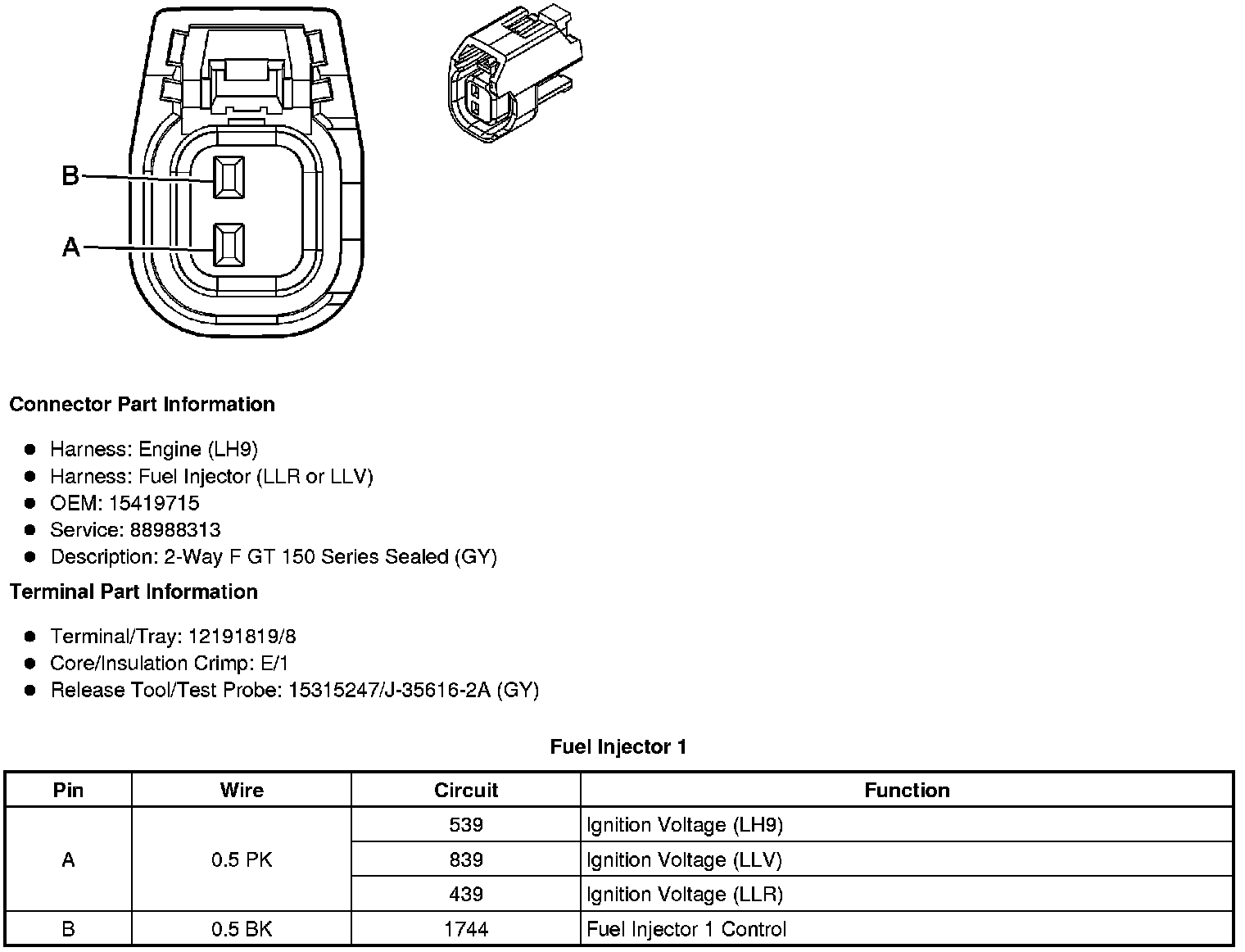

Fuel Injector 1

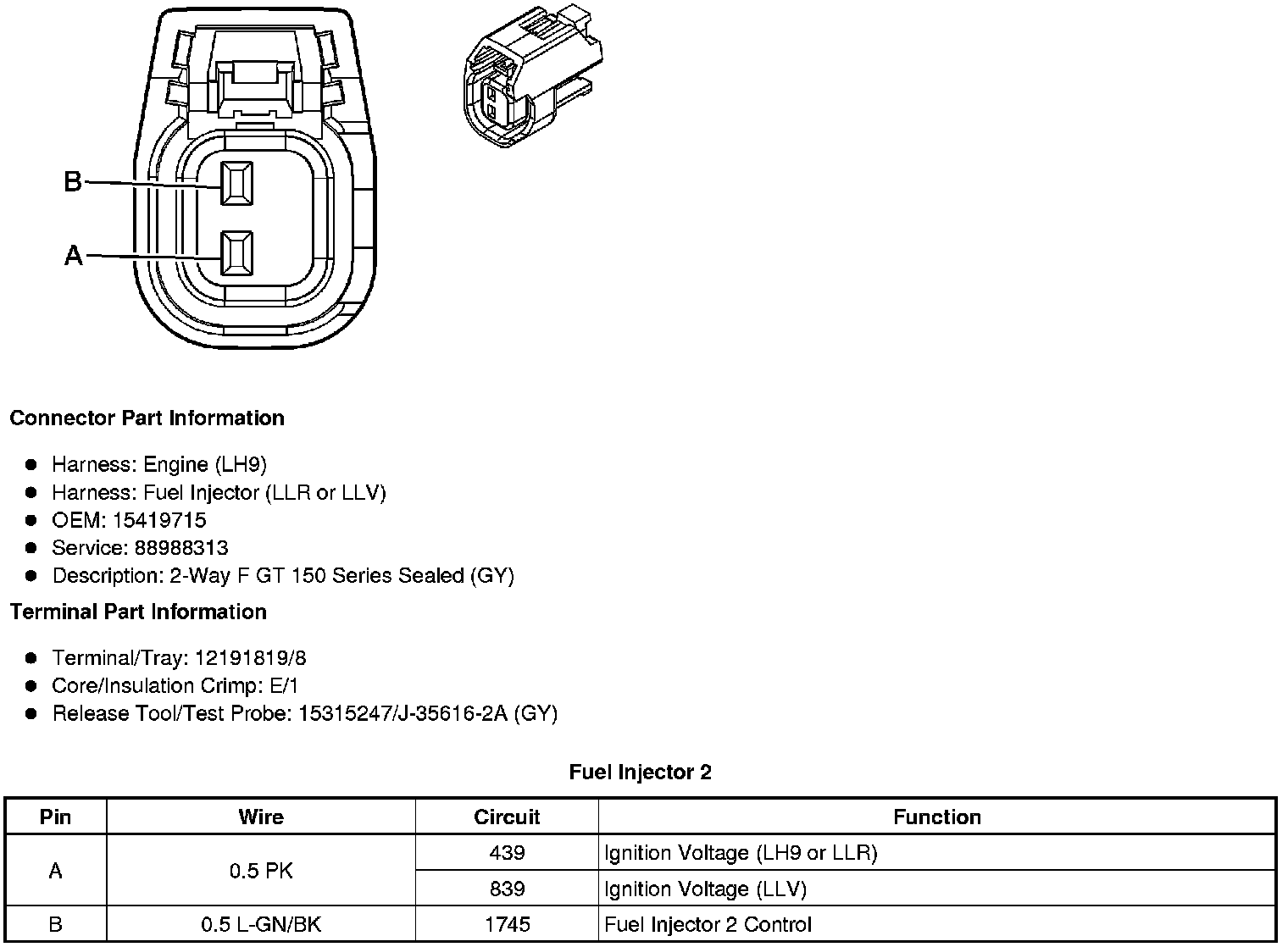

Fuel Injector 2

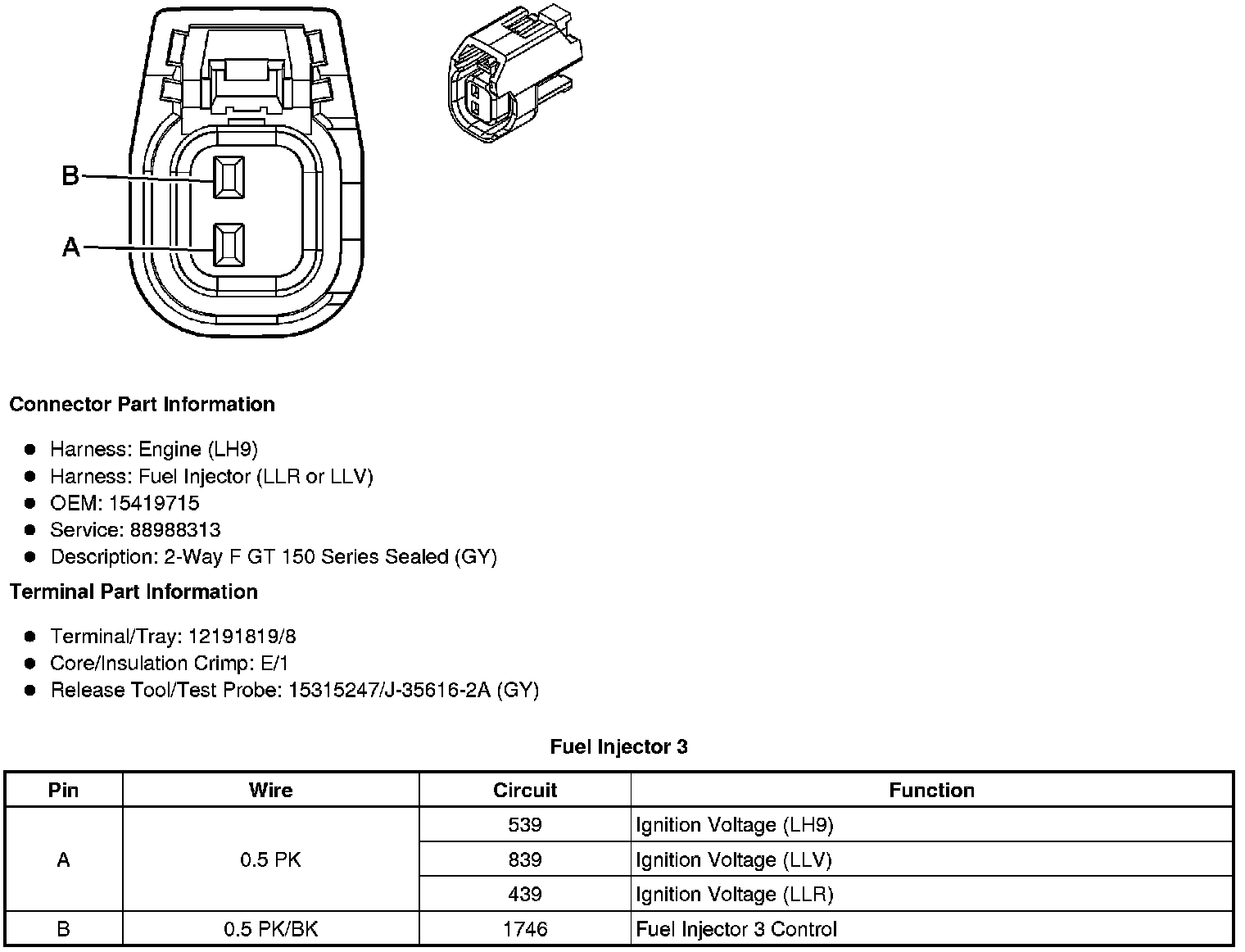

Fuel Injector 3

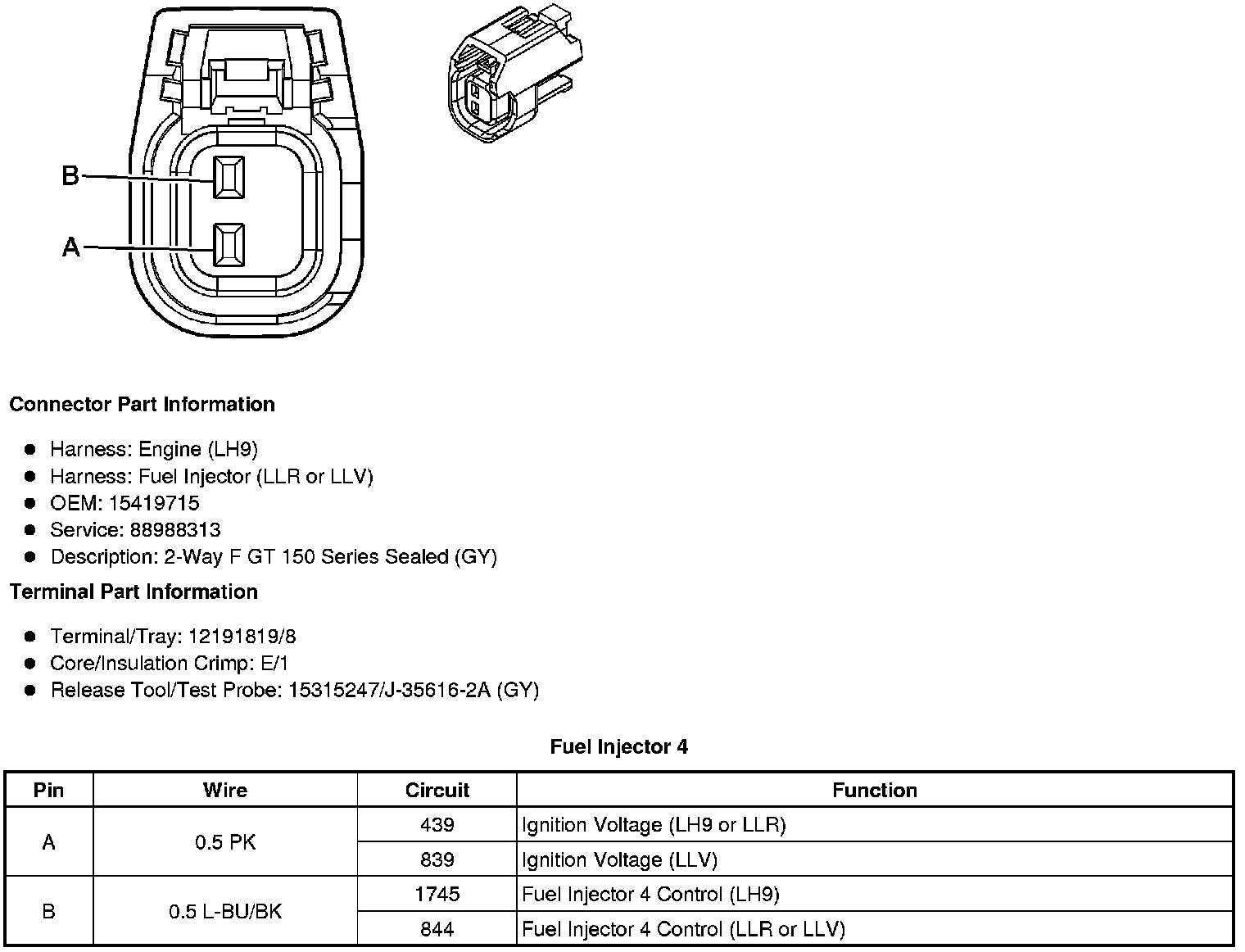

Fuel Injector 4
