LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2010
>>
Colorado 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
Brake Lamp
Component Connector End Views

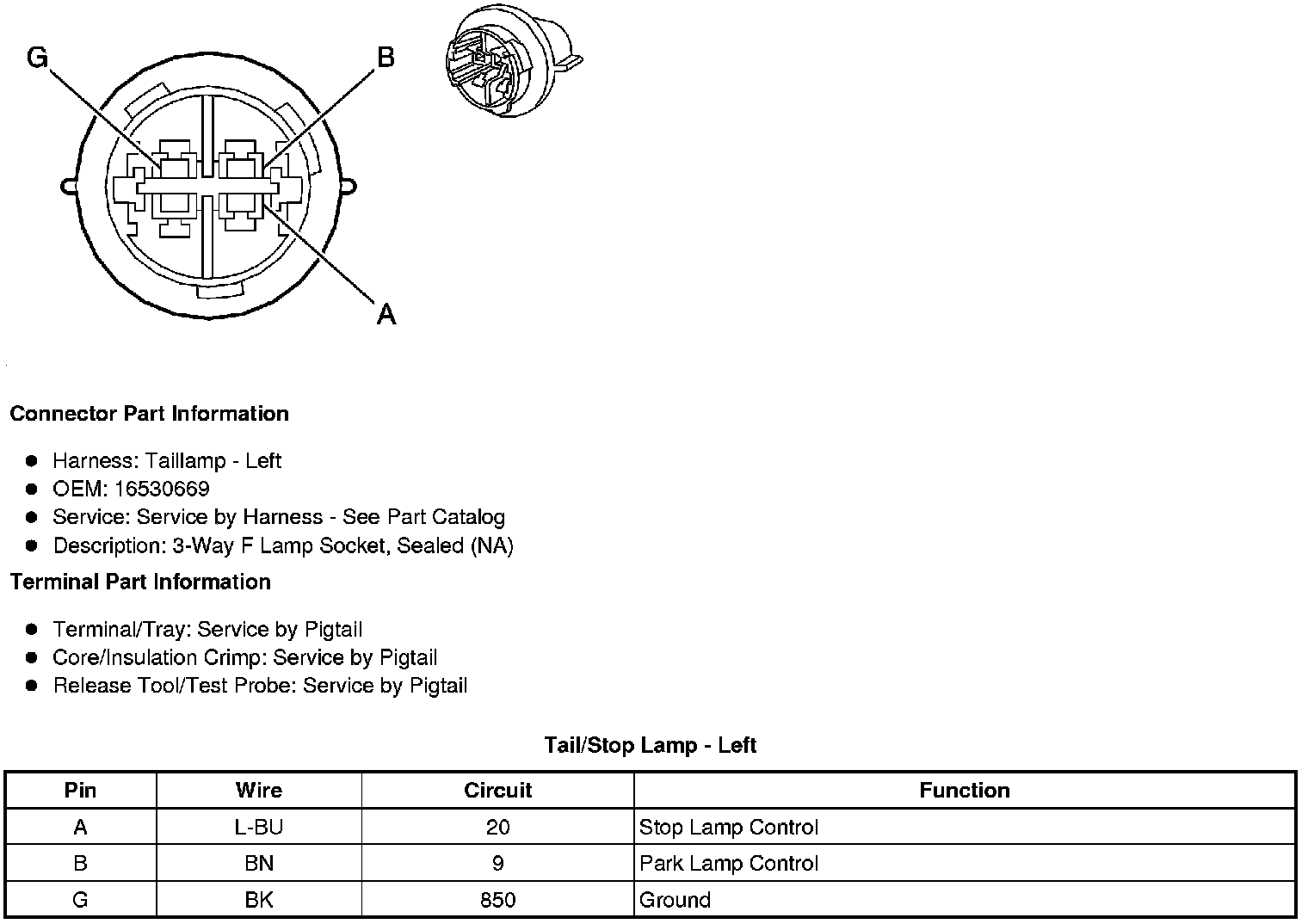

Tail/Stop Lamp - Left

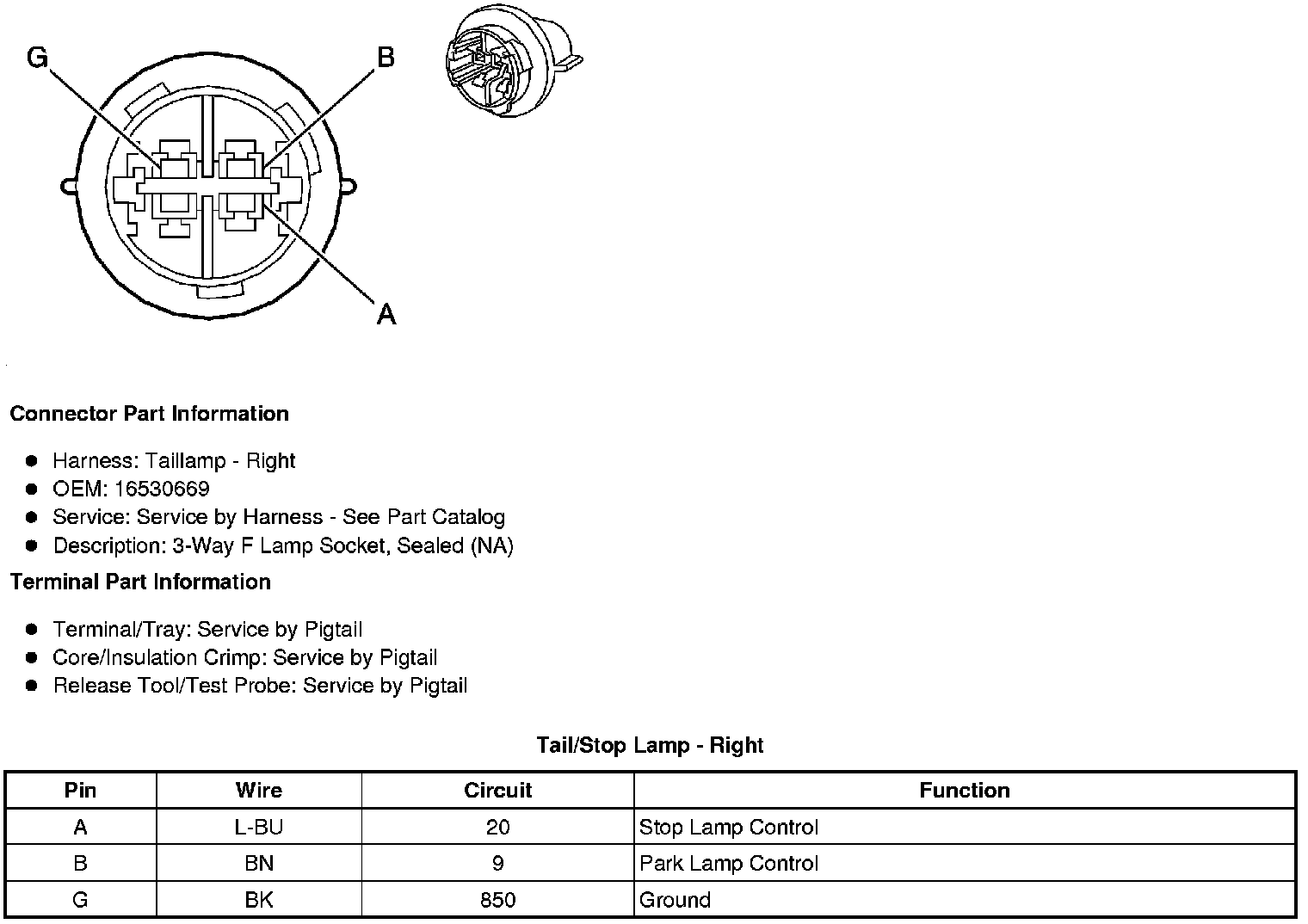

Tail/Stop Lamp - Right
