Alternator: Diagrams




Component Connector End Views

Generator X1 (LAP)

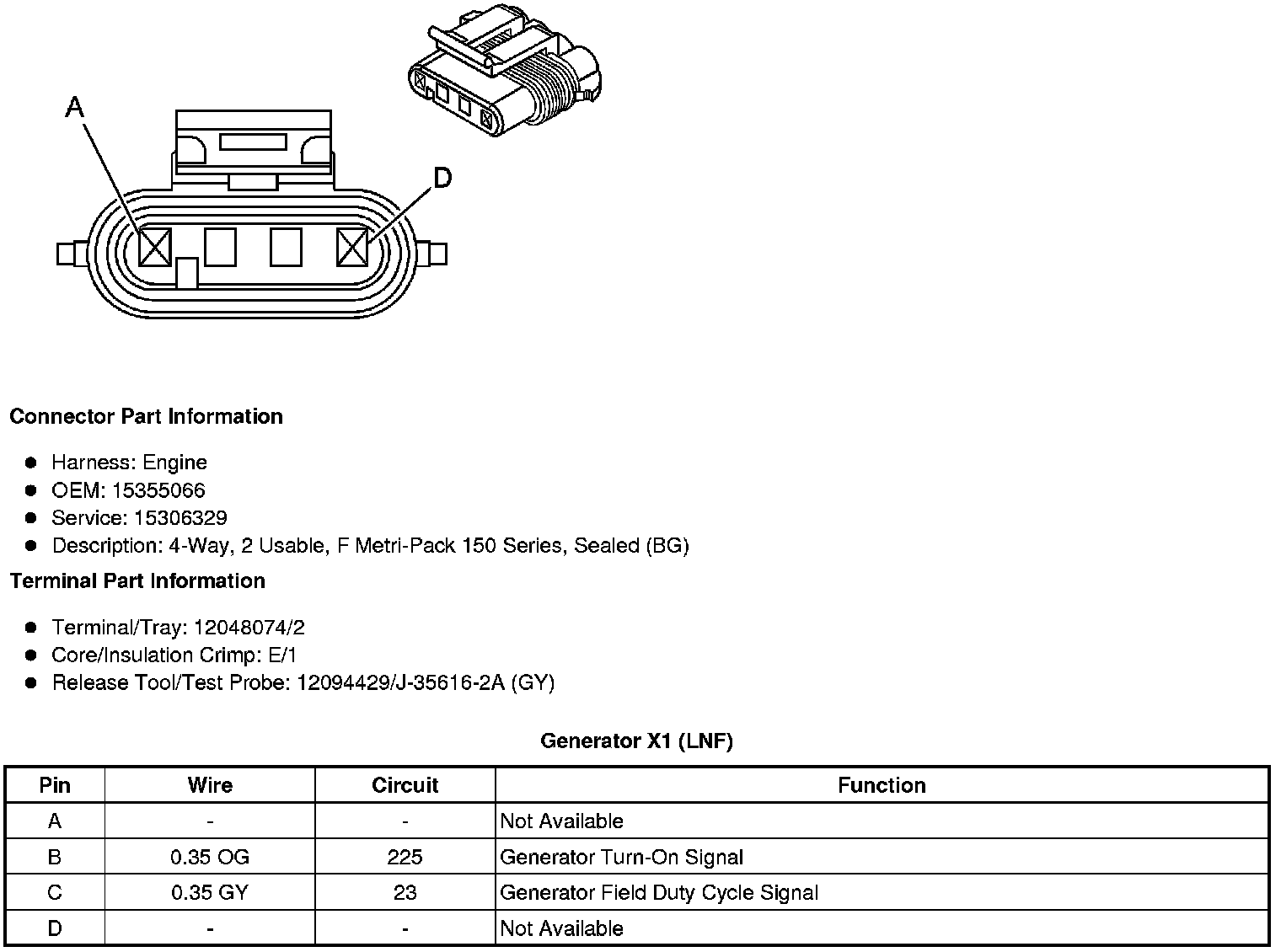

Generator X1 (LNF)





Generator X2 (to Starter)
