Power Trunk / Liftgate Lock Actuator

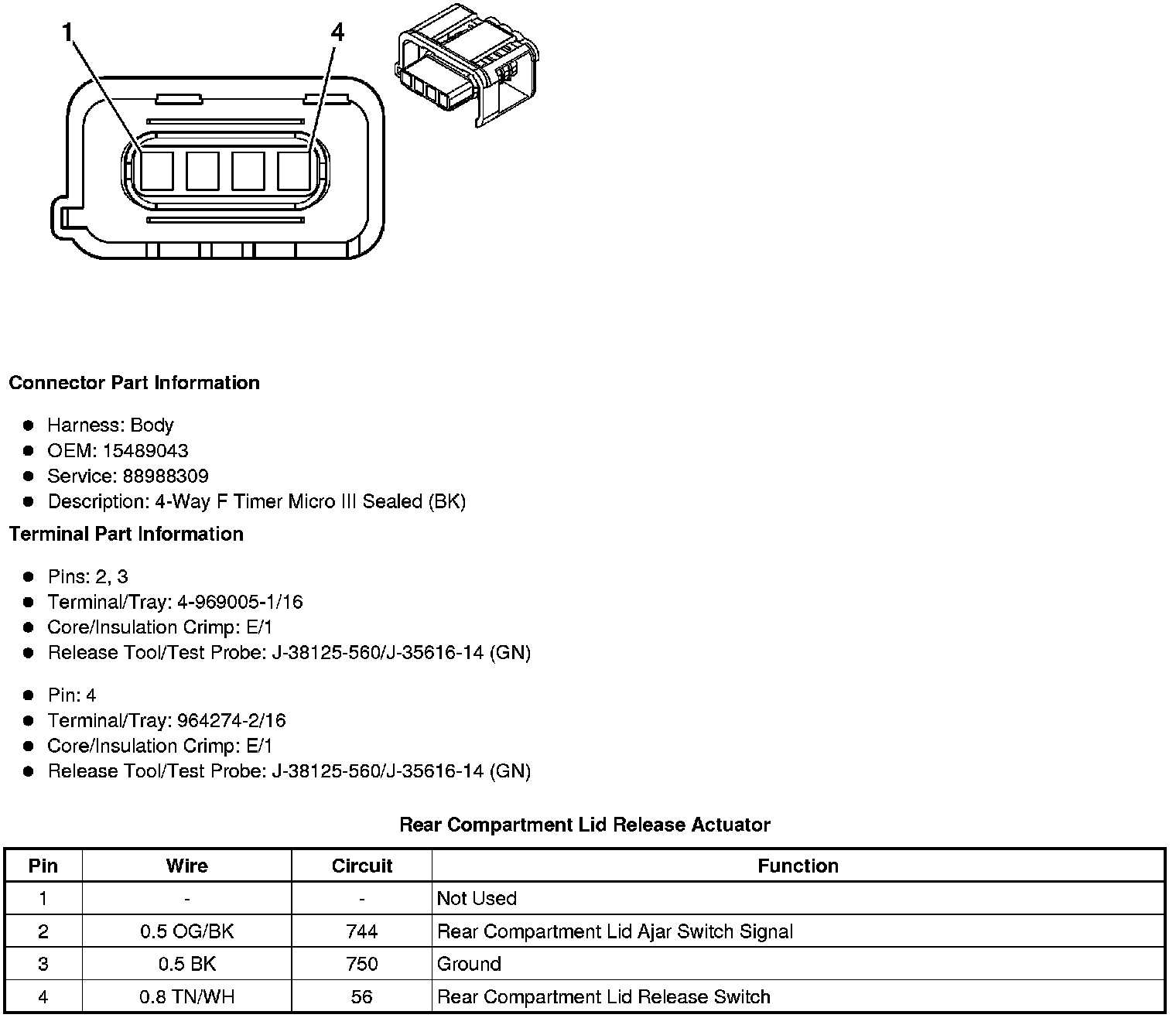

Component Connector End Views

Rear Compartment Lid Release Actuator
