Crankshaft Position Sensor: Diagrams

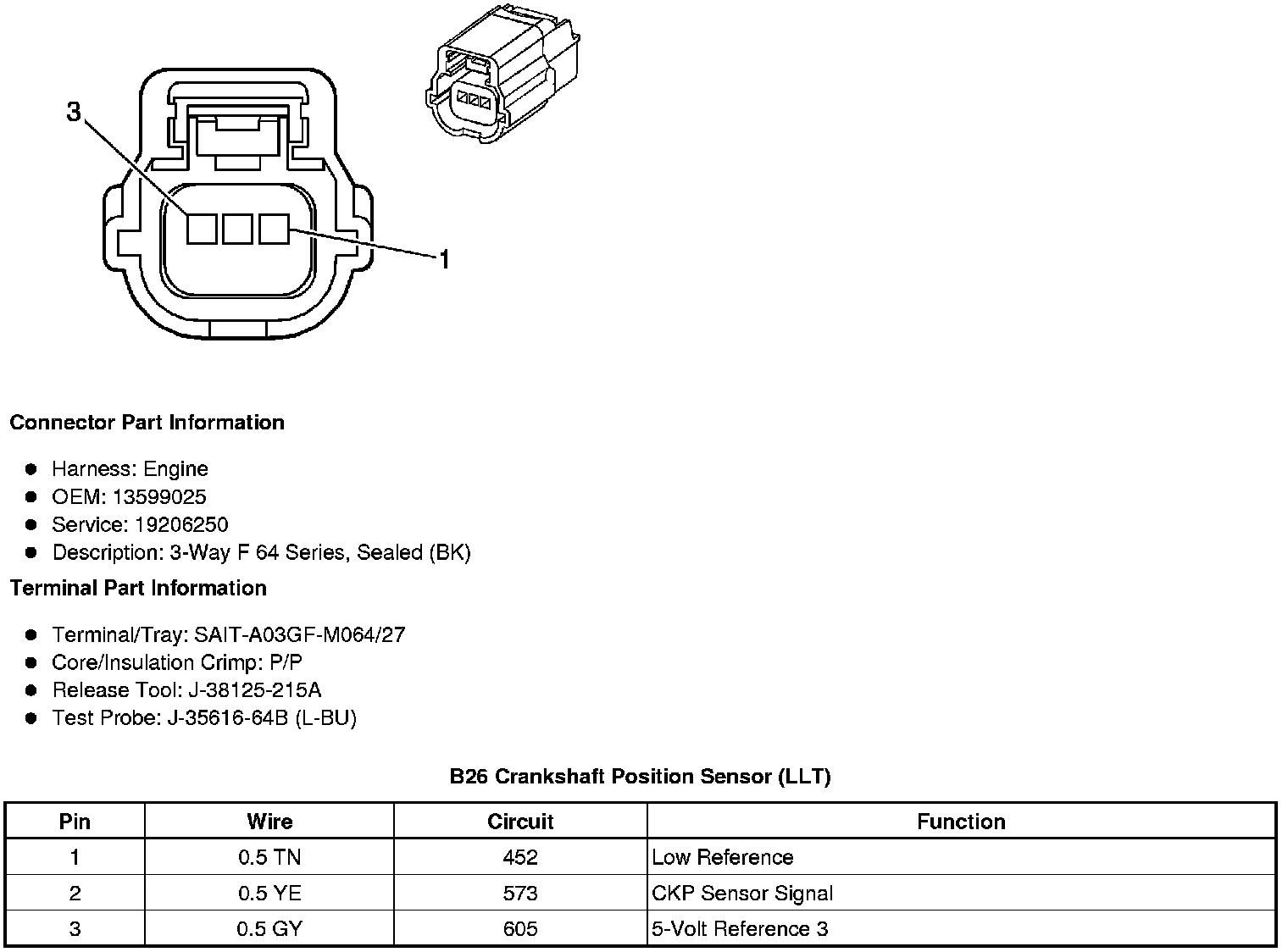

B26 Crankshaft Position Sensor (LLT)

RPO LLT - Engine VIN V Gas, 6 Cylinder, 3.6L, SIDI, V6, Aluminum, 60 Degrees, GM
