Fog/Driving Lamp




Component Connector End Views

Fog Lamp - Left Front (T96)

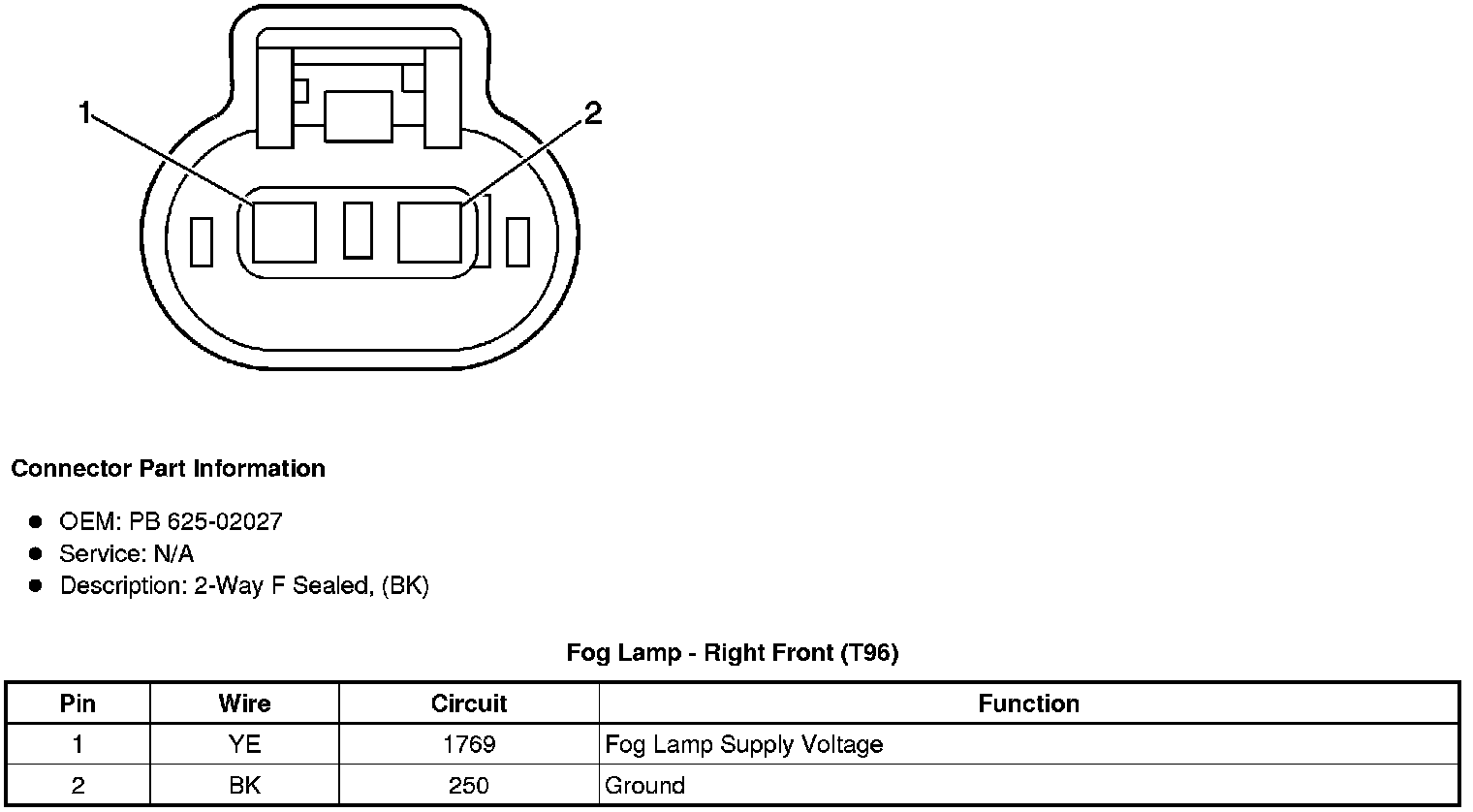

Fog Lamp - Right Front (T96)

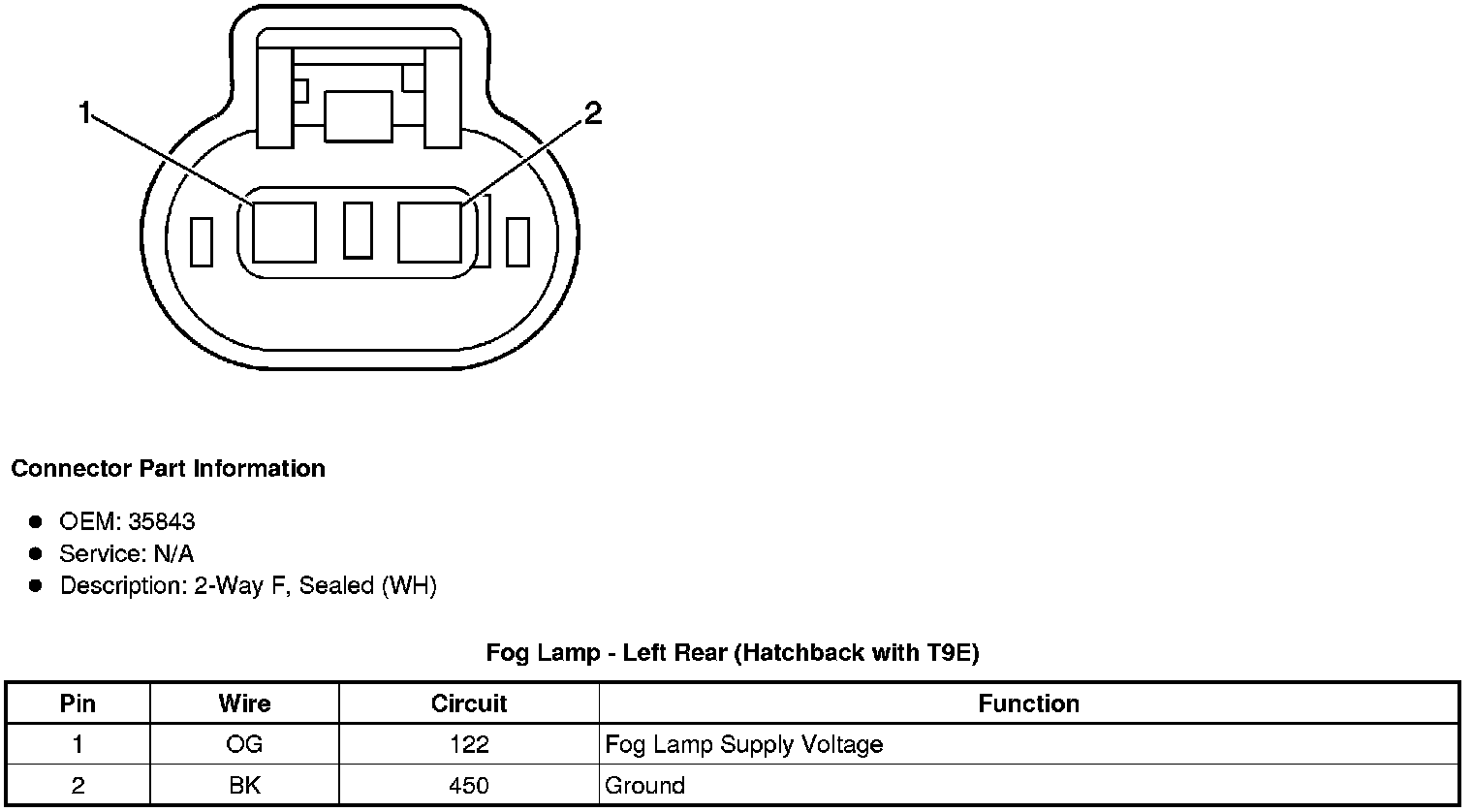

Fog Lamp - Left Rear (Hatchback with T9E)
