Cellular Phone Microphone
Cellular Phone Microphone
Component Connector End Views

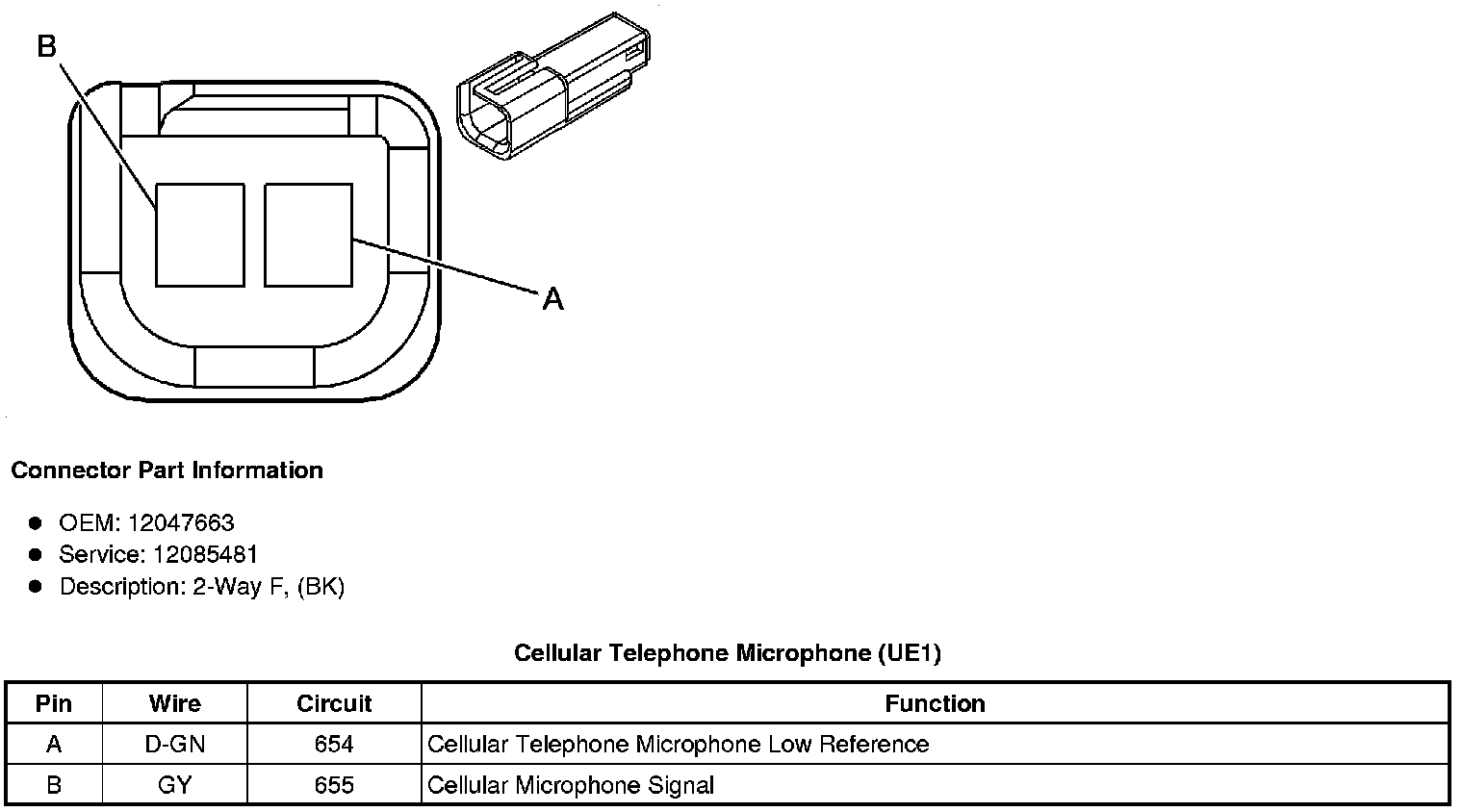

Cellular Telephone Microphone (UE1)

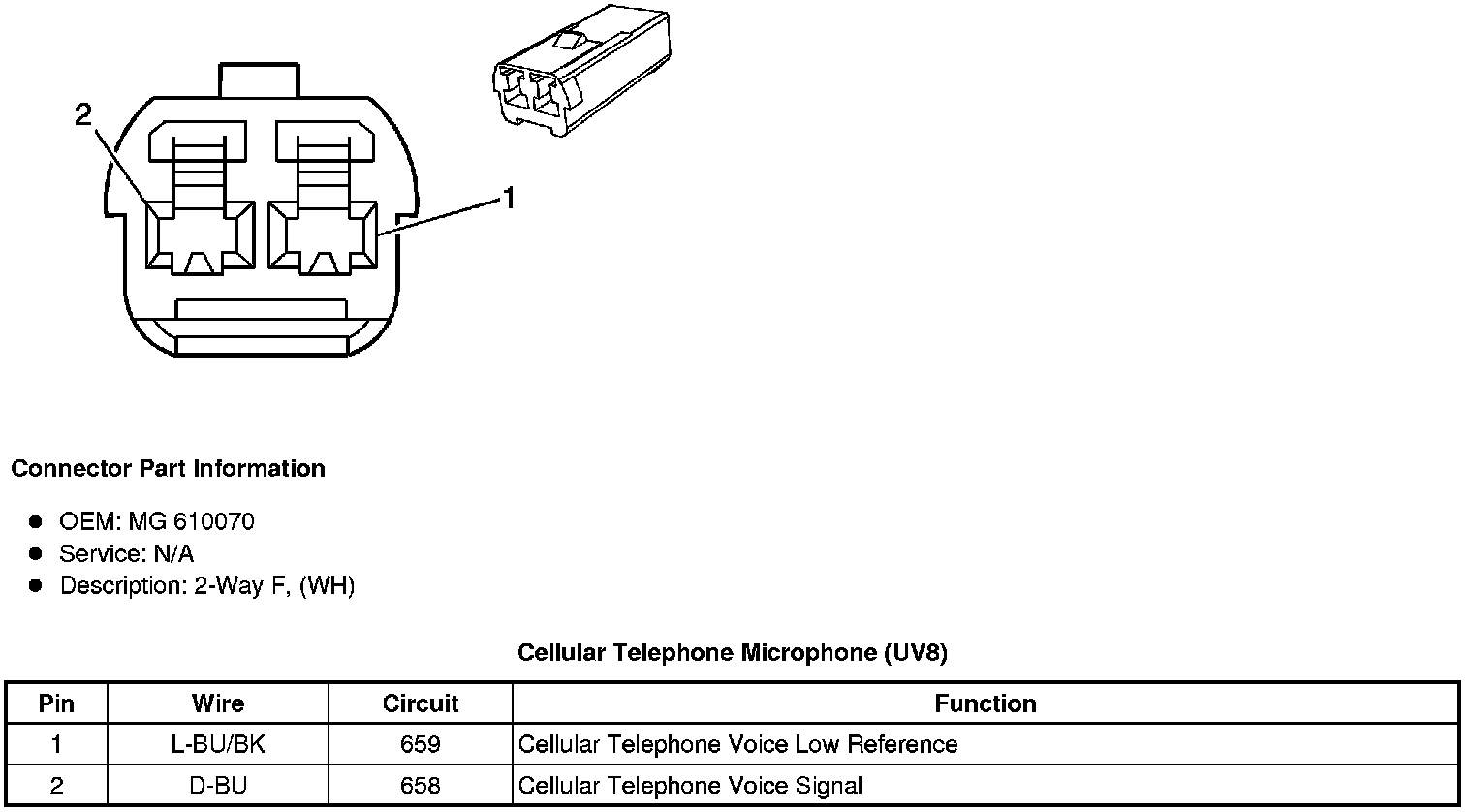

Cellular Telephone Microphone (UV8)
